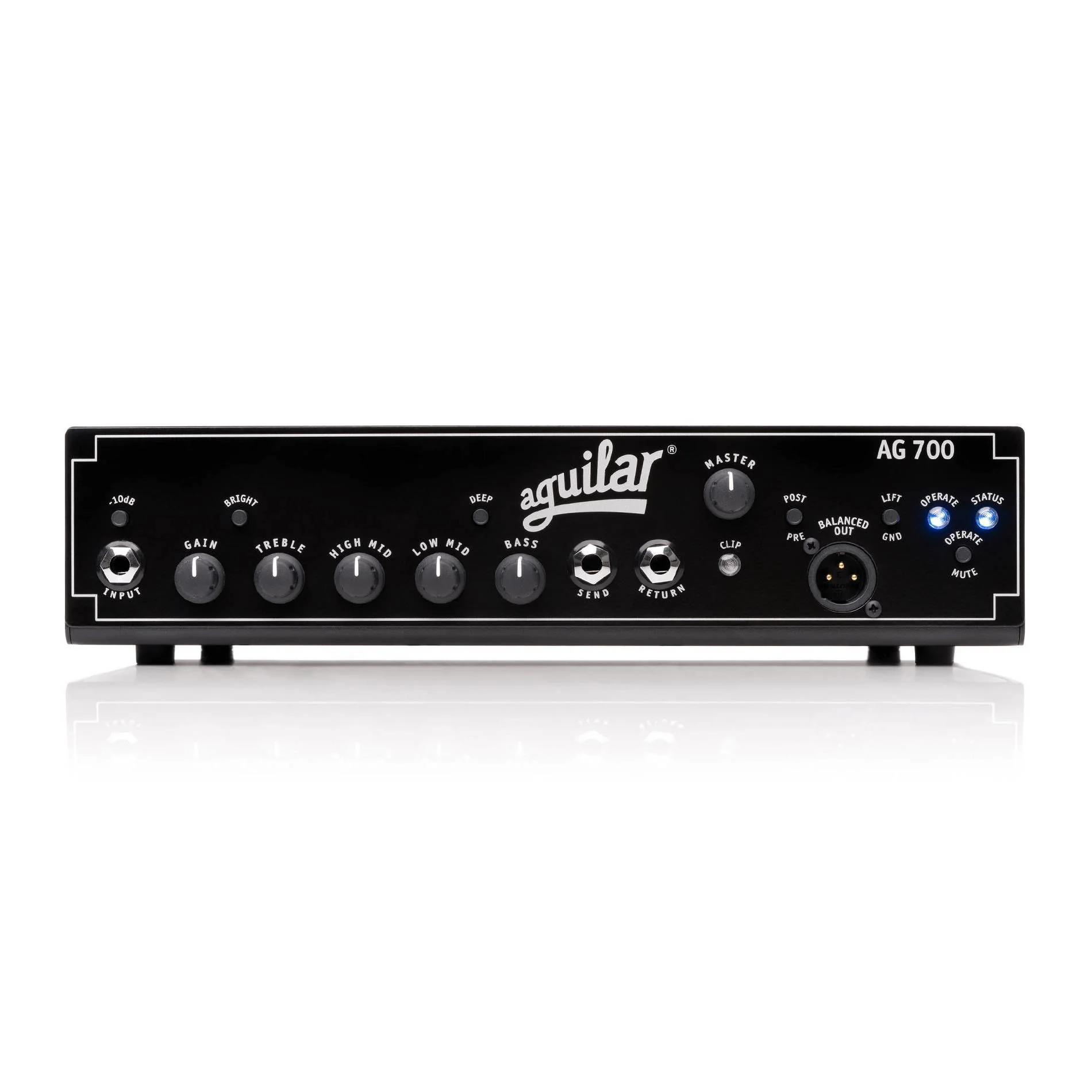

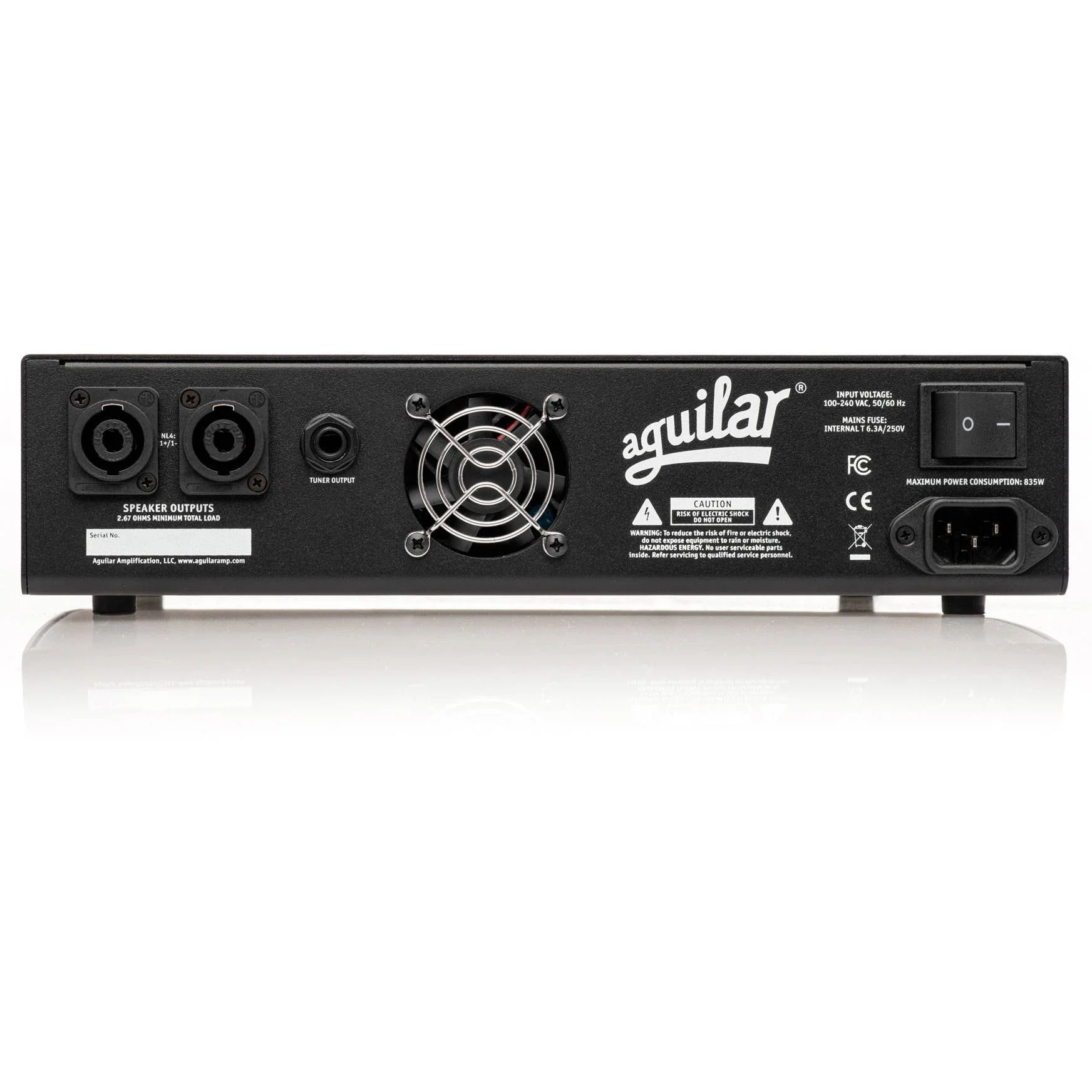

Boasting an incredibly flexible EQ section, the AG 700 features controls for Treble, High Mid, Low Mid and Bass along with Deep and Bright EQ switches for a broadband boost. The AG 700 also features a series effects loop, XLR balanced output and two rear panel speakon outputs.

---

Specifications

• Power Output: 700 watts @ 2.67 or 4 ohms, 350 watts @ 8 ohms
• Preamp Section: Solid State
• Power Section: Class D
• Transformer: Switching mode power supply (SMPS)
• EQ Section:

  • Bass: +/- 17 dB @ 40 Hz
  • Deep: +6 dB <250 Hz
  • Low Mid: +/- 15 dB @ 300 Hz
  • High Mid: +/- 14dB @ 800 Hz
  • Treble: +/- 14 dB @ 4 kHz
  • Bright: +6 dB >3 kHz, shelving
• -10dB input pad
• Tuner output
• Inputs: One 1/4″ input jack, compatible with all active and passive basses
• Speaker Outputs: Two Neutrik Speakon speaker outputs
• Effects Loop: Series operation. Adds 6 dB of additional gain, making it useful for a broad range of effects units
• Balanced Output: XLR balanced output with pre/post EQ and ground lift switch
• Cooling: Two high-quality whisper fans with thermal speed control
• Dimensions: 12″ W x 9″ D x 3″ H
• Weight: 4.9 lbs
• Warranty: Three year limited

---
