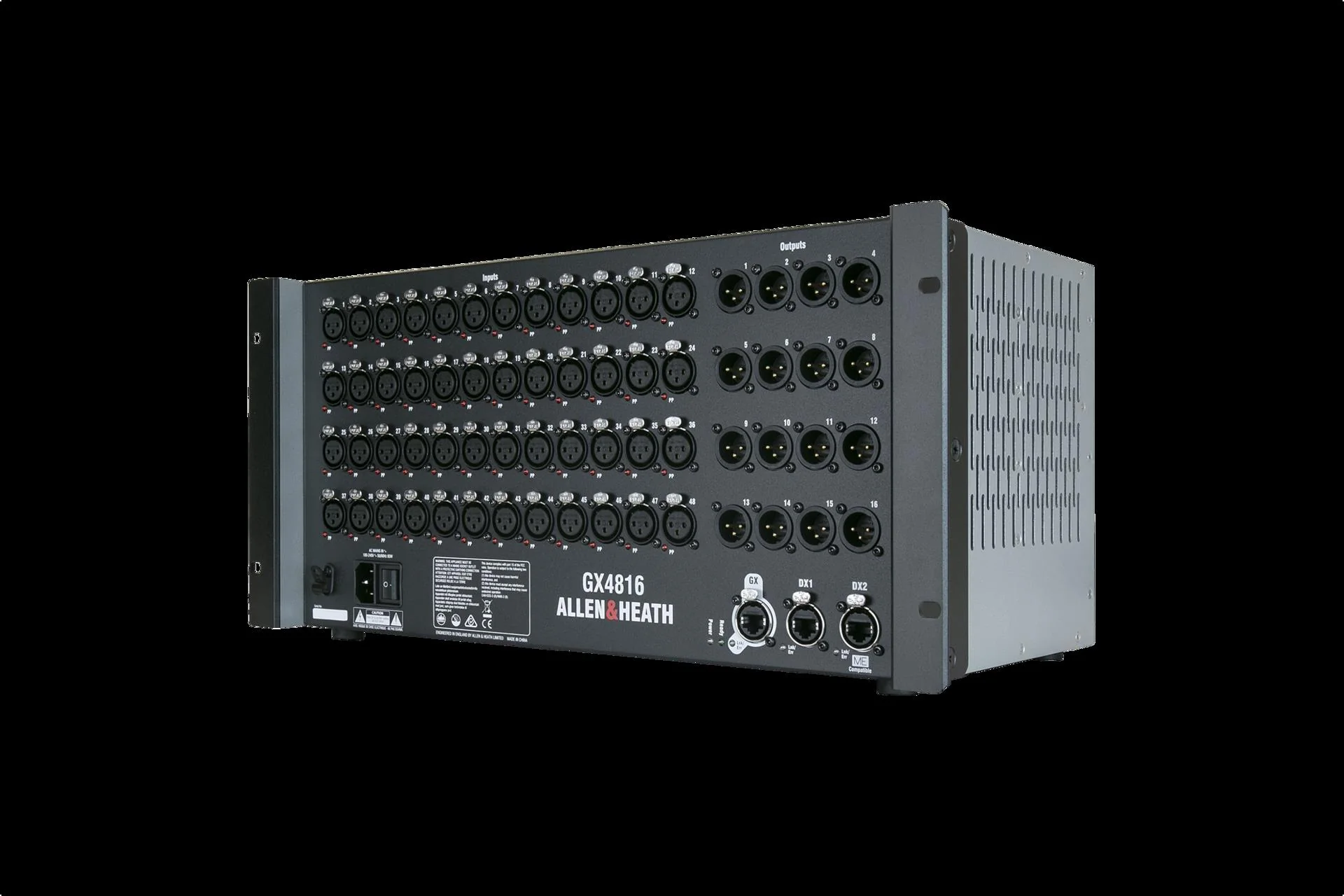

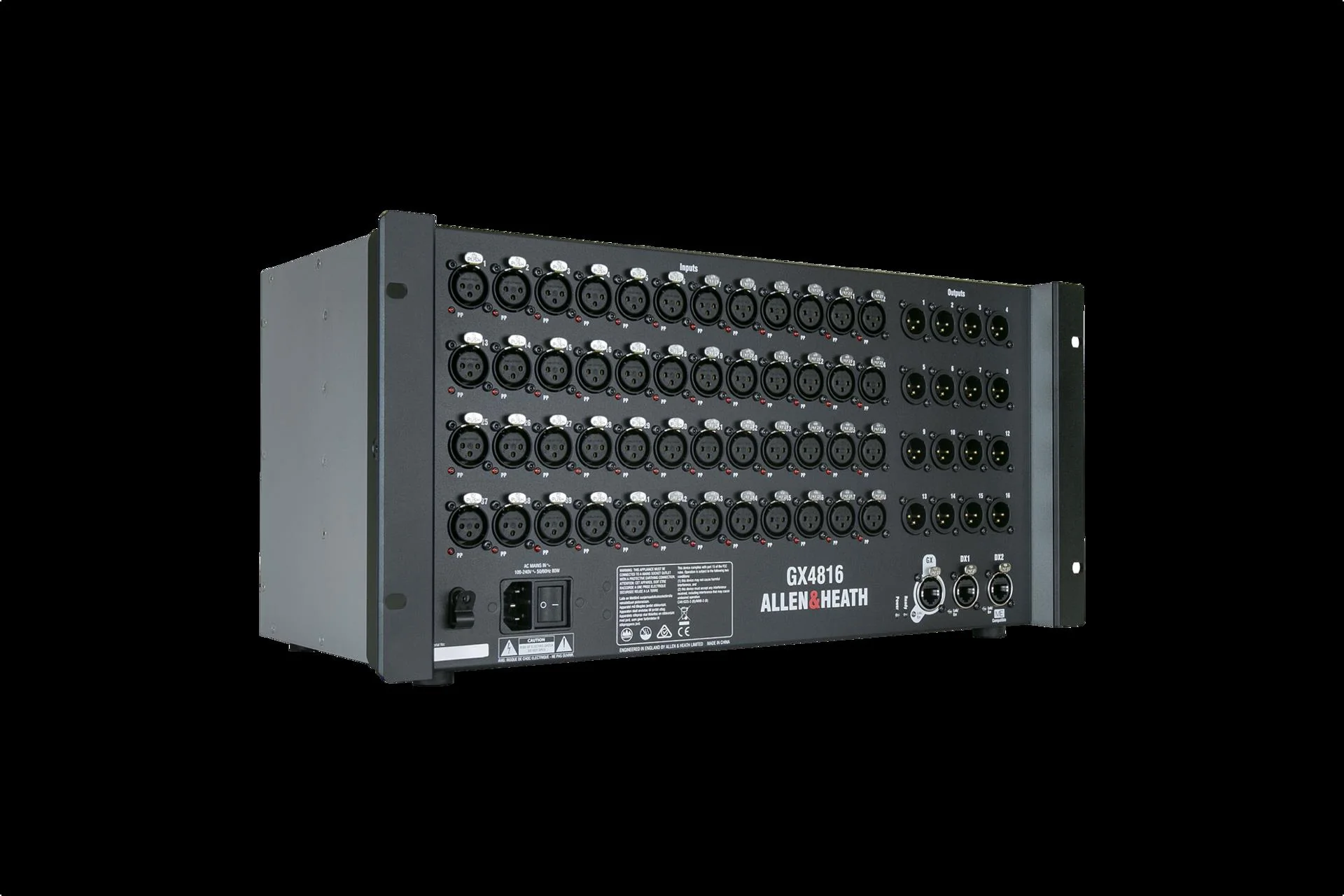

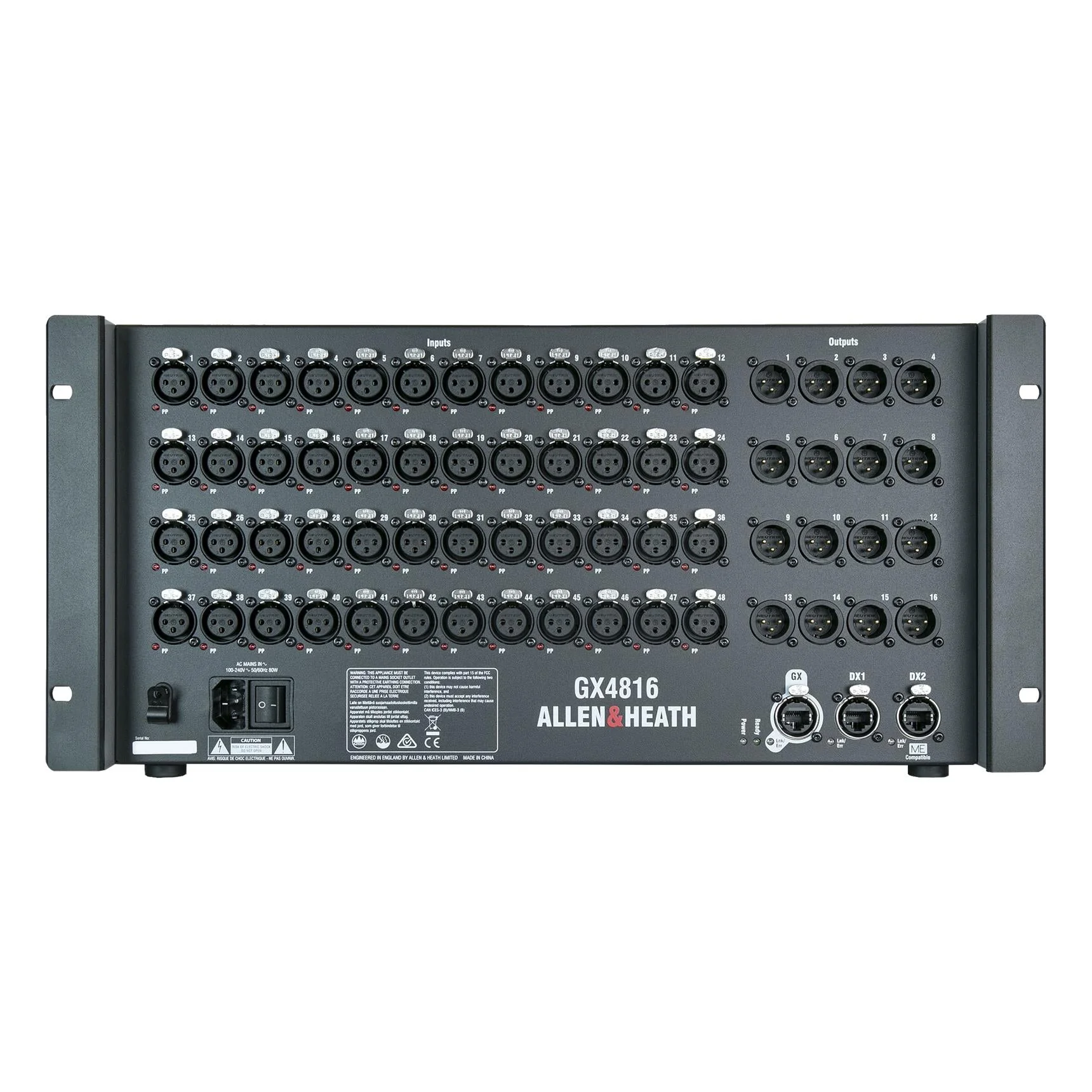

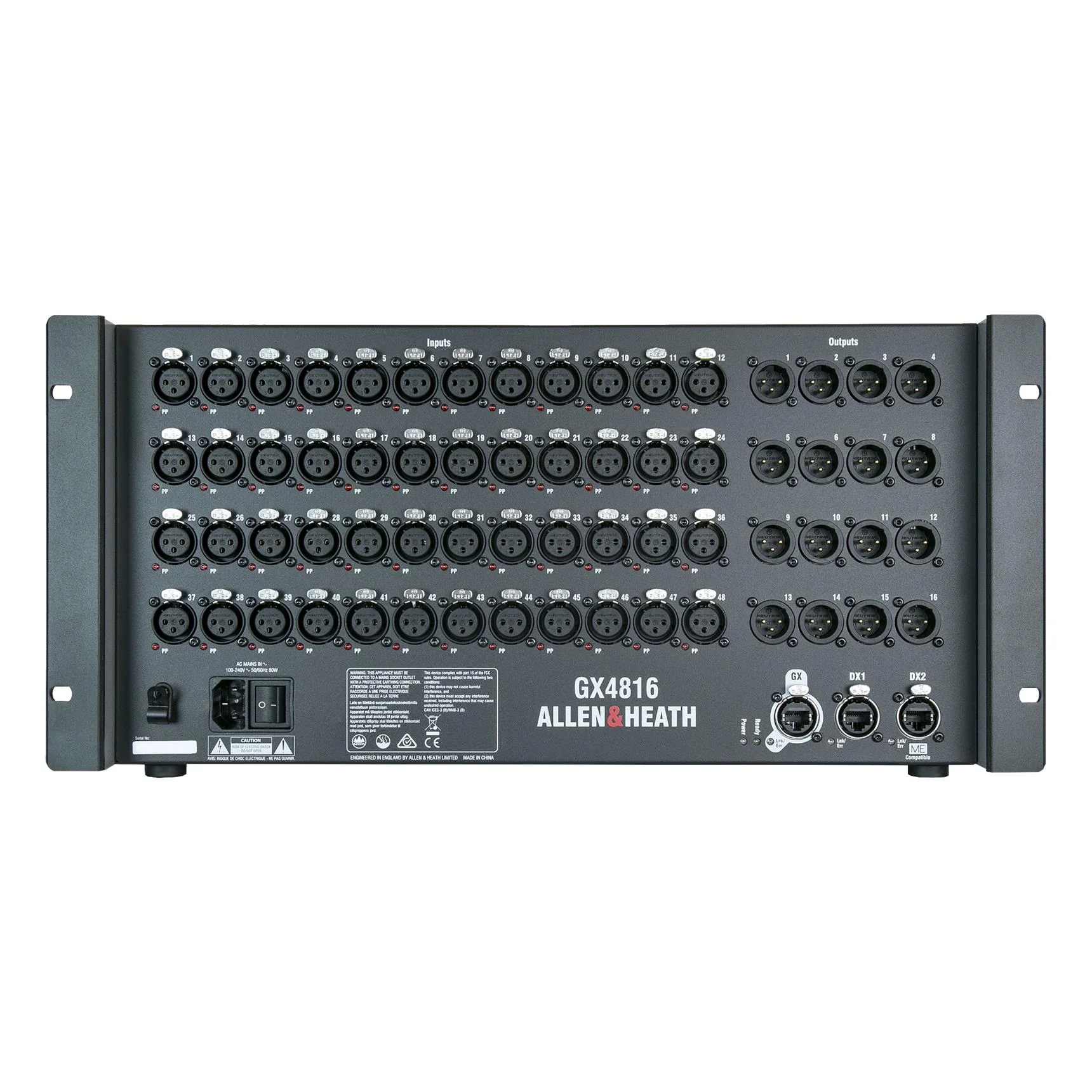

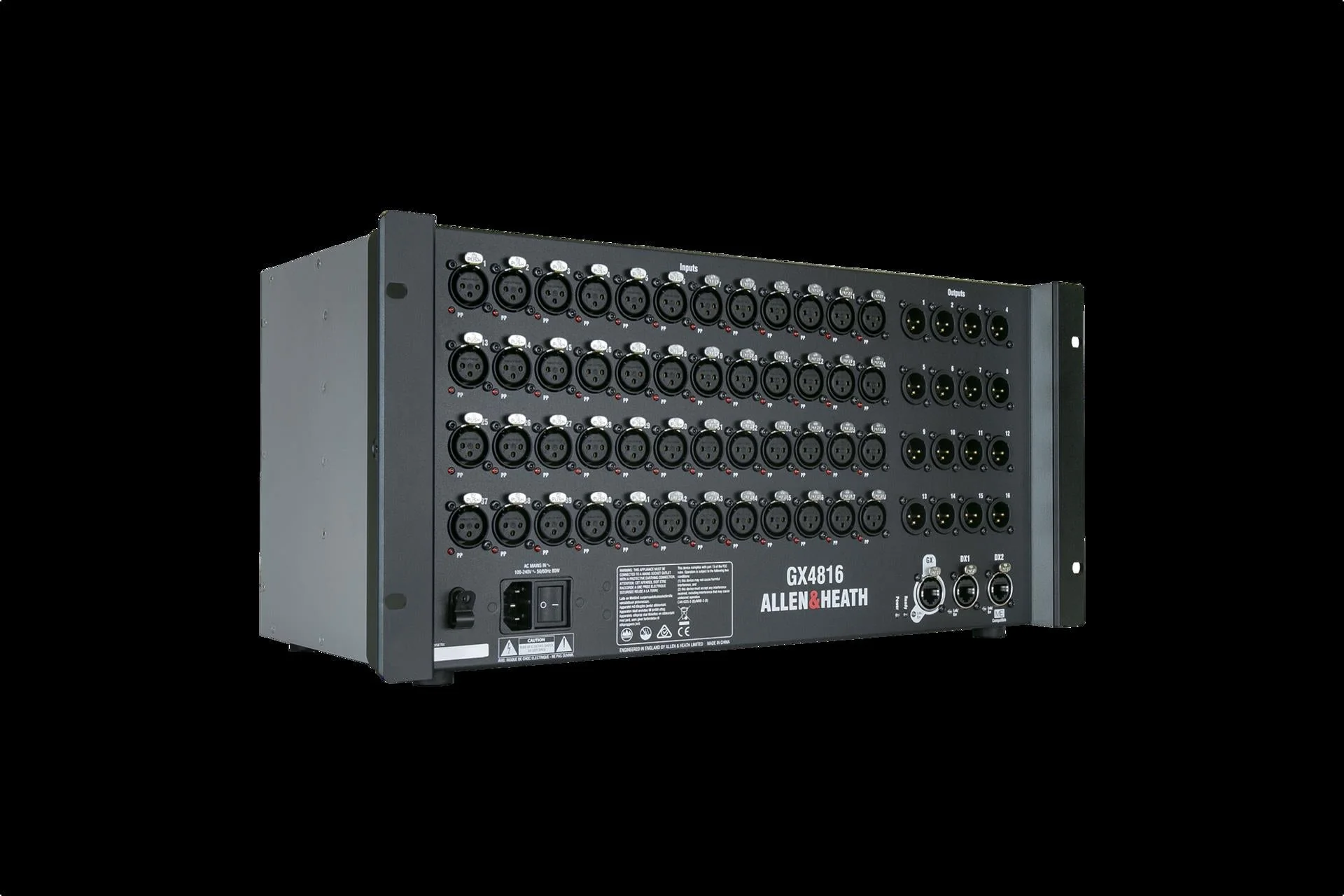

Allen & Heath 48 XLR Input / 16 XLR Output Portable GX Expander with DX Sockets (SQ/Avantis/dLive)
Allen & Heath 48 XLR Input / 16 XLR Output Portable GX Expander with DX Sockets (SQ/Avantis/dLive)
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ or Avantis, or to a gigaACE audio network card on a dLive system.
Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Features
- 48 Mic Preamps on XLR with Phantom Power status LEDs
- 16 XLR Line Outs
- 96kHz operation
- DX1 Port – compatible with a single DX32, or up to 2 DX168/DX164-W expanders
- DX2/ME Port – compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system.
- Compatible with SQ, Avantis and dLive (firmware 1.9 onwards) systems
- Multiple GX4816 can be added to a system:
- Up to 2 GX4816 units can be added to a SQ system
- Up to 2 GX4816 units can be added to an Avantis system
- Up to 5 GX4816 units can be added to a dLive S Class system
- Up to 3 GX4816 units can be added to a dLive C Class system
- Rack-mounted (5u) or shelf/floor operation
- Plug and Play – no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m
- Locking EtherCon ports
Specifications
Inputs
- Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN: -127dB with 150Ω source
- Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
Outputs
- Analogue XLR Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +21dBu
- Residual Output Noise: -95dBu (muted, 22Hz-22kHz)
Power
- Mains Voltage Operating Range: 100-240V AC, 50/60Hz
- Mains Power Consumption: 80W max
Temperature
- Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
Dimensions and Weights
- GX4816 (WxDxHxW): 481.6 x 255 x 229.5 mm x 8kg
- GX4816 Boxed (WxDxHxW): 560 x 385 x 310 mm x 10kg
