Features

• 16×16 Processing Matrix Flexible routing with configurable processing on all 16 outputs.

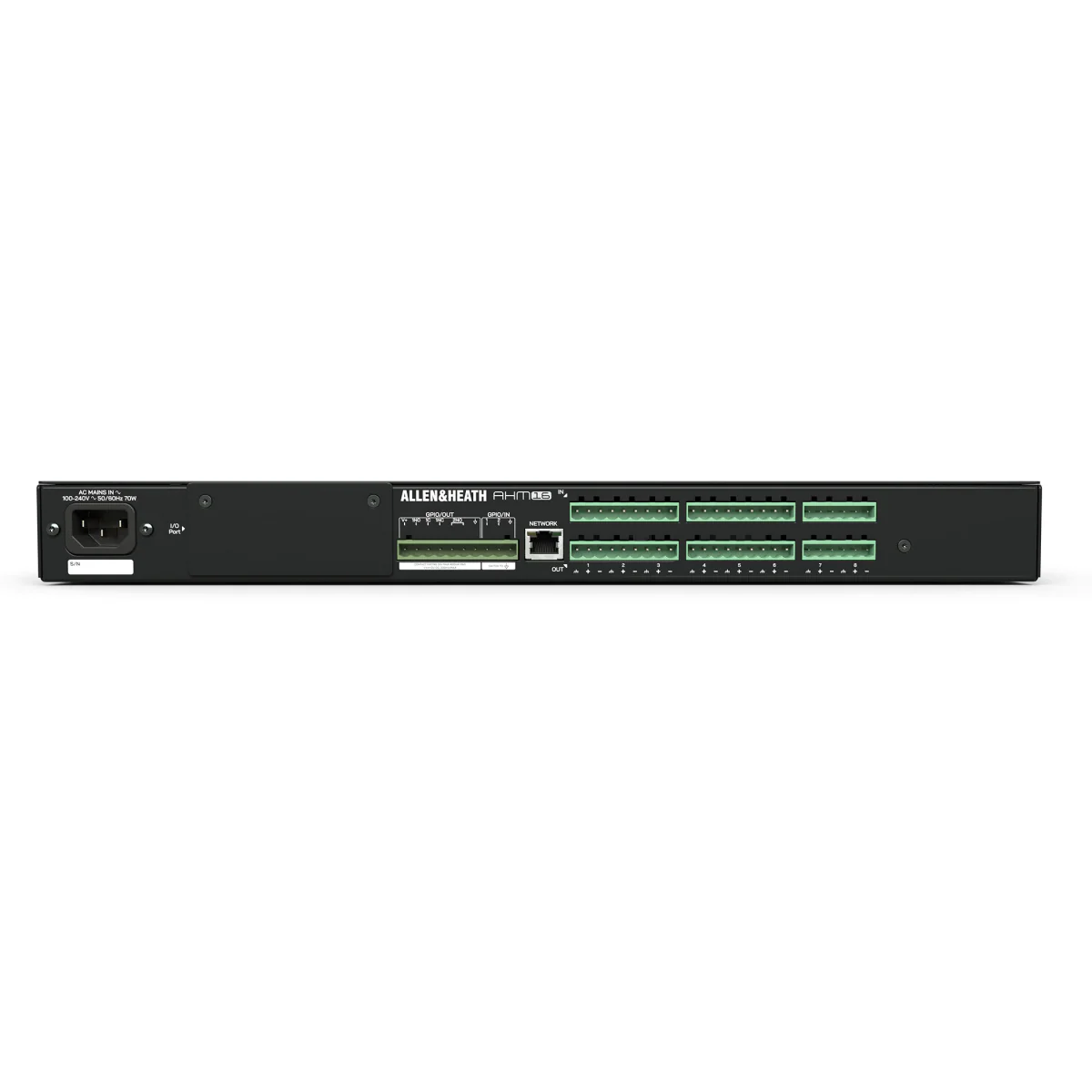

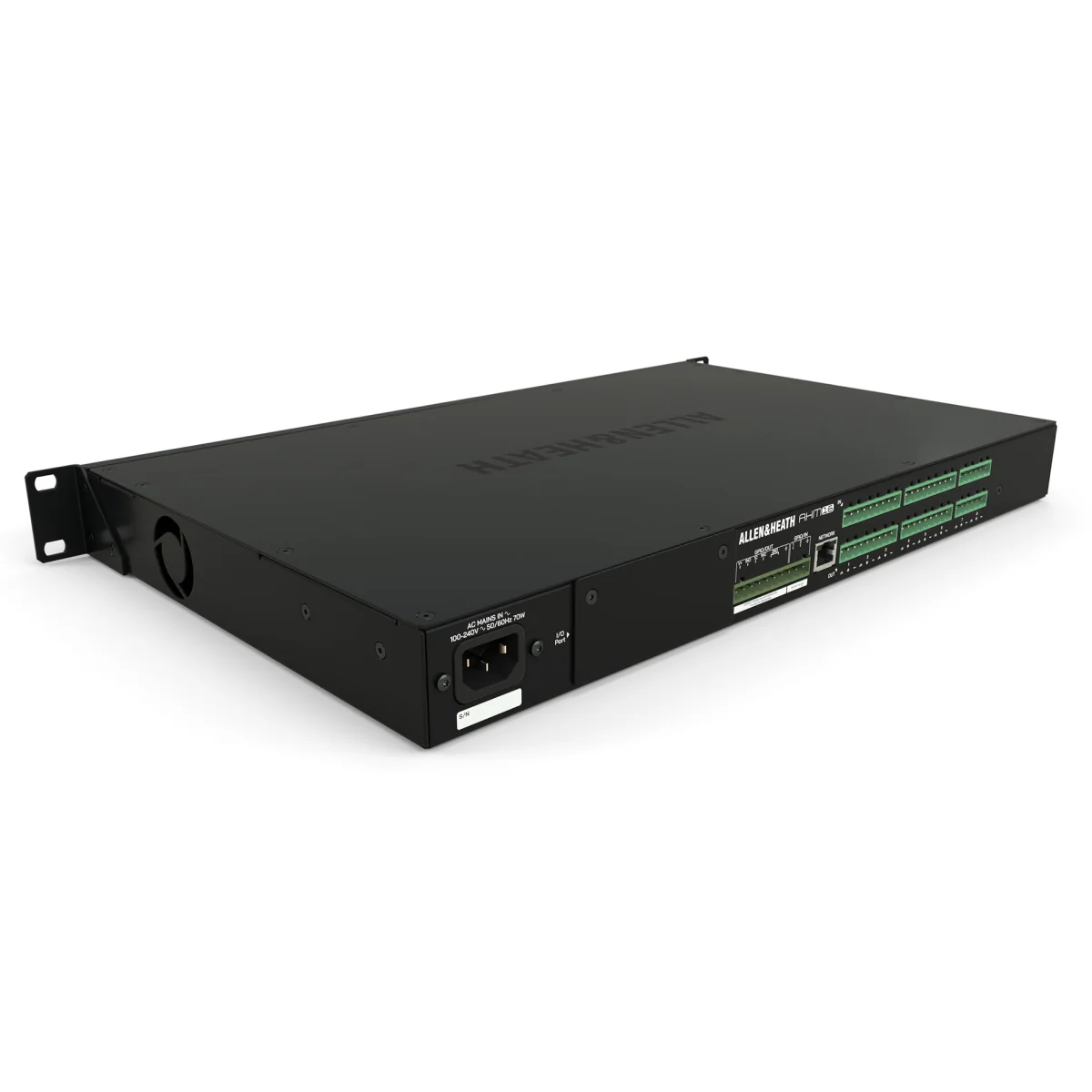

• 8×8 Local Analogue I/O 8x mic/line inputs and 8x relay protected line outputs on Phoenix connectors.
• Audio Networking I/O Port Card options include Dante, MADI, Waves and SLink.

Specifications

• Feature Summary:
  • 16×16 Processing Matrix
  • 8×8 Local Analogue I/O
  • I/O Port for Audio Networking (Up to 128×128)
  • Dante 96kHz Option Card (AES67 and DDM Ready)
  • SLink 128×128 Option Card for Audio Expansion
  • 16 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing
  • 96kHz FPGA Core With Ultra-low Latency

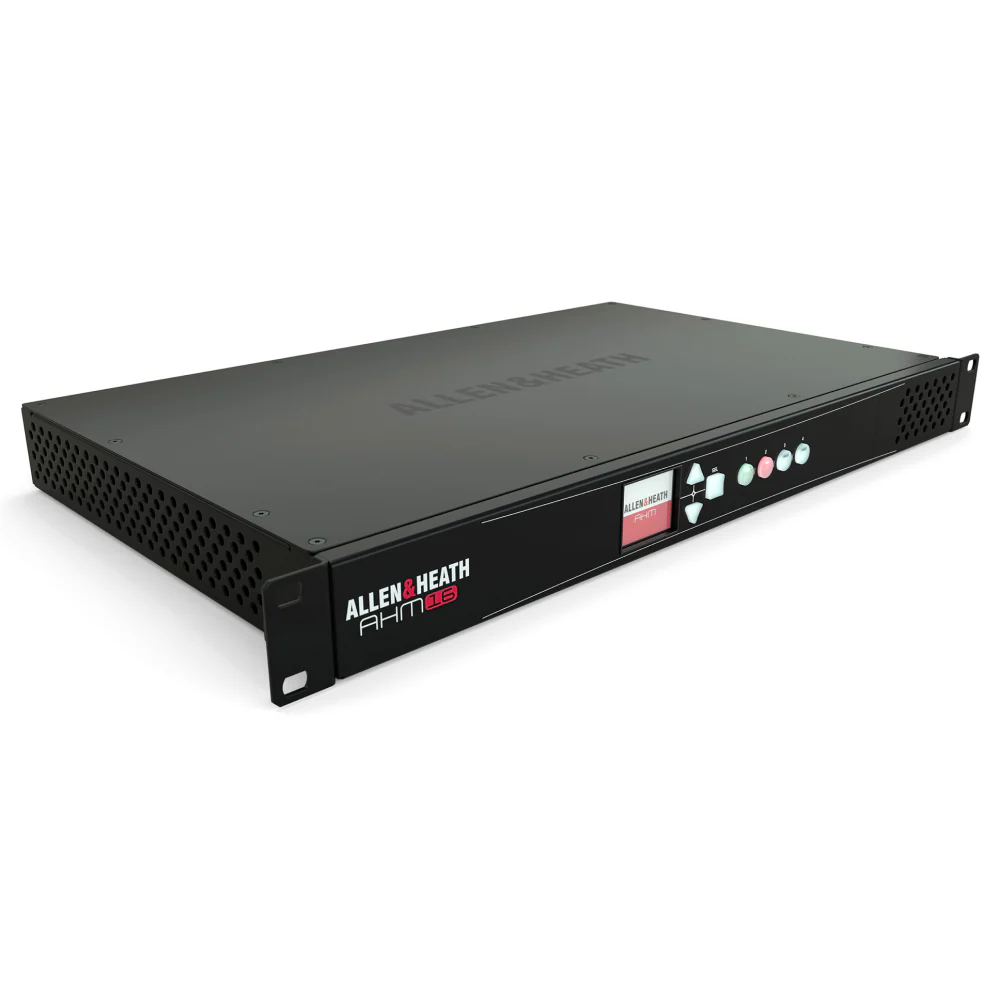

  • Front Panel Screen and Navigation
  • 4x SoftKeys
  • Compatible With IP1, IP6, IP8 Remote Controllers
  • 2×2 Local GPIO Plus Networkable GPIO Interface
  • TCP/IP Protocol for Third Party Integration
  • Crestron, AMX and Extron Drivers
  • Mac / Windows System Manager Software
  • Custom Control app and Editor for BYOD
  • 4 User Profiles
  • Integrated Stereo Playback
  • Event Scheduler

Inputs

• Mic/Line Inputs - Balanced, +48V phantom power
• Mic/Line Preamp - Fully recallable
• Input Sensitivity - -60 to +15dBu
• Analogue Gain - +5 to +60dB, 1dB steps
• Pad - -20dB Active PAD
• Maximum Input Level - +30dBu (PAD in)
• Input Impedance - >3kΩ (Pad out), >8kΩ (Pad in)
• Mic EIN -127dB with 150Ω source

System

• Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
• Dynamic Range - 108dB
• System Signal to Noise - -92dB
• Frequency Response - 20Hz - 20kHz +0/-0.5dB
• THD+N (analogue in to out) - 0.005% @ +16dBu output, 1kHz+5dB gain
• Headroom - +18dB
• Sampling Rate - 96kHz +/- 20 PPM

Acoustic Noise Typical loading, 22 deg C ambient No I/O Port installed - 31dBA With I/O Port installed - 33dBA Outputs Analogue Outputs - Balanced, Relay protected Output Impedance - <75Ω Nominal Output - +4dBu = 0dB meter reading Maximum Output Level - +21dBu Residual Output Noise - -92dBu (muted, 22-22kHz)
