2 Line Outs

Balanced, relay protected line outputs on XLR.

AES67 Compatible

Interoperability with other AES67 devices on the same network.

DDM Ready

Dante Domain Manager offers security, organization, scalability, and control for Dante networks.

96kHz Dante Support

Choose between standard 48kHz operation and high-fidelity 96kHz operation.

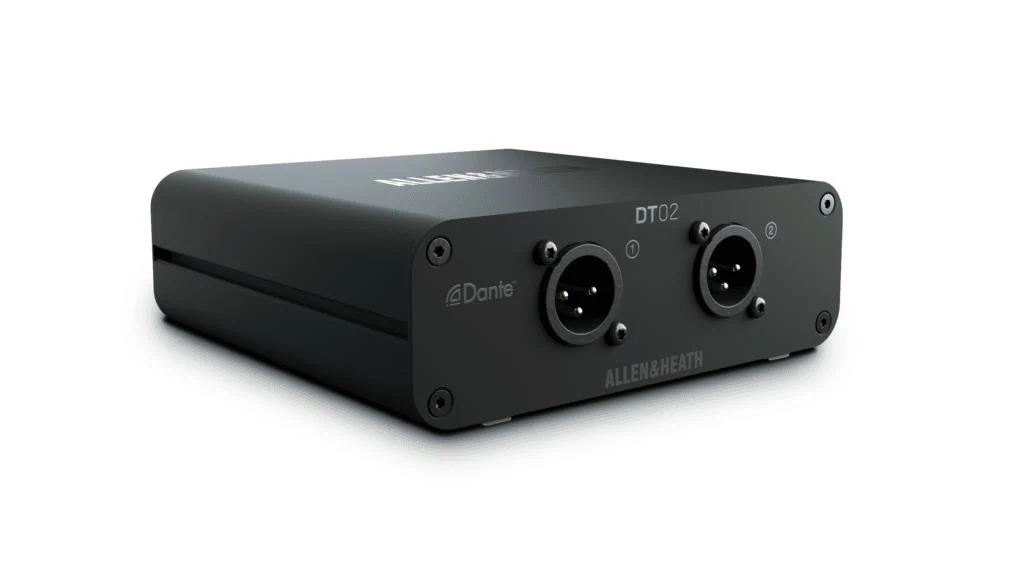

DT02

Easily Add Line Outputs to a Dante Network

DT02 is a cost-effective, compact 48kHz/96kHz Dante interface enabling 2x XLR outputs wherever you need them on your Dante network. Ideal for a wide variety of fixed installation and AV hire / portable applications, DT02 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems.

Install Options

PoE or PSU

The unit can be PoE powered or powered via a DC 12V supply. Two versions are available, the standard DT02 with power supply and rubber feet, or the DT02-M which includes surface mounting ears (and no power supply).

Install Options

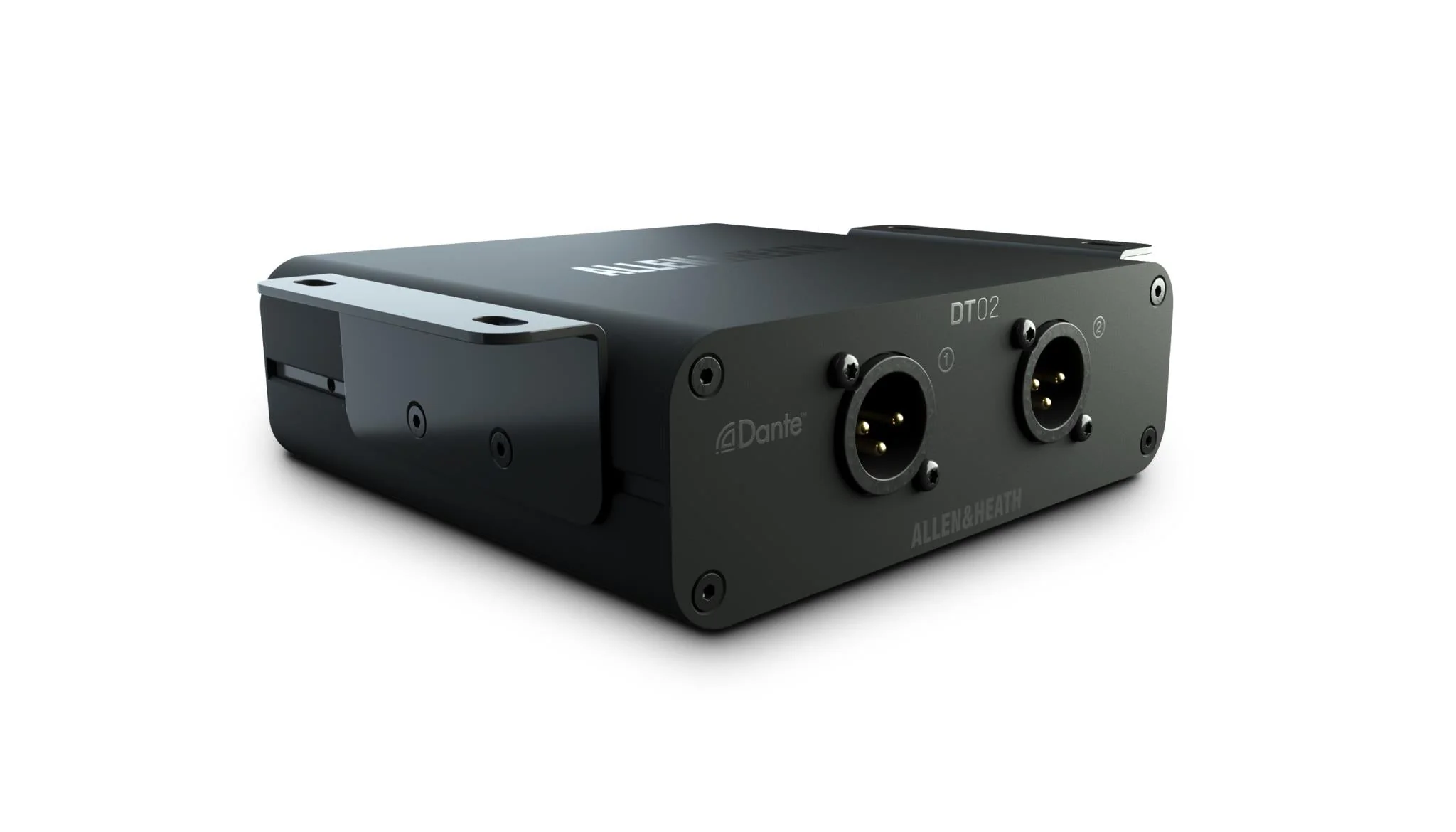

Surface Mount

Thanks to its compact format, DT02 can be easily mounted in the proximity of powered speakers or monitors. The DT02-M version ships with surface mounting ears for visually unobtrusive installation.

Install Options

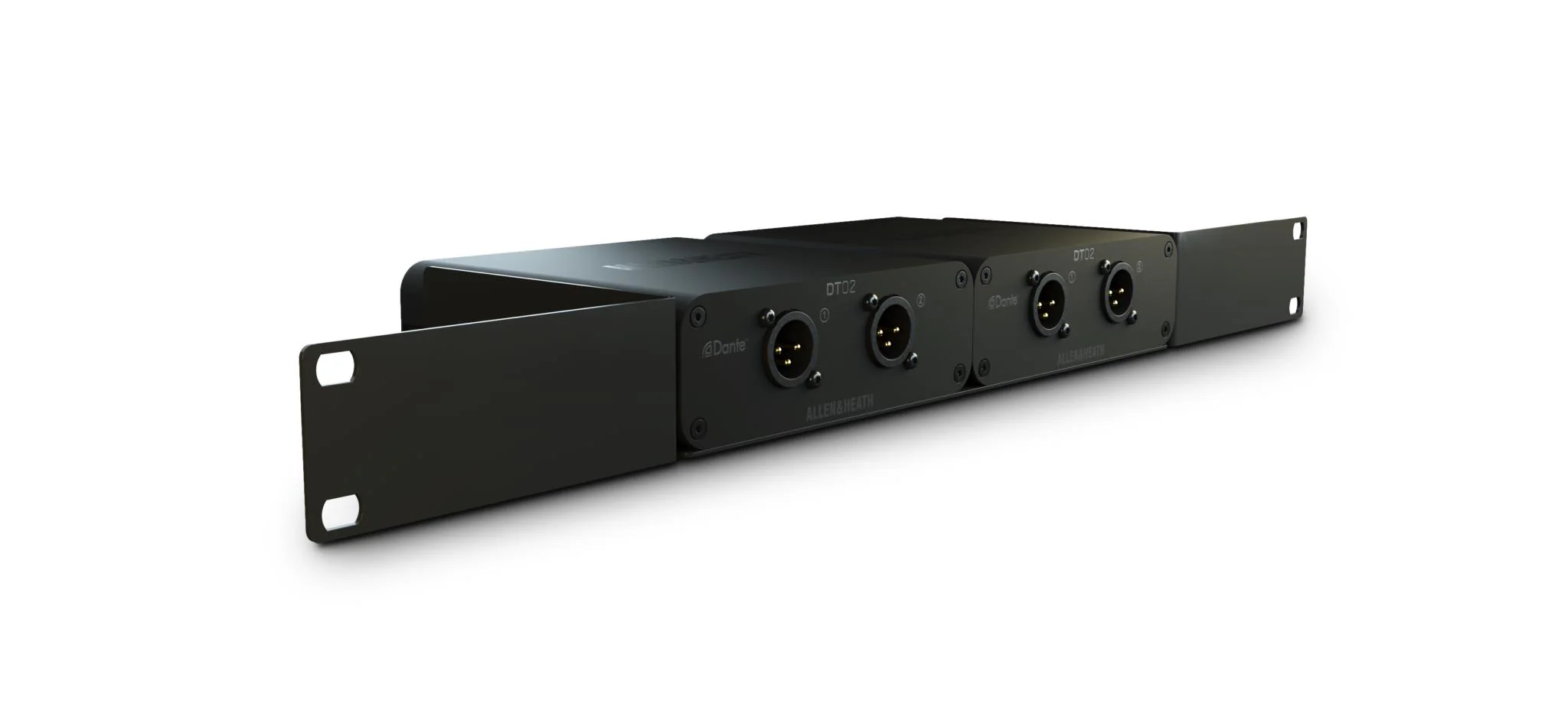

Rack Mount Kit

An optional rack mount kit is available for installation of up to two DT units in a 1U 19″ slot in the equipment rack.

DT02 Compatibility

The DT02 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.
