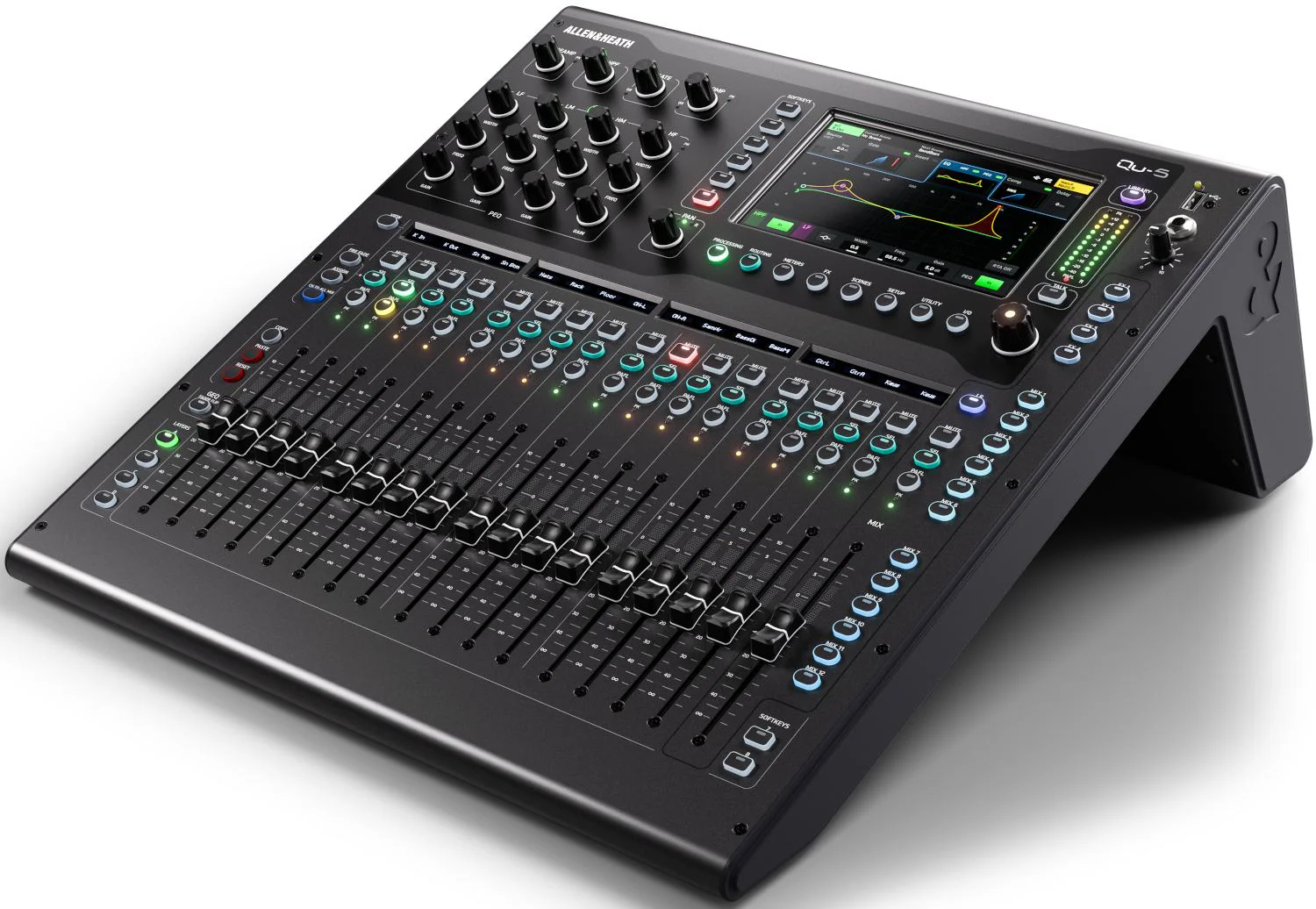

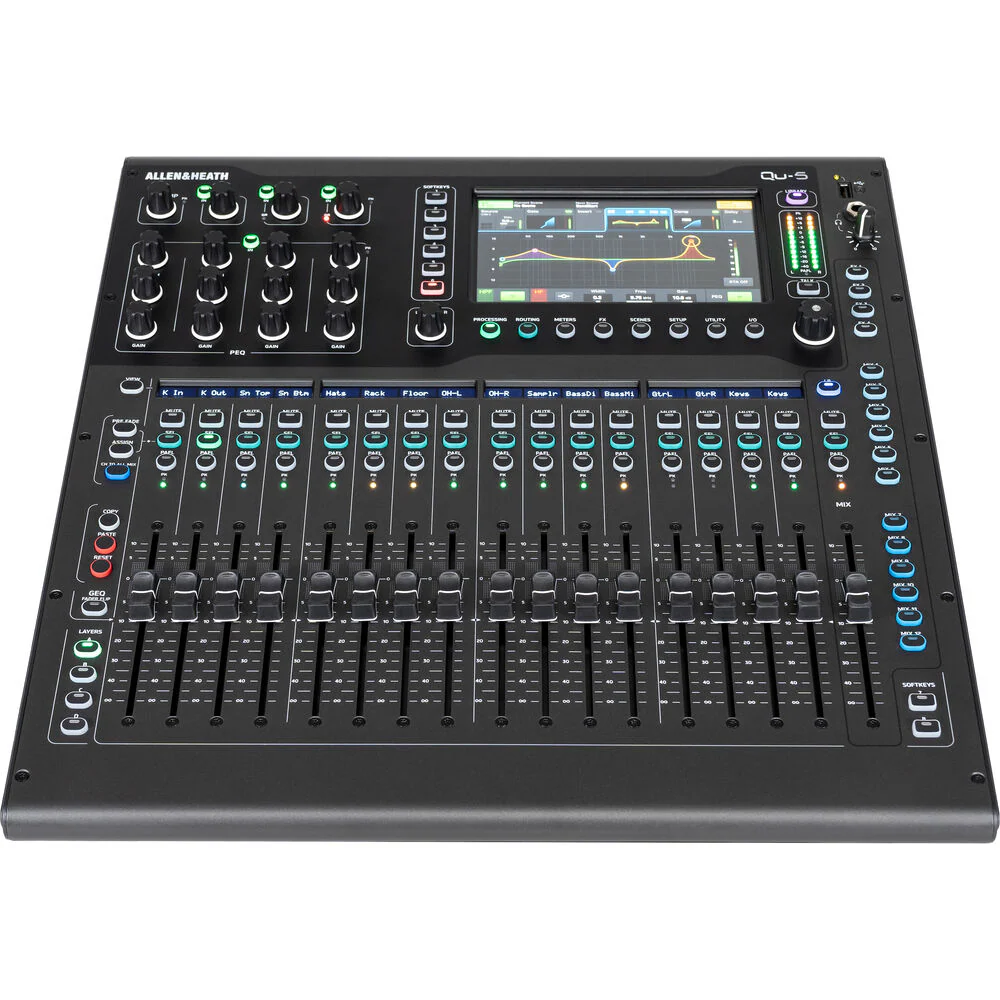

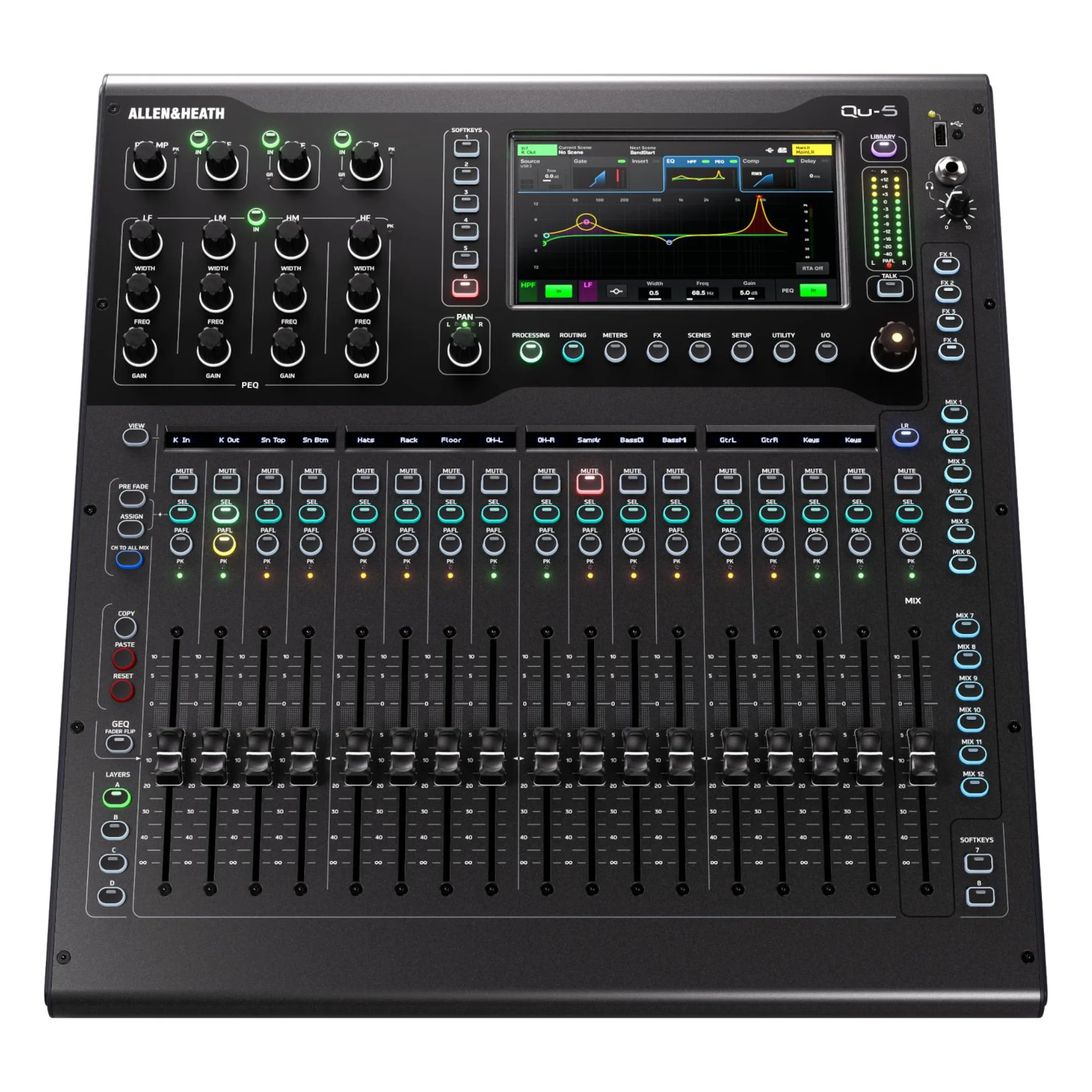

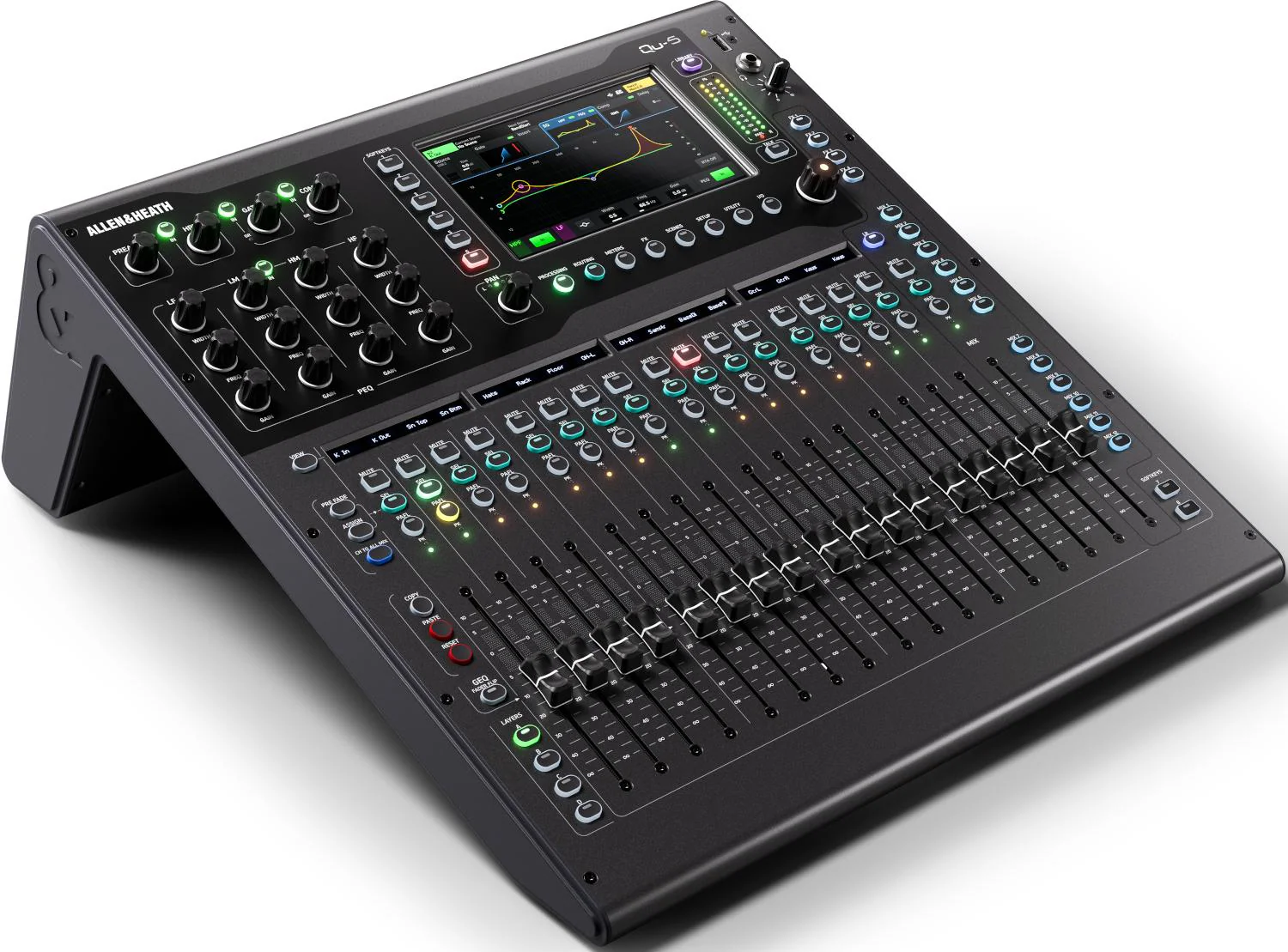

The Allen & Heath Qu-5 builds on the renowned Qu-16, taking performance and versatility to the next level with cutting-edge XCVI 96kHz processing, a redesigned interface, and enhanced connectivity. Powered by a high-speed FPGA core, this compact, rack-mountable digital mixer delivers pristine audio quality and lightning-fast operation. It features a vibrant 7-inch capacitive touchscreen, 17 motorised faders, and customisable layers for streamlined, hands-on control. With 36 input channels, 12 mix outputs, onboard FX engines, and intelligent I/O expansion via a 128x128 SLink port, the Qu-5 is made to adapt.

Whether you're mixing live shows, recording in the studio, or integrating into a complex AV system, the Qu-5 offers powerful functionality, effortless workflow, and rock-solid reliability in one sleek, professional package.

Features

• 96kHz XCVI Processing delivers ultra-low latency and full DSP power on every input and output.
• SLink Port supports 128x128 audio channels for seamless remote I/O and stage box integration.
• 7" Capacitive Touchscreen offers fast, intuitive control with crisp visuals and touch response.
• 17 Motorised Faders provide precise, hands-on mix control with layer customisation.
• 8 Programmable SoftKeys allow quick access to essential functions and user-defined workflows.

Specifications

Mixer

• Max I/O Capacity: 36x Input / 12x Output
• Analog Input Channels: 18 (16 Mono / 2 Stereo)
• Mic Preamps: 16
• Analog Output Channels: 12
• Mix Routing: 6x Mono Aux Send, 6x Stereo Aux Send
• Groups: 6x Subgroup
• Presets: No
• Display: 7" Touchscreen
• Faders: 17x 3.9" / 100 mm Motorised Fader
• Meters: 2x 12-Segment LED (Main), Single LED (Channel)

Signal Processing

• Dynamic Processing: Compressor and Gate on Inputs, Compressor and Limiter on Master
• EQ: 4-Band Parametric on Input Channels
• Filters: High-Pass Filter
• Solo/Mute: Solo-in-Place/AFL, Mute, PFL per Input, Bus, and Master
• Audio Delay: Adjustable up to 682 ms
• Automatic Mic Mixing: Yes

Digital Audio

• Sample Rates: 96 kHz
• AES3 Output Sample Rates: 44.1 / 48 / 88.2 / 96 kHz
• Stereo Record Rate: 96 kHz
• Stereo Playback Rate: 44.1 / 48 / 96 kHz
• Multitrack Record/Playback Rate: 96 kHz
• Bit Depth: Up to 96-Bit
• Stereo Record Bit Depth: 24-Bit
• Stereo Playback Bit Depth: 16 / 24-Bit
• Multitrack Playback/Record Bit Depth: 24-Bit

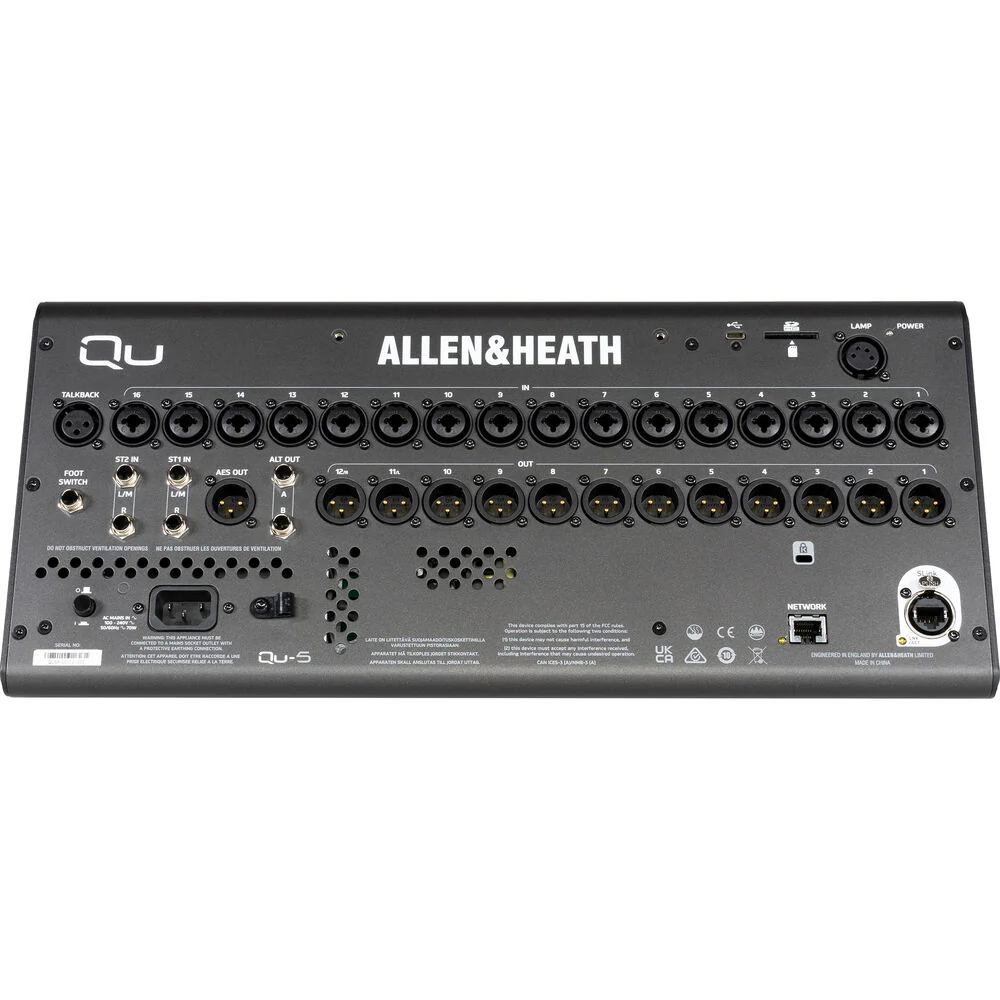

Connectivity

• Analog Inputs: 1x XLR Talkback, 16x XLR Mic/Line, 4x 1/4" TRS (2 Stereo Pairs, Half-Normalled)
• Analog Outputs: 12x XLR Balanced, 2x 1/4" TRS Balanced
• Phantom Power: +48 V
• Digital I/O: 1x etherCON I/O, 1x XLR AES3 Output
• MIDI I/O: No
• USB I/O: 1x USB-A 2.0 (External Memory), 1x USB-C 2.0 (Audio Streaming)
• USB I/O Capacity: 32x Input / 32x Output
• Other I/O: 1x RJ45 Control In/Out (Bi-Directional)
• Wireless: No
• External Display I/O: No

Recording

• Max Multitrack Recording: 32 Tracks
• Media Support: SD, USB Drive
• File Format Support: WAV

Compatibility

• Computer OS: Windows 10 or Later / macOS 10.14 to 11
• Mobile OS: Android / iOS
• Mobile Device Compatibility: Android Smartphone, Android Tablet, iPhone, iPad

Power

• Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

• Rack Mountable: Yes
• Operating Conditions: 32 to 104°F / 0 to 40°C
