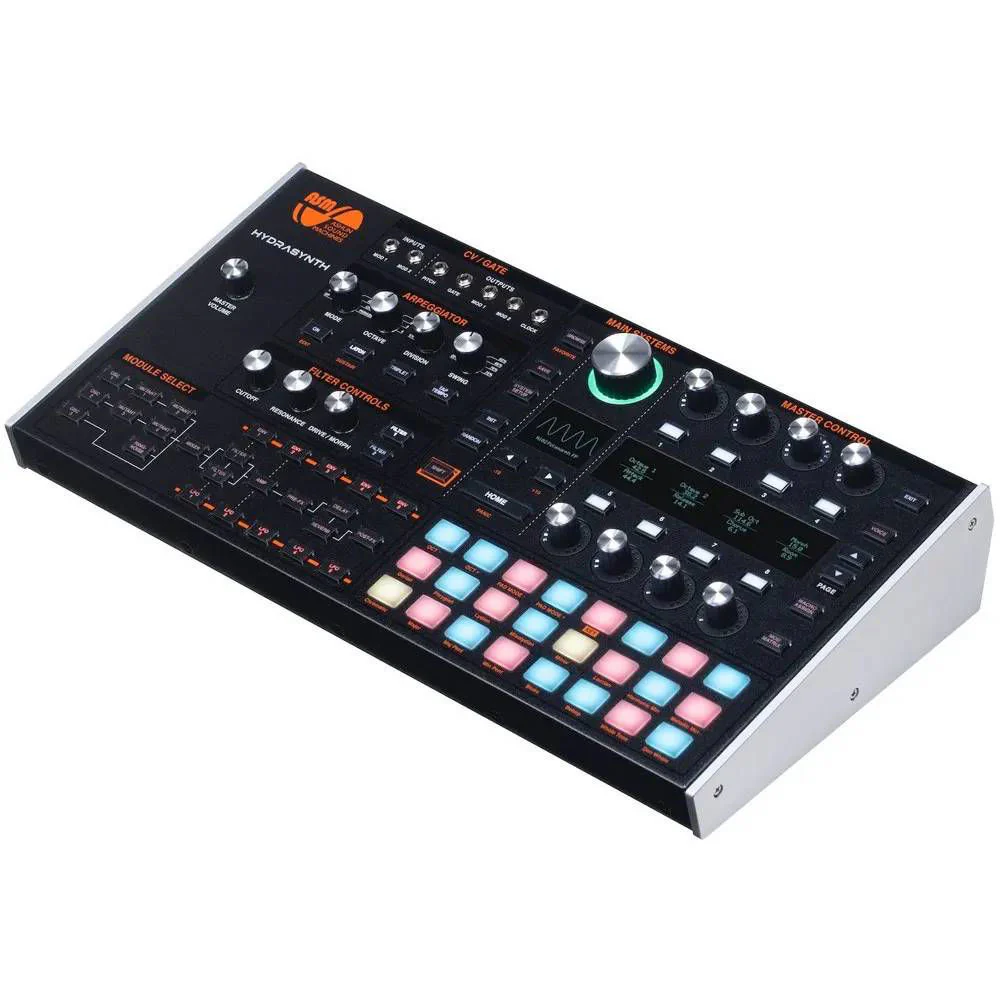

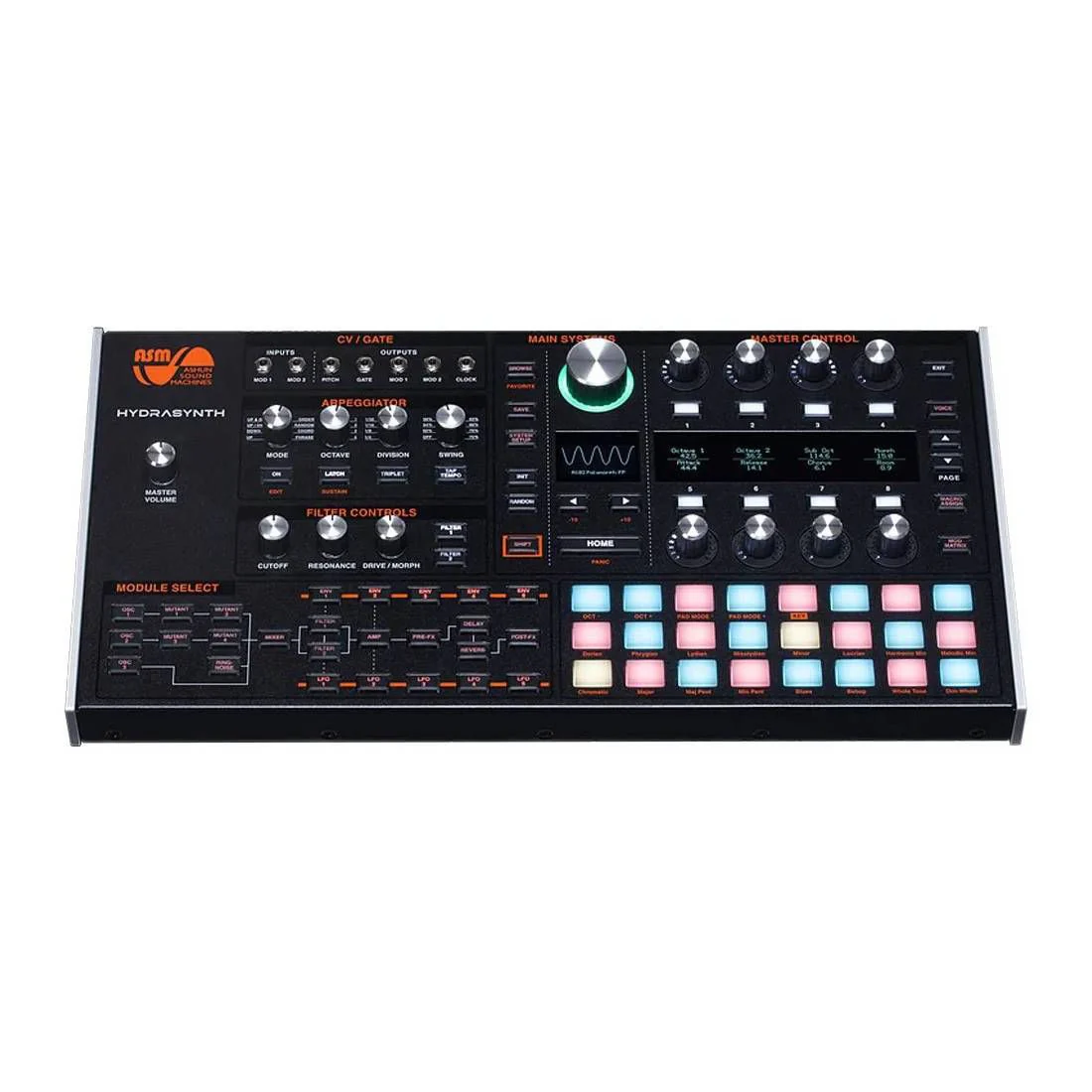

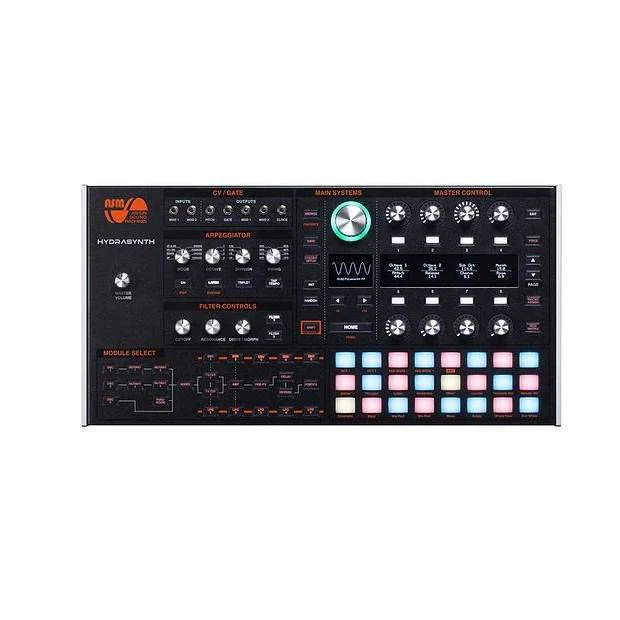

ASM Hydrasynth Desktop 8-Voice Polyphonic Wave Morphing Synth
The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.
Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.
As for the performance capabilities, The Hydrasynth Desktop / Rack has 24 polyphonic pressure touch pads so that you can play the unit without needing to connect a keyboard or other controller. Using multiple pad layout modes as well as quick to access scale modes, the Hydrasynth Desktop / Rack is easy to make music on.
The Hydrasynth Desktop / Rack comes with rack ears so that you can mount it in a standard 19" rack.
Features
- Poly Pressure Touchpads
- 3 oscillators with a selection of 219 single cycle waveforms
- Oscillators 1 & 2 are routed into MUTATORS
- Mutators allow you to modulate, bend and sculpt the sound in new (and old) ways
- Oscillators are fed into a mixer along with the Noise generator and Ring Modulator
- 2 filters that can be configured in series or parallel
- 1st filter has 16 different filter models
- 2nd filter is a 12db per octave
- 2nd filter sweeps from low pass > bandpass/notch > high pass
- 5 Low-Frequency Oscillators
- LFO’s feature a STEP mode that allows you to create patterns with up to 64 steps
- 5 DAHDSR Envelopes
- Mod Matrix w/ 32 user-definable modulation routings
- Almost everything in the synth engine can be a modulation destination
- Arpeggiator w/ a phrase arpeggio built-in
- Import MIDI tuning standard files for microtonal productions
- MIDI IN/OUT/THRU
- CV: Supports the standard voltages for Eurorack as well as some of the Japanese Volts>HZ products
- MOD in and outs allow for modulation from DC to full audio ranges, expanding your modulation capabilities
- 8 assignable encoders and buttons
- 5 banks of 128 patches w/ 256 factory patches
- Full FX suite – reverbs, chorus, delay, flanger, EQ, distortion, compressor, and many more
Specifications
-
Steel top and bottom
-
Aluminum side panels
-
5U in rack
24 PolyTouch pads
-
24 velocity and pressure sensitive pads
-
Support multiple CV/GATE standards
-
CV
-
1v per octave +/-5V
-
1V per octave 0-10V
-
Hz to Volts +/-5V
-
Hz to Volts 0-10V
-
1.2V per octave
-
-
Gates
-
V-trig, S-trig
-
3V, 5V, 10V
-
-
Mod In/Out range
-
+/5V, 0-10V, 0-5V, 0-1V
-
-
-
Clock in and out
-
1PPS, 2PPQ, 24PPQ, 48 PPQ
-
Clock Voltage - 3v, 5V, 10V
-
-
Voice overflow mode for expanding voices with another Hydro synth
-
Polarity sensing input
USB port
-
Supports USB MIDI In/Out
(17.32 x 8.78 x 2.76 inches)
Weight
