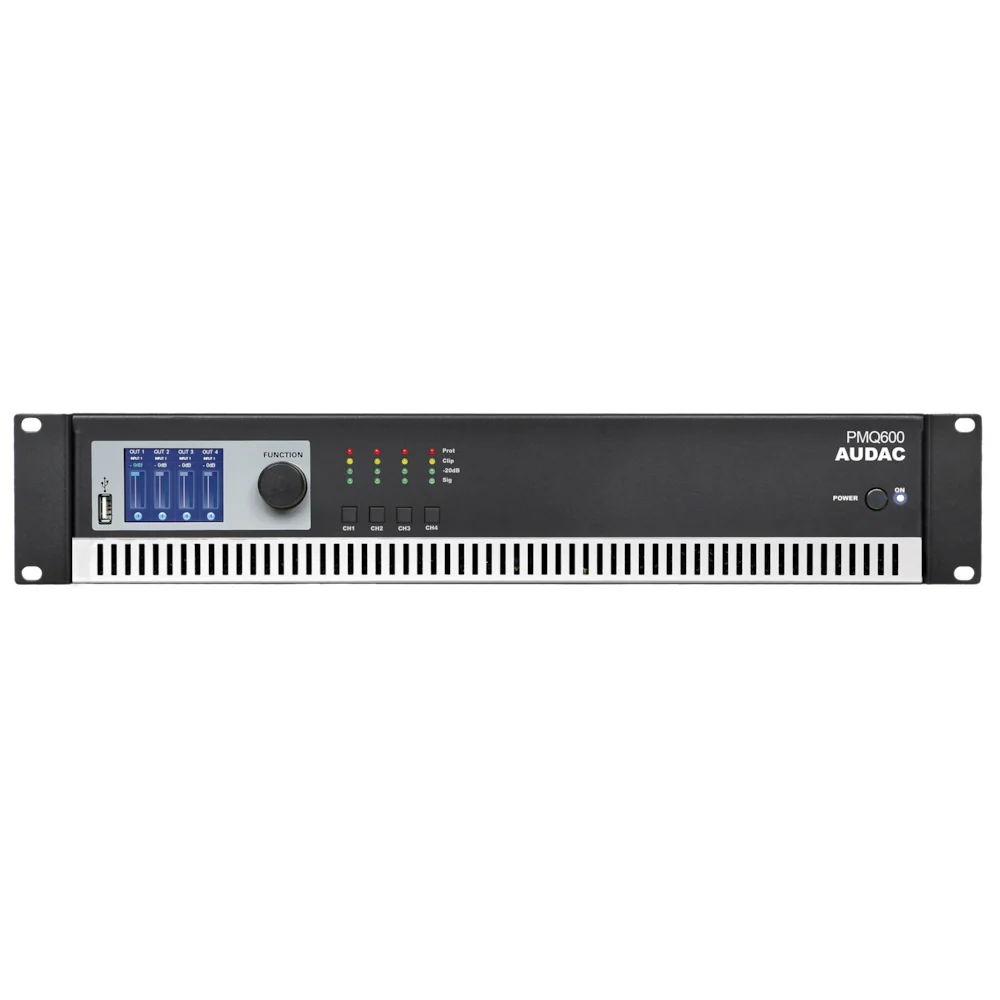

The PMQ series consists of professional 70/100V 4-channel power amplifiers that set a new standard in premium 100V amplification for public announcements. Advanced features and availability in various output powers provide great flexibility for a multitude of applications. The PMQ600 is a 4-channel Class-D 70/100V power amplifier with 600 watts of output power for each channel. The combination of the WaveDynamics™ DSP processor and the 2.5" LCD display provides an unparalleled user experience with an intuitive feature overview for easy setup. Acoustics can be optimized using the woofer/tweeter and bandpass selectable filters and 7-band equalizer, both of which can be adjusted for frequency and Q-factor. Other features include delay and dynamic bass boost. These settings can be individually configured from the front of the amplifier, with two different levels of access (user and administrator) via password or USB key protection. Configuration is simplified, as speaker presets and complete system configurations can be selected from a library and uploaded using a USB flash drive. This ensures the best acoustic performance with "bulletproof" loudspeaker protection. An input selection matrix with XLR and terminal block signal connections provides high input flexibility and source compatibility. An RS-232 control port simplifies system integration. WaveDynamics™ amplifiers are available with an optional Dante™ interface. Installing this network interface allows for the transmission and reception of low-latency, high-quality audio signals over a standard Ethernet network. Applications:

• Bars & Restaurants
• Education
• Corporate
• Clubs
• Events
• Retail

Features

• Lightweight class-D amplifier
• XLR input & linkthrough connections
• Terminal block output connections
• RS232 control
• Dante™/AES67 expansion port
• Advanced DSP and loudspeaker management
• 2.5" LCD display with intuitive user interface
• WaveDynamics™ speaker & set configurations

---

Specifications

RMS/AES power handling @ 8 Ω: 4 x 600 W @ 100 V: 4 x 600 W Frequency Response (± 3 dB): 50 Hz - 20 kHz Signal / Noise: < 95 dB Crosstalk (@ 1 kHz): > 70 dB Min. load impedance: 8 Ω Technology: Class-D Power Supply: Switching mode AC Input: 100-120V/220-240V~ 50/60Hz *Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility Inputs Sensitivity: -30 dB ~ +5 dB Impedance: 10 kΩ balanced Common mode rejection ratio: 70 dB Damping factor: > 200 Protection Amplifier: DC Short circuit, Over heating, Over load, Signal limiting Access: User & Administrator level (Through password and USB-key protection) Cooling: Temperature controlled fan Operating Temperature: 0° ~ 40° @ 95% Humidity Inputs Connector: XLR & 3-pin Euro Terminal Block (3.81 mm) Outputs: Connector: 4-pin Euro Terminal Block (Pitch - 5.08 mm) THD+N (@ 1 kHz): < 0.05% (1/2 Rated Power)
