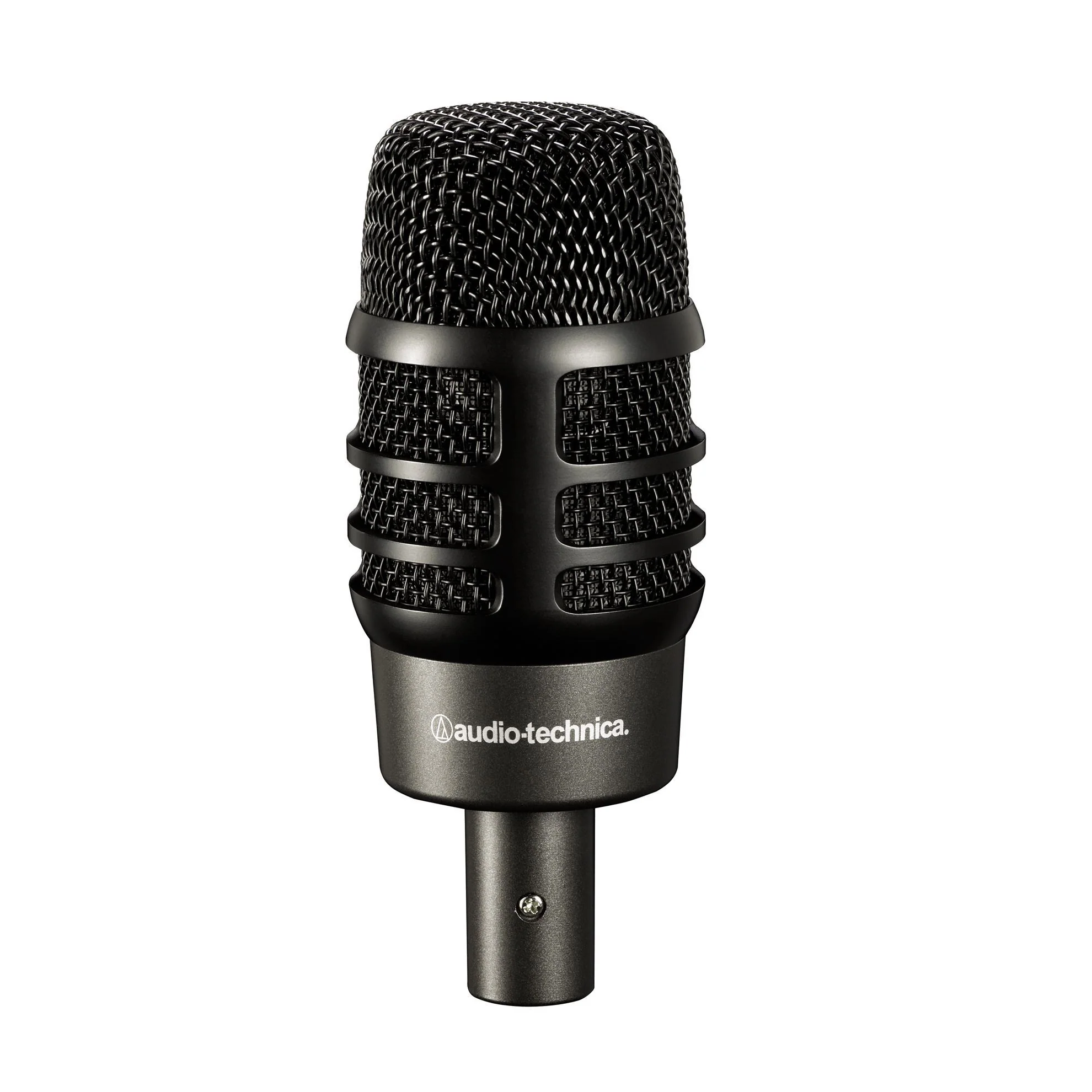

Audio-Technica’s innovative use of two polar patterns is ideal for kick drum: the hypercardioid dynamic element focuses tightly on the aggressive attack of the beater, while the condenser captures the round tonalities of the shell.

The elements are positioned in a perfect phase relationship, something practically impossible to achieve with two separate microphones. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.

---

Features

• Audio-Technica’s proven dual-element design features two elements (condenser and dynamic) enclosed in a single housing
• Neodymium dynamic element provides punch and attack, while the condenser element captures the full audio spectrum
• Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
• Perfect for kick drum, guitar amps, percussion and other instruments
• Integral 80 Hz HPF switch and 10 dB pad (condenser element)

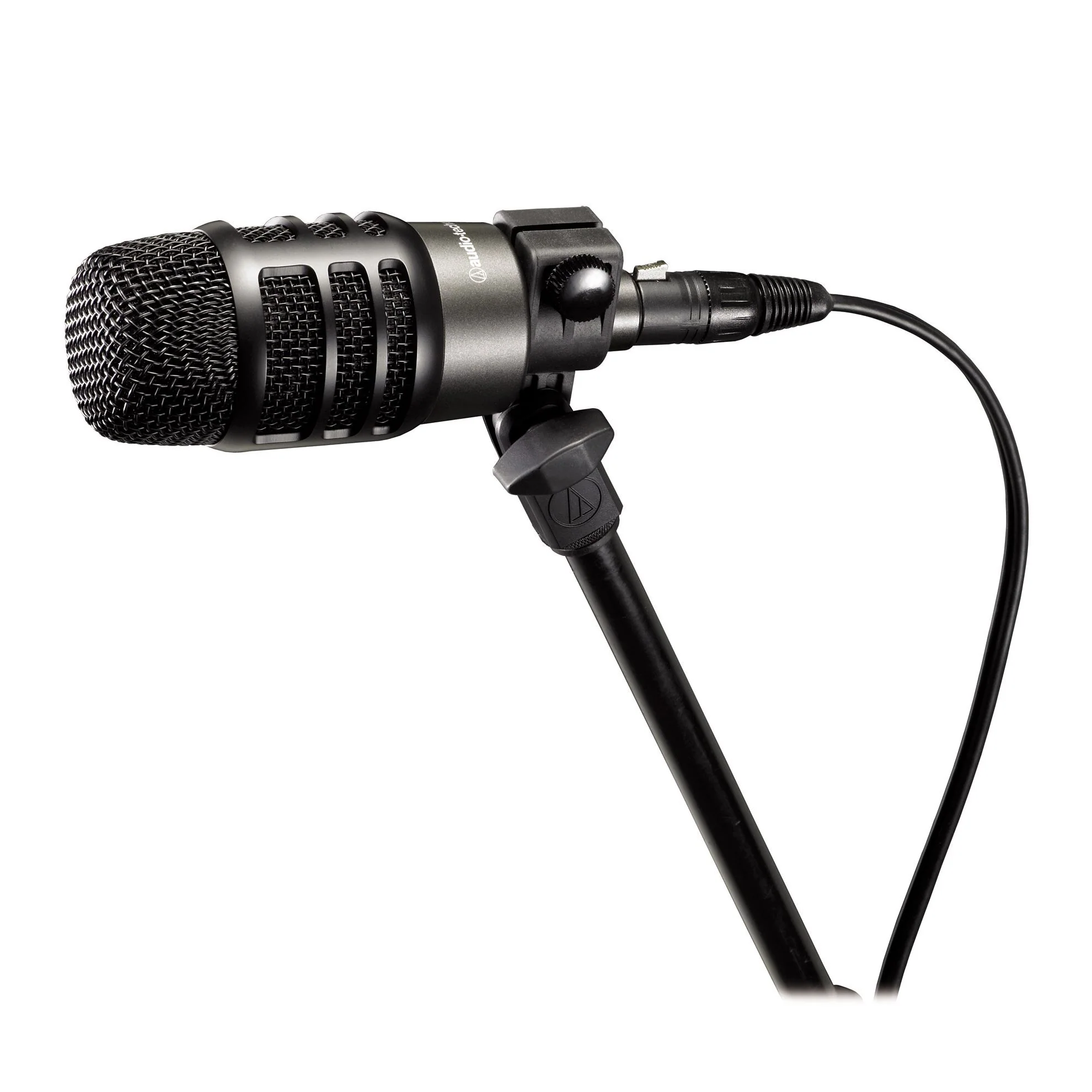

• Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
• Corrosion-resistant contacts from gold-plated XLRM-type connector
• Rugged, all-metal design and construction for years of trouble-free use

---

Specifications

• ELEMENTS: Condenser, dynamic
• POLAR PATTERNS:

  • Cardioid (condenser)
  • Hypercardioid (dynamic)
• FREQUENCY RESPONSE:

  • 40-20,000 Hz (condenser)
  • 40-15,000 Hz (dynamic)
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave (condenser)
• OPEN CIRCUIT SENSITIVITY:

  • –49 dB (3.5 mV) re 1V at 1 Pa (condenser)
  • –53 dB (2.2 mV) re 1V at 1 Pa (dynamic)
• IMPEDANCE:

  • 50 ohms (condenser)
  • 600 ohms (dynamic)
• MAXIMUM INPUT SOUND LEVEL: 148 dB SPL, 1 kHz at 1% T.H.D. (condenser)
• DYNAMIC RANGE (typical): 122 dB, 1 kHz at Max SPL (condenser)
• SIGNAL-TO-NOISE RATIO: 68 dB, 1 kHz at 1 Pa (condenser)
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 3.5 mA typical (condenser)
• SWITCHES: Flat, roll-off; 10 dB pad (condenser only)
• WEIGHT: 320 g (11.3 oz)
• DIMENSIONS:

  • 143.6 mm (5.65") long,
  • 55.0 mm (2.17") diameter
• OUTPUT CONNECTOR: Integral 5-pin XLRM-type
• CABLE: 5.0 m (16.5'') dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors

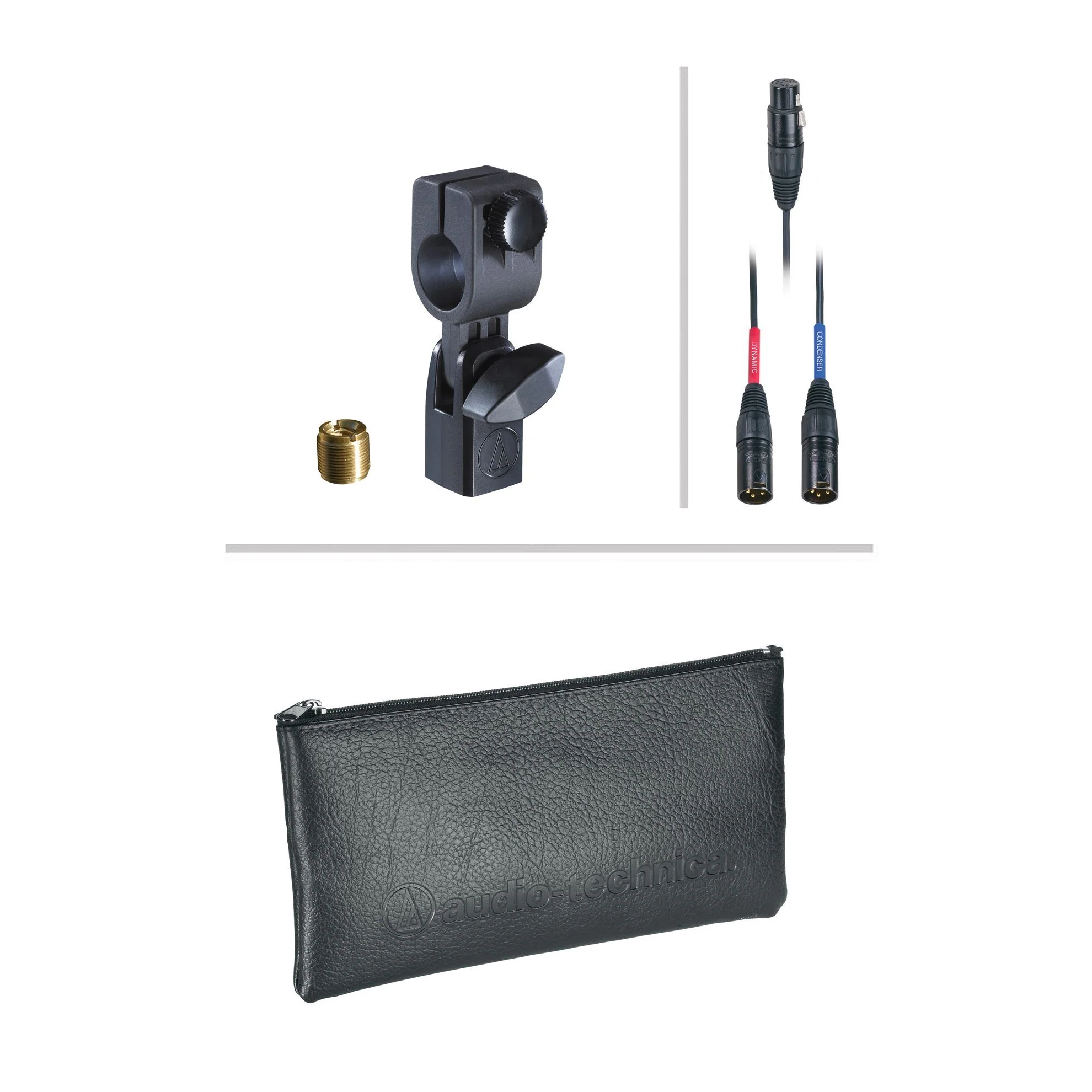

• ACCESSORIES FURNISHED: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 adapter; soft protective pouch
• AUDIO-TECHNICA CASE STYLE: R9
• ACCESSORIES FURNISHED: AT8471 isolation clamp for 5 /8"-27 threaded stands; 5 /8"-27 to 3 /8"-16 threaded adapter; soft protective pouch
