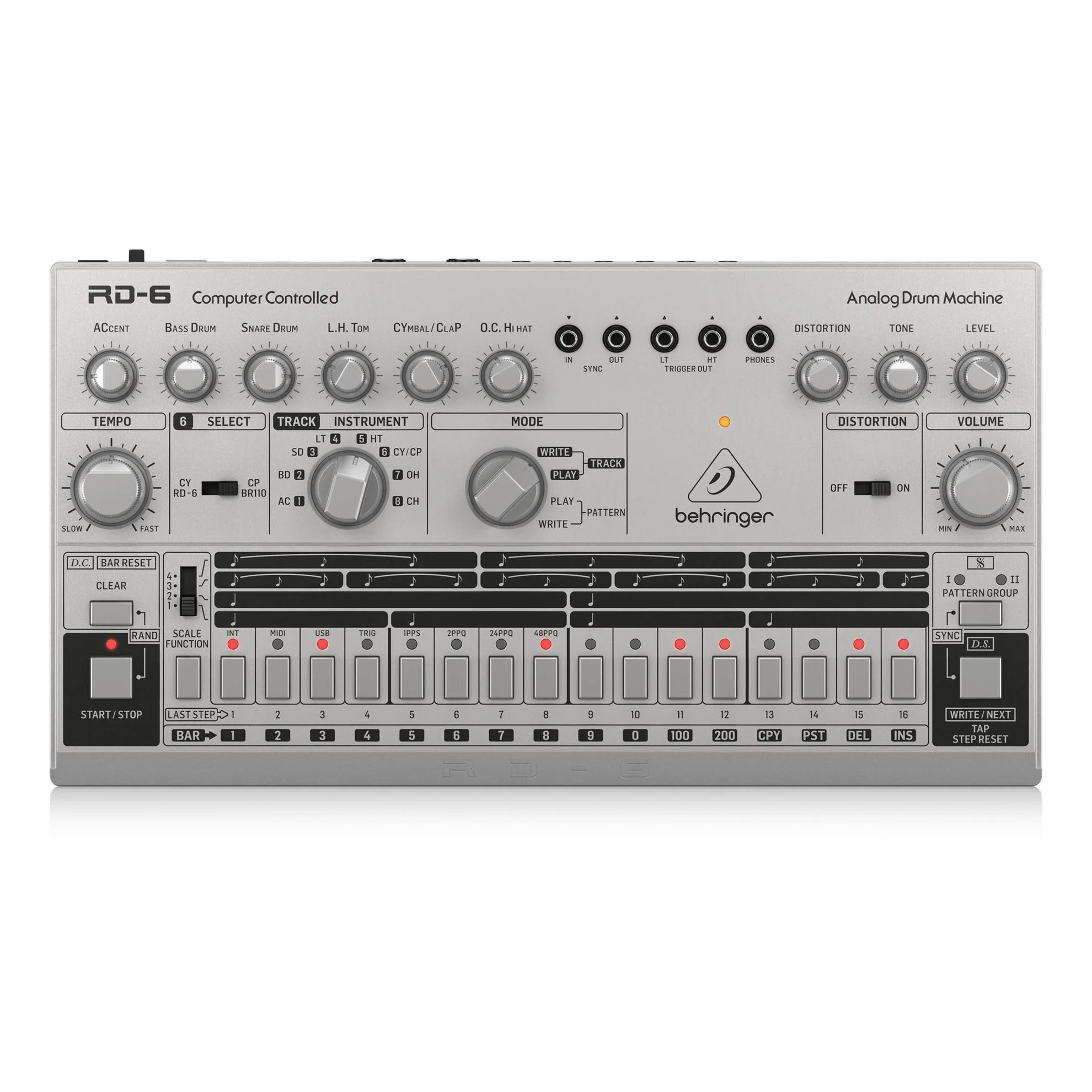

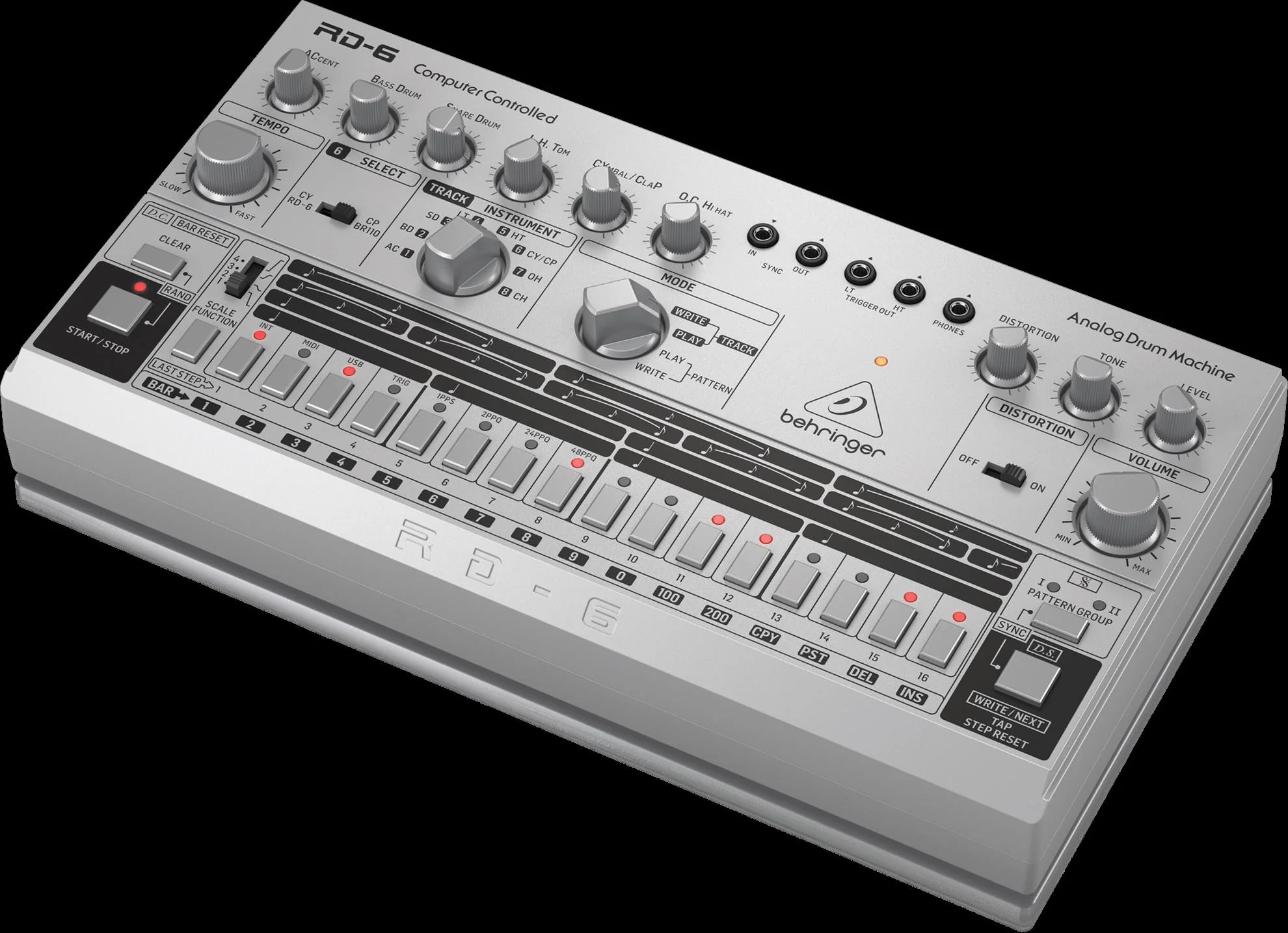

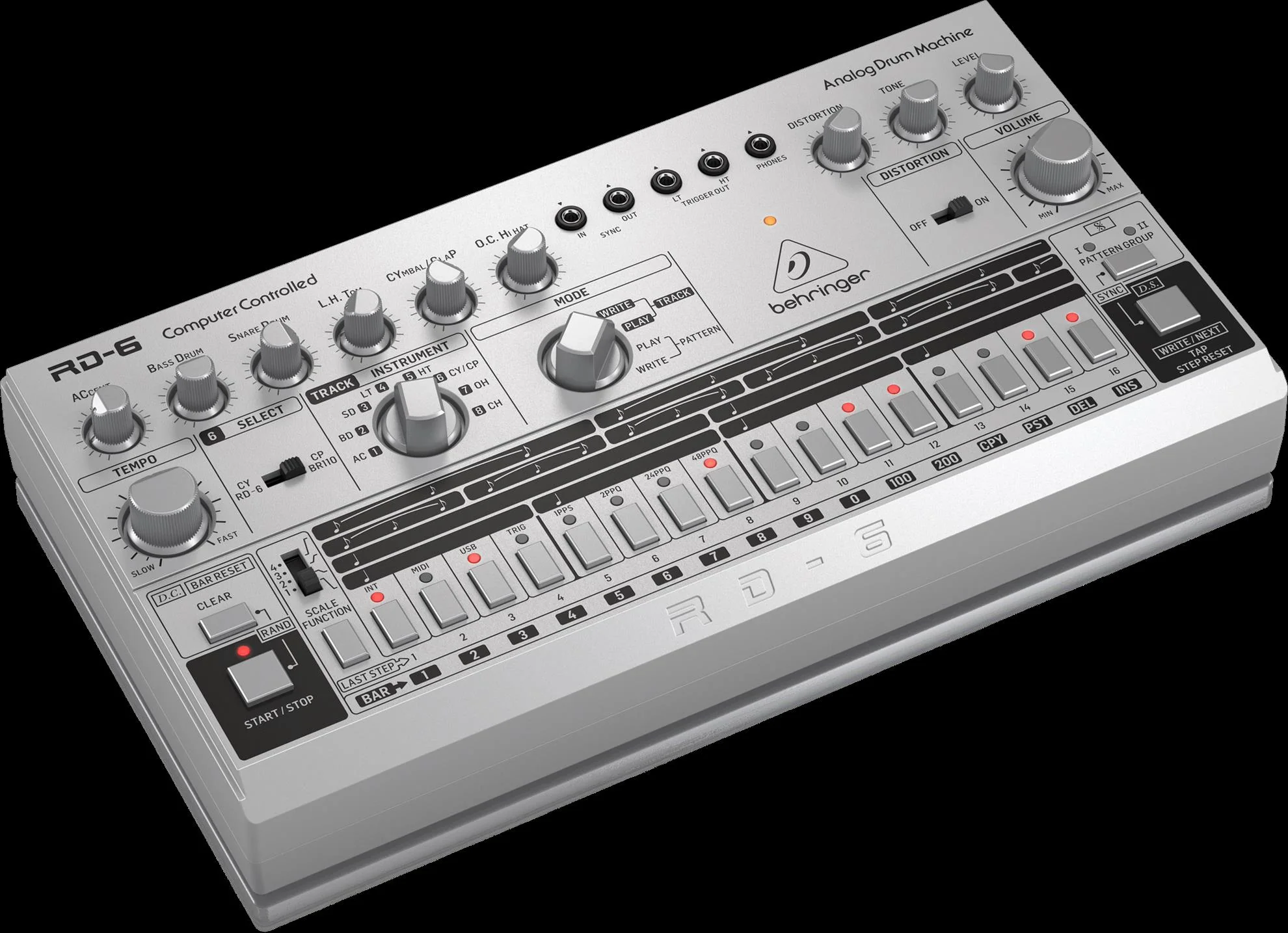

The RHYTHM DESIGNER RD-6-SR provides all the tools you need to become a master beat-maker, including: 8 drum sound and a 64-step sequencer – for a quick and easy-to-use drum machine that’ll shake the house!

Whether you’re new to drum programming or a seasoned pro looking to enhance your setup, the RD-6-SR has everything you need to step up to the big leagues.

---

Features

• Amazing Drum Machine with true analog circuitry
• Authentic reproduction of original circuitry with matched transistors
• 8 original drum sounds with mix parameters and global accent capability
• Highly acclaimed and authentic clap sound from the DR-110 drum machine
• Easy-to-use 16-step drum sequencer with real-time switching between 32 separate patterns
• Patterns can be chained into full songs with up to 250 bars
• Distortion circuitry modeled after the RAT* adds insane spice and edge to your sounds
• 16 authentic-style step buttons with LED indicators for easy pattern creation
• 11 controls and 26 switches to give you direct and real-time access to all important parameters
• MIDI and USB implementation for synchronization and connection to external devices
• Sync options include USB, MIDI, Clock and Internal for maximum versatility

---

Specifications

• Number of sounds: 8
• Type: Analog
• Number of simultaneous voices: 8
• Voice controls:
  • Accent: Level
  • Bass drum: Level
  • Snare drum: Level
  • Low tom, hi tom: Level
  • Cymbal, clap: Level
  • Open hat, closed hat: Level
• Power input: DC input connector
• Power switch: Push button on/of
• USB (MIDI): USB 2.0, type B
• MIDI In, Out / Thru: 2 x 5-pin DIN
• Start / stop: 1 x 1/4" TS
• Mix out: 1 x 1/4" TS, unbalanced, 1 kΩ impedance
• Voice out: 6 x 1/8" TS, unbalanced, 100 Ω impedance
• Sync in / out: 2 x 1/8" TRS (Tip is clock and Ring is the start message) more than: 2.5 V
• Trigger outs: LT and HT 2 x +15 V, 1PPS/24PPQ/48PPQ 50% pulse length, 2PPQ narrow pulse length.
• Phones: 1 x 1/8" TRS, stereo, 15 Ω impedance
• USB: Class compliant USB 2.0, type B
• Supported operating systems: Windows 7 or higher Mac OS X 10.6.8 or higher
• Capacity: 2 x 16 patterns
• Steps: 16 steps
• Power Requirements
• External power adapter: 9 V DC, 670 mA
• Power consumption: 2 W max
• Indicator: Power LED
• Operating temperature range: 5°C – 40°C (41°F – 104°F)
• Physical Dimensions (H x W x D): 56 x 305 x 165 mm (2.2 x 12 x 6.5")
• Weight: 0.9 kg (2.0 lbs)
• Shipping Weight: 1.6 kg (3.5 lbs)
