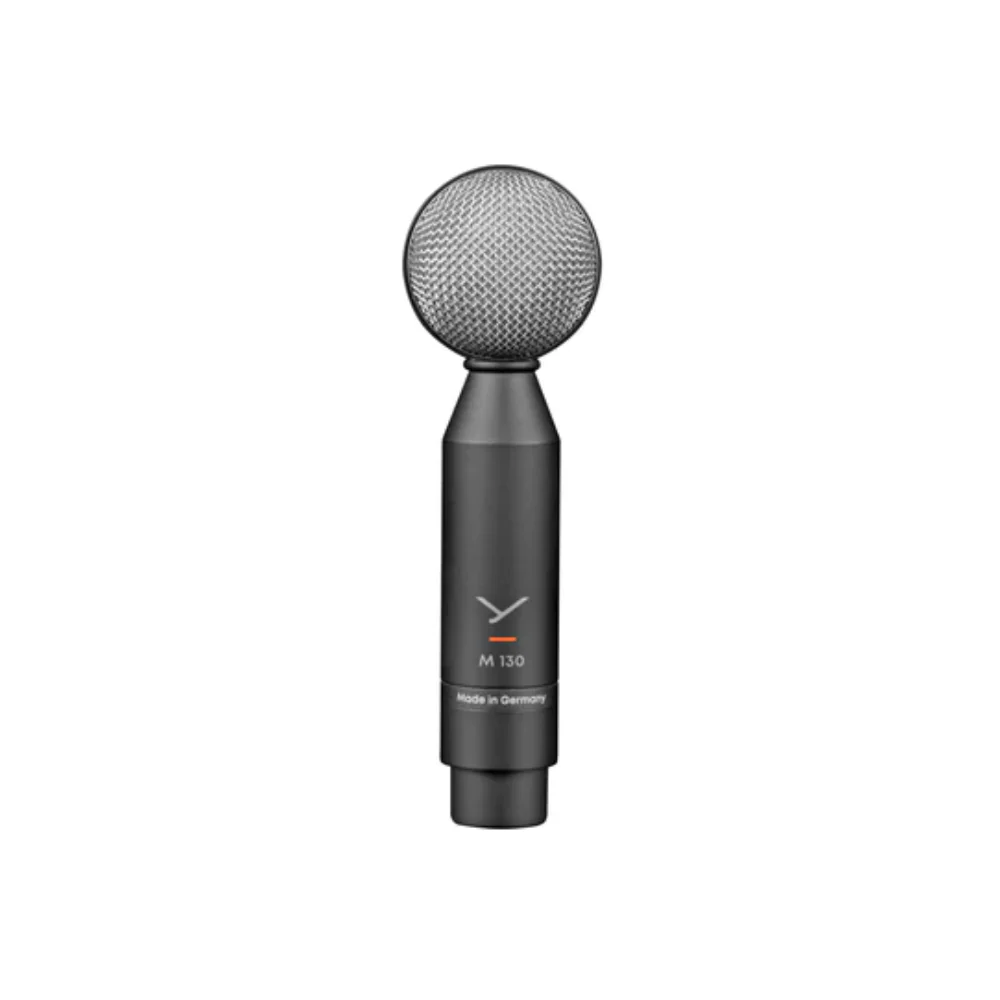

The M 130 is ideal for stereo, room, and instrumental recordings, delivering the popular and special ribbon sound characterised by warmth and precision. Depending on the placement and spatial situation, the M 130 can be used for studio recordings of drums, electric guitar amplifiers, pianos, acoustic guitars, orchestras, choirs and all kinds of atmospheric recordings. The classic microphone with its figure-of-eight characteristic can be used for recording various instruments as well as stereo recording in Blumlein or M/S stereo configurations. As a stereo microphone system, two M 130s can be used to create a Blumlein stereo system for great-sounding room recordings. M/S recording can be performed in conjunction with hypercardioid or supercardioid microphones such as the M 160 Dynamic Double Ribbon Microphone or the MC 950 True Condenser Microphone.

Features

• Dynamic double-ribbon microphone, Figure-eight polar pattern
• Natural sound reproduction and remarkable impulse fidelity
• High impulse fidelity and good transient response
• Perfect for stereo, ambient and instrument recordings
• Ideal for Blumlein or M/S stereo configuration
• Excellent suppression of lateral noise
• Handmade in Germany since 1957

Specifications

• Transducer type: Dynamic
• Operating principle: Pressure gradient
• Frequency response: 40 - 18,000 Hz
• Polar pattern: Figure-eight
• Rear attenuation at 1 kHz: > 30 dB at 90°
• Sensitivity (0 dB = 1 V/Pa): 1.3 mV/Pa (= -57.5 dBV)
• Nominal impedance: 200 Ω
• Load impedance: 1000 Ω
• Diaphragm: Pure aluminium
• Case/finish: Brass
• Connector: XLR, 3-pin, male
