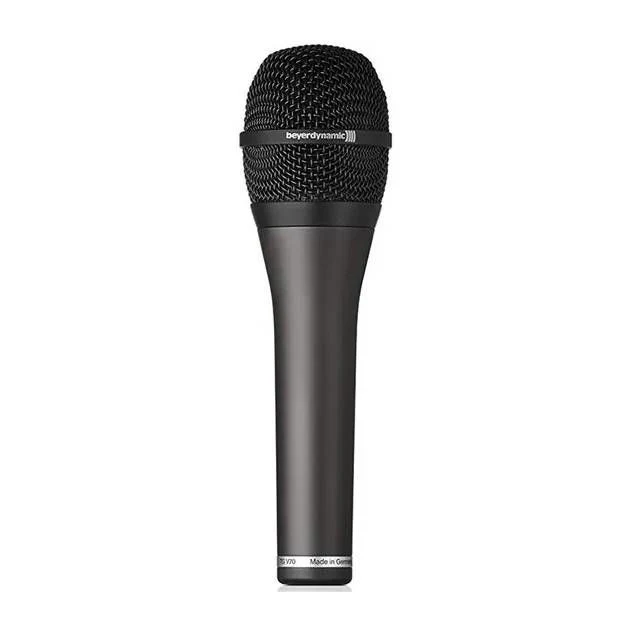

The models of the TG 70 series go one step further with no compromises: Even better technical characteristics and even higher quality materials for an even better sound. Every detail counts – both during development and during manufacturing. First-class microphones – handcrafted in Germany.

---

Features

• Hypercardioid polar pattern
• High gain before feedback
• Rugged construction to withstand touring damage
• Shock mounted microphone capsule
• Supplied with microphone clamp and storage bag

---

Specifications

• Transducer type: Dynamic
• Operating principle: Pressure gradient
• Polar pattern: Hypercardioid
• Close miking: 25 - 18,000 Hz
• Distant miking (measured at 1 m): 90 - 16,000 Hz
• Rear attenuation at 1 kHz: > 25 dB at 110 deg
• Open circuit voltage: 3.2 mV/Pa (-50 dBV) ±2.5 dB
• Magnetic field suppression: > 20 dB at 50 Hz
• Nominal impedance: 280 ohm
• Load impedance: 1 k ohm
• Connection: 3-pin XLR, male
• Dimensions:
• Length : 185 mm
• Shaft diameter: 23/35 mm
• Head diameter: 54 mm
• Weight (without cable): 345 g
