ATEM Mini Pro ISO also includes recording to USB disks in H.264 format, a built in hardware streaming engine for YouTube Live, Facebook, Twitch and more, plus multiview to see all cameras on a single monitor.

Plus with the ATEM Mini Pro ISOmodel you also get recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.

---

Features

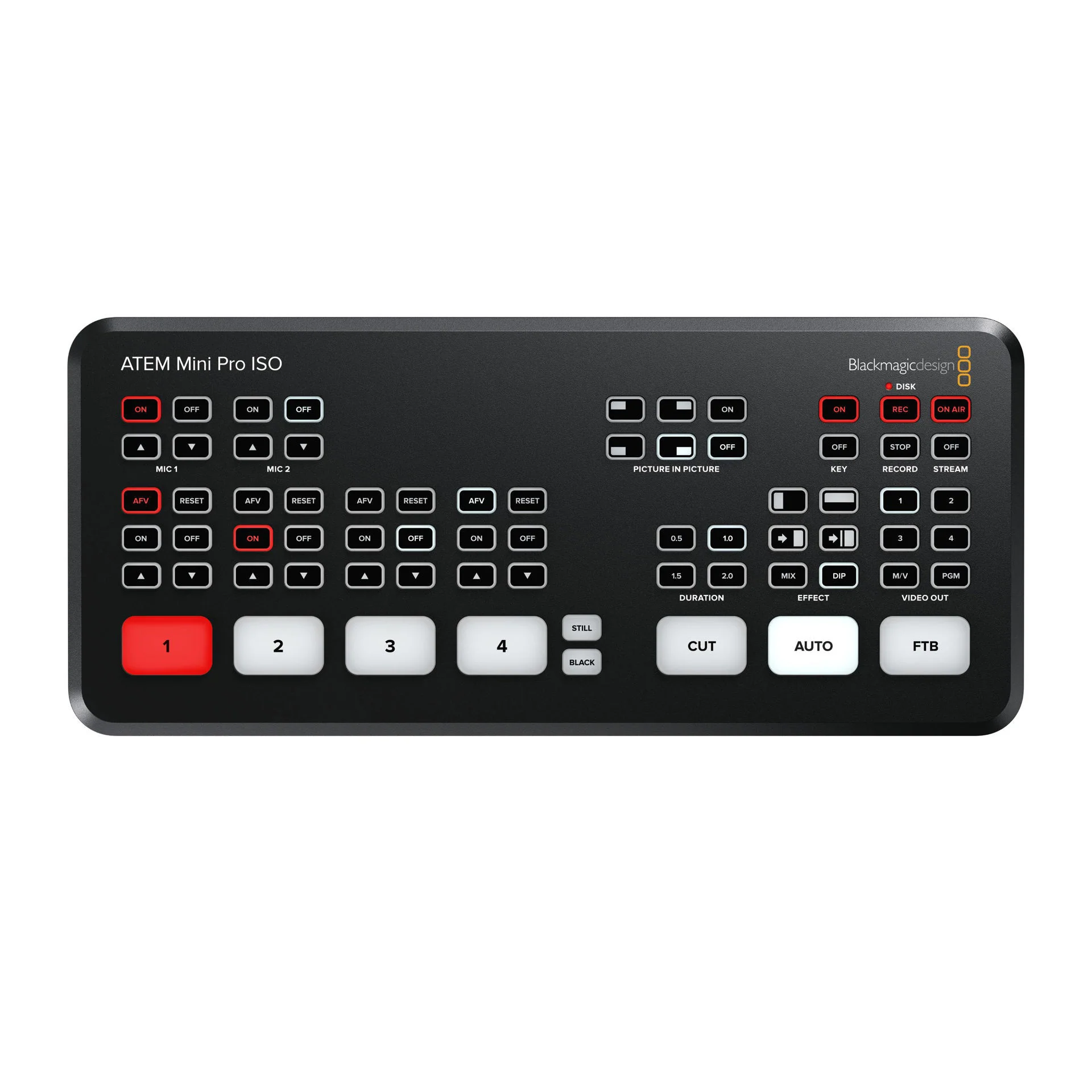

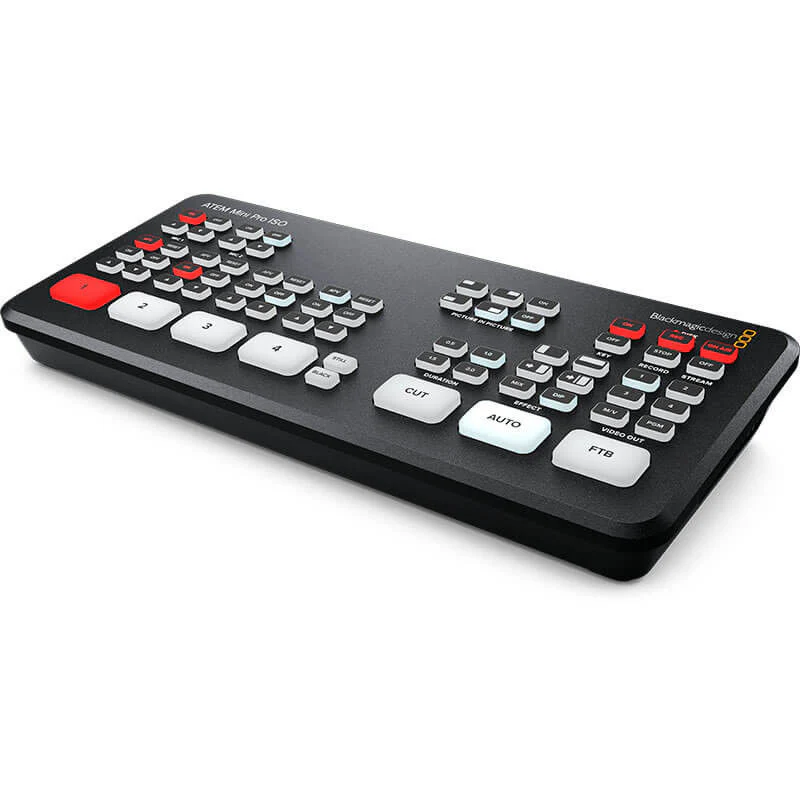

• Features miniaturized control panel based design.
• Built in support for recording each input as a separate ISO file.
• Saves DaVinci Resolve project file for 1 click editing of live production.
• Supports connecting up to 4 cameras or computers.
• Live streaming via Ethernet supported on ATEM Mini Pro.
• USB output operates as a webcam and supports all video software.
• Automatically standards converts and re-syncs all HDMI inputs.
• Includes free ATEM Software Control for Mac and Windows.
• Internal media for 20 RGBA graphics for titles, opening plates and logos.
• Includes ATEM Advanced Chroma Key for green/blue screen work.
• Multiview allows monitoring of all cameras on ATEM Mini Pro.
• Audio mixer supports limiter, compressor, 6 band EQ and more!

---

Specifications

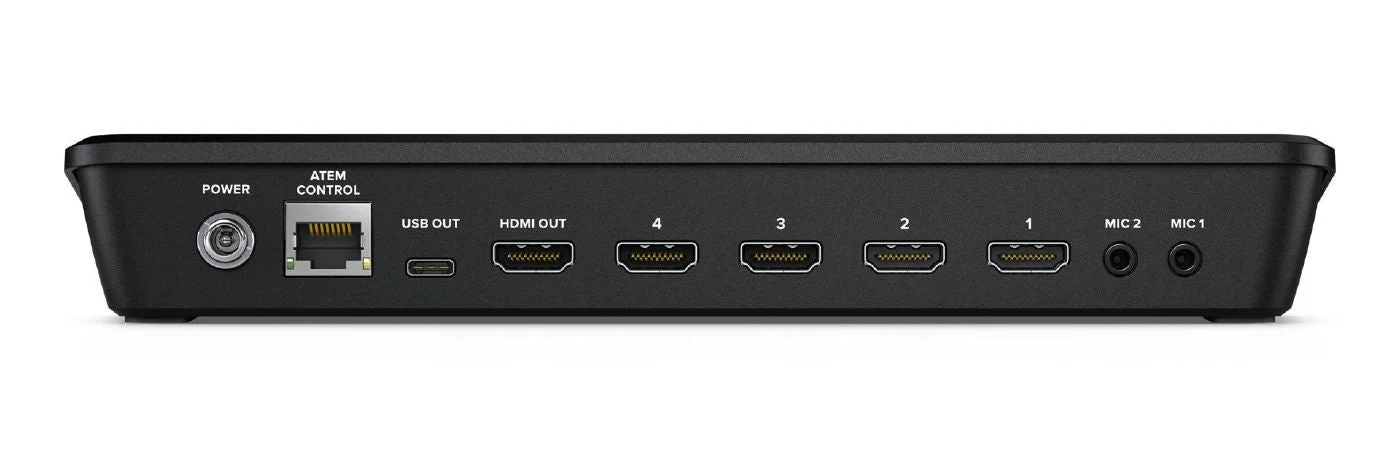

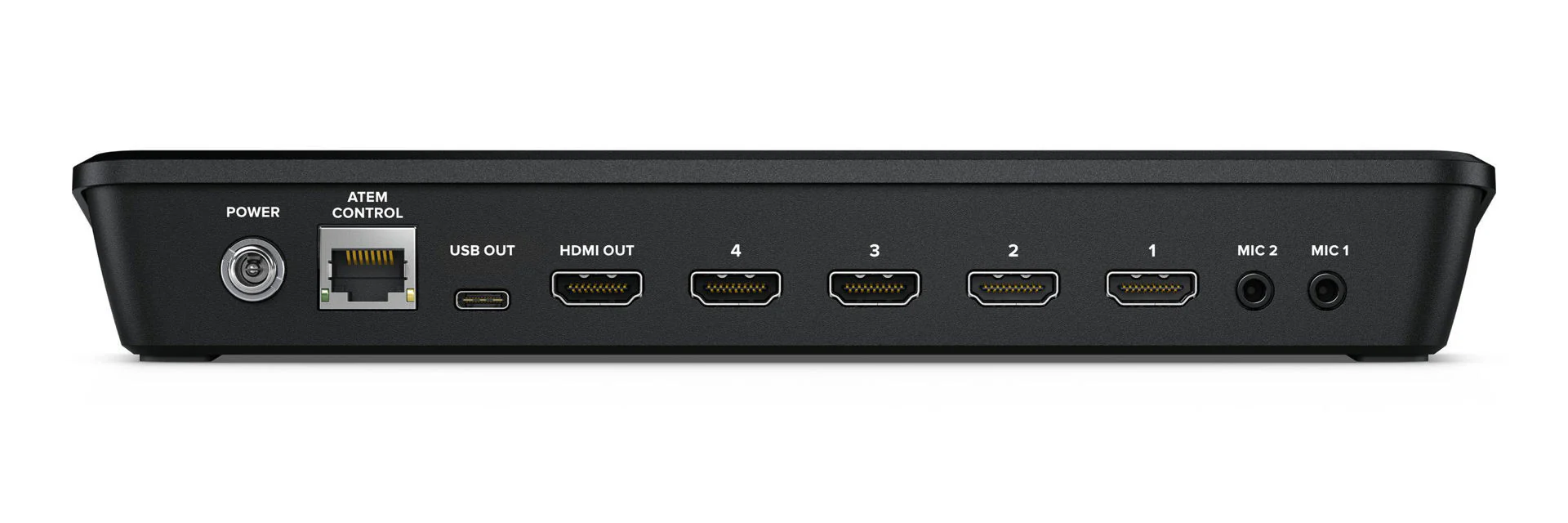

Connections

• Total Video Inputs: 4
• Total Outputs: 2
• Total Aux Outputs: 1
• Total Audio Inputs: 2 x 3.5mm stereo mini jack.
• Total Audio Outputs: None, embedded audio only.
• Timecode Connection: None
• HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
• Video Input Re-Sync: On all 4 HDMI inputs.
• Frame Rate and Format Converters: On all 4 HDMI inputs.
• HDMI Program Outputs: 1
• Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
• Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards

• HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec 709
• HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz, 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz, 1920 x1080i 50 and 59.94Hz 60Hz
• Colorspace Conversion: Hardware based real time.

Product Specifics

• Upstream Keyers: 1
• Downstream Keyers: 1
• Advanced Chroma Keyers: 1
• Linear/Luma Keyers: 2
• Transition Keyer: DVE only.
• Total Number of Layers: 5
• Pattern Generators: 1
• Color Generators: 2
• DVE with Borders and Drop Shadow: 1
• Interface: Minimum monitor resolution of 1366 x 768.

Audio

• Audio Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
  Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6dBV
• Mic Plug In Power: Available on both 3.5mm mini jack connections.

Streaming

• Direct Streaming: ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

Recording

• Direct Recording: 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
• Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
• Multi View Monitoring
• Multi View Monitoring: 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
• Multi View Video Standard: HD

Media Player

• Media Players: 1
• Channels: Fill and key for each Media Player.
• Media Pool Still Image Capacity: 20 with fill and key.
• Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

• Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
• Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
• Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
• Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.

Software

• Software Updates: Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
• Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

• Mac icon
• Mac 10.14 Mojave,
• Mac 10.15 Catalina or later.
• Windows Icon
• Windows 10, 64-bit.

Power Requirements

• Power Supply: 1 x External 12V power supply.
• Power Usage: 30W

Environmental Specifications

• Operating Temperature: 5° C to 40° C (41° - 104° F)
• Storage Temperature: -10° to 60° C (14° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• ATEM Mini Pro ISO
• External 12V DC power supply with international socket adapters

Warranty

• 12 Months Limited Manufacturer's Warranty.
