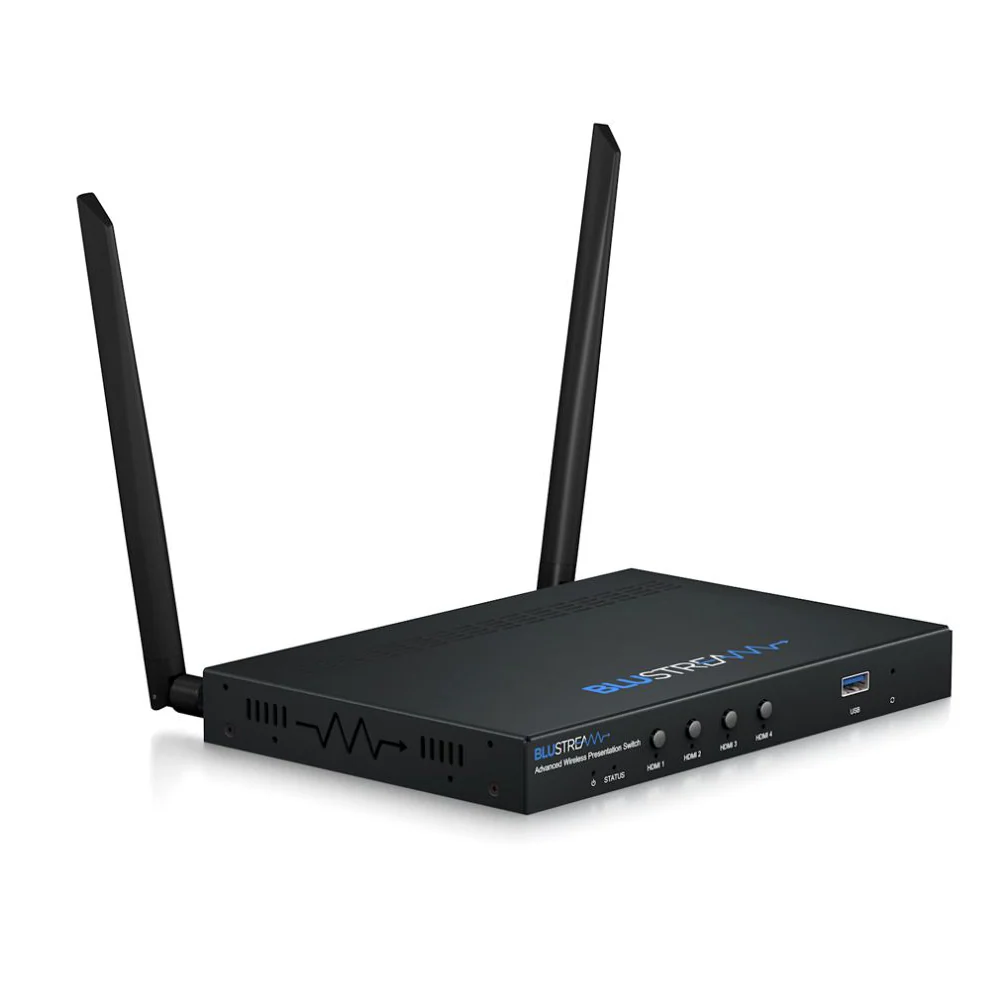

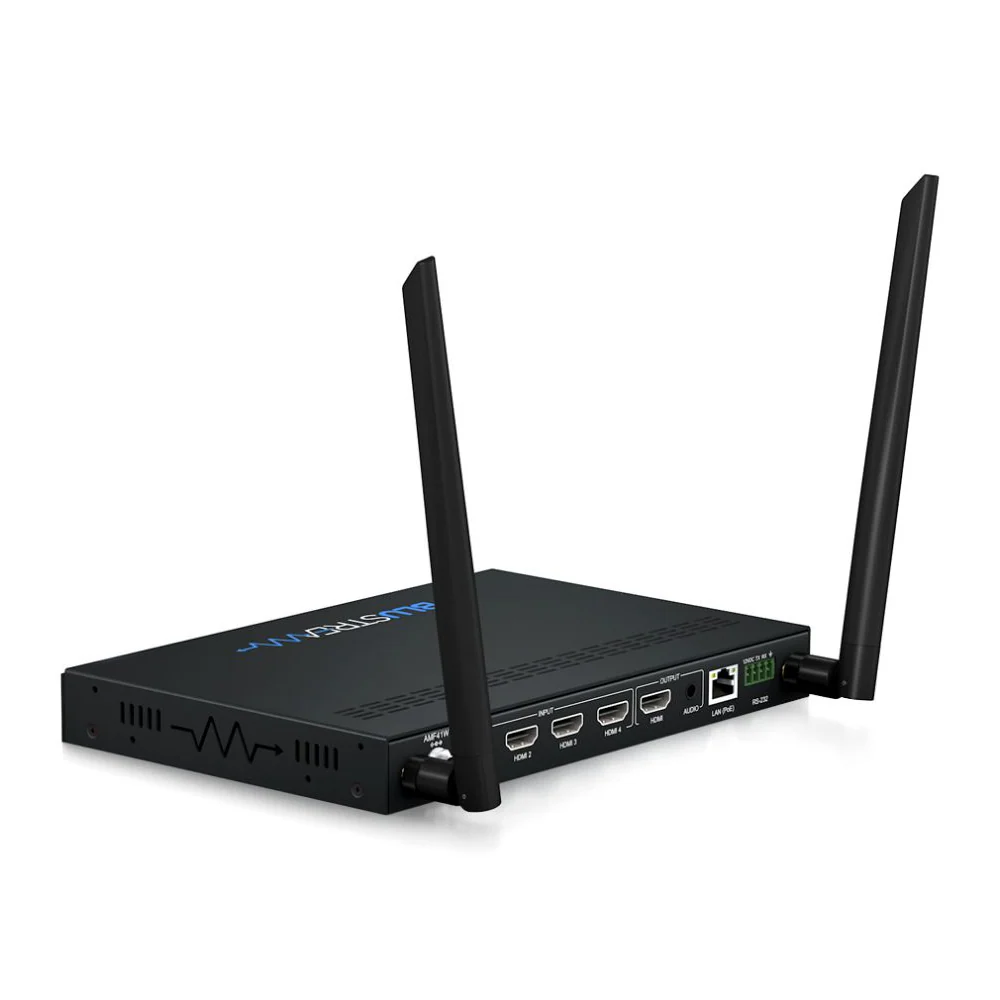

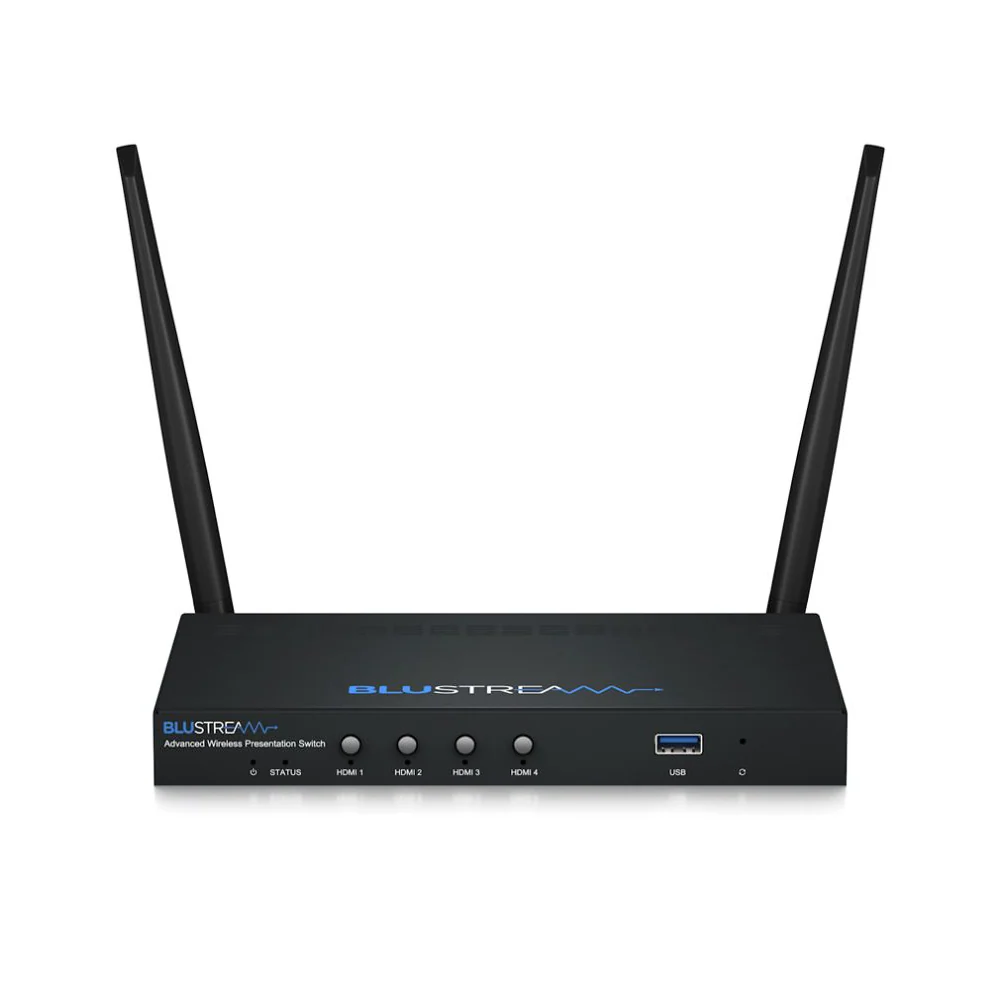

Blustream BLU-AMF41W Multi Format Presentation Switch
The AMF41W provides enhanced features including localised 2.4/5G WiFi hotspot, seamless switching, multi-view presentation, video scaling, and web-GUI for control and configuration. The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, and TCP/IP. The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.
Features
• Features 4 x HDMI, AirPlay and Miracast® inputs which can be switched to a single HDMI output • Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracast® local streaming to AMF41W • Multi-view presentation with up to 7 concurrent video signals and configurable screen layout • Seamless switching of sources in both single, or multi-view mode • In-built video scaler with output timing up to 4K 60Hz 4:4:4 • HDMI inputs support resolutions up to 4K UHD 60Hz 4:2:0 / 4K 30Hz 4:4:4* • Supports AirPlay mirror and Miracast® point-to-point mode (up to 1080p) • Audio breakout to analogue L/R audio • LAN connection for integration to existing network infratructures • Auto display on/off feature allowing control of display via RS-232 • Web interface module for control and configuration of switch • Control via front panel or TCP/IP with manual or auto source selection * Please note: the AMF41W does not accept interlaced video formatsSpecifications
• Video Input Connectors: 4 x HDMI Type A, 19-pin, female • Video Output Connectors: 1 x HDMI Type A, 19-pin, female • Audio Output Connectors: 1 x 3.5mm stereo jack • RS-232 serial port: 1 x 4-Pin Phoenix connector • TCP/IP Control: 1 x RJ45, female • USB Connectors: 1 x USB Type A female • WiFi: 2.4G & 5G • Casing Dimensions (W x H x D): 215mm x 25mm x 141mm (excluding antennas) • Operating Temperature: 32°F to 113°F (0°C to +45°C) • Storage Temperature: -4°F to 150°F (-25°C to +70°C) • Power Supply: 12V/2A DC, screw type barrel connector Box Contents 1 x AMF41W 1 x 12V/2A DC power supply 1 x 4-pin Phoenix connector (RS-232) 2 x Antenna 1 x Mounting kit 1 x Quick reference guide$1,508.53
Blustream BLU-AMF41W Multi Format Presentation Switch—
$1,508.53
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The AMF41W provides enhanced features including localised 2.4/5G WiFi hotspot, seamless switching, multi-view presentation, video scaling, and web-GUI for control and configuration. The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, and TCP/IP. The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.
