Features

• Quick rhythm customizing with Note Mixing function, dozens of play-along drum patterns also built in

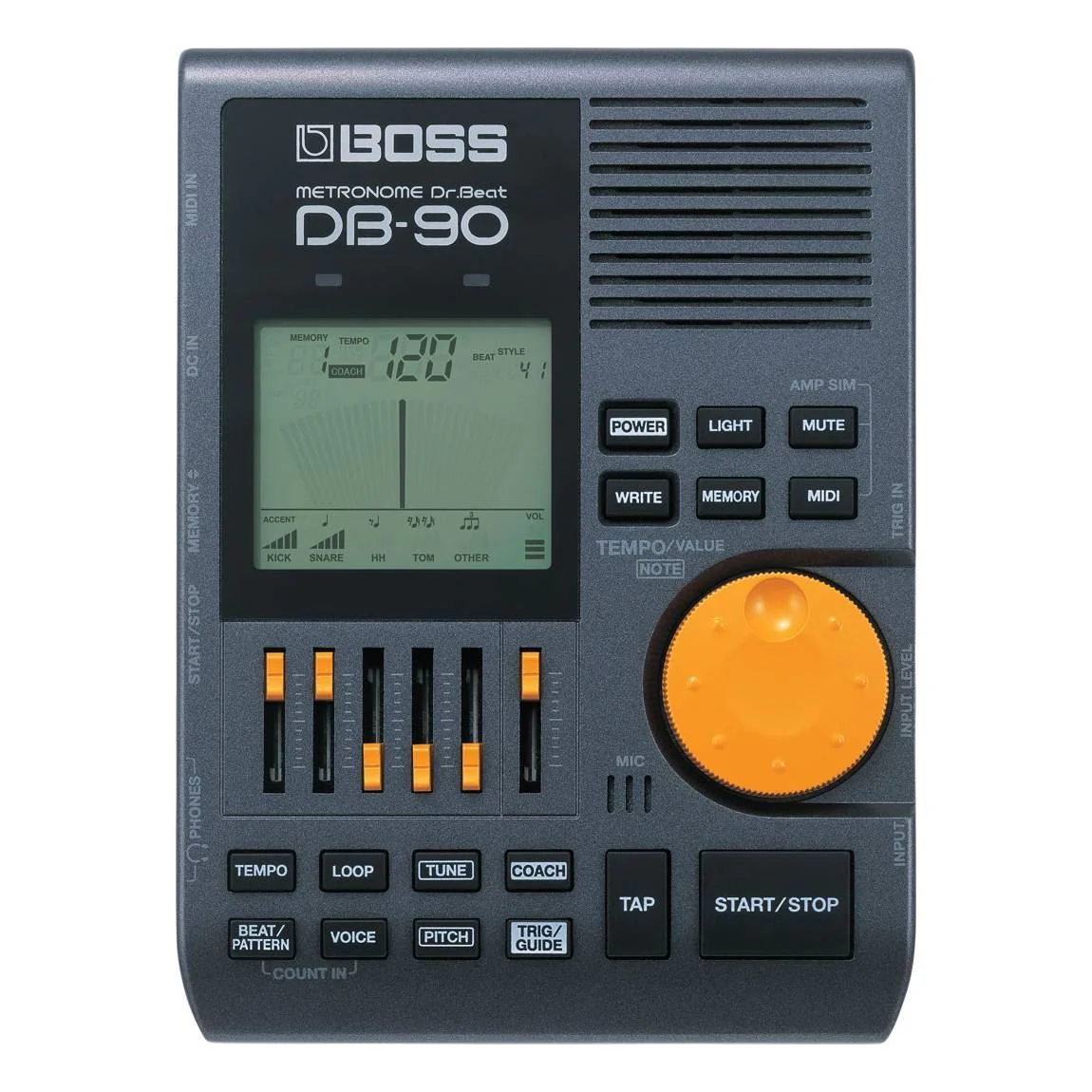

• Dedicated sliders, buttons, rotary dial, and large backlit LCD for user-friendly operation
• 4 metronome (including human voice) sounds
• Reference Tone function makes it easy to verify tuning by ear
• Practice with the Rhythm Coach by connecting a V-Pad (optional) — rubber pads and acoustic drums can also be detected via built-in mic
• Direct connection with guitar and bass, plus headphone monitoring
• Footswitch control for hands-free play/stop, and MIDI input for sync to external sequencers

---

Specifications

• Metronome

  • Tempo: 30-250 (Accuracy: ±0.1%)
  • BEAT: (BEAT1) 1–9, (BEAT2) OFF/1–9
  • PATTERN: 8-BEAT x 4, 16-BEAT x 3, SHUFFLE x 3, FUNK x 2, JAZZ x 2, BLUES, TECHNO,
  • HOUSE, COUNTRY, REGGAE, CLAVE 3-2, CLAVE 2-3, SALSA, RUMBA, BOSSA NOVA, SAMBA,
  • WALTZ, TANGO, MAMBO, CHACHACHA, MARCH (30 kinds)
• RHYTHM COACH: Time Check, Quiet Count, Gradual Up/Down, Step Up/Down
• Reference Tone

  • Reference Pitch: A4=438 Hz-445 Hz (1 Hz steps)
  • Reference Tone Range: C2-B6 (5 octave, 12 semitone)
• Memory

  • Metronome: 50
  • Reference Tone: 10
• Auto Power Off function: Turns unit off after 60 min
• Indicators: LCD Display, Tempo Indicator LED x 2

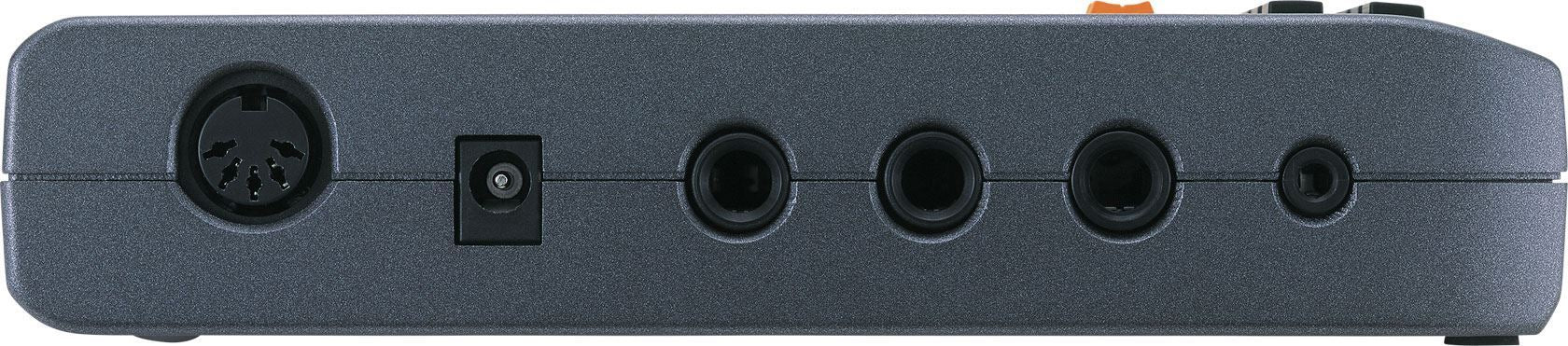

• Connectors

  • TRIG IN jack
  • START/STOP jack
  • MEMORY UP/DOWN jack
  • MIDI IN connector
  • PHONES jack x 2 (Stereo 1/4" phone type, Stereo miniature phone type)
  • INPUT jack
  • AC ADAPTOR jack
• Power Supply: DC-9V: Dry Battery (6LR61/9V, 6AM6/9V) or AC adaptor (PSA series)
• Current Draw

  • 85 mA or less (with reference tone sounding)
  • 190 mA or less (with signals input to the INPUT jack)
• Accessories

  • Dry Battery (6LR61 (9V) Type)
  • Soft case
  • Owner''s Manual
  • Boss nut (M8)
• Width: 122 mm; 4-13/16 inches
• Depth: 164 mm; 6-1/2 inches
• Height: 38 mm; 1-1/2 inches
• Weight: 450 g; 1 lbs.

---
