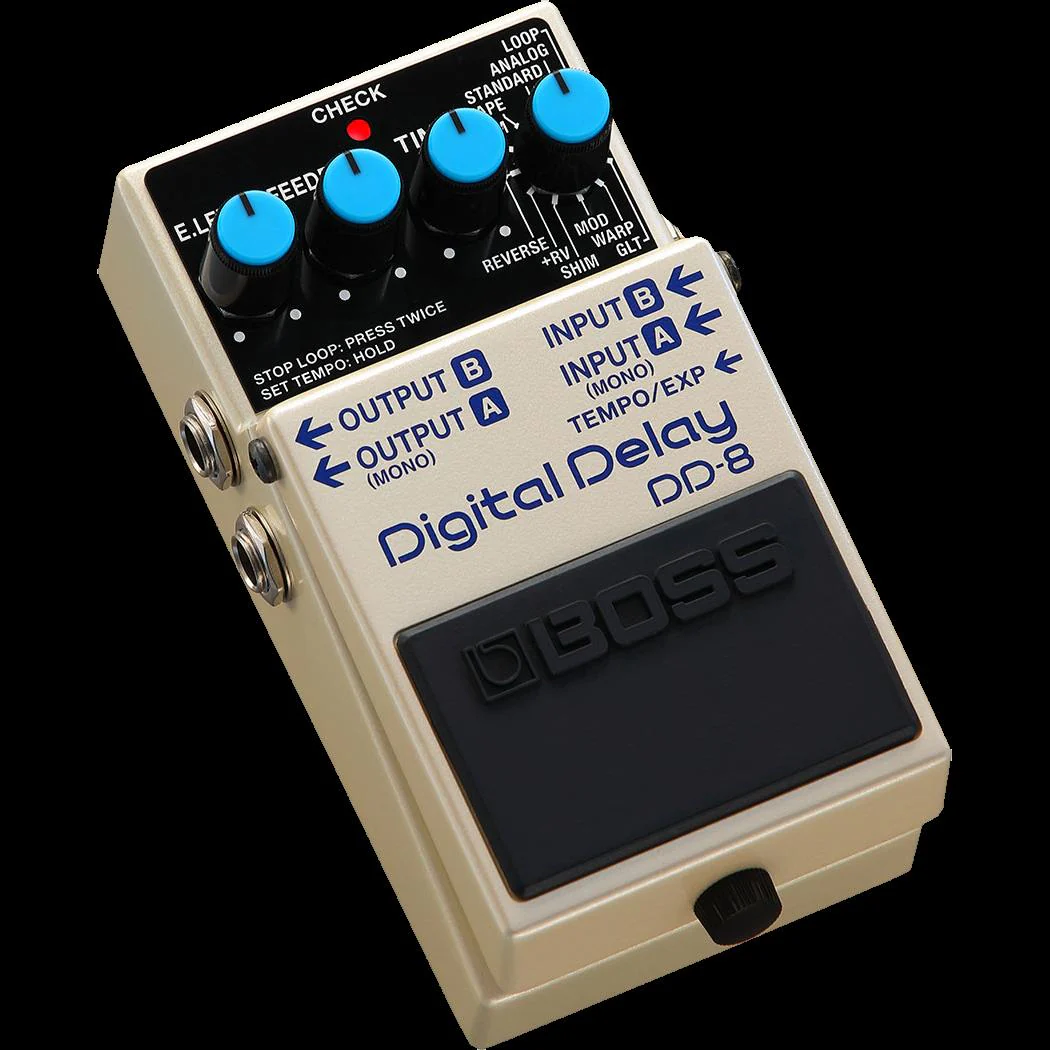

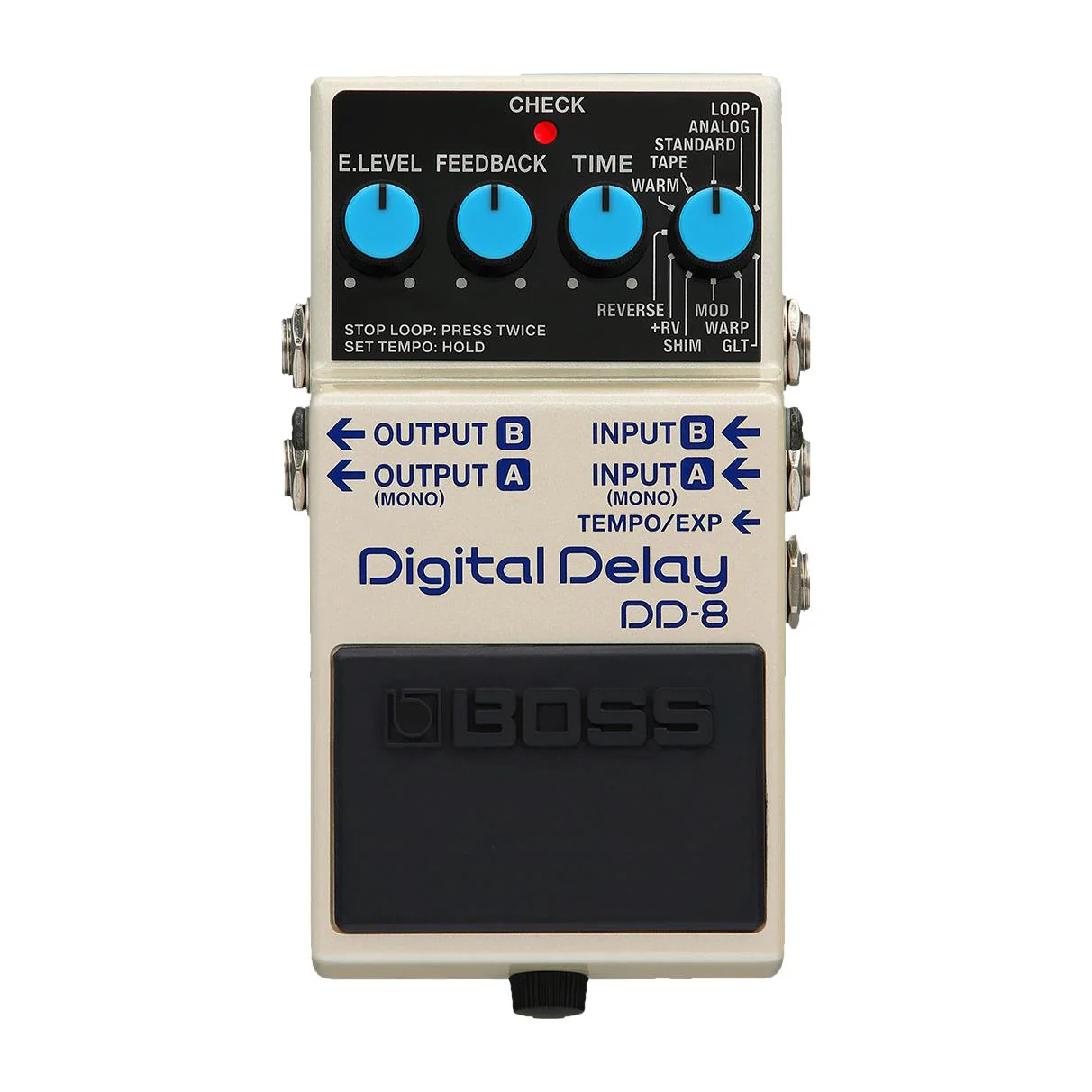

BOSS DD-8 Digital Delay Guitar Effects Pedal
This loaded pedal delivers more of everything—more great sounds, more delay time, more control options, and more connectivity. And it does it all in a standard BOSS pedal that slides easily into any mono or stereo setup.
Eleven modes provide delay colors from basic to exotic, plus a looper with unlimited overdub capability and external control support. For maximum versatility in a minimum amount of space, there’s no better delay stomp than the DD-8.
Features
- Updated version of the industry-standard DD-3, with enhanced functionality for modern players
- Ultra-easy operation for fast sound creation
- Delay time of 12.5 to 800 ms, divided into three ranges for quick setup
- Tap in tempos with the onboard pedal switch or an external footswitch
- Short Loop setting for creating phrase loops (same as the Hold function on the original DD-3)
- Direct output for sending dry and wet sounds to separate amps
- Main and direct output jacks now positioned on one side of the pedal
- BOSS five-year warranty
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: MODE knob; TIME knob; FEEDBACK knob; E.LEVEL(Effect Level) knob; CARRYOVER SWITCH; Pedal switch
- Indicator: CHECK indicator (Used for indication of check battery)
- Connectors: INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type; OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type; TEMPO/EXP jack: TRS 1/4-inch phone type; DC IN jack
- Power Supply: Alkaline battery (9 V, 6LR61); AC adaptor (PSA series: sold separately)
- Current Draw: 65 mA
- Expected battery life under continuous use: Alkaline: Approx. 5 hours;
*These figures will vary depending on the actual conditions of use. - Accessories: Owner's manual: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"): Alkaline battery (9 V, 6LR61)
- Options (sold separately)AC adaptor: PSA series; Footswitch: FS-5U, FS-6, FS-7; Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- Width: 73 mm; 2-7/8 inches
- Depth: 129 mm; 5-1/8 inches
- Height: 59 mm; 2-3/8 inches
- Weight: (including battery)440 g: 1 lb
WATCH: BOSS DD-8 Digital Delay performed by Jack Gardiner
