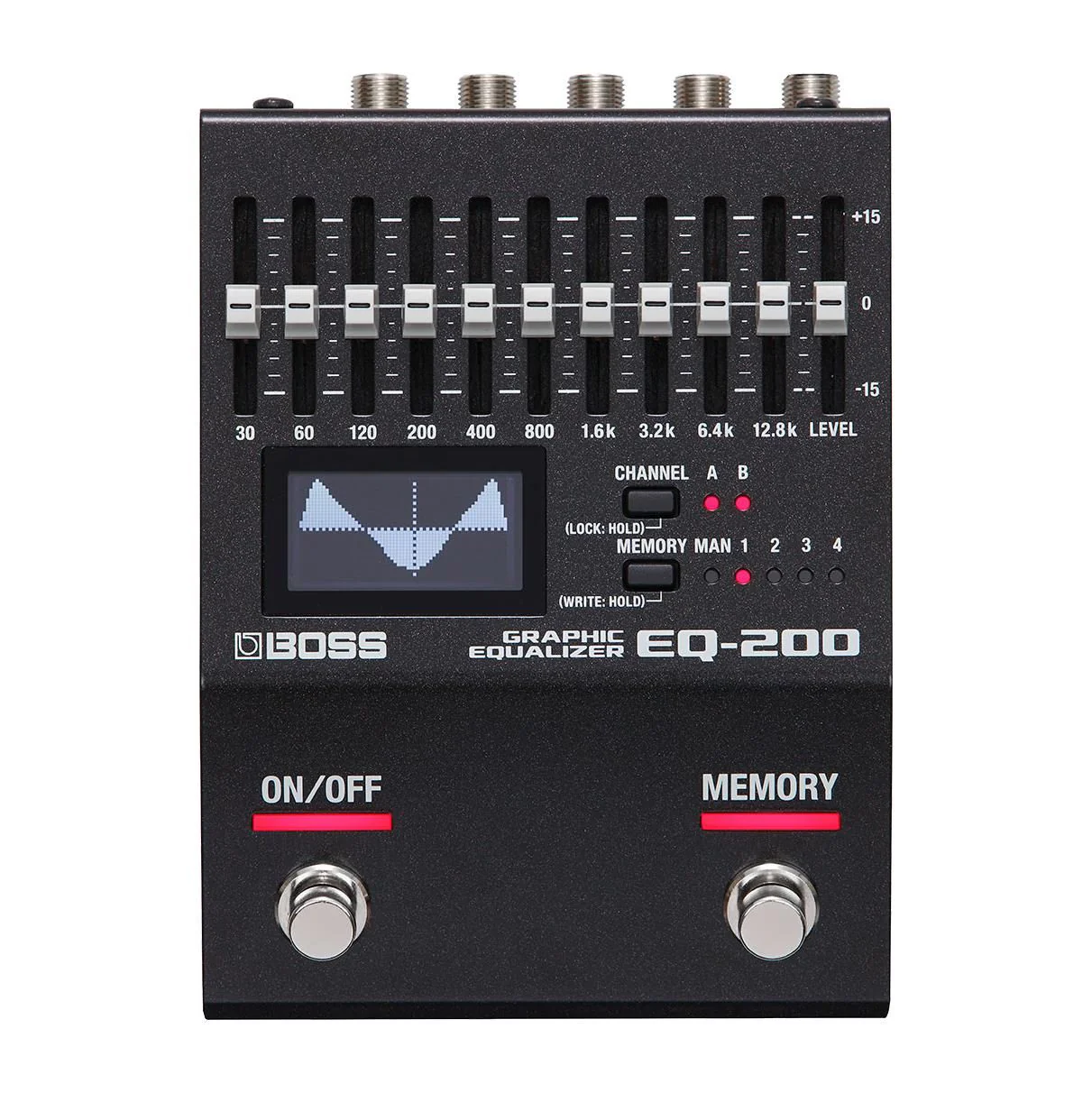

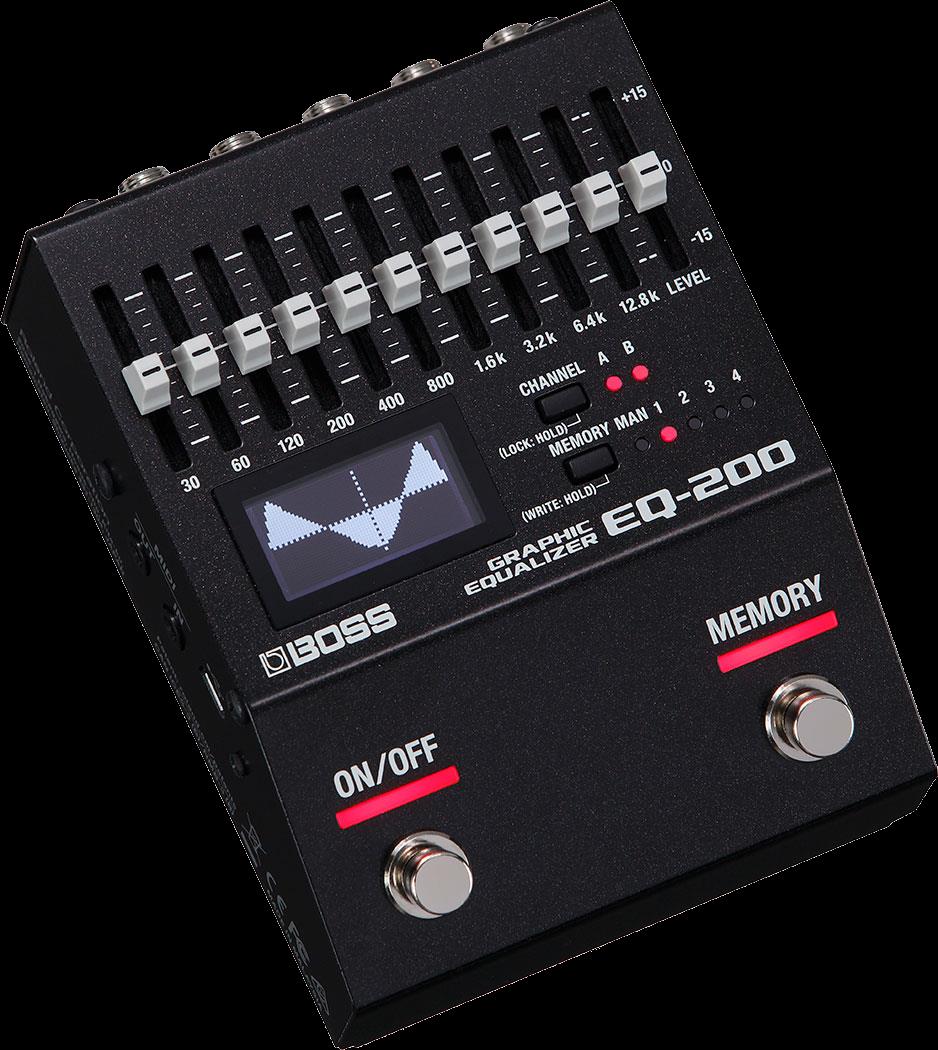

BOSS EQ-200 Graphic Equalizer Guitar Effects Pedal

Product image 1
1 / 6

BOSS EQ-200 Graphic Equalizer Guitar Effects Pedal

Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, as well as support for additional control via external switches, an expression pedal, or MIDI.

The EQ-200 is the most flexible compact EQ ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, plus an onboard graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and it’s even possible to patch in external pedals for deep pre/post tone shaping.

Going further, the frequency centers of all 10 bands can be set to three different types, letting you optimize the EQ-200’s performance for different instruments.

Features

  • Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
  • Dual 10-band EQs that can be used in stereo, parallel, or series
  • Insert function for processing external effects with pre and/or post tone shaping
  • Three different range settings: 30 Hz to 12.8 kHz, 32.1 Hz to 16 kHz, and 28 Hz to 14 kHz
  • 15 dB boost/cut on each band, plus overall level control for each channel
  • Stereo link function for operating both EQ channels together
  • Intuitive interface with hands-on sliders and graphic EQ display
  • Real-time panel setting and four memories for storing favorite sounds
  • Panel Lock function disables controls to prevent unwanted changes
  • Two onboard footswitches with customizable assignments
  • Support for expanded control via external footswitches, an expression pedal, or MIDI
  • Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
  • Micro USB jack for firmware updates
  • Runs on PSA-series AC adaptor or three AA-size batteries

Specifications

Sampling Frequency
96 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Modes
12 modes
STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSE
Memory
4 + Manual
Nominal Input Level
INPUT A/MONO, B: -10 dBu
Maximum Input Level
INPUT A/MONO, B: +7 dBu
Input Impedance
INPUT A/MONO, B: 2 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +7 dBu
Output Impedance
OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
Buffered bypass
Controls
ON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob
TAP DIVISION button, MEMORY button
Display
7 segments, 3 characters (LED)
Indicator
TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators
Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply
Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw
225 mA
Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.
Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4
Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35
Width
101 mm
4 inches
Depth
138 mm
5-7/16 inches
Height
63 mm
2-1/2 inches
Height (including rubber foot)
65 mm
2-9/16 inches
Weight
610 g
1 lb 6 oz
Weight (including battery)
680 g
1 lb 8 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
$110.42

Original: $315.50

-65%
BOSS EQ-200 Graphic Equalizer Guitar Effects Pedal—

$315.50

$110.42

Product Information
