Take command of your MIDI music gear with the BOSS EV-1-WL, the world’s first wireless MIDI expression pedal.

The EV-1-WL provides wireless foot control for BOSS products such as the EURUS GS-1, Waza-Air, and Katana-Air music apps on mobile devices, and anything that can receive CC messages via Bluetooth® MIDI. In addition, USB and MIDI TRS connectivity are on hand for wired control of computer music software and standard MIDI devices.

Whether you go wireless or wired—or both at once—the EV-1-WL delivers a ton of MIDI power in a compact footprint.

---

Features

• Powerful MIDI control pedal with three ways to connect: Bluetooth wireless, USB, and TRS MIDI
• Use all three outputs at once with independent MIDI CC settings for each
• Communicate wirelessly with the BOSS EURUS GS-1, Waza-Air, Katana-Air, and any device that supports Bluetooth MIDI
• Class-compliant USB for plug-and-play operation with music software on macOS and Windows computers
• TRS MIDI output for controlling MIDI devices with TRS or 5-pin inputs
• Supports communication with the Roland WM-1 and WM-1D wireless MIDI adaptors
• Built-in toe switch with on/off indicators on both sides of the pedal
• Control input for up to two BOSS FS-series footswitches
• Dedicated iOS/Android app for assigning MIDI CC numbers, customizing the response, and more
• Powered with two AA batteries or BOSS PSA-series adaptor

---

Specifications

Controls

• POWER switch
• Bluetooth button

Indicator

• POWER
• Bluetooth
• EXP SW

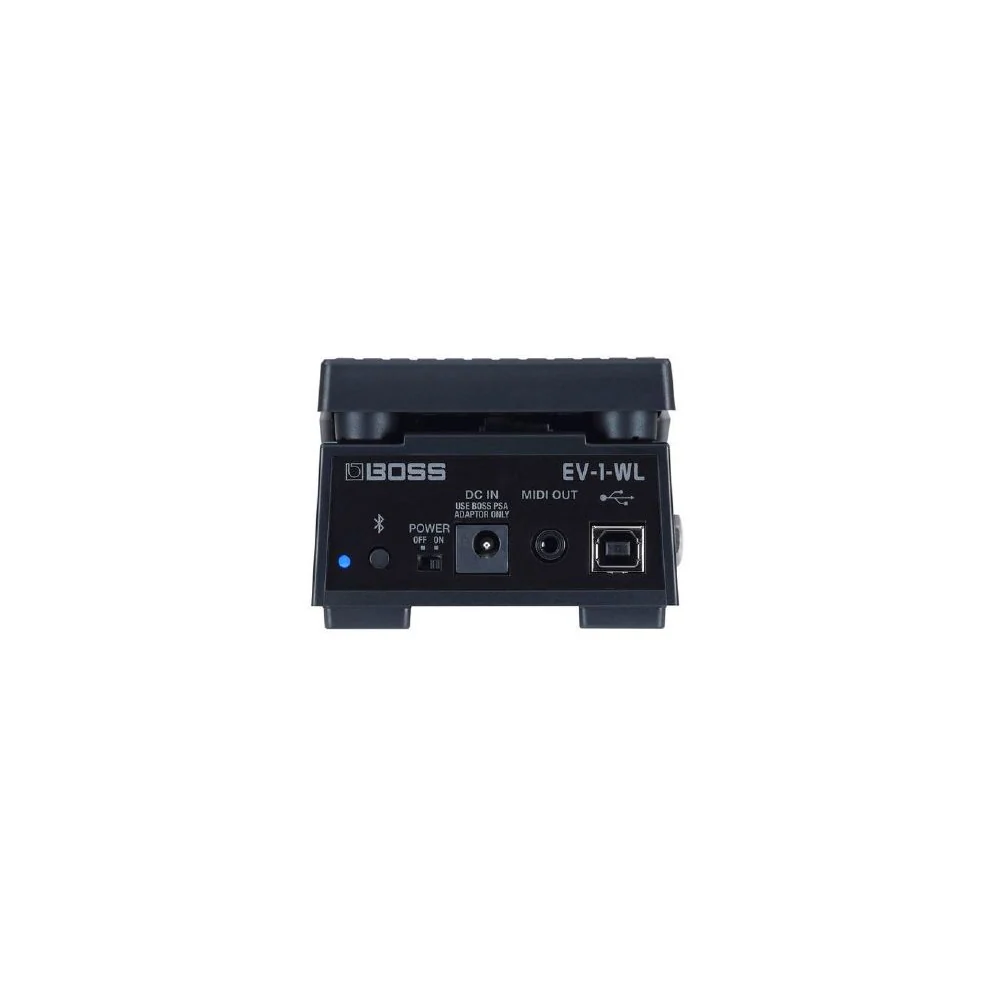

Connectors

• MIDI OUT jack: stereo miniature phone type
• USB COMPUTER port: USB B type
• CTL 1, 2 jack: 1/4-inch TRS phone type
• DC IN jack

Power Supply

• Alkaline battery (AA, LR6) x 2
• AC adaptor (sold separately)

Current Draw: 75 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)

• Alkaline battery: 30 hours

Dimensions

• 87 (W) x 200 (D) x 62 (H) mm
• 3-7/16 (W) x 7-7/8 (D) x 2-1/2 (H) inches

(Maximum height)

• 87 (W) x 200 (D) x 92 (H) mm
• 3-7/16 (W) x 7-7/8 (D) x 3-5/8 (H) inches

Weight

• 600 g / 1 lb 6 oz
• 650 g / 1 lb 7 oz (including batteries)

Accessories

• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"
• Alkaline battery (AA, LR6) x 2

Options (sold separately)

• AC adaptor: PSA series
• Footswitch: FS-5U
• Dual footswitch: FS-6, FS-7
• TRS/MIDI connecting cable: BMIDI-5-35
