Features

• All-in-one kit flawlessly integrates BOSS’s next-generation GK-5B Divided Pickup with steel-string electric basses
• Supports the Serial GK interface used in the latest BOSS guitar synthesizer products
• Stable digital signal transmission
• Includes dedicated wiring for regular active or passive pickup signals
• Three-way momentary switch activates two assignable device function controls (S1 and S2)
• GK volume pot continuously controls synth volume and other assignable parameters
• Three-way toggle switch selects GK, regular pickup, and mixed signal outputs
• LED indicator illuminates when power is supplied
• Flat, slimline pickup fits on most electric basses with four, five, or six strings
• Adjustable sensor spacing to match most bass bridges
• Specially designed BOSS Serial GK cables (BGK series) available for stable and accurate operation with your Serial GK product
• Drives 13-pin GK devices using GKC-DA GK Converter (available separately)

Specifications

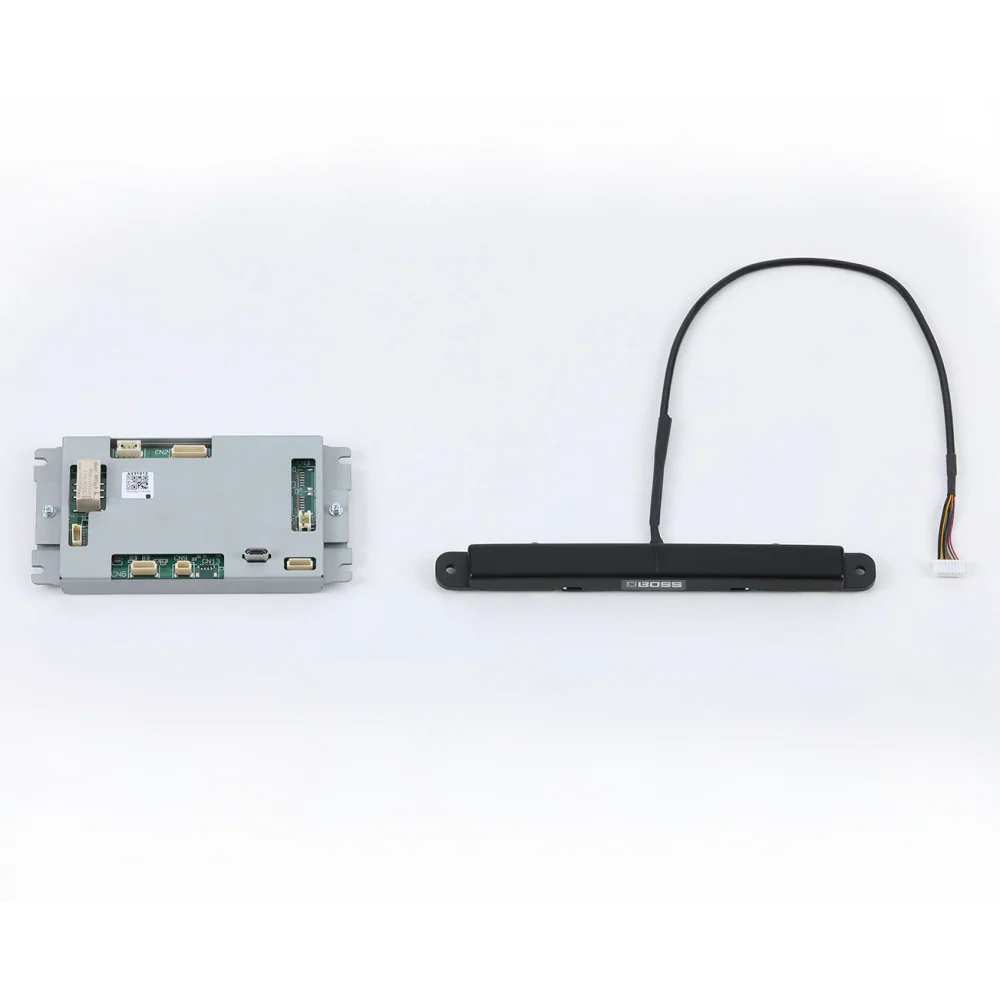

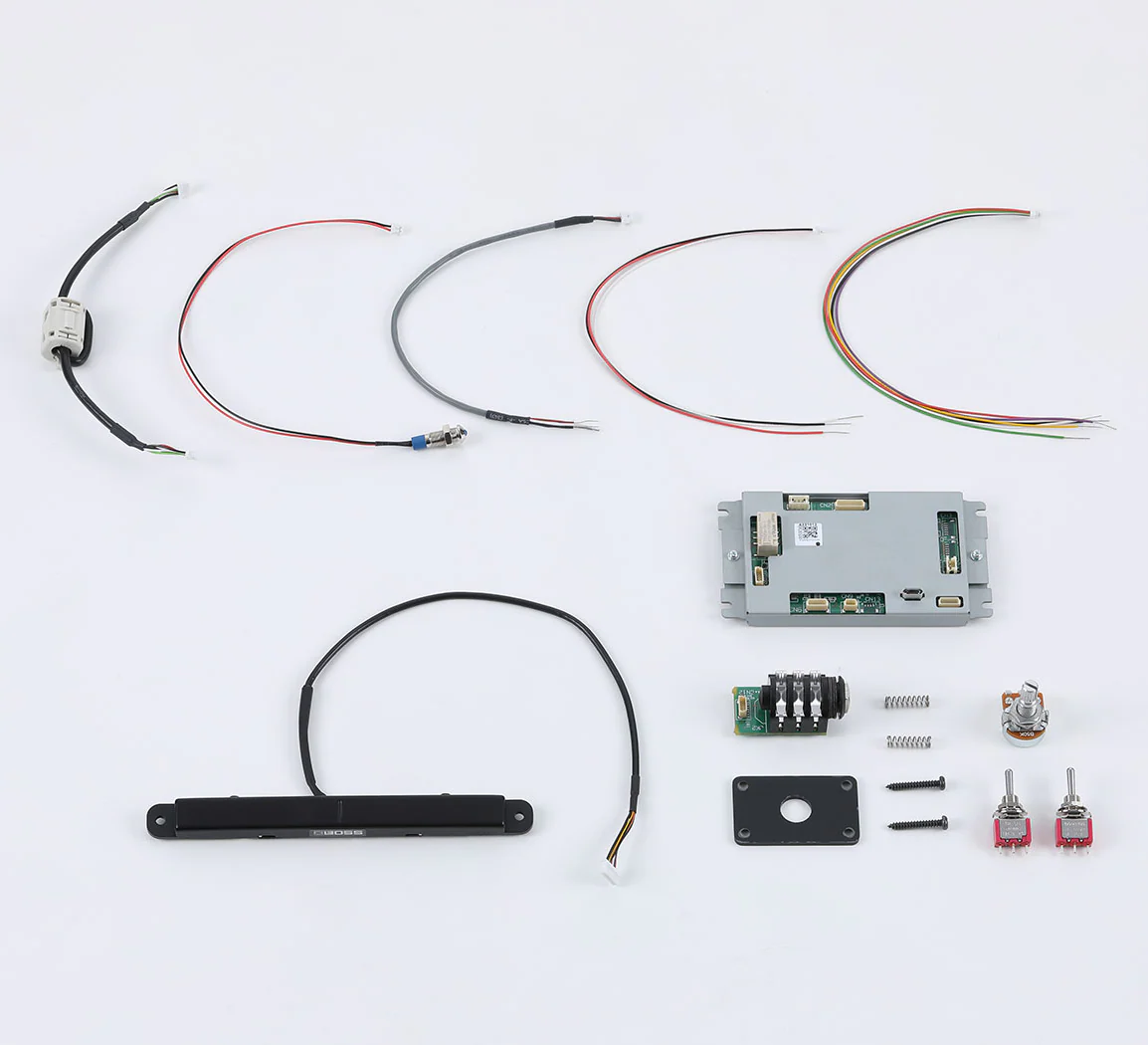

Supplied parts contents Divided pickup x 1 Main board unit x 1 GK connector board x 1 GK connector plate x 1 Installation screws for the divided pickup (M3 x 20) x 2 Divided pickup installation springs x 2 BASS/MIX/GK select switch (toggle switch) x 1 S1/S2 switch (momentary switch) x 1 GK volume (50 k ohms B curve) x 1 LED indicator (with wiring) x 1 Wiring Wiring (3 cores) for bass signal x 1 Wiring (6 cores) for GK switch x 1 Wiring (3 cores) for GK volume x 1 Wiring (5 cores) for GK connector x 1 Parts should be arranged separately Screws for attaching the GK connector installation plate onto the bass x 4 Screws for attaching the main board unit onto the bass x 4 Maximum input level on normal bass input INPUT: +11 dBu Accessory Owner's Manual
