Features

• Light and portable 100-watt guitar amp head with powerful, gig-ready sound
• Integrated five-inch monitor speaker for practice without an external cab
• Tube Logic design approach produces class-defying power, authoritative punch, and cutting presence
• Five unique amp characters (Clean, Crunch, Lead, Brown, and Acoustic), plus newly voiced variations for each
• Five independent effects sections (Booster, Mod, FX, Delay, and Reverb), with three selectable variations in each
• Dedicated Pedal FX for foot-controlled wah and pedal bend
• Updated BOSS Tone Studio software for customizing your sound with over 60 different BOSS effects, channel and global EQs, adjustable routing, and much more
• Power Amp In for preamps, modelers, and multi-effects
• Stereo Expand out to link with a second Katana MkII (available on 100-watt models only)
• Eight Tone Setting memories for storing and recalling all amp and effect settings
• Power Control for achieving cranked-amp tone and response at low volumes
• Three Cab Resonance options (Vintage, Modern, and Deep), selectable from the panel or BOSS Tone Studio
• Mic'd cabinet emulation on the line, USB, and phones/recording outputs, with three Air Feel settings available in BOSS Tone Studio
• Optional GA-FC foot controller provides complete amp control, including Tone Setting selection, effects on/off, expression pedal control, and more
• Connections for up to two footswitches or an expression pedal, plus MIDI input for Tone Setting selection and effects on/off from a MIDI foot controller
• Effect loop, with selectable series/parallel operation and adjustable level in BOSS Tone Studio
• Pro setups available at BOSS Tone Central

---

Specifications

• Rated Power Output:
  • 30 W (Using internal speaker)
  • 100 W (Using external speaker)
• Nominal Input Level

  • INPUT: -10 dBu (1 M ohm)
  • AUX IN: -10 dBu (20 k ohms)
  • RETURN IN: -10 dBu (100 k ohm)
• Speaker: 12 cm (5 inches) x 1
• Controls:
  • POWER switch
  • MASTER knob
  • PRESENCE Knob
  • POWER CONTROL switch (STANDBY, 0.5 W, 50 W, 100 W)
  • CAB RESONANCE switch (VINTAGE､MODERN､DEEP)
  • [AMPLIFIER]
    • VARIATION button
    • AMP TYPE switch (ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN)
    • GAIN knob
    • VOLUME knob
  • [EQUALIZER]

    • BASS knob
    • MIDDLE knob
    • TREBLE knob
  • [MULTI EFFECT]

    • BOOSTER button
    • MOD button
    • FX button
    • DELAY button
    • REVERB button
    • TAP button
    • BOOSTER knob
    • MOD knob
    • FX knob
    • DELAY knob
    • REVERB knob
  • [TONE SETTING]

    • CH1 button
    • CH2 button
    • CH3 button
    • CH4 button
    • PANEL button
  • [STERIO EXPAND]
    • STERIO EXPAND switch
• Indicators:
  • VARIATION
  • ACOUSTIC
  • CLEAN
  • CRUNCH
  • LEAD
  • BROWN
  • BOOSTER
  • MOD
  • FX
  • DELAY
  • REVERB
  • TAP
  • CH1
  • CH2
  • CH3
  • CH4
  • PANEL

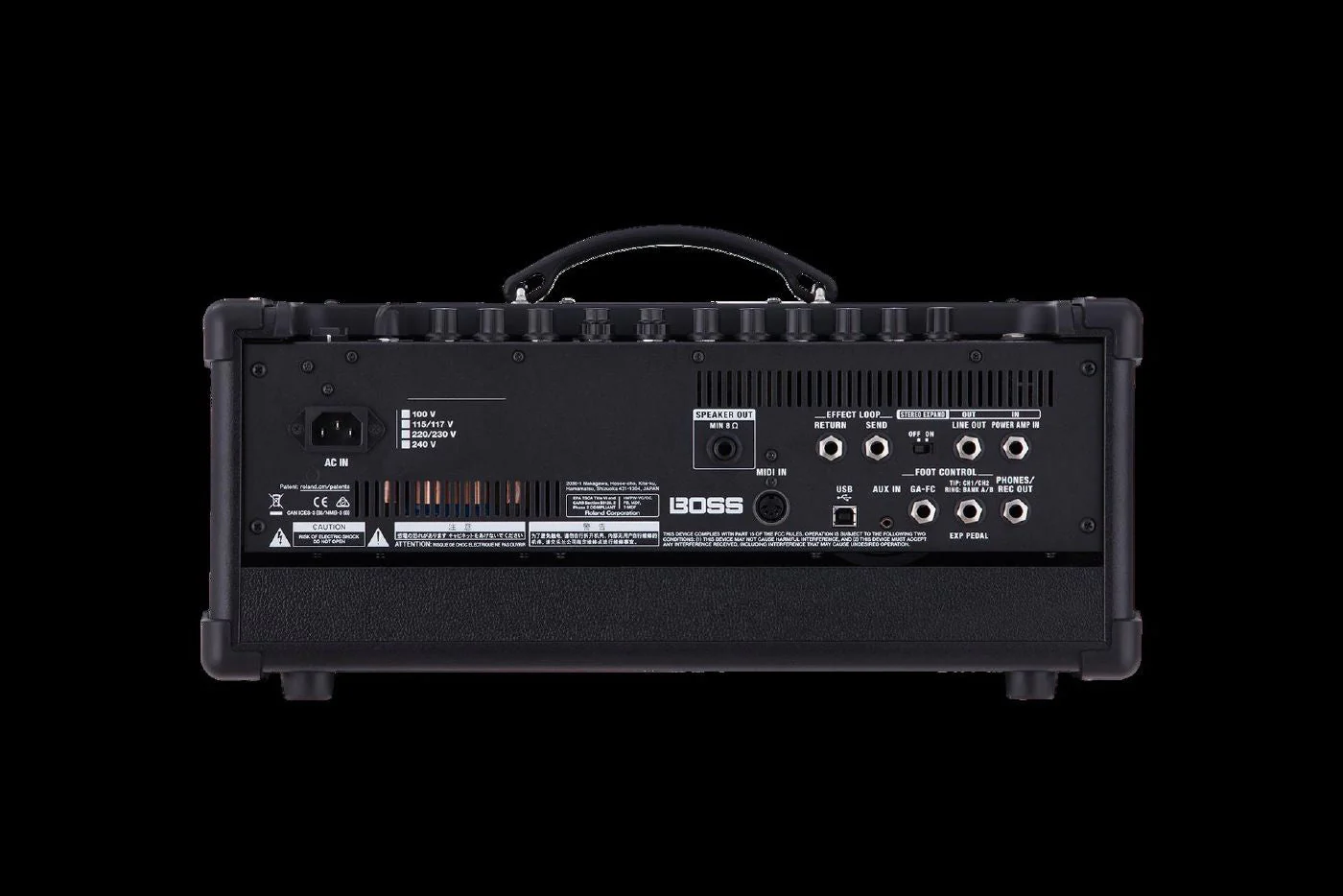

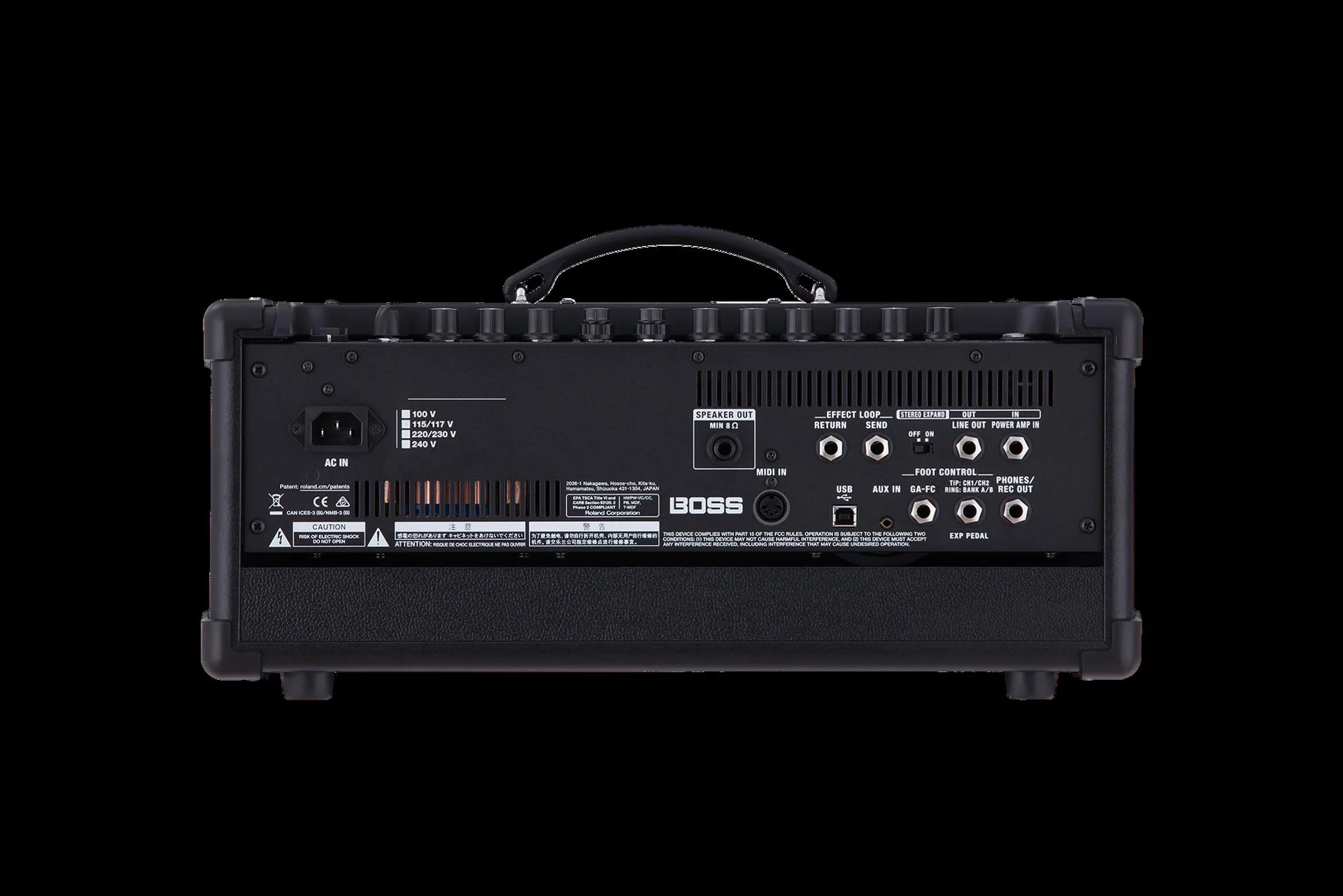

• Connectors:
  • INPUT jack: 1/4-inch phone type
  • POWER AMP IN jack: 1/4-inch phone type
  • LINE OUT jack: 1/4-inch phone type
  • SEND jack: 1/4-inch phone type
  • RETURN jack: 1/4-inch phone type
  • SPEAKER OUT jack: 1/4-inch phone type (Minimum 8 ohm)
  • REC OUT/PHONES jack: Stereo 1/4-inch phone type
  • EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
  • GA-FC jack: 1/4-inch TRS phone type
  • AUX IN jack: Stereo miniature phone type
  • USB port: USB B type
  • MIDI IN connector
  • AC IN jack
• Power Consumption: 77W
• Accessories:
  • Owner's Manual
  • Power Cord
  • GA-FC sticker
• Options: (sold separately)
  • Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
  • Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
  • GA FOOT CONTROLLER (GA-FC)
• Width: 470 mm; 18-9/16 inches
• Depth: 228 mm; 9 inches
• Height: 215 mm; 8-1/2 inches
• Weight: 8.8 kg; 19 lbs 7 oz

---
