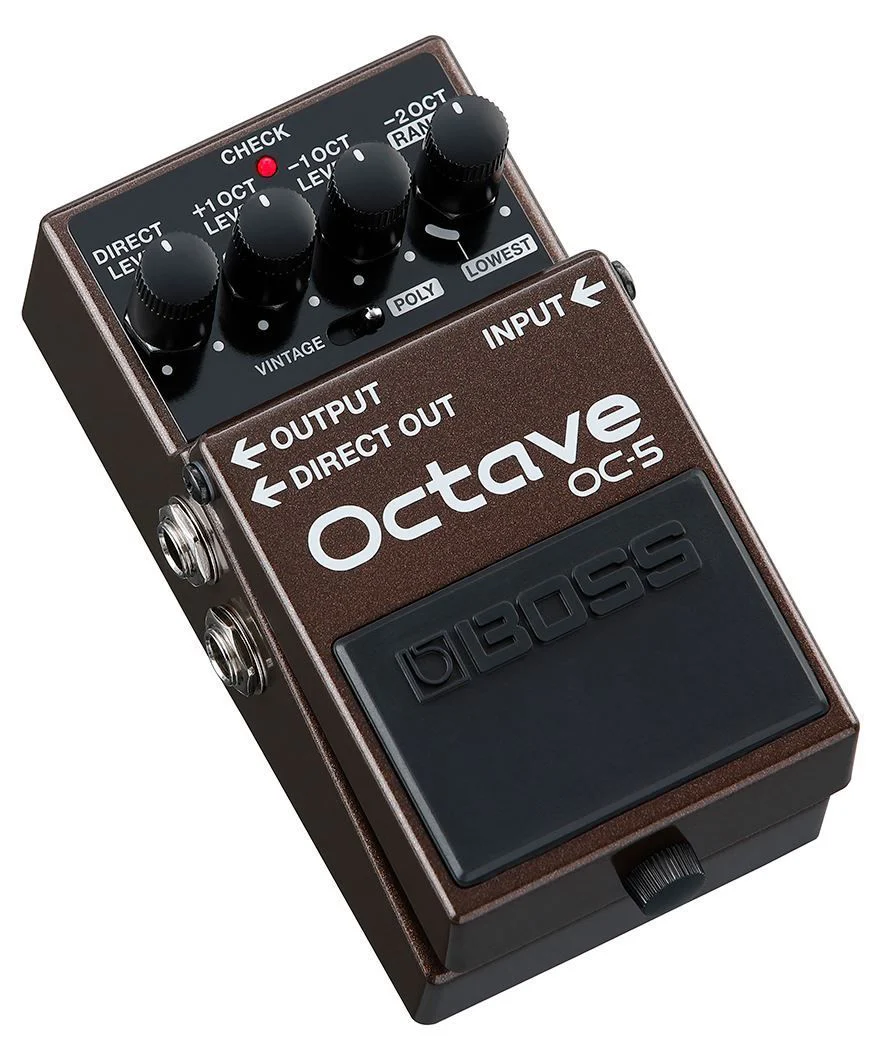

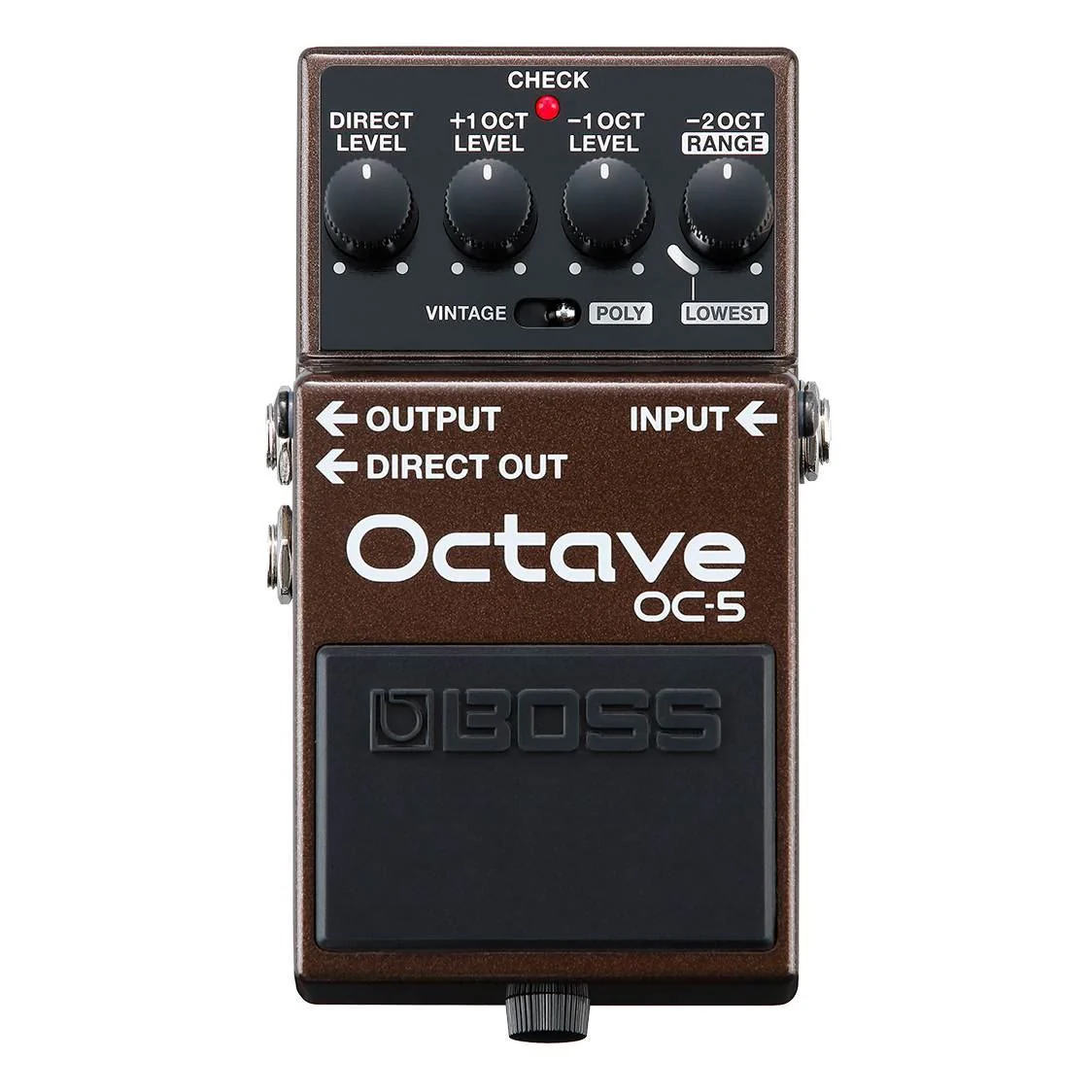

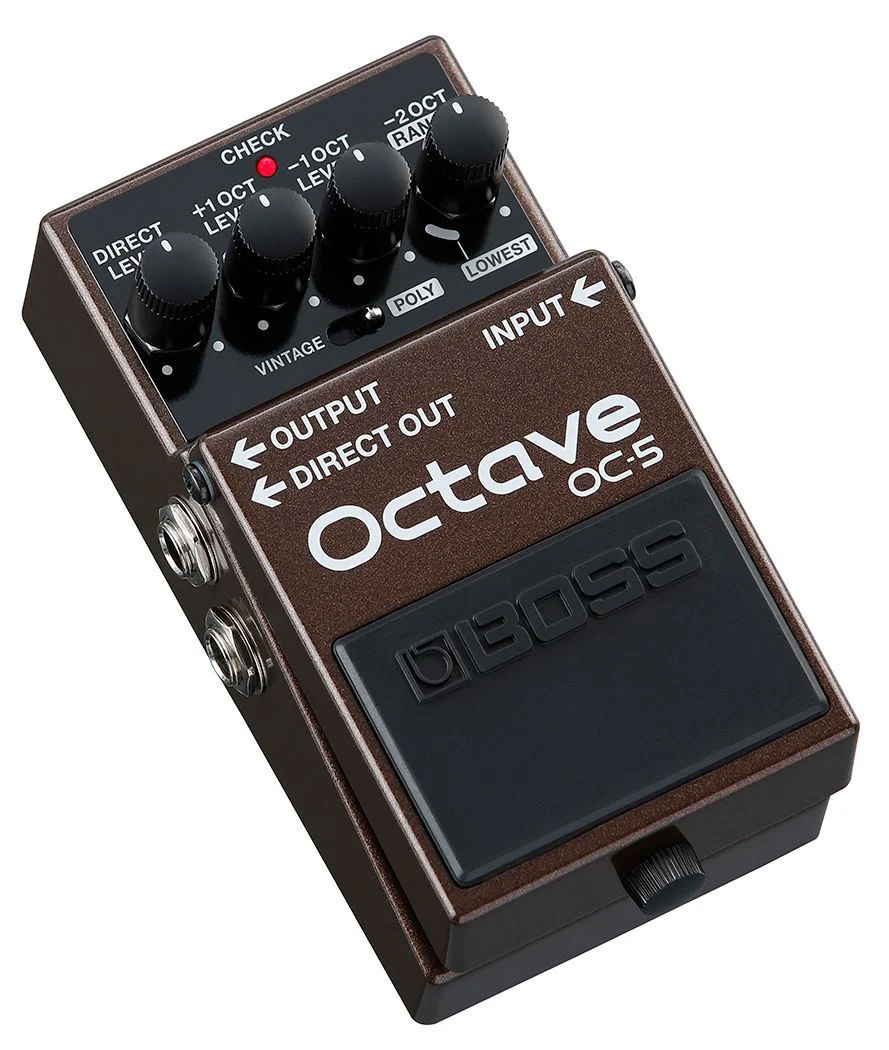

BOSS OC-5 Octave Guitar Effects Pedal
Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing.
And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.
Features
- The industry-standard octave pedal, updated with enhanced features
- Newly developed tracking technology provides more accurate response and natural feel with no latency
- Vintage mode faithfully reproduces the mono sound of the original OC-2
- Poly mode for chord playing; Range knob sets the note range where the effect is applied
- Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
- New octave-up effect, available on its own or blended with octave-down effects
- Mode switch optimizes the tracking engine for guitar or bass
- Direct out for wet/dry setups
- BOSS five-year warranty
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
- Indicator: CHECK indicator (Serves also as battery check indicator)
- Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DIRECT OUT jack: 1/4-inch phone type
- DC IN jack
- Power Supply:
- Alkaline battery (9 V, 6LR61 or 6LF22)
- AC adaptor (PSA series: sold separately)
- Current Draw: 55 mA
- Expected battery life under continuous use: Alkaline: Approx. 7 hours*These figures will vary depending on the actual conditions of use.
- Accessories: Owner''s manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) - Width: 73 mm, 2-7/8 inches
- Depth: 129 mm, 5-1/8 inches
- Height: 59 mm, 2-3/8 inches
- Weight: (including battery)440 g, 1 lb
- Options: (sold separately)AC adaptor: PSA series
WATCH: BOSS OC-5 OCTAVE - The New Standard In Octave Pedals
