This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills.

Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI.

A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.

---

Features

• Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
• Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
• Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
• Straightforward Drive, Tone and Level controls
• BOSS five-Year Warranty

---

Specifications

SPECIFICATIONS (LOOPER)

• Sampling Frequency: 44.1 kHz
• AD/DA Conversion: 32 bits
• Processing: 32-bit floating point
• Recording/Playback:
• Maximum Recording Time: Approx. 6 hours (stereo)
• Maximum Phrase Memory: 99
• Number of Tracks: 2
• Data Format: WAV (44.1 kHz, 32-bit float, stereo)

SPECIFICATIONS (RHYTHM)

• Rhythm Type: 280 types or greater
• Rhythm Control: Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, Ending
• Rhythm Kit: 16 types
• Maximum Polyphony: 24 voices
• Effect: Reverb (only for rhythm part)

SPECIFICATIONS (COMMON)

• Memory: 99
• Nominal Input Level: INPUT A/MONO, B: -10 dBu
• Maximum Input Level: INPUT A/MONO, B: +8 dBu
• Input Impedance: INPUT A/MONO, B: 1 M ohm
• Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
• Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
• Output Impedance: OUTPUT A/MONO, B: 1 k ohms
• Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
• Bypass: Buffered bypass

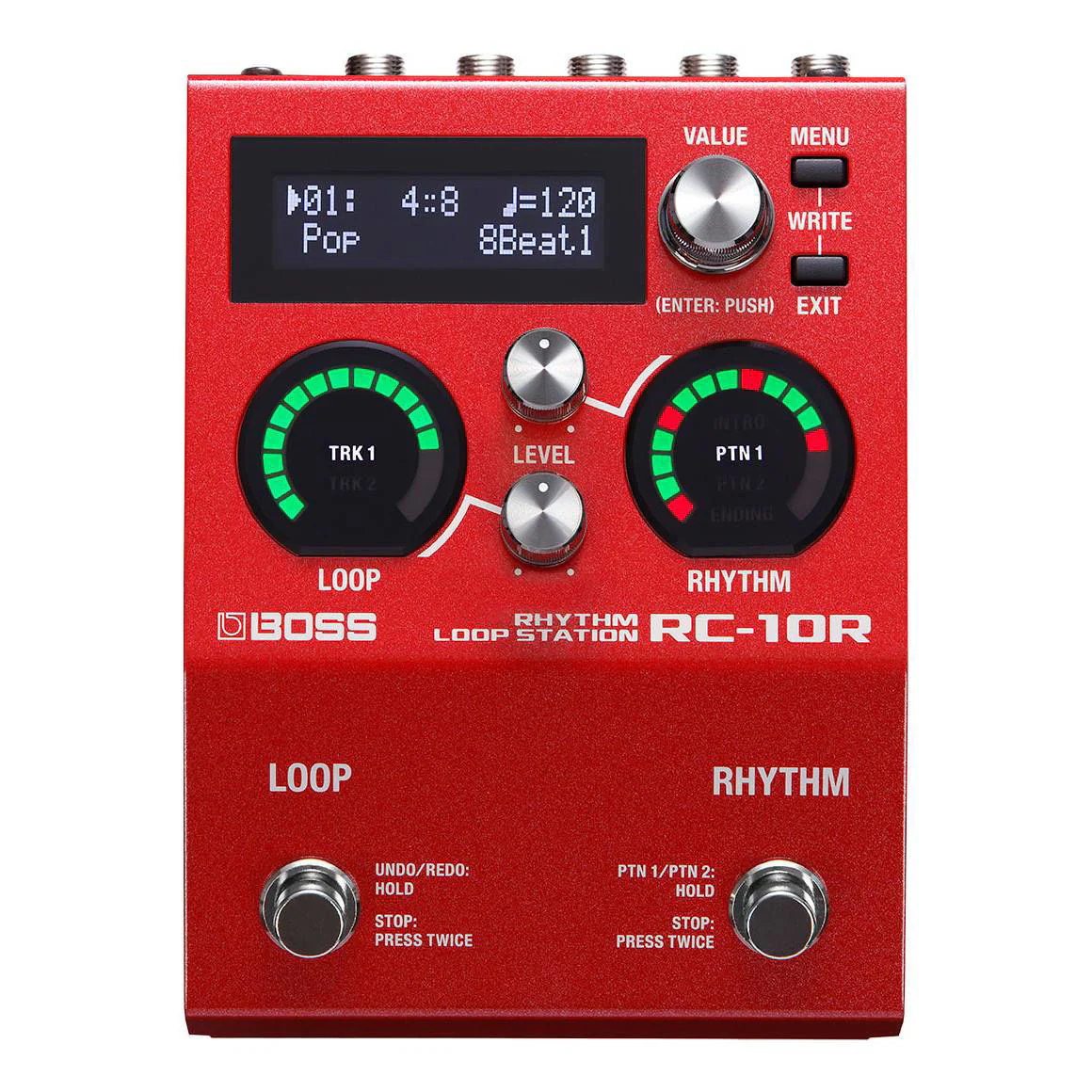

• Controls:

  • RHYTHM switch, LOOP switch
  • VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
  • MENU button, EXIT button
• Display: 16 characters x 2 lines LCD (with backlit)
• Indicator: RHYTHM indicator, LOOP indicator
• Connectors:

  • INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
  • CTL 1, 2/EXP jack: 1/4-inch TRS phone type

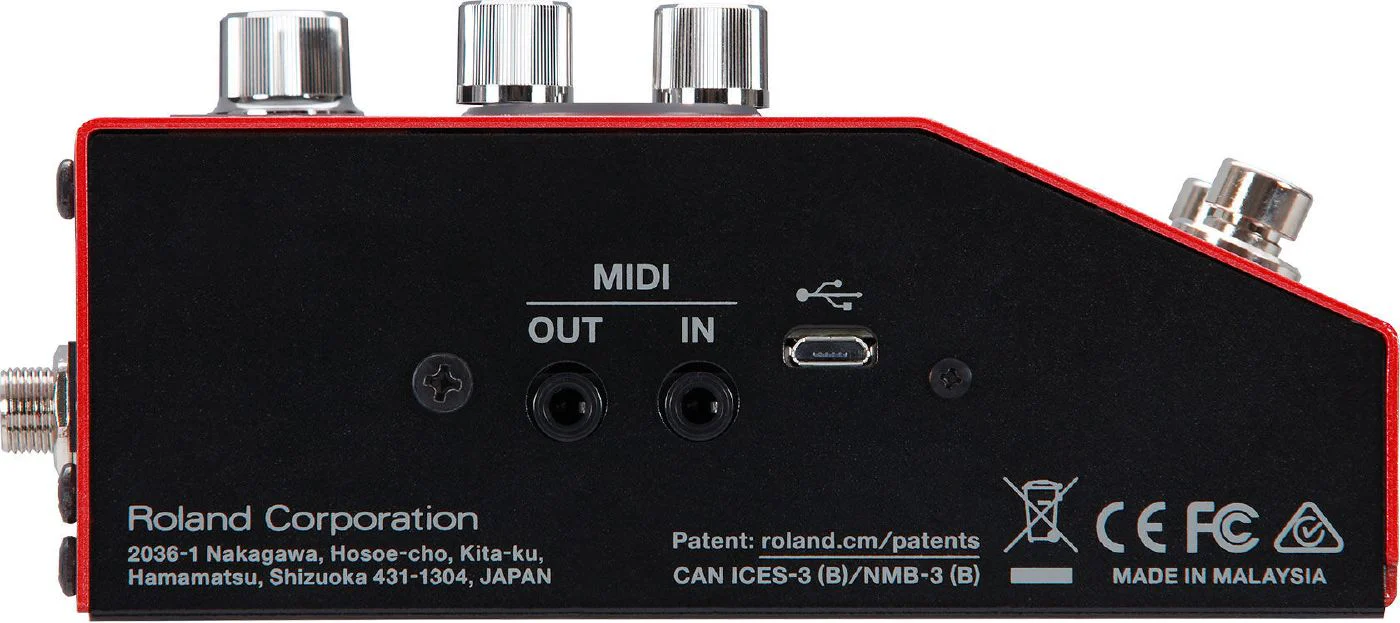

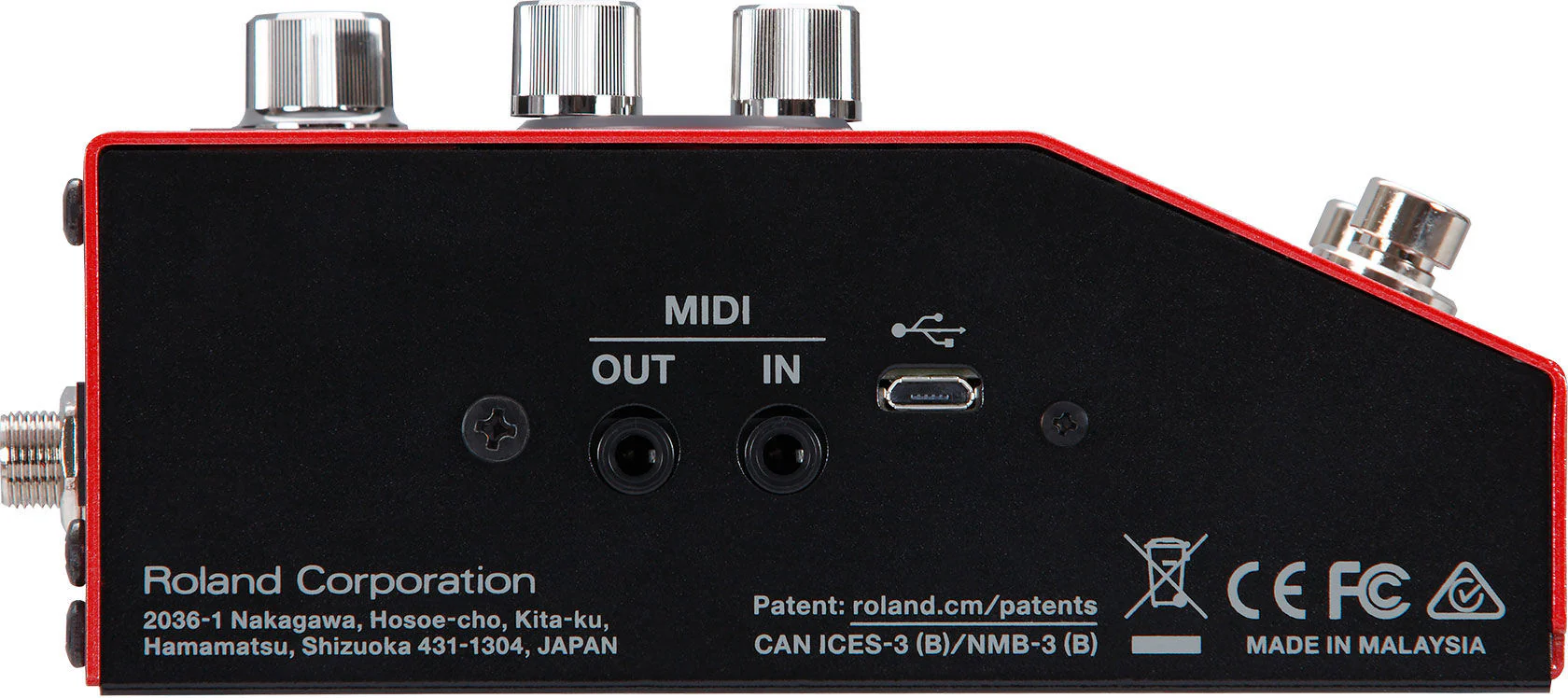

  • MIDI (IN, OUT) jacks: stereo miniature type
  • DC IN jack
• USB COMPUTER port: USB micro B type
• Power Supply: AC adaptor
• Current Draw: 250 mA
• Accessories:

  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • AC adaptor
  • Rubber foot x 4
• Options (sold separately):

  • Footswitch: FS-5U
  • Dual footswitch: FS-6, FS-7
  • Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
  • TRS/MIDI connecting cable: BMIDI-5-35
• Width: 101 mm; 4 inches
• Depth: 138 mm; 5-7/16 inches
• Height (excluding rubber foot): 63 mm; 2-1/2 inches
• Height (including rubber foot): 65 mm; 2-9/16 inches
• Weight (excluding AC adaptor): 620 g: 1 lbs 6 oz

---
