Elevate your overdrive with the BOSS Waza Craft SD-1W Super Overdrive, a premium pedal meticulously engineered in Japan for players who demand refined tone and dynamic expression. It blends the classic SD-1 warmth with enhanced gain and tonal versatility, delivering rich, responsive overdrive that shines in both rhythm and lead playing. Designed for discerning musicians, this pedal offers a smooth, articulate sound that brings every nuance of your performance to life.

Features

• Waza Craft innovation for a premium analog tone experience

• Premium sound based on the legendary SD-1 Super Overdrive

• Newly revised, all-analog discrete amplifier circuit

• Standard and Custom sound modes

• Highly responsive to picking dynamics and volume changes

• Made in Japan

• BOSS five-year warranty


Specifications

Power
Battery: Alkaline 9V (6LR61) or carbon-zinc 9V (6F22)
AC adaptor: Sold separately
Current draw: 15 mA
Expected battery life: Carbon approx. 25 hours, alkaline approx. 42 hours under continuous use

Electrical specifications
Nominal input level: -20 dBu
Input impedance: 1 MΩ
Nominal output level: -20 dBu
Output impedance: 1 kΩ
Recommended load impedance: 10 kΩ or greater

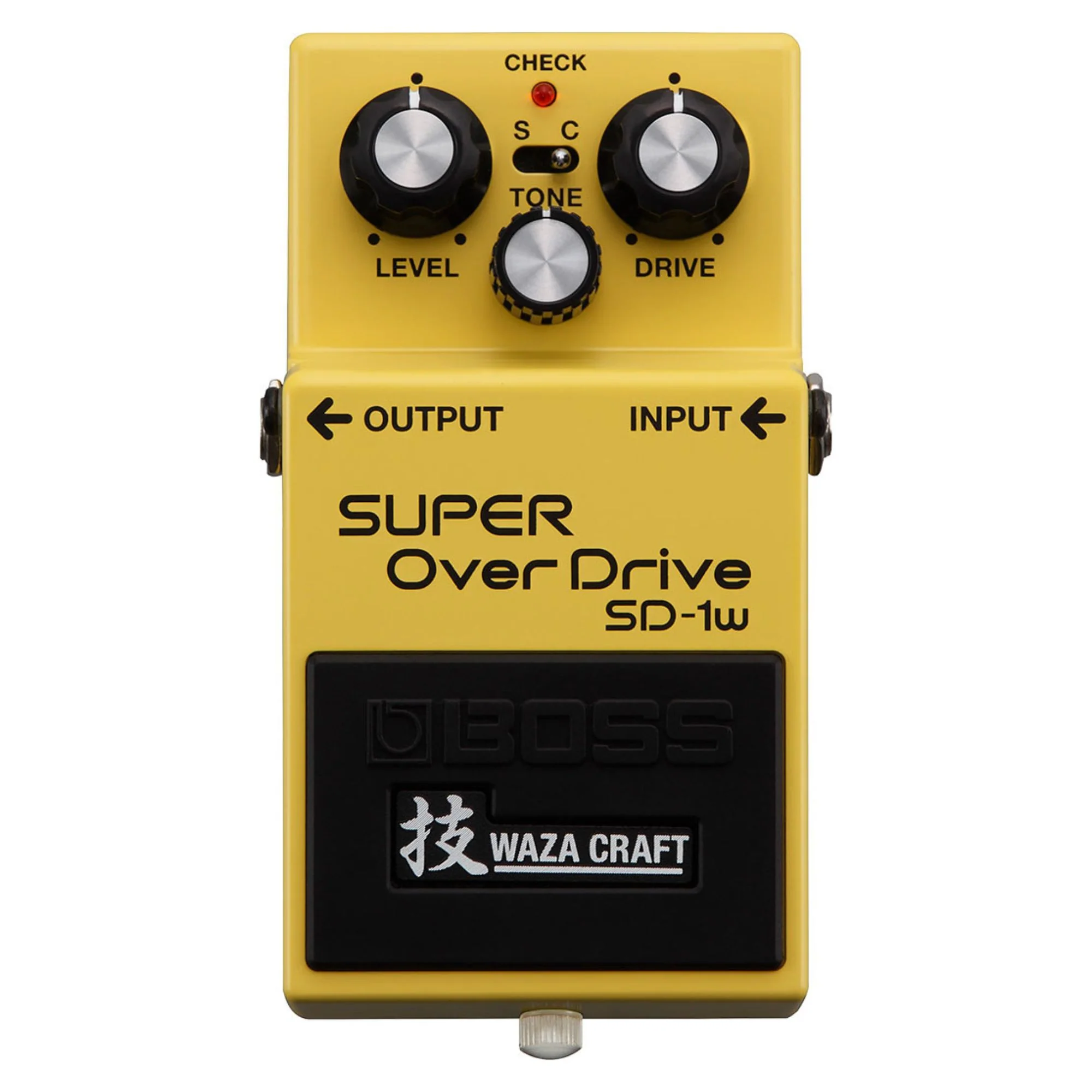

Controls
Pedal switch: On/Off
Mode switch: Standard/Custom
Level knob: Adjusts output volume
Tone knob: Adjusts tonal character
Drive knob: Adjusts gain
Indicator: Check indicator (also serves as battery check)

Connectors
Input jack: Standard 1/4" input
Output jack: Standard 1/4" output

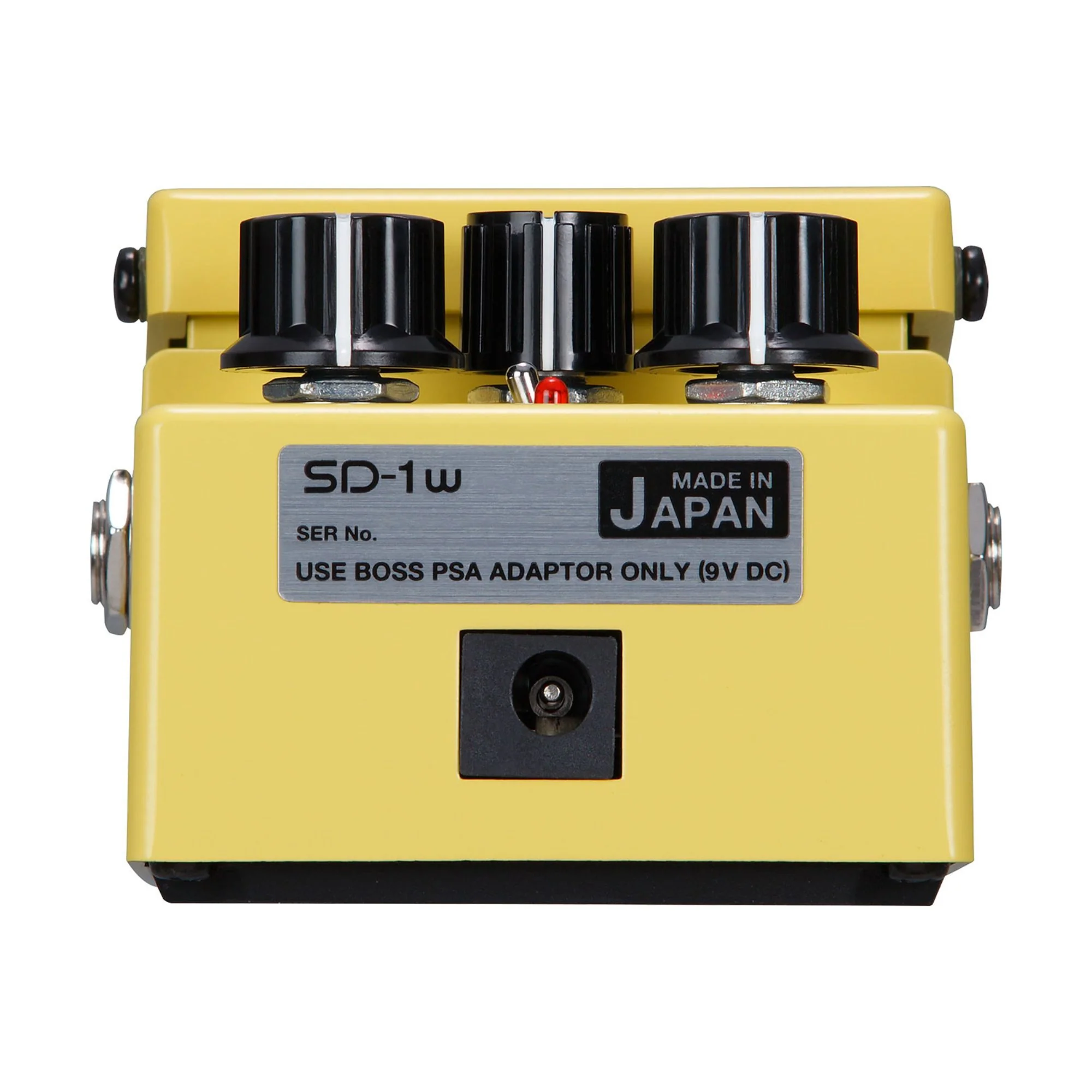

DC in jack: For optional AC adaptor
