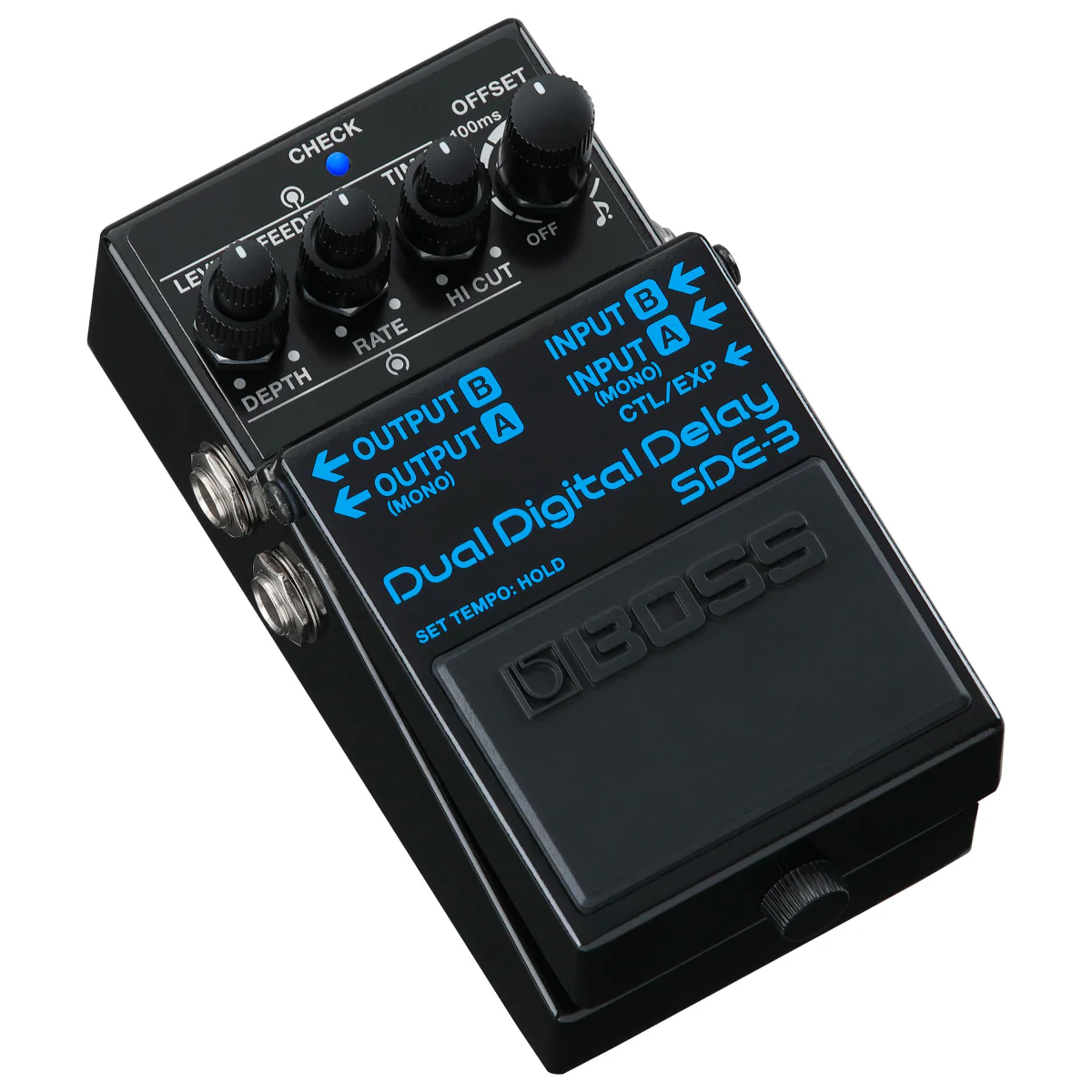

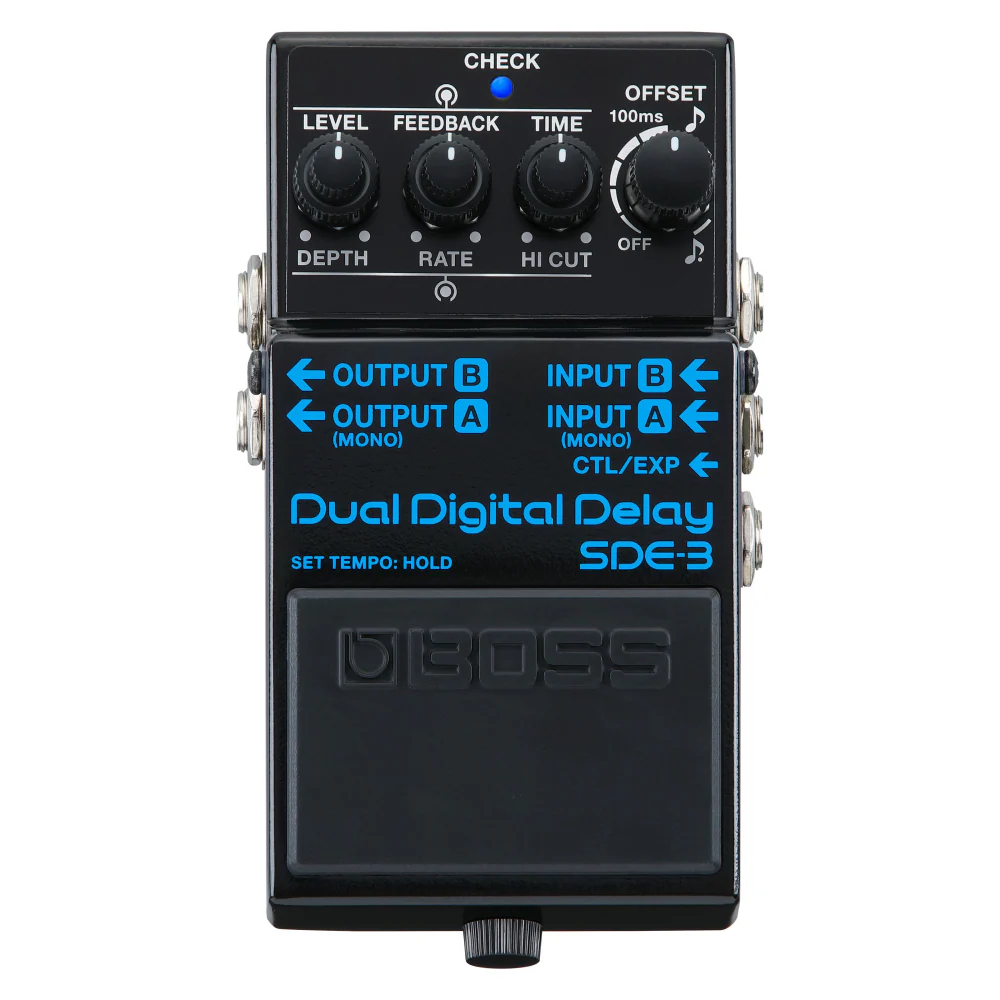

The SDE3 Predecessor - The Roland SDE - 3000 – Digital Delay with an Analog Soul Guitarists often divide their views of delay devices into two camps: analog and digital. Analog keywords tend to be "warm," "rich," and "organic," while digital keywords tend to be "precise" and "clean." But one of the early digital classics set the standard for rich, musical delay tones that have stood the test of time for four decades. this defined a sound that perfectly combined precision and character, beautifully capturing the best of both worlds. You could even call this "vintage digital." It's a third, separate section that offers the best delay effect available, a perfectly harmonious blend of digital and analog.

Features

• The iconic character of the Roland SDE-3000 rackmount delay in a BOSS compact pedal
• Beautiful vintage digital delay tones with expanded creative range
• Distinctive modulation with independent Rate and Depth knobs
• Hi Cut control for shaping the high-frequency amount
• Variable Offset feature for creating unique sounds with a secondary delay line
• Adjustable maximum delay time: 800 ms (mono/stereo) or 1600 ms (mono)
• Two stereo delay options: panning and discrete stereo
• Versatile output modes: stereo, wet/dry, and dry mute (mono or stereo)
• Tap tempo and carryover functions
• Jack for extended control with up to two footswitches or an expression pedal
• TRS MIDI input for syncing to external MIDI clock signals
• BOSS five-year warranty

Specifications

• Sample Rate 48 kHz
• AD Conversion 24 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
• DA Conversion 32 bits
• Nominal Input Level INPUT A (MONO), INPUT B: -20 dBu
• Maximum Input Level INPUT A (MONO), INPUT B: +7 dBu
• Input Impedance INPUT A (MONO), INPUT B: 1 MΩ
• Nominal Output Level OUTPUT A (MONO), OUTPUT B: -20 dBu
• Maximum Output Level OUTPUT A (MONO), OUTPUT B: +7 dBu
• Output Impedance OUTPUT A (MONO), OUTPUT B: 1 kΩ
• Recommended Load Impedance OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater
• Bypass Buffered bypass
• Controls TIME knob FEEDBACK knob LEVEL knob DEPTH knob RATE knob HI CUT knob OFFSET Knob Pedal switch CARRYOVER switch
• Indicator CHECK indicator (Used for indication of Tempo and check battery)

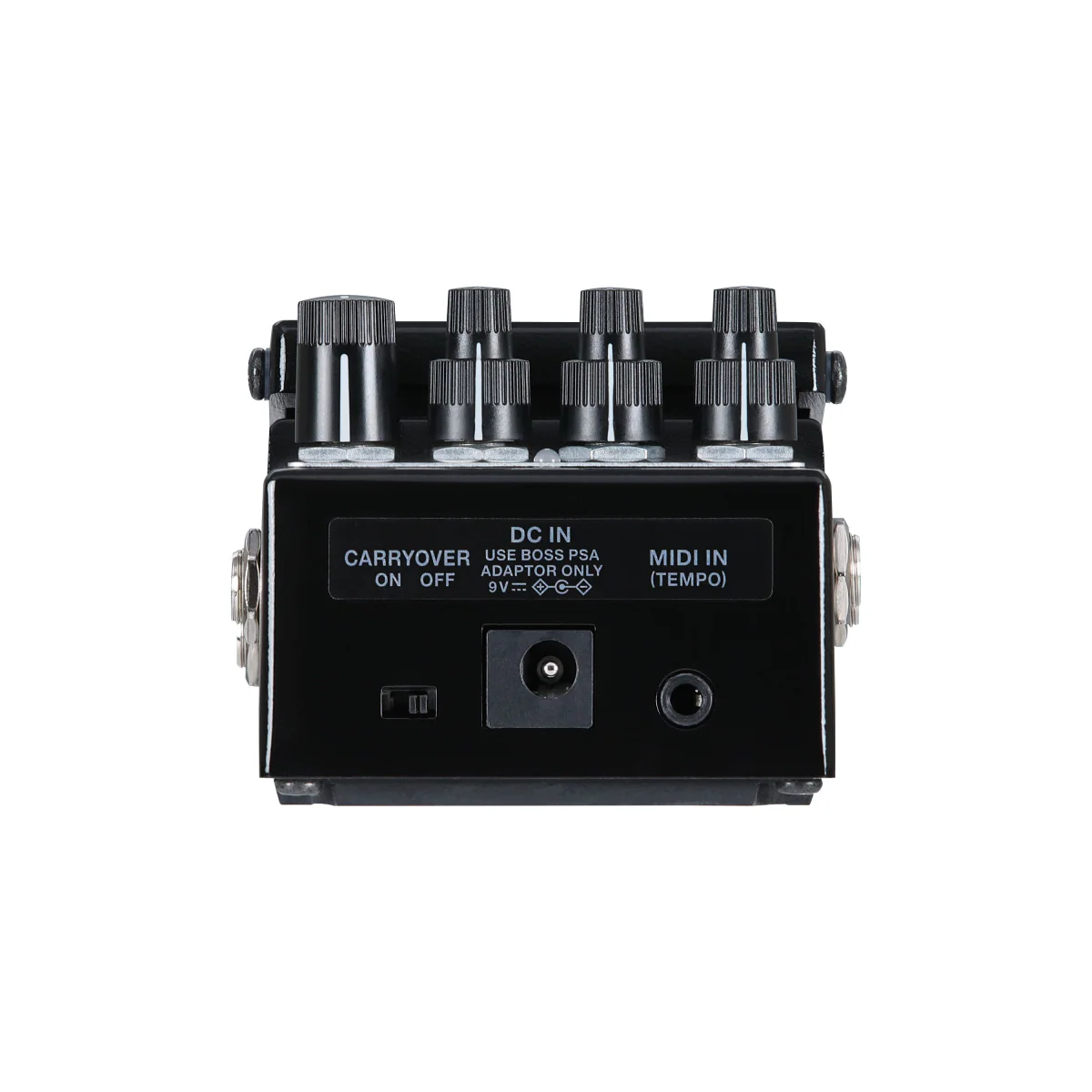

• Connectors INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type CTL/EXP jack: 1/4-inch TRS phone type DC IN jack MIDI IN jack: Stereo miniature phone type
• Power Supply Alkaline battery (9 V, 6LR61 or 6LF22, commercially available) AC adaptor (PSA series: sold separately)
• Current Draw 75 mA
• Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.) Alkaline: Approx. 4.5 hours
• Product Dimensions 73 (W) x 129 (D) x 59 (H) mm 2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches
• Product Weight (including battery) 450 g 1 lb
• Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Dry battery (9 V, 6LR61 or 6LF22)
• Options (sold separately) AC adaptor: PSA series Footswitch: FS-5U Dual footswitch: FS-6, FS-7 Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5 TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 * 0 dBu = 0.775 Vrms
