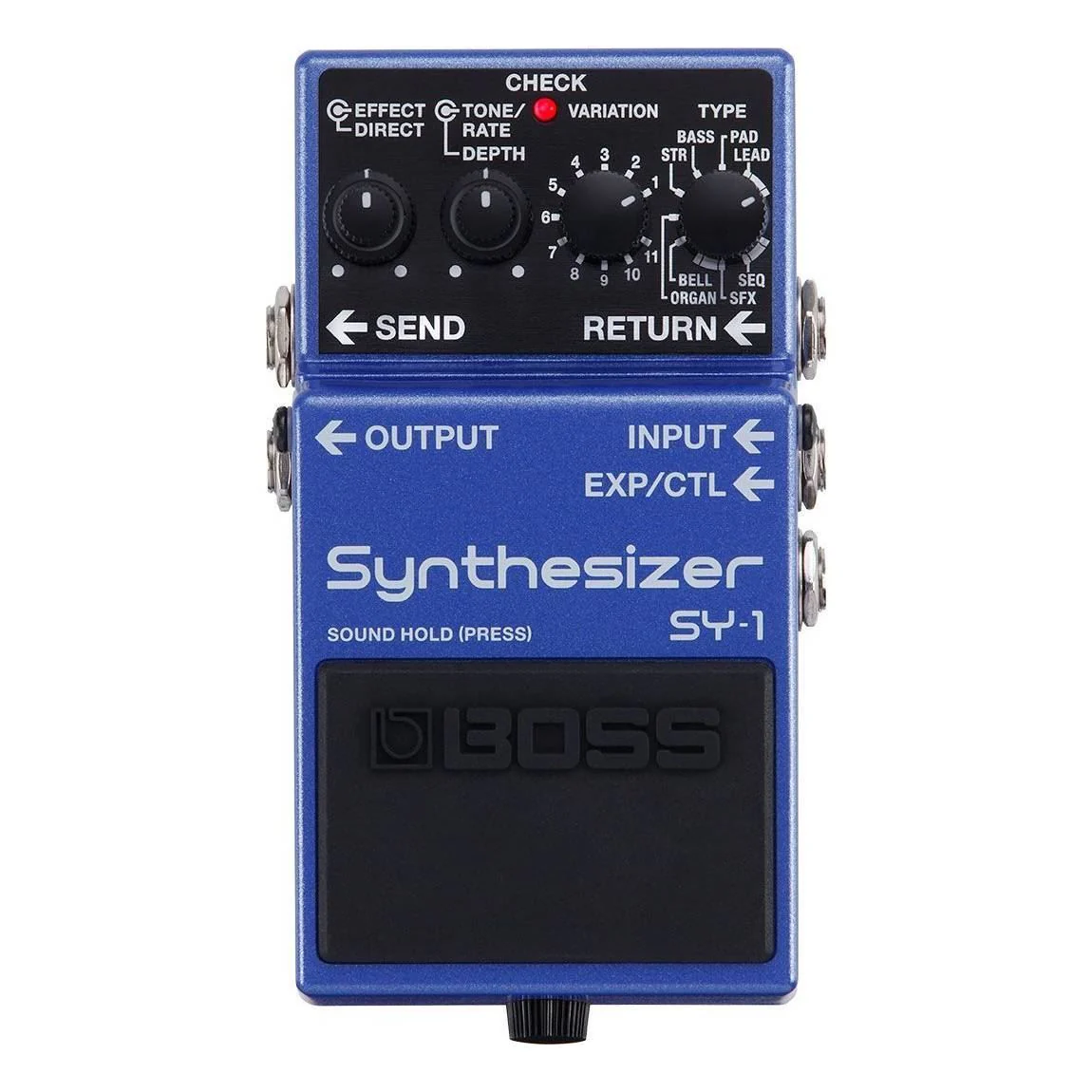

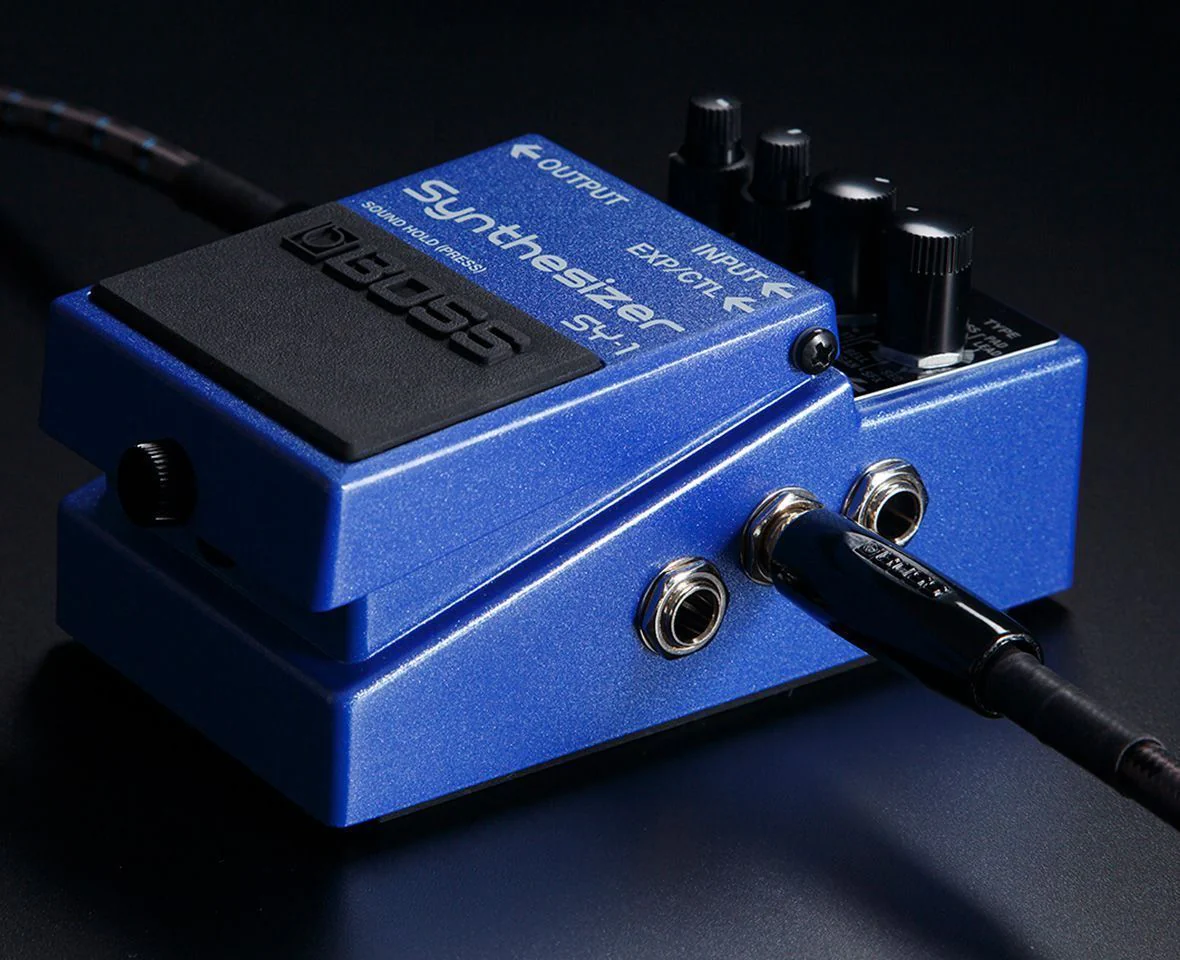

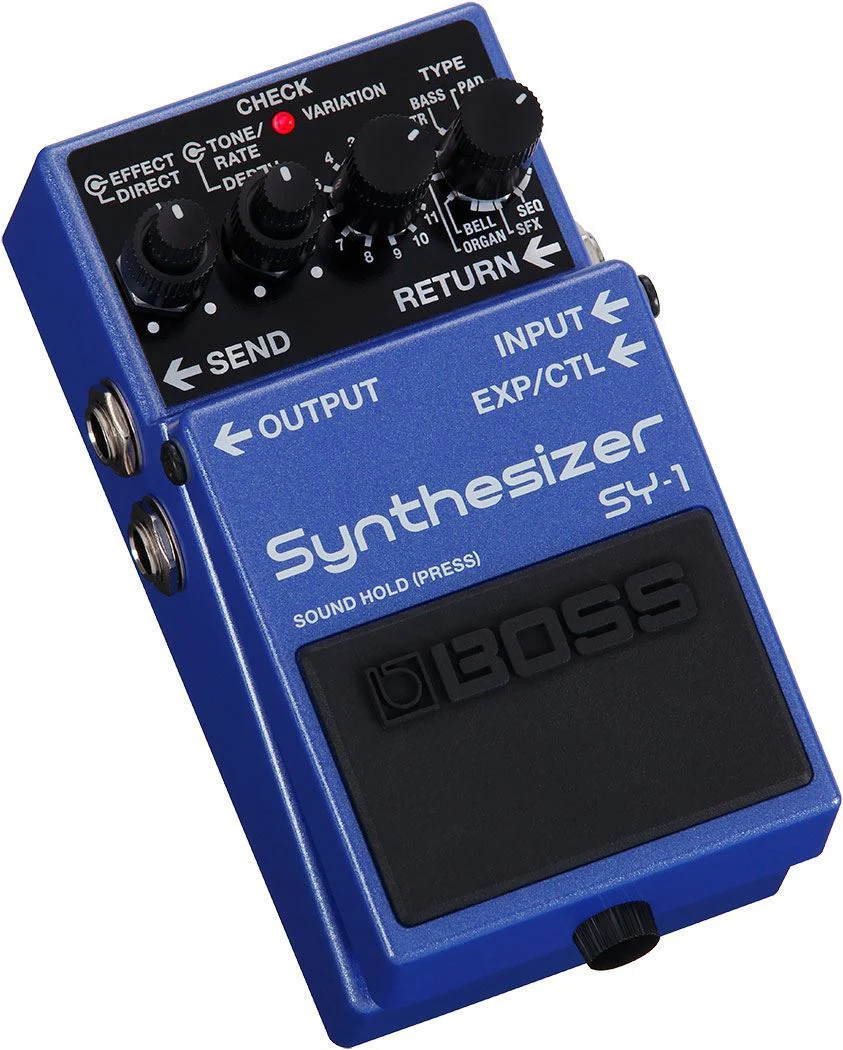

This amazingly expressive tool is filled with 121 ultra-responsive sounds, all distilled down into a BOSS compact pedal that slides easily into any setup. Best of all, it’s as simple to use as a standard stompbox, so you don’t need any background in synth programming to bring a new world of sonic textures to your music.

---

Features

• Authentic BOSS polyphonic guitar synth in a compact pedal
• No special pickup required—play rich, dynamic synth tones with any guitar or bass
• 121 total sounds (11 types and 11 variations), all ready to play with no programming knowledge needed
• Includes a wide variety of analog-style synth sounds, from leads, basses, and layered organs to sweeping pads and arpeggiated sequences
• Latency-free performance for unrestricted musical expression
• Quickly adjust sounds to taste with Tone/Rate and Depth controls
• Hold function for playing normal guitar over sustained synth voices
• Blend synth and normal guitar sounds with independent level controls
• Parallel send/return loop for easy integration with other pedals on your board
• Mode switch optimizes the synth engine for guitar or bass
• Supports extended control with an external footswitch or expression pedal

---

Specifications

• Nominal Input Level: INPUT, RETURN: -20 dBu
• Input Impedance: INPUT, RETURN: 2.2 M ohms
• Nominal Output Level: OUTPUT, SEND: -20 dBu
• Output Impedance: OUTPUT, SEND: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:

  • Pedal switch
  • GUITAR/BASS switch
  • TYPE knob
  • VARIATION knob
  • TONE knob
  • DEPTH knob
  • EFFECT knob
  • DIRECT knob
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors:

  • INPUT jack: 1/4-inch phone type
  • OUTPUT jack: 1/4-inch phone type
  • SEND jack: 1/4-inch phone type
  • RETURN jack: 1/4-inch phone type
  • EXP/CTL jack: Stereo 1/4-inch phone type
  • DC IN jack
• Power Supply:
  • Alkaline battery (9 V, 6LR61)
  • AC adaptor (PSA series: sold separately)
• Current Draw: 85 mA
• Expected battery life under continuous use: Alkaline: Approx. 3 hours
  *These figures will vary depending on the actual conditions of use.
• Accessories:

  • Owner''s manual
  • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
  • Alkaline battery (9 V, 6LR61)
• Options (sold separately):

  • AC adaptor: PSA series
  • Footswitch: FS-5U
  • Dual footswitch: FS-6, FS-7
  • Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• Width: 73 mm; 2-7/8 inches
• Depth: 129 mm; 5-1/8 inches
• Height: 59 mm; 2-3/8 inches
• Weight (including battery): 450 g; 1 lb
