Design features such as a lightweight mahogany body, an upper access spoon cut and updated specially-voiced Chapman Sonorous Zerø pickups really show an attention to detail worthy of even the most discerning of players. Apologies to your neighbours and our utmost respect

---

Features

• Flame Maple Neck
• Premium Body Construction
• Chapman Sonorous Zero humbucker

---

Specifications

• COLOUR: Red Sea
• BODY SHAPE: ML1
• BODY TOP: Flame Maple Veneer On Flat Top with Gloss Finish
• BODY BACK: Mahogany with Gloss Finish

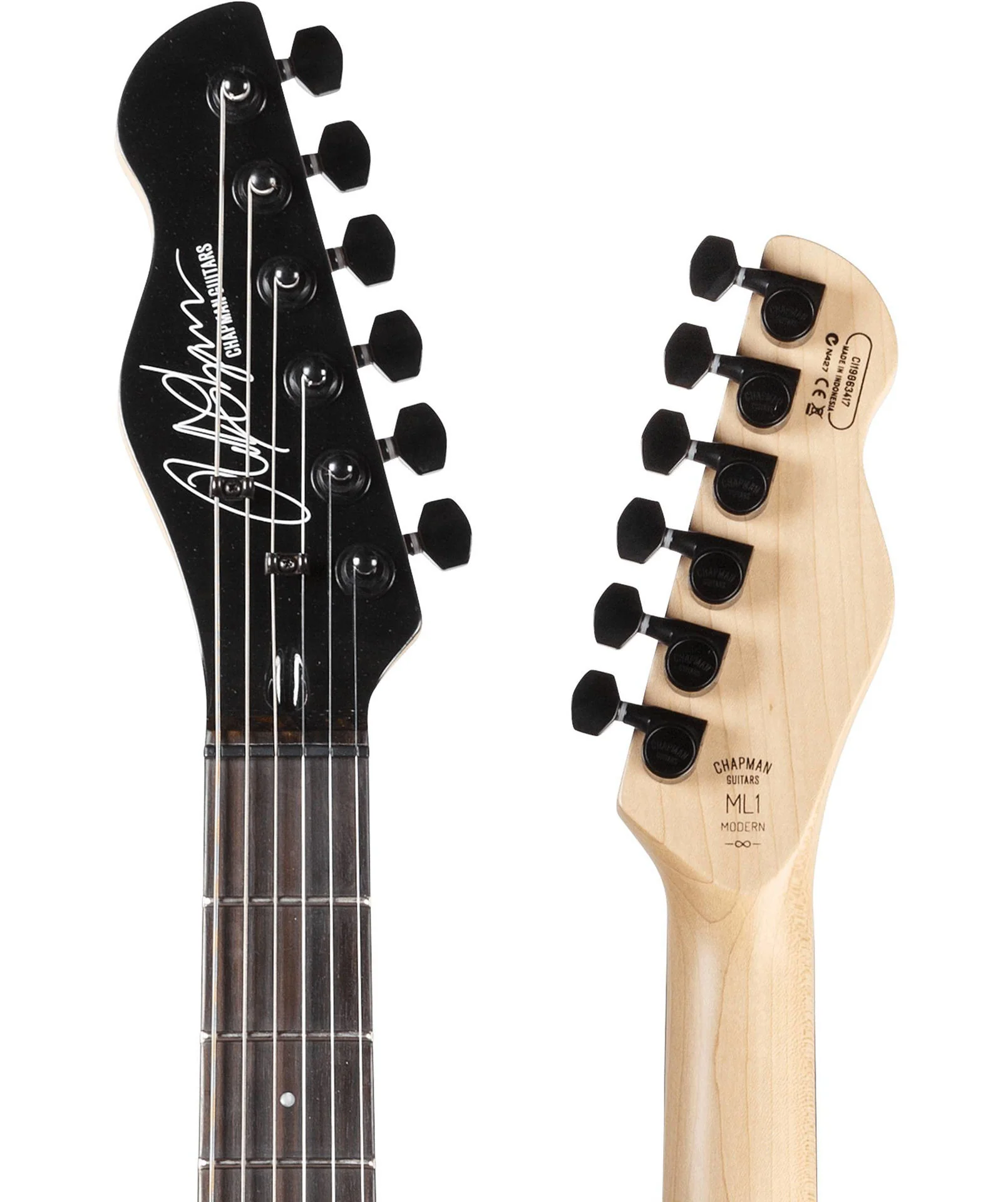

• HEADSTOCK: Straight Heritage Headstock
• TUNERS: Chapman Classic Closed (18:1 Gearing)
• STRING NUT: 42mm Graph Tech Black TUSQ XL Nut
• STRING RETAINER: Vintage String Retainers
• NECK: Maple with Satin Finish
• NECK JOINT: Recessed Bolt-on Neck
• NECK SIZE:
  • WIDTH: NUT 42mm, 22F 57mm
  • THICKNESS including fret height: 1F 23mm 12F 24mm
• NECK PROFILE: C Shape
• TRUSS ROD: Dual Action
• FRETBOARD: Macassar Ebony Fretboard with Rolled Edges
• FRETBOARD RADIUS: 350mm (~13.5″)
• FRETS: 24 Jumbo Nickel Frets
• FRET MARKERS: Pearl Side Dots and Pearl Front Dot Inlays
• 12TH FRET INLAY: Pearl Infinity
• SCALE LENGTH: 648mm (~25.5″)
• NECK PICKUP: Chapman Sonorous Zerø Humbucker
  • MAGNET: Ceramic
  • DC RESISTANCE: 10.5k ohms
• BRIDGE PICKUP: Chapman Sonorous Zerø Humbucker
  • MAGNET: Ceramic
  • DC RESISTANCE: 12.5k ohms
• PICKUP SWITCH: 3 Way Blade Switch with Coil Split on Push-Pull Tone Knob
• CONTROLS: Master Volume (500k), Master Tone with Push-Pull (500k)
• BRIDGE: Chapman String-Through Hardtail
• STRAP BUTTONS: Chapman Classic Strap Buttons
• STRINGS: Ernie Ball Regular Slinky Nickel Wound, 10-46 (.010 / .013 / .017 / .026 / .036 / .046)

---
