Harness the power of ShowXpress lighting control software with Xpress-1024 DMX interface. This self-contained aluminum unit is compatible with both Windows and Mac OS X systems, but will easily store and play back 1 show without a computer. Xpress-1024 controls two DMX universes and unlocks an additional ArtNet universe (3 universes total). The interface is hot-swappable and automatically re-connects within seconds. Connect multiple interfaces to control additional universes. Xpress-1024 has built-in electrostatic discharge and dual optical isolation protection circuits.

Features

• Self-contained, aluminum DMX interface for ShowXpress™ software
• Controls two DMX universes and unlocks an additional ArtNet universe (3 universes total)
• Easily store and play back 1 show without a computer
• Compatible with Windows® and Mac OS X systems
• Connect multiple interfaces to control additional universes
• Hot-swappable and automatically re-connects within seconds
• Both outputs are electrically and optically isolated

Specifications

• DMX Channels: 1024 + 512 via ArtNet

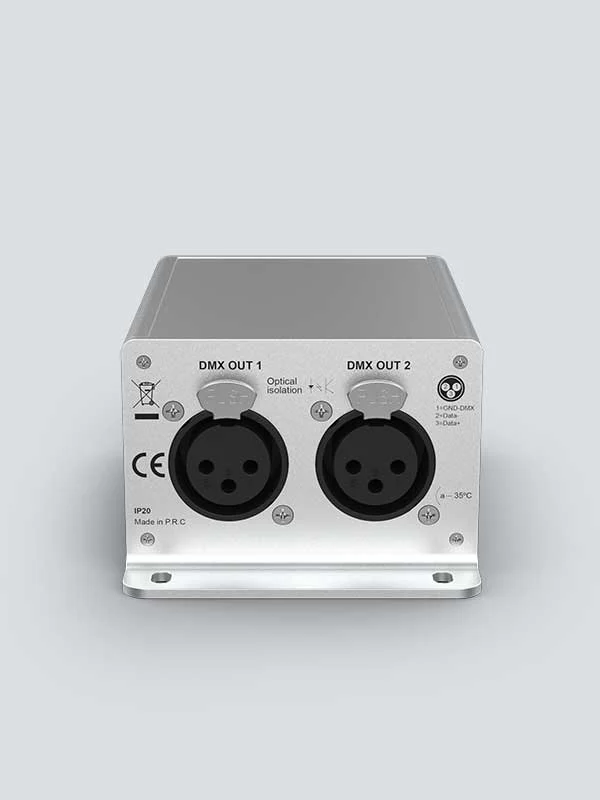

• DMX Connectors: 3-pin XLR
• Input Voltage: 5 V USB
• Weight: 0.4 lb (0.2 kg)
• Dimensions: 4.3 x 2.6 x 1.8 in (110 x 66 x 45 mm)
• Approvals: CE
• DMX Refresh Rate: 40 Hz

WHAT'S INCLUDED

• Xpress-1024
• USB cable
