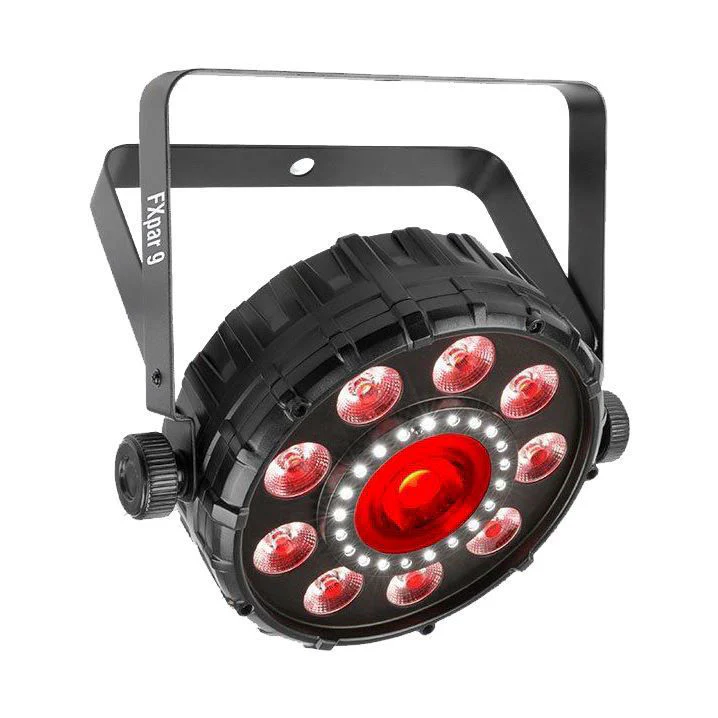

Chauvet FX Par 9 LED Parcan with Halo SMD Strobe & Single COB Core LED
Highlights
Compact effect par with multiple technologies in a single fixture
RGB+UV in outer ring for increased color mixing and effects
Separate control of center LED, outer ring and SMD strobes for dynamic effects
Multiple zones allow for spectacular effects
SMD strobe ring adds strobe effects to any setup big or small
Compatible with IRC-6 for improved control over the built-in functions
Generate eye-catching effects with sound-activated and automated programs
Power linking saves time setting up
Specifications
- DMX Channels: 3, 6, 9 or 23
- DMX Connectors: 3-pin XLR
-
Light Source: (outside): 9 LEDs (quad-color RGB+UV) 4 W, (1.4 A), 50,000 hours life expectancy
(center): 1 LED (tri-color RGB COB) 18.4 W, (2 A), 50,000 hours life expectancy
(strobe): 21 LEDs (cool white SMDs) 0.5 W, (0.2 A), 50,000 hours life expectancy - Strobe Rate: 0 to 16.4 Hz
- Beam Angle: 25°
- Field Angle: 45°
- Illuminance: 1450 lux @ 2 m
- Power Linking: 7 units @ 120 V; 13 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current: 80 W, 1.1 A @ 120 V, 60 Hz
77 W, 0.6 A @ 230 V, 50 Hz - Weight: 3.6 lb (1.6 kg)
- Size: 10.9 x 10.8 x 2.9 in (279 x 275 x 74 mm)
- Approvals: CE
- Optional Controllers: IRC - 6
