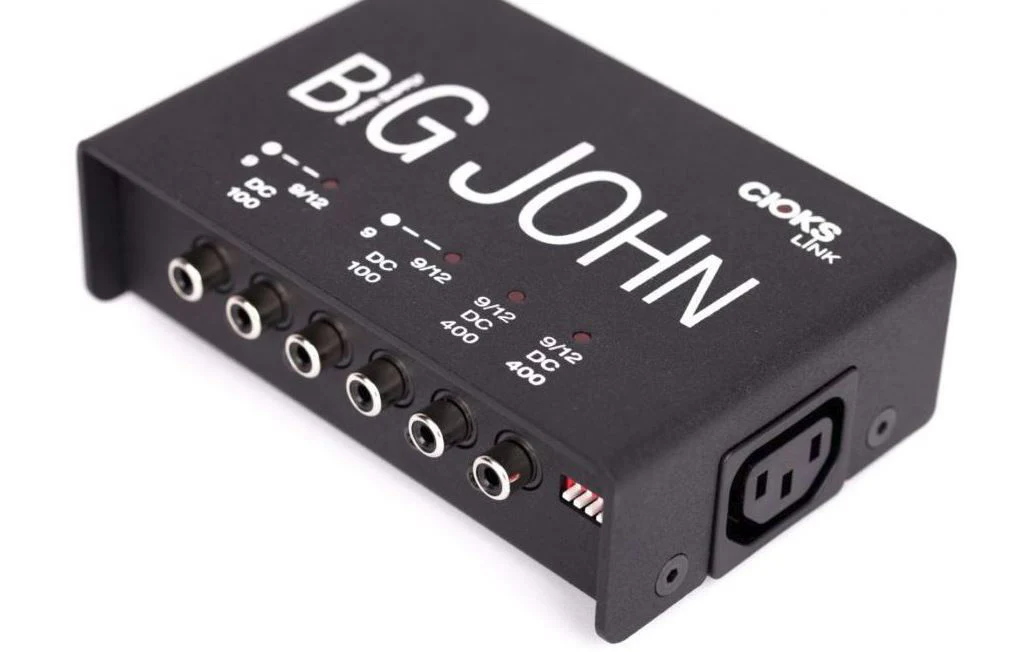

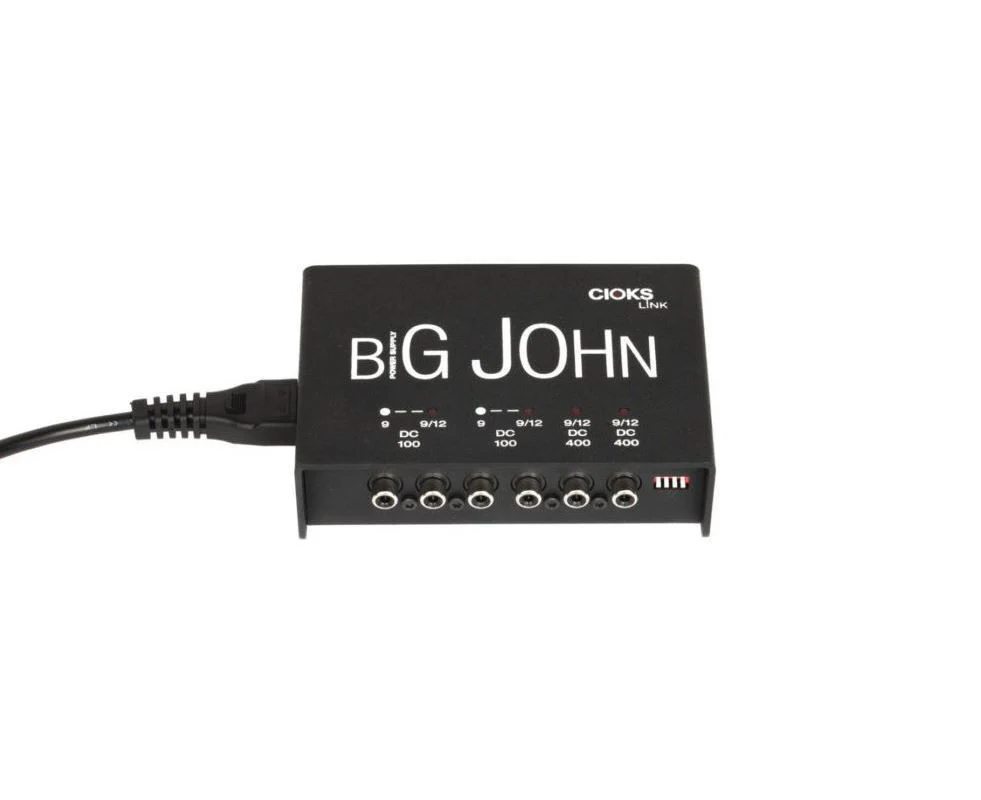

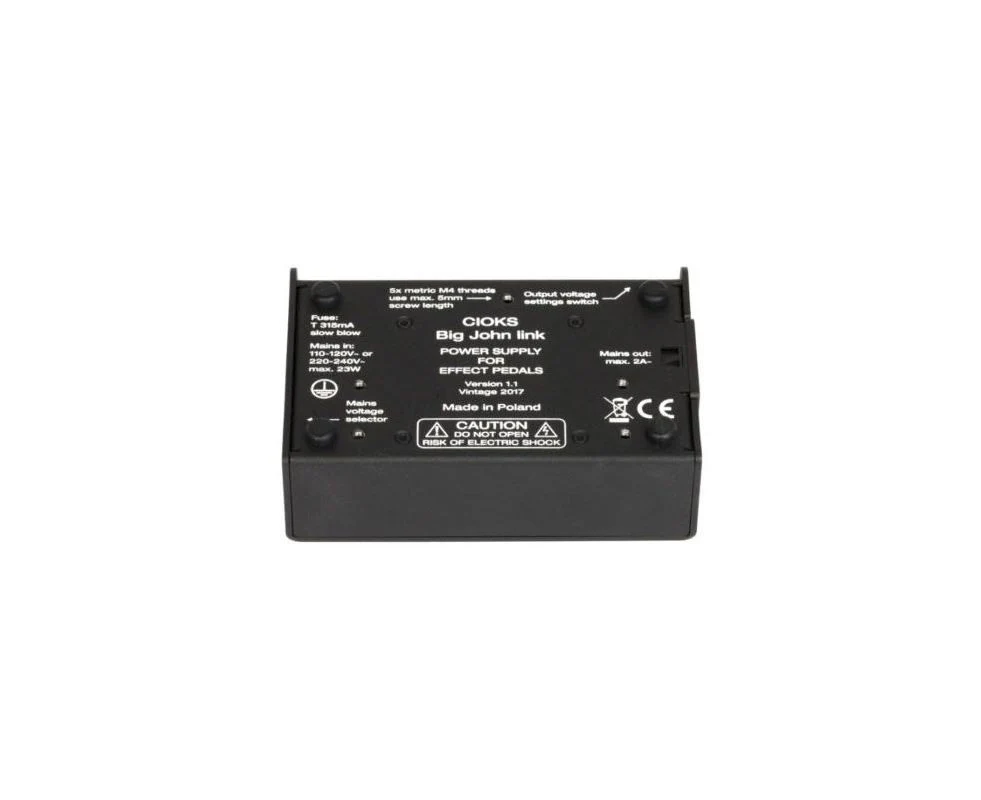

CIOKS Big John link is a small sized yet quite powerful power supply for effect pedals with 6 outlets configured in 4 isolated sections. The first four outlets are divided in two isolated sections, which yield 100mA each and offer voltages 9 and 12V. The last two isolated high current outlets put out a max. current of 400mA each at voltages 9 or 12V.

---

Features

• 6 outlets configured in 4 isolated sections
• Two high current outlets with 400mA each
• Short circuit protection of all outlets
• Advanced LED monitoring of each section
• 120 or 230V mains voltage operation
• Detachable mains power cord
• Courtesy AC mains outlet
• CIOKS unique mains link feature
• A total of 9 Flex cables included
• Compatible with Pedaltrain and Temple Audio pedalboards
• All pedalboard mounting hardware included

---

Specifications

• Outlet 1-2: 9 or 12V DC / 100mA
• Outlet 3-4: 9 or 12V DC / 100mA
• Outlet 5-6: 9 or 12V DC / 400mA each
• Size: 130x88x39mm (excl. detachable rubber feet)
• Weight: 1,0kg
