Earthquaker designed Ledges for the serious musician who needs access to a wide range of great sounds and doesn't want to bother with menu dives, extra footswitches, or MIDI controllers. Ledges offers three different rich reverbs that cover all the bases (Room, Reverb, and a plate that plays almost infinitely), with user-assignable expression controls and six presets to easily switch between settings. Equipped with: Presets also allow you to save expression pedal assignments, making it easier than ever to save and switch between your own 6 best reverb sounds. Ledges has three unique reverb modes: Room, Hall, and Plate. Each mode uses a different algorithm and is tuned to achieve a specific spatial quality while blending perfectly into the mix. Avoiding harsh or dull sounds.

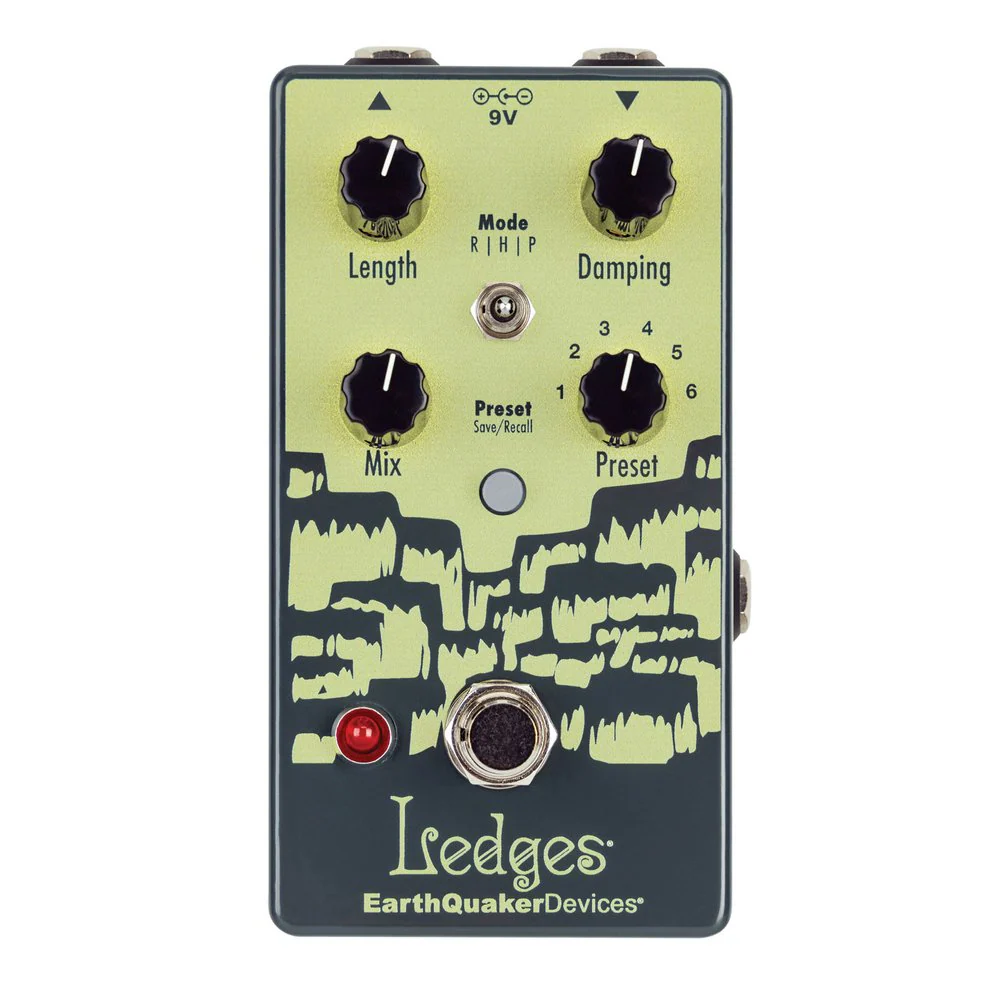

Controls

• Length: Sets the length of the reverb.
• Mix: Adjusts the level of the reverb.
• Damping: Tames the treble in the reverb reflections.
• Presets: Ledges has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the mode switch and the expression jack assignment can be saved and recalled in any of the slots.

Features

• Three Handcrafted Reverb Modes: Mode R: Room Reverb, Mode H: Hall Reverb, Mode P: Plate Reverb
• Presets: Ledges boasts six presets and on-the-fly footswitch preset switching, with expression control that can be mapped to different controls and can also be saved as a preset.
• Features for Saving, recalling and overwriting presets
• Operating Modes
• User-Assignable Expression Control

Specifications

• Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
• Current Draw: 80 mA
• Input Impedance:1 MΩ
• Output Impedance: 100 Ω

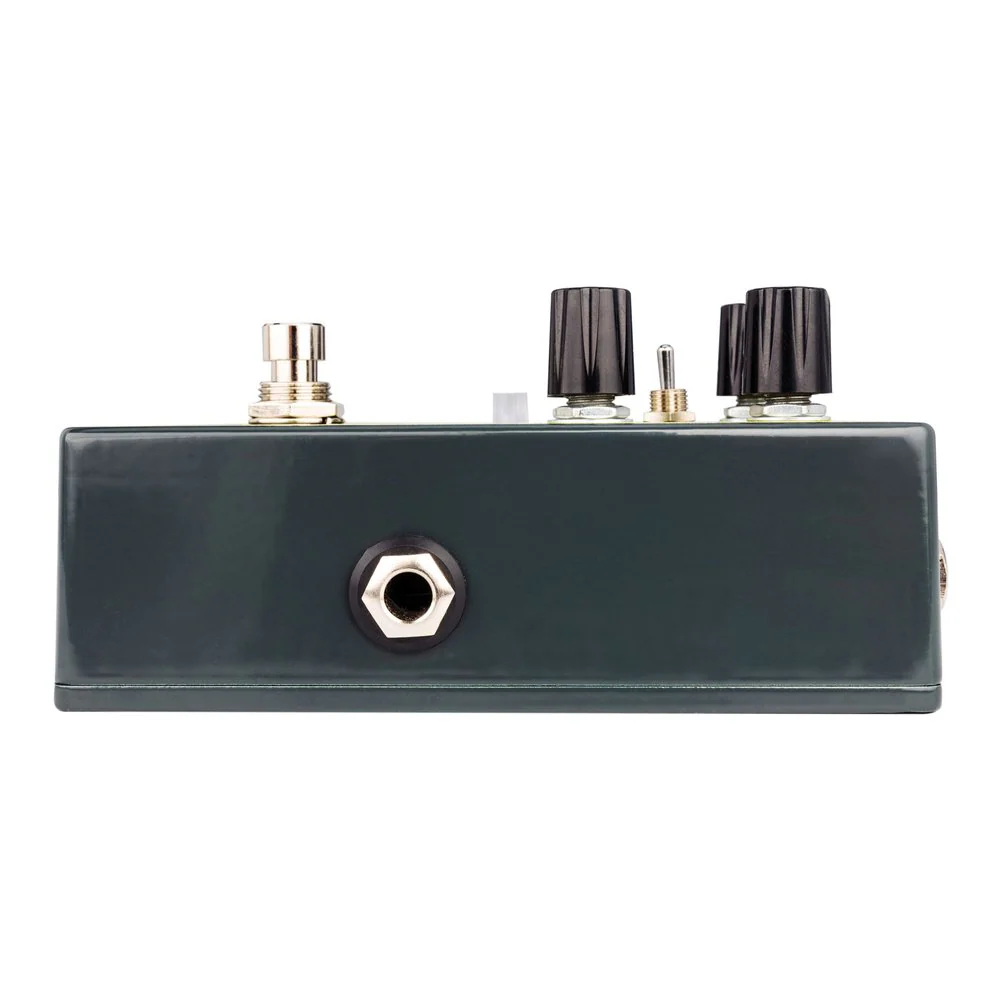

• TRS expression pedal wiring Tip: Wiper Ring: +3.3V Sleeve: Ground
• Flexi-Switch® Technology This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
  • For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
  • For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed. Ledges is buffered bypass with tails. Power is required to pass signal.

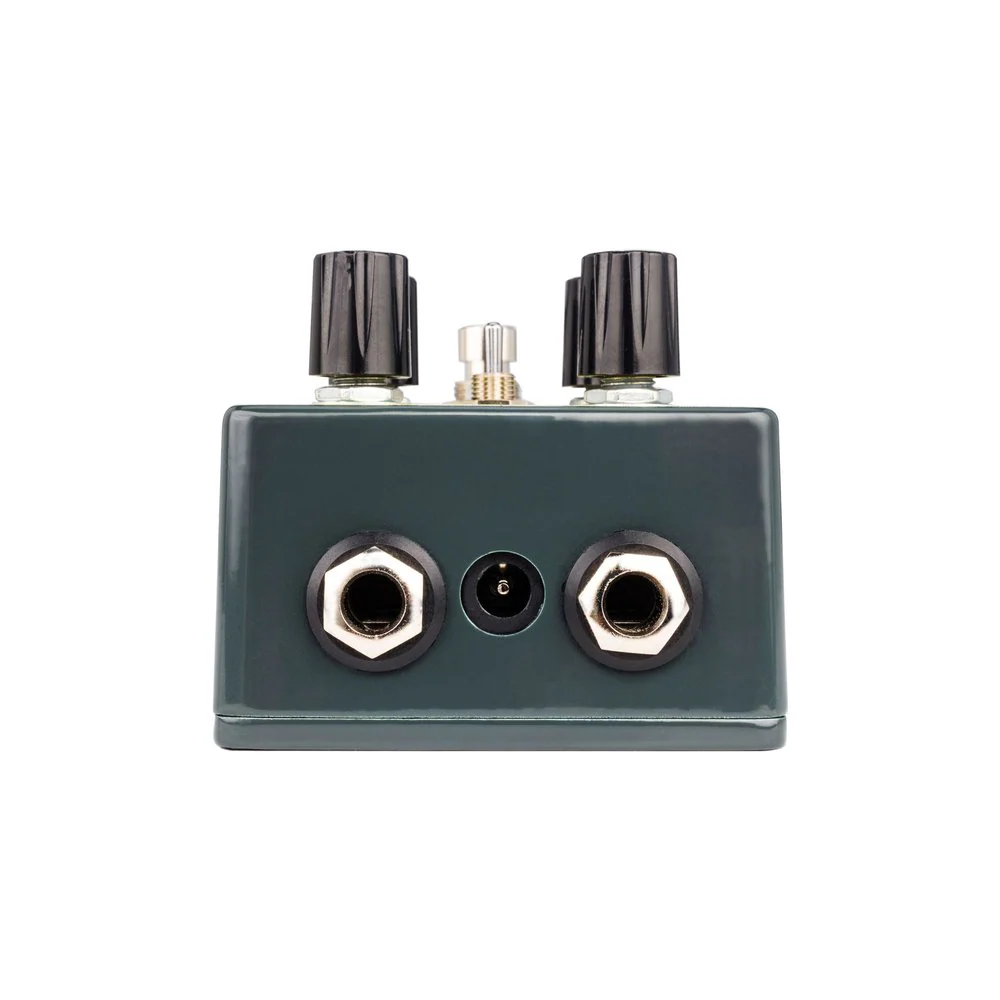

• Power This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
• Artwork: Artwork by Matt Horak
