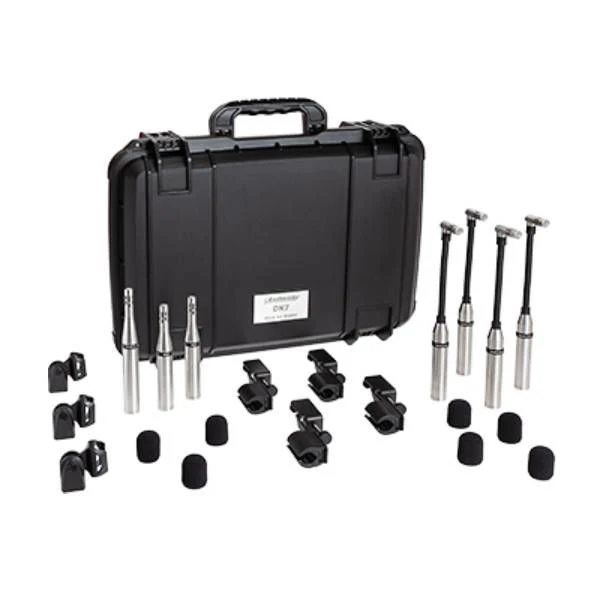

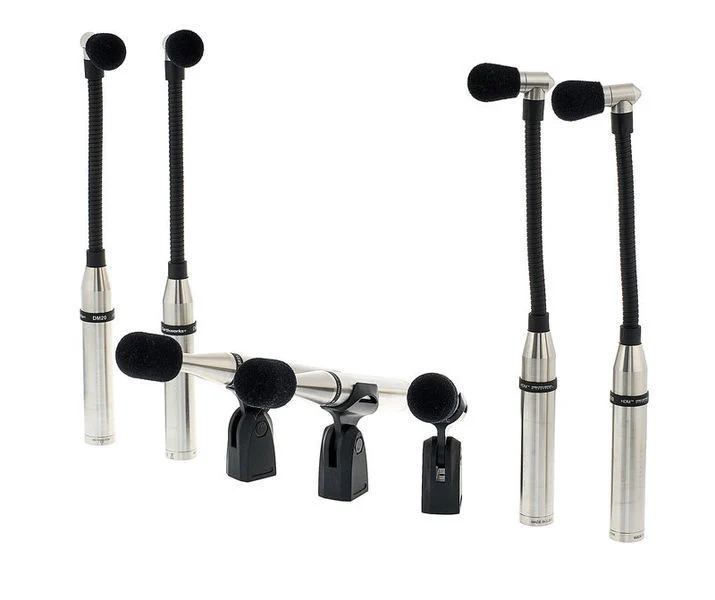

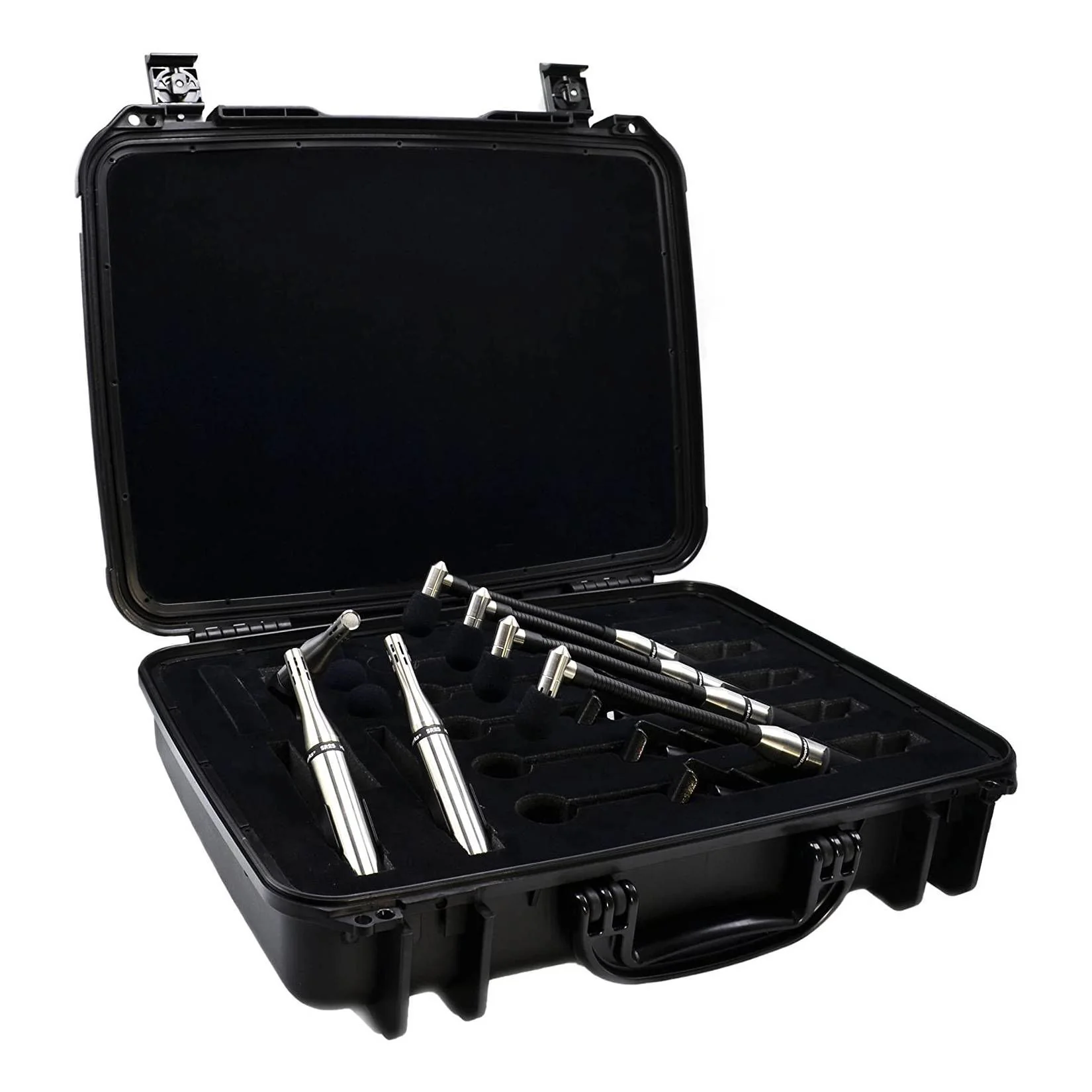

Earthworks Drum FullKit (inc. 3-SR25, 3-MC1, 4-DM20, 2-RM1, 1-KP1 & windscreens in Case)
The DK7 makes whatever drum kit you’re miking sound like just that―you. A crystal clear translation of your sound.
Nothing compares to the lightning speed of the DM20. Every detail, every nuance, and every texture remains flawlessly intact.
A perfect sonic image of your whole kit from above. A matched pair of Earthworks SR25s bring transparency, clarity, and attack to your drum sound.
With handling capabilities of 150dB SPL, and a cardioid condenser capsule that captures the full spectrum of sound all the way down to 20Hz, the Earthworks SR20LS captures every detail you’re after.
Massive rear rejection and a polar pattern that’s consistent across the entire frequency range means any off-axis leakage is virtually nonexistent.
Specifications
DM20
- Frequency Response: 20Hz – 20kHz
- Polar Pattern: Cardioid
- Sensitivity: 8mV/Pa (-42dBV/Pa)
- Power Requirements: 24-48V Phantom, 10mA
- Max Acoustic Input: 150dB SPL
- Signal-to-Noise Ratio: 74dB A-weighted
- Output: XLR (pin 2+)
- Output Impedance: 200Ω balanced (between pins 2 & 3)
- Min Output Load: 1000Ω between pins 2 & 3
- Noise: 20dB SPL equivalent (A weighted)
- Dimensions (L x D): 282mm x 22mm (11.12 x .860 inches)
- Gooseneck Length: 121mm (4.75 inches)
- Weight: .55 lb. (.25kg)
SR25
- Frequency Response: 20Hz – 25kHz
- Polar Pattern: Cardioid
- Sensitivity: 10mV/Pa (-40dBV/Pa)
- Power Requirements: 24-48V Phantom, 10mA
- Max Acoustic Input: 145dB SPL
- Output: XLR (pin 2+)
- Output Impedance: 65Ω balanced (between pins 2 & 3)
- Min Output Load: 600Ω between pins 2 & 3
- Noise: 20dB SPL equivalent (A weighted)
- Dimensions (L x D): 165mm x 22mm (6.5 x .860 inches)
- Weight: .35 lb. (160g)
SR20LS
- Frequency Response: 20Hz – 20kHz
- Polar Pattern: Cardioid
- Sensitivity: 3mV/Pa (-50dBV/Pa)
- Power Requirements: 24-48V Phantom, 10mA
- Max Acoustic Input: 150dB SPL
- Signal-to-Noise Ratio: 74dB A-weighted
- Output: XLR (pin 2+)
- Output Impedance: 200Ω balanced (between pins 2 & 3)
- Min Output Load: 1000Ω between pins 2 & 3
- Noise: 20dB SPL equivalent (A weighted)
- Dimensions (L x D): 192mm x 22mm (7.57 x .860 inches)
- Weight: .36 lb. (164g)
Watch: Earthworks DK7 Drum Microphones Review
