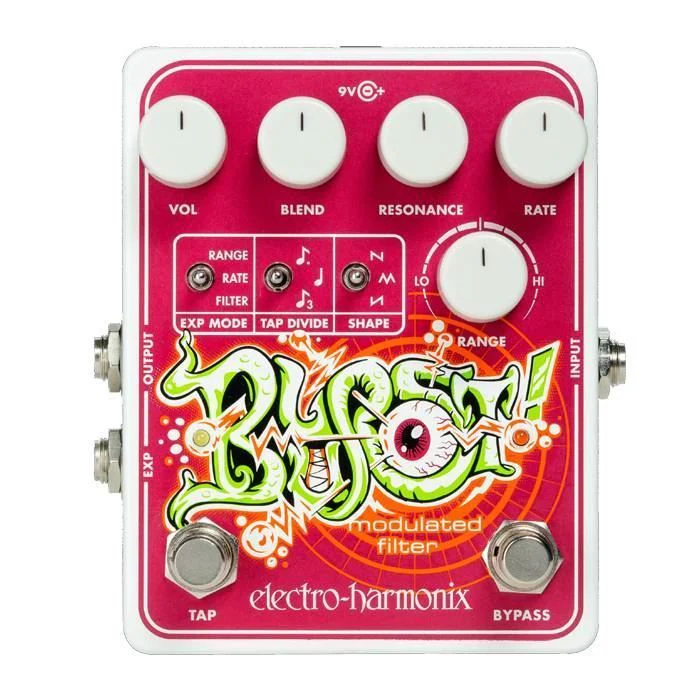

The Blurst modulates an instrument’s sound like an envelope filter, but instead of the filter’s response being controlled by playing dynamics, it’s controlled by an internal oscillator. The Blurst is a must have for the adventurous player who wants to explore new sonic territory!

---

Specifications

• Features an analog low pass filter with adjustable resonance
• Three modulation waveform shapes: triangle, rising saw-tooth and falling saw-tooth
• Modulation rate is set by either the rate knob or a combination of the tap footswitch and tap divide toggle switch offering quarter, dotted eighth and triplet rhythms
• Three EXP modes, range, rate and filter, can be controlled by an expression pedal or control voltage source like EHX’s 8 Step Program Analog Expression/CV Sequencer
• Range knob sets the frequency range of the filter’s modulation, Blend control adjusts the dry/filtered signal mix
• EHX 9.6VDC-200mA power supply included
• Current Draw: 56mA @ 9VDC
• Dimensions in inches: 4.0(w) x 4.75(l) x 2.25(h)
• Dimensions in mm: 102(w) x 121(l) x 58(h)

---

WATCH: Electro-Harmonix BLURST Modulated Filter
