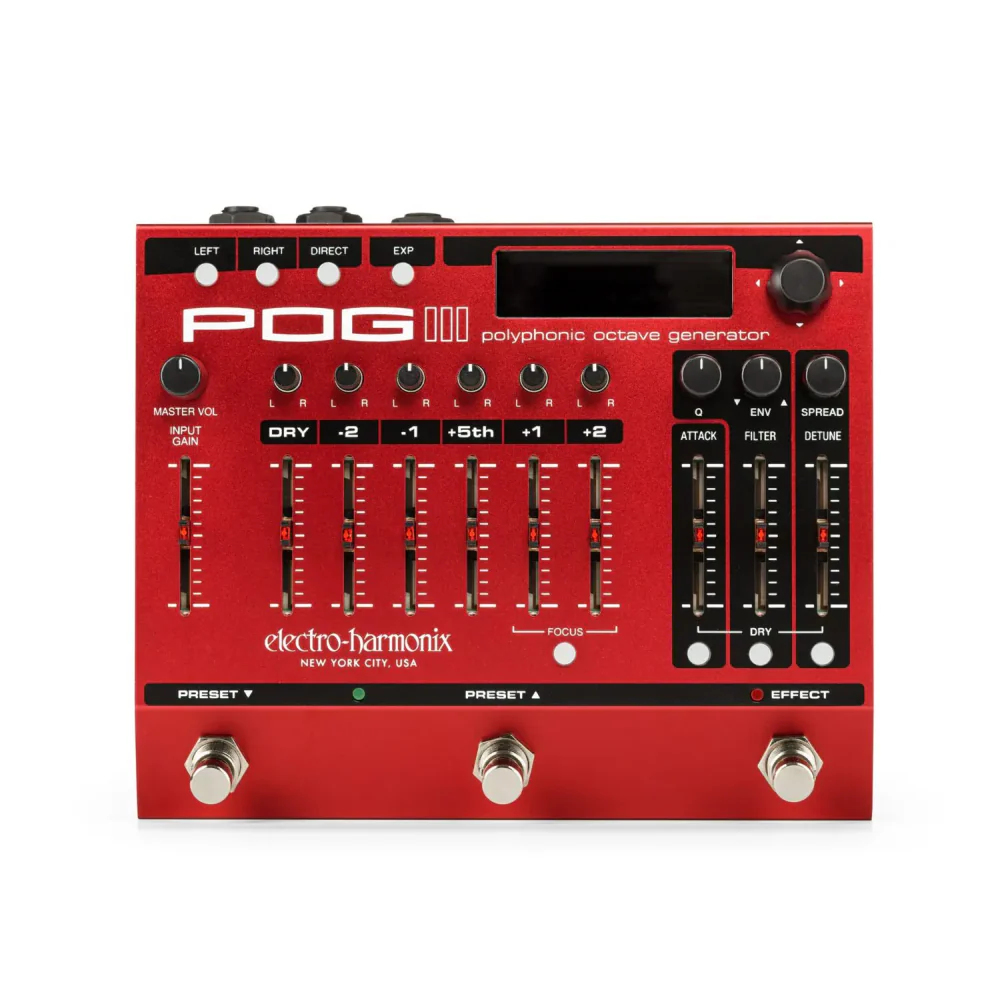

There are 6 voices including DRY, -2, -1, +5th, +1 and +2, each can be mixed with an individual slider to create enveloping stereo effects with dedicated pan control and selectable LEFT/RIGHT/DIRECT output. The effects section has been expanded to include an improved DETUNE section with envelope control and adjustable Q for the new multi-mode filter, SPREAD and individual DRY effect selection, and the famous ATTACK slider for subtle or dramatic swell effects. All voices, effects and extra features can now be controlled via expression and MIDI, giving you even more creative control. Use advanced programming and performance control to unlock new expression effects such as Freeze, Glissando, Volume, Filter, X-Fade and Warp. The INPUT GAIN slider is an old friend from the original POG, allowing you to add richness and dirtiness to your sound mix. This fresh sound creation capability is available on demand, plus additional storage and editing options simplify workflow and sound storage capabilities. Thanks to POG3's highly visible OLED display and NAVCODER button, you can easily store and sort the 100 built-in presets. The new EHXport desktop app makes it easy to store and organise presets, streamlining preset editing on your PC or MAC.

Features

• Six separate voices: DRY, -2 OCT, -1 OCT, +5TH, +1 OCT, +2OCT
• 100 presets
• Three separate 1/4″ outputs – LEFT, RIGHT, DIRECT OUT
• Individual pan controls to separate voices between LEFT and RIGHT output jacks
• Enhanced classic POG and POG2 ATTACK, FILTER, and DETUNE controls
• INPUT GAIN control
• MASTER VOLUME control
• FOCUS control for +1 OCT and +2 OCT
• Multimode Filter with Q and Envelope sweep
• All controls can be saved to presets and controlled via expression and/or MIDI
• Illuminated slide pots and buttons
• High-visibility OLED graphical display
• Selectable “home” views for personalized user experiences
• Easy-to-navigate menu system
• New NavCoder knob allows rotary and directional navigation through menus
• EXPRESSION / CV input offers multiple modes of expression
• USB-C port to connect to Windows or Mac and interface with EHXport™ app

Specifications

Circuit: Digital Bypass: Buffered Bypass Audio: Mono In & Stereo Out Power Supply: 9.6VDC-500mA power adapter included Dimensions (in): 7.125 x 5.75 x 2.25 Current Draw: 300mA Year Released: 2024
