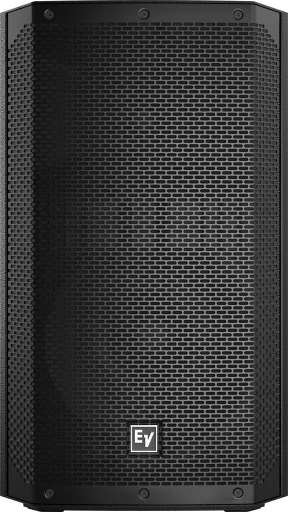

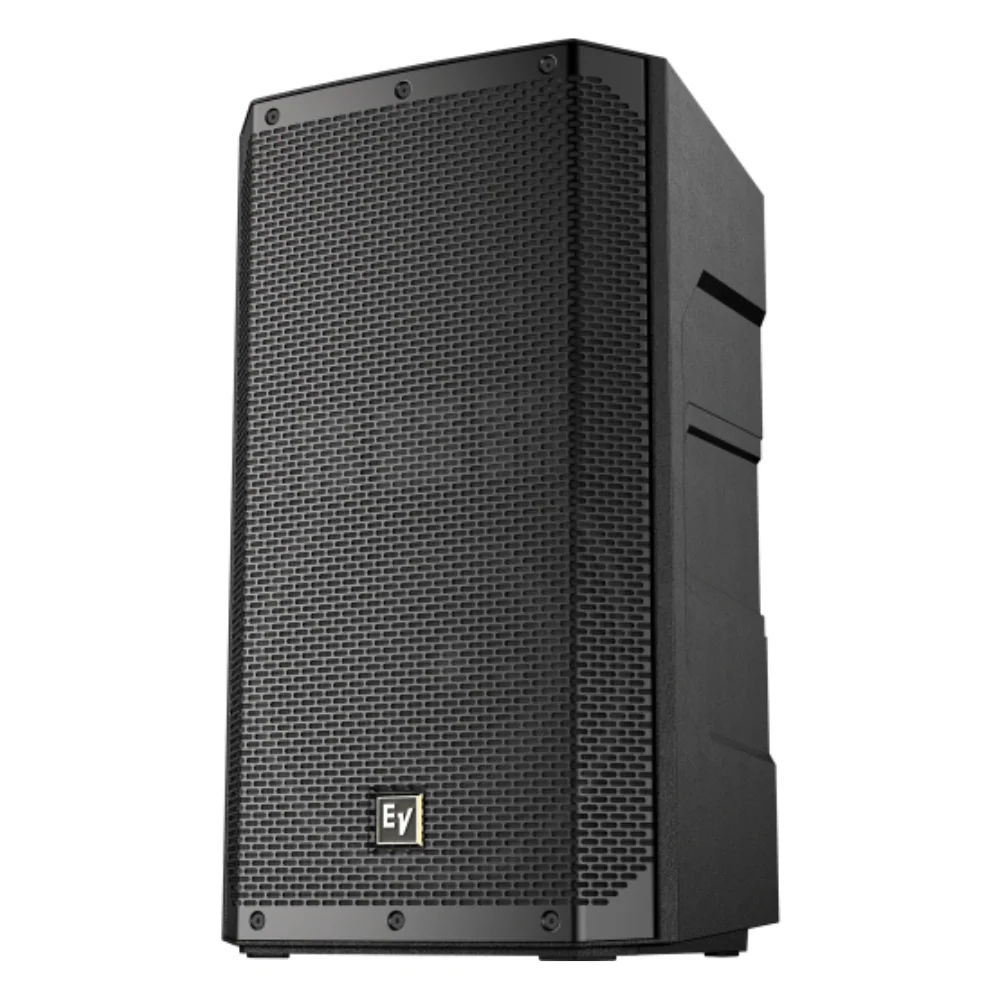

Electro-Voice ELX200 12 Inch Two Way Passive Loudspeaker
The Electro-Voice ELX200 series is built to deliver powerful, crystal-clear sound with rock-solid durability, perfect for performers, DJs, and audio professionals who need reliable performance at any volume. Designed as a seamless integration of acoustical, electrical, and mechanical components, the ELX200 ensures optimal performance in every situation.
The ELX200’s efficient transducers and cutting-edge components provide accurate, linear sound — staying loud and clear, even at maximum output. All this is housed in one of EV’s most durable full-range composite enclosures ever, ready to take on the toughest gigs with confidence.
Features
- 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
- 1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
- High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
Specifications
- Suspension: (3) M10 suspension points
- Minimum Impedance: 7.5Ω
- HF Transducer: DH-1L 1-inch titanium compression driver
- Speaker Type: Full-Range
- Woofer Size: 12inch
- Powered or Passive: Passive
- Frequency Response (-3 dB)¹: 77 Hz - 17 kHz
- Frequency Range (-10 dB)¹: 51 Hz - 20 kHz
- Max. SPL/1m (calc)²: 128dB
- Coverage (Nominal -6 dB) H: 90°
- Coverage (Nominal -6 dB) V: 60°
- LF Transducer: EVS-12M 300 (12 in)
- Power Rating: 1200W
- Crossover Frequency: 1.7 kHz
- Connector Type: Dual NL4
- Enclosure Material: Polypropylene composite
- Grille: 18 AWG steel with powdercoat
- Height: 24.76" (629mm)
- Width: 14.29" (363mm)
- Recommended High-Pass Frequency: 50 Hz
- Depth 13.54" (344mm)
- Weight Net: 33.51lbs (15.2kg)
- Family: ELX200
- Nominal Impedance: 8Ω
- Axial Sensitivity (SPL, 1 W @ 1 m): 93dB
- Power Handling (Continuous / Peak): 300W/1200W
