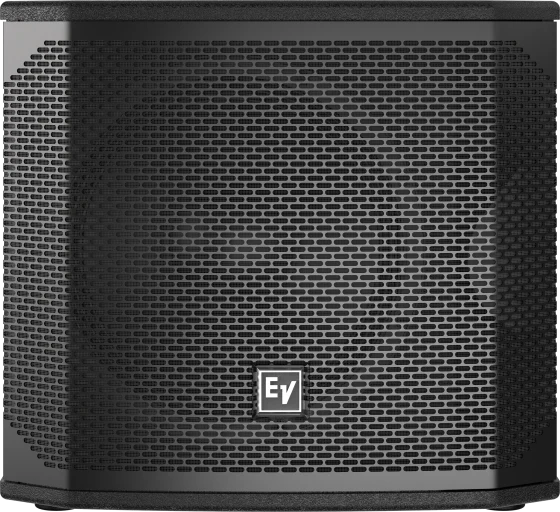

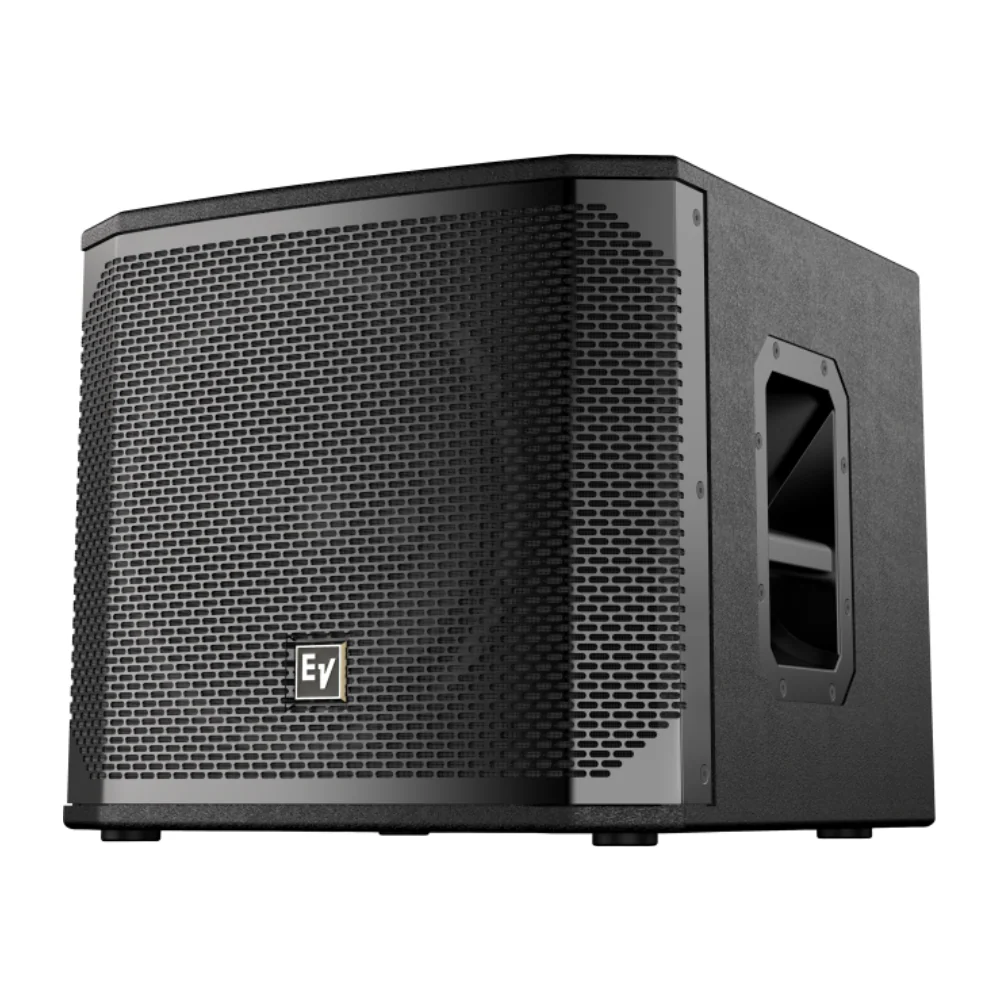

Electro-Voice ELX200 12S 12 Passive Subwoofer
The Electro-Voice ELX200 series is engineered for exceptional performance, with every element acoustic, electrical, and mechanical designed to work together seamlessly. These speakers deliver premium sound clarity, powerful output, and rugged durability, making them a top choice for musicians, DJs, and live sound professionals.
ELX200 subwoofers pack deep, punchy low-end into a surprisingly compact design, housed in a 15mm thick wood enclosure with a high-quality, road-ready finish. Built with EV’s industry-leading transducer technology, these speakers provide crystal-clear, distortion-free audio, even at high volumes.
With one of the most robust full-range composite enclosures ever designed by EV, the ELX200 series sets a new standard for strength and reliability. Whether you're on the road or setting up a permanent installation, this series delivers unbeatable sound and rock-solid toughness.
Features
- 1600 W (peak), 129 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
- High-output EVS-12L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- System reliability verified with over 500 hours of abuse testing and endurance testing.
- Ideal for portable and installed applications. Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
- Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
Specifications
- Speaker Type: Subwoofer
- Woofer Size: 12inch
- Powered or Passive: Passive
- Frequency Response (-3 dB)¹: 42 Hz - 220 Hz
- Frequency Range (-10 dB)¹: 33 Hz - 300 Hz
- Max. SPL/1m (calc)²: 129dB
- LF Transducer: EVS-12L 300 mm (12 in)
- Power Rating: 1600W

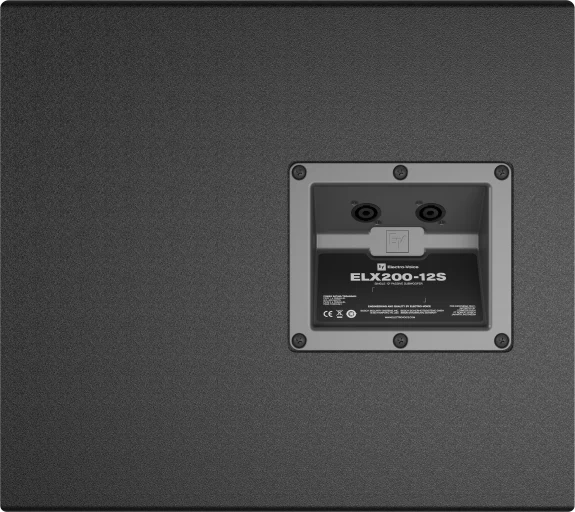

- Connector Type: Dual NL4
- Enclosure Material: 15 mm plywood with durable polyurea top-coat finish
- Grille: 18 AWG steel with powdercoat
- Available Color: Black
- Height: 15.63" (397mm)
- Width: 17.52" (445mm)
- Depth: 17.99" (457mm)
- Weight Net: 44.53lbs (20.2kg)
- Family: ELX200
- Nominal Impedance: 8 ΩΩ
- Minimum Impedance: 6.9Ω
- Axial Sensitivity (SPL, 1 W @ 1 m): 93dB
- Power Handling (Continuous / Peak): 400 W/1600W
- Recommended High-Pass Frequency: 42Hz
