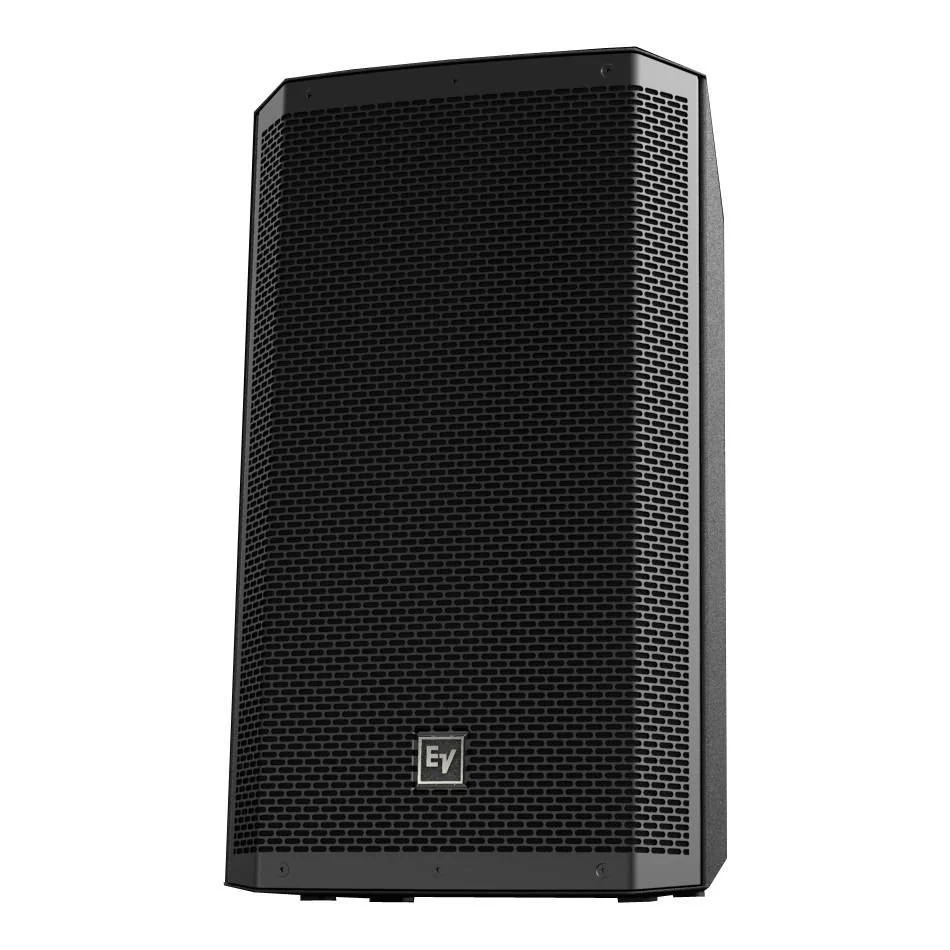

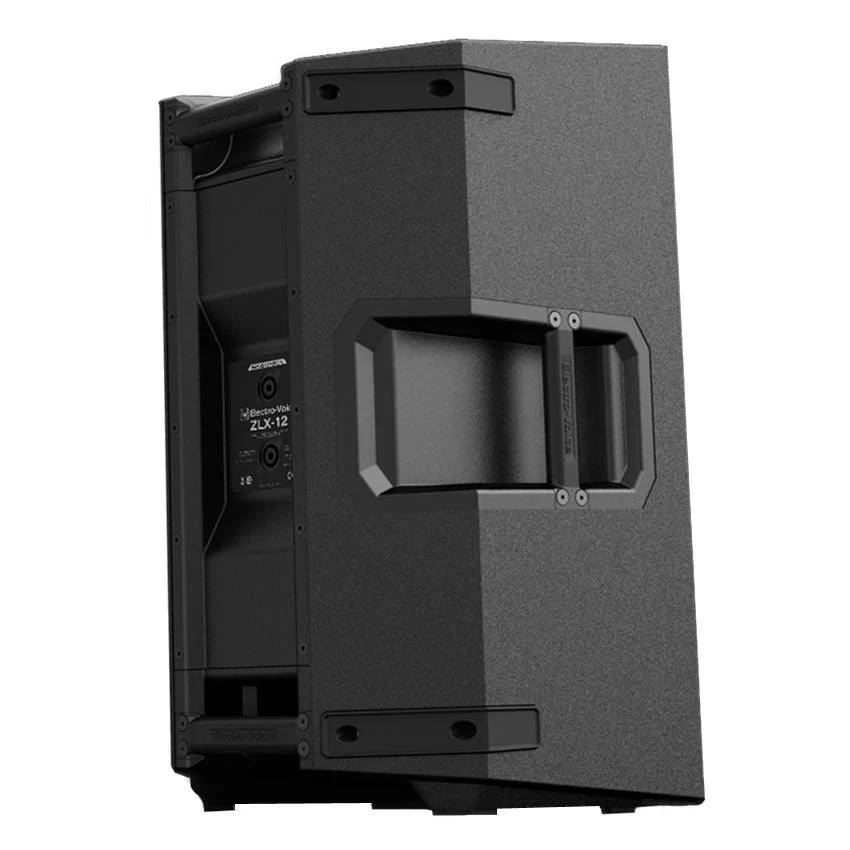

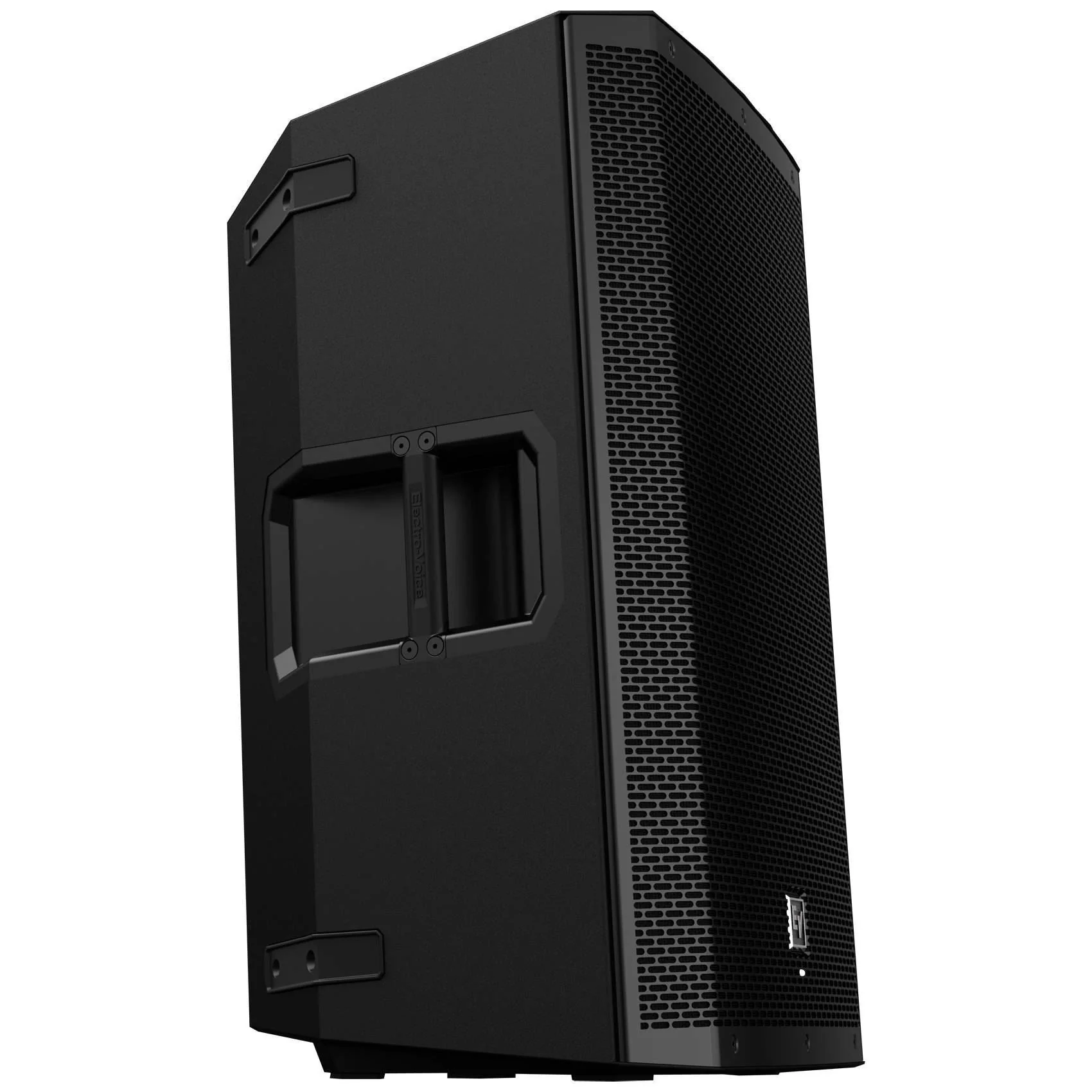

Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.

---

Specifications

• Frequency Response: 82 Hz - 18 kHz¹
• Frequency Range: 55 Hz - 20 kHz
• Axial Sensitivity: 95 dB
• Maximum SPL: 125 dB
• Recommended HP Frequency: 40 Hz
• Coverage (Hort. x Vert.): 90° x 60°
• Power Handling: 250 Watts Continuous, 1000 Watts Peak
• LF Transducer: EVS-12K, 300 mm (12 in) Woofer
• HF Transducer: DH-1K
• Crossover Frequency: 2.1 kHz
• Nominal Impedance: 8 Ω
• Minimum Impedance: 7 Ω
• Connectors: Dual NL4
• Enclosure: Polypropylene
• Grille: 18 Gauge Steel with Black Powder Coat
• Dimensions (H x W x D): 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
• Net Weight: 14.9 kg ( 32.8 lb)
• Shipping Weight: 18.0 kg ( 39.6 lb)

---
