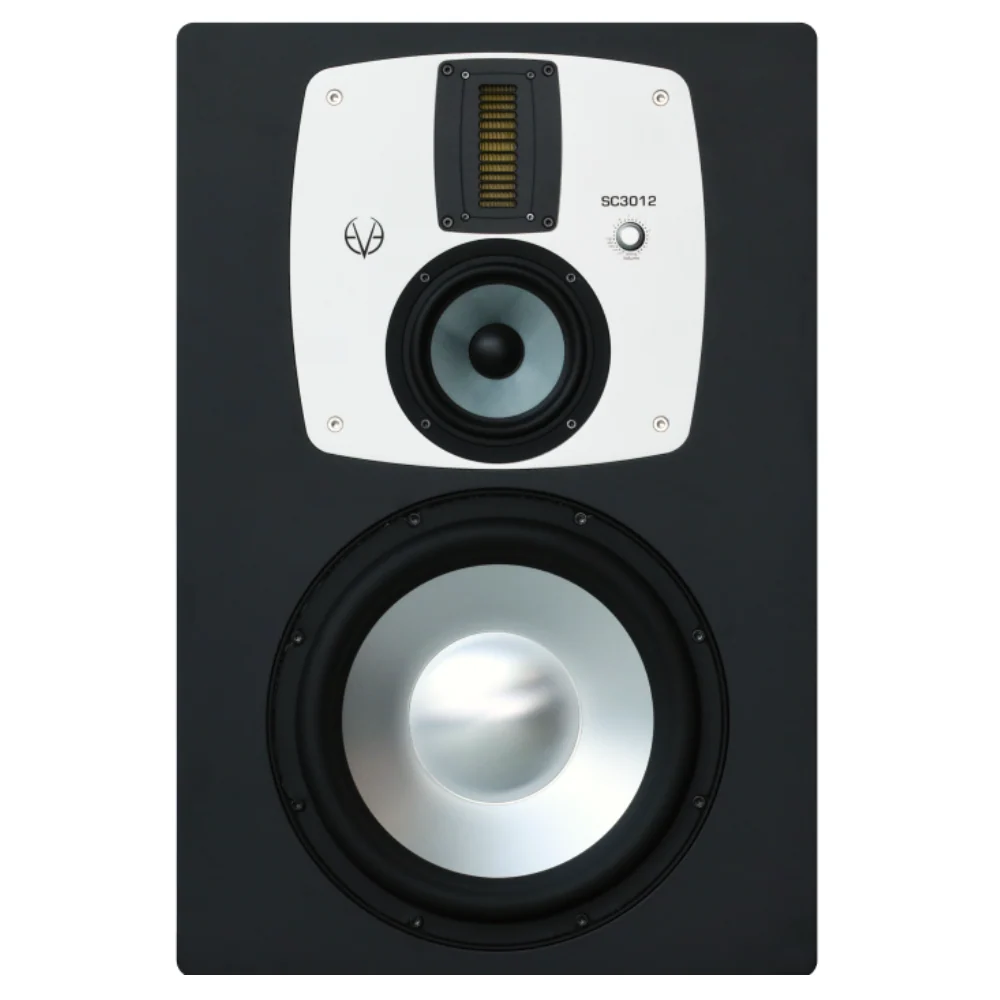

The SC3012 system is also designed for in-wall installation. In this case, simply set the filter control to "In-Wall". A set of high-density foam is included to close the bass vent at the back. The silver module that houses the midrange driver and AMT RS6 tweeter can be rotated 90 degrees, allowing the speaker to be positioned horizontally or vertically.

Features

• SMART-knob Simply set and save filters & volume
• Bass-reflex design For precise bass reproduction without background noise.
• Parameter lock Your settings are saved (even without power).
• Safe Fade-In A slow volume increase when switching on protects ears and equipment.

Specification

General Tweeter: AMT RS6 Output power tweeter: 250 W Mid-driver: 5" Output power mid-driver: 250 W Woofer: 12" Output power woofer: 800 W Protection limiter: Yes Weight: 44 kg (97 lb) Settings Volume: - to + 6 dB High-shelf filter (-5 dB to +3 dB): > 3 kHz Mid EQ (-3 dB to +3 dB): 1 kHz Desk filter cut (-5 dB to 0 dB): 160 Hz Desk filter boost (0 dB to +3 dB): 80 Hz Low-shelf filter (-5 dB to +3 dB): < 300 Hz Adjustable LED brightness: Yes Level-lock dip switch: Yes Filter-lock dip switch: Yes Input level dip switch: +7 dBu / +22 dBu Connectors (10k impedance) RCA in XLR in Power Consumption Standby: < 1 W Maximum: 1000 VA
