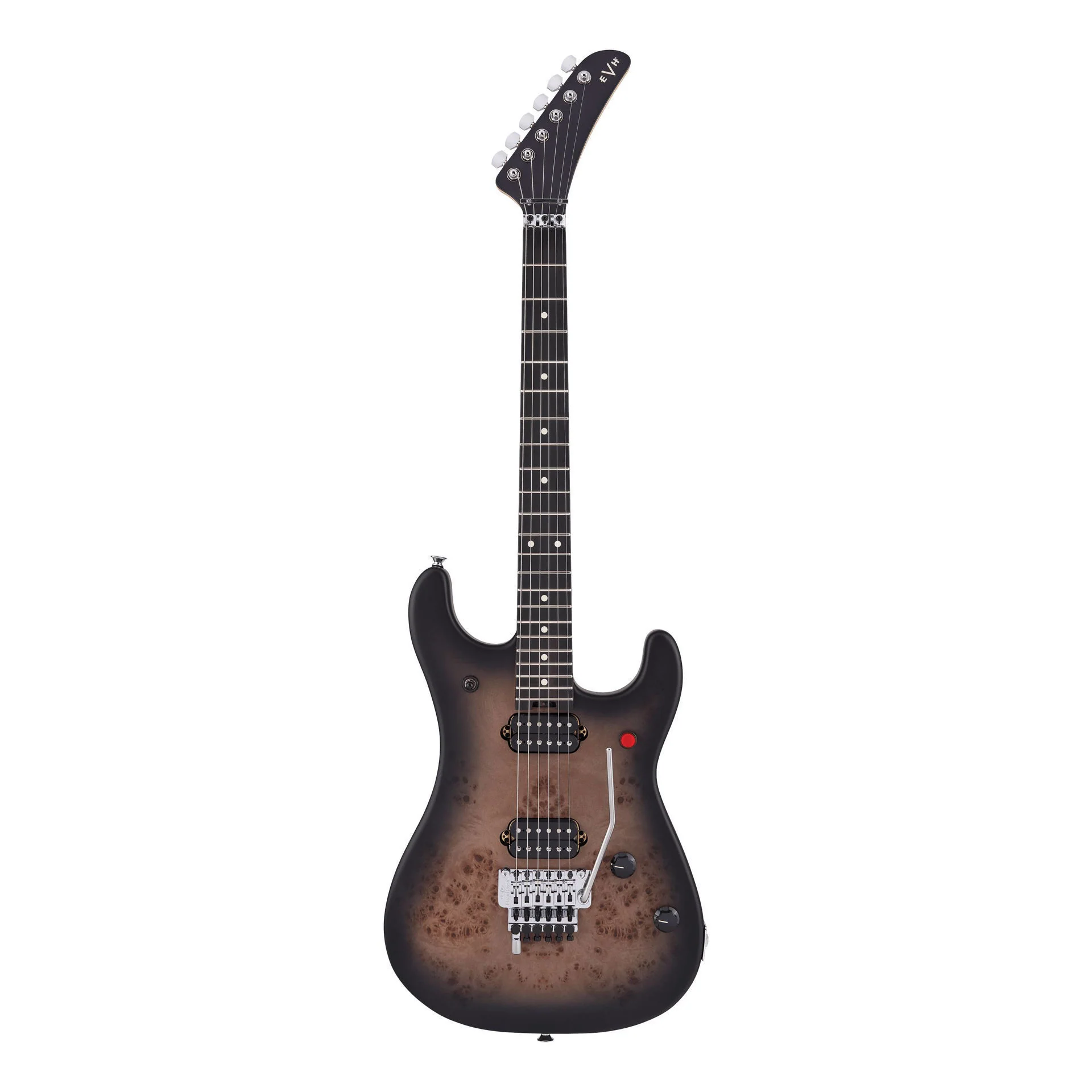

Like its predecessor, the 5150 Deluxe Poplar Burl features a modified Strat®-style basswood body with a deeper upper body curve.

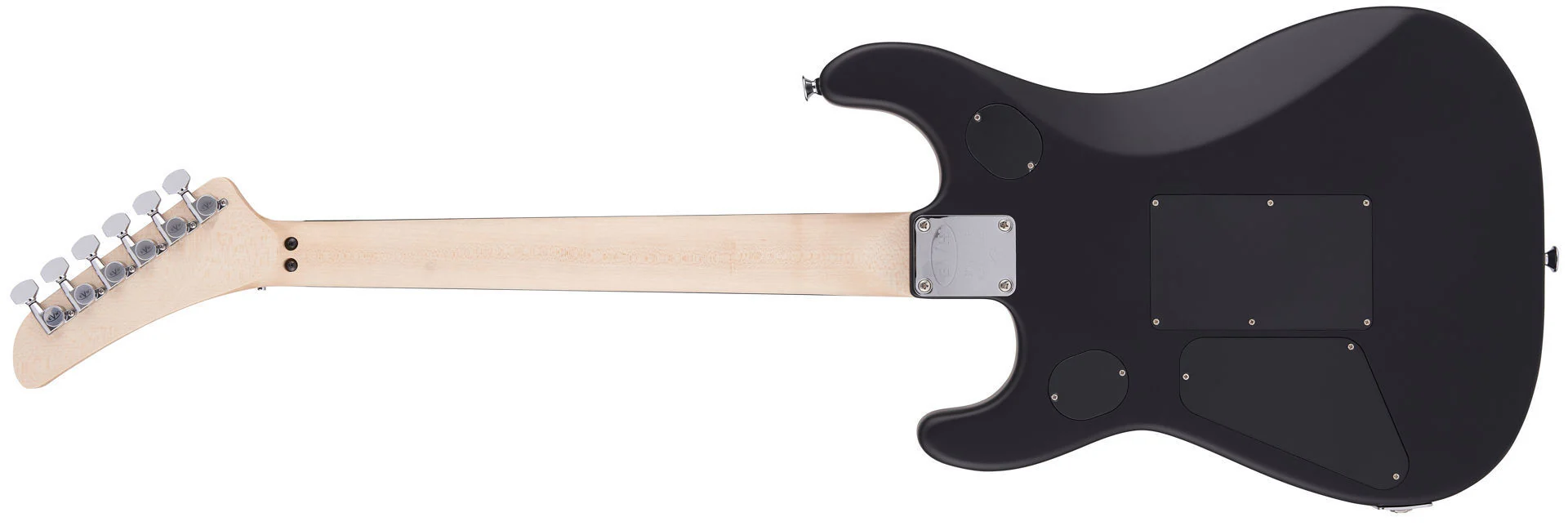

The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched “hockey stick” headstock with EVH® logo decal.

Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with an HH pickup configuration controlled by a three-way toggle on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve.

The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped.

An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

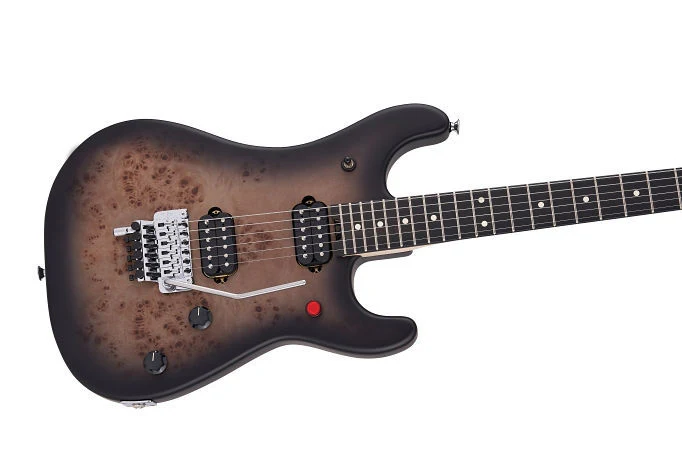

A stylized modern spin on a fan favorite, the 5150 Deluxe is sure to stun with a unique poplar burl top that is wrapped in Aqua Burst or Black Burst and finished off with all-chrome hardware, including the EVH-branded Gotoh® tuning machines.

---

Features

• Modified Strat-Style Body With Poplar Burl Top
• Bolt-On Quartersawn Maple Neck With Eddie Van Halen'S Modified “C” Backshape
• 12"-16" Compound Radius Ebony Fingerboard
• Versatile Control Layout & Switching
• EVH-Branded Floyd Rose Locking Trem, R3 Locking Nut And EVH D-Tuna

---

Specifications

• Model Number: 5108002557
• Series: 5150® Series Guitars
• Color: Black Burst
• Number of Strings: 6
• Orientation: Right-Hand
• Body Finish: Gloss Urethane
• Body Shape: 5150®
• Body Material: Basswood
• Body Top: Poplar Burl
• Bridge Pickup Direct Mount EVH® Wolfgang® Humbucking
• Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
• Pickup Color: Black
• Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
• Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Auxiliary Switching: Kill Switch
• Pickup Configuration: HH
• Neck Material: Quartersawn Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: EVH® Modified "C" Backshape
• Scale Length: 25.5" (648 mm)
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Ebony
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Floyd Rose® R3 Locking
• Nut Width: 1.685" (42.8 mm)
• Position Inlays: Cream Dot
• Side Dots: Cream
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench: 2.5 mm Hex
• String Trees: Floyd Rose® Retainer Bar
• Headstock: EVH® Hockey Stick
• Neck Plate: 4-Bolt Standard
• Bridge: Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
• Hardware Finish: Chrome
• Tremolo Arm: Floyd Rose® 1000 Series
• Tremolo Block: Brass
• Tuning Machines: EVH®-Branded Gotoh®
• Control Knobs: Black Knurled with White Indicator
• Switch Tip: Black
• Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Oversized
• Case/Gig Bag: Optional EVH® Striped Hardshell (p/n 022-6100-506); Optional EVH® Black Gig Bag (p/n 022-1512-006)
• Included Accessories: Tremolo Arm, Hex Keys & User Manual
