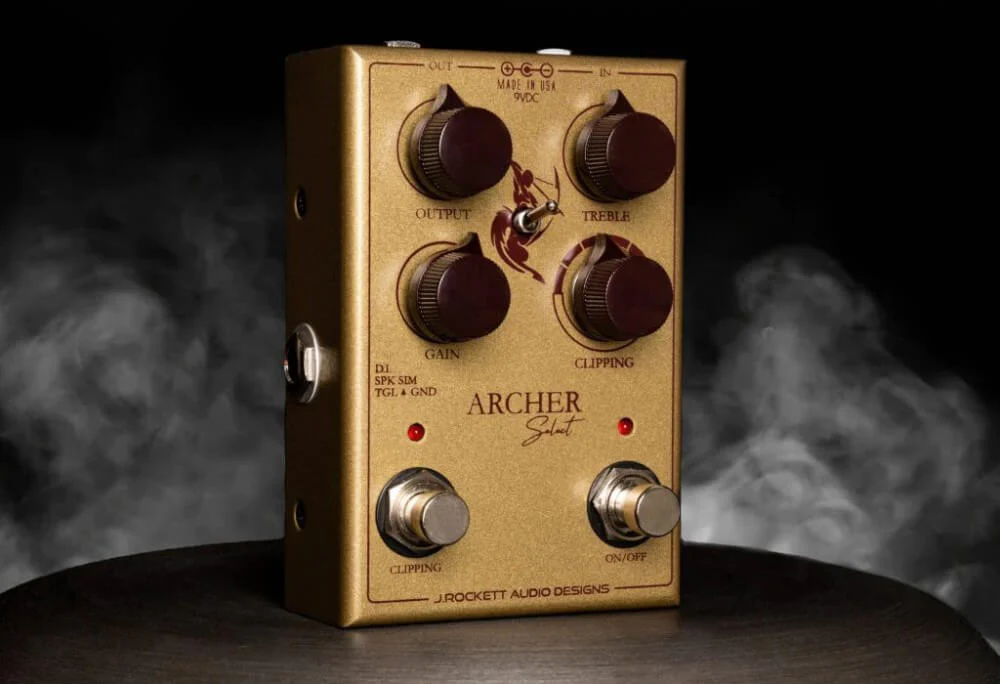

The Archer Select is the most flexible Klon-style overdrive available. With the ability to cycle through 7 diodes, ranging from lowest to highest output via the Clipping knob and left footswitch, players can create limitless variations of Klon style tones from subtle boost, to raging drives and beyond. With the diodes of the Archer, iKon, Jeff Mod Archer and 4 additional diodes inside, including LED, the Archer Select enables never-ending tonal possibilities. Additional to the overdrive section, Archer Select boasts an integrated D.I. Speaker Simulator based on a British 4X12 cabinet to monitor the OD via direct or for direct recordings. The ground switch is included only for this circuit so ground noise can be eliminated. SPECIFICATIONS Controls:

• Output: Controls overall volume output
• Gain: Controls the amount of gain
• DI Output and Speaker Simulation: Provides a direct output with speaker simulation for monitoring or recording
• Clipping Switch: Engages your selected clipping diode. When off it defaults to the stock diode
• Treble: Controls the high end
• Ground Switch: Ground lift for D.I.
• Clipping Switch: Allows for 6 additional clipping diode options operated by the “Clipping” foot switch
• Clipping Order: OA10 (Right footswitch default), 1N270, 1N695, 1N34A, D9B, D9E, Red LED

I/O

• Input
• Output
• 1/4″ DI Output

Size and Power

• 4.25″ x 2.75 x 1.25″
• 9 volt Negative tip adapter and a 5.5mm x 2.1mm jack.
• 28mV Current Draw
