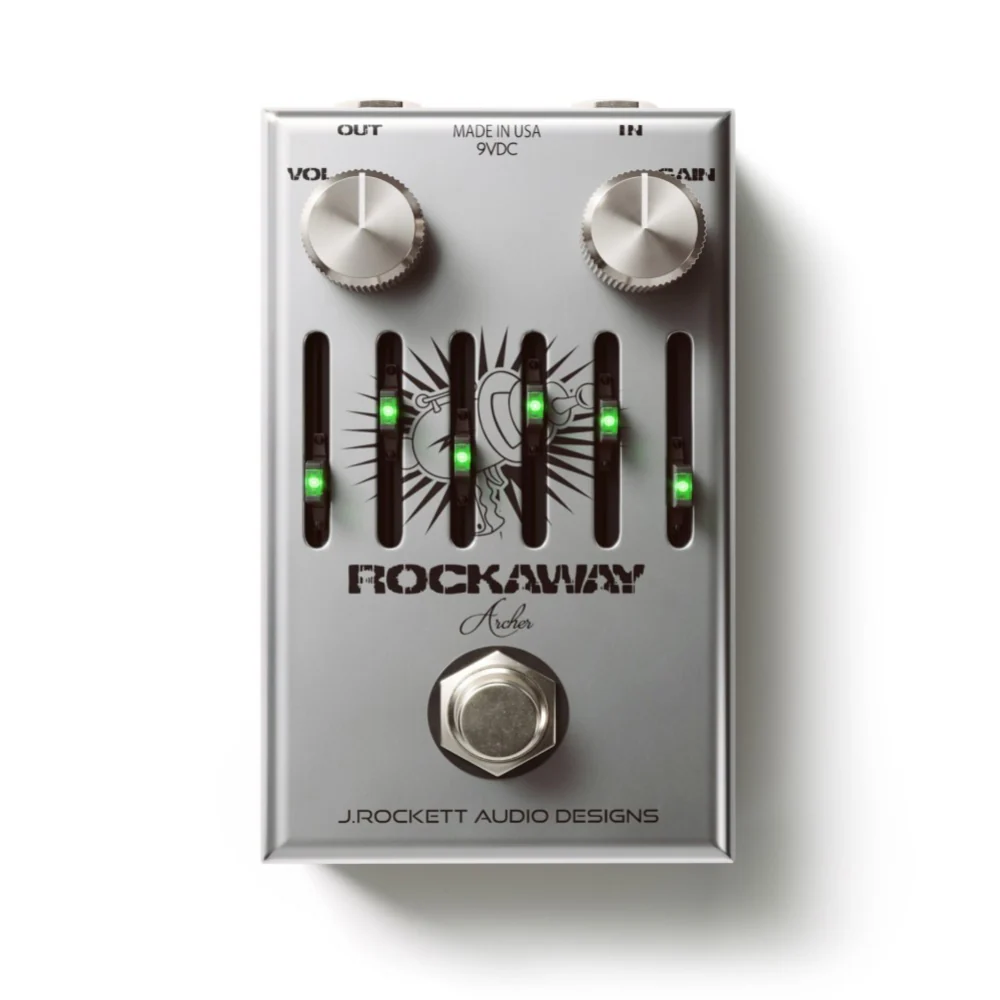

A TAILORED OVERDRIVE The settings on the J.Rockett Audio Designs Rockaway Archer include Up to 18dB of cut or boost at 6 different frequencies. Each frequency is increased by pushing its corresponding slider up on the pedal or decreased by pushing them down. This also adds or decreases volume. It is a great way to hit the front end of an amp harder than a stock Archer. The Rockaway Archer has an incredible variety of sounds due to the multitude of ways the EQ section can be used! SPECS & FEATURES Controls:

• Six band graphic EQ
• Volume and gain knobs

The settings include Up to 18dB of cut or boost at 6 different frequencies. Each frequency is increased by pushing its corresponding slider up on the pedal or decreased by pushing them down. This also adds or decreases volume. 6 Band Graphic EQ:

• Band 1 – 100 Hz Far Left
• Band 2 – 200 Hz
• Band 3 – 400 Hz
• Band 4 – 800 Hz
• Band 5 – 1.6K
• Band 6 – 3.2K Far Right

Size and Power:

• 4.00″ x 2.50″
• 9V DC operation with standard – tip and + sleeve
• 30mA Current Draw
• Internal 18v Charge Pump
