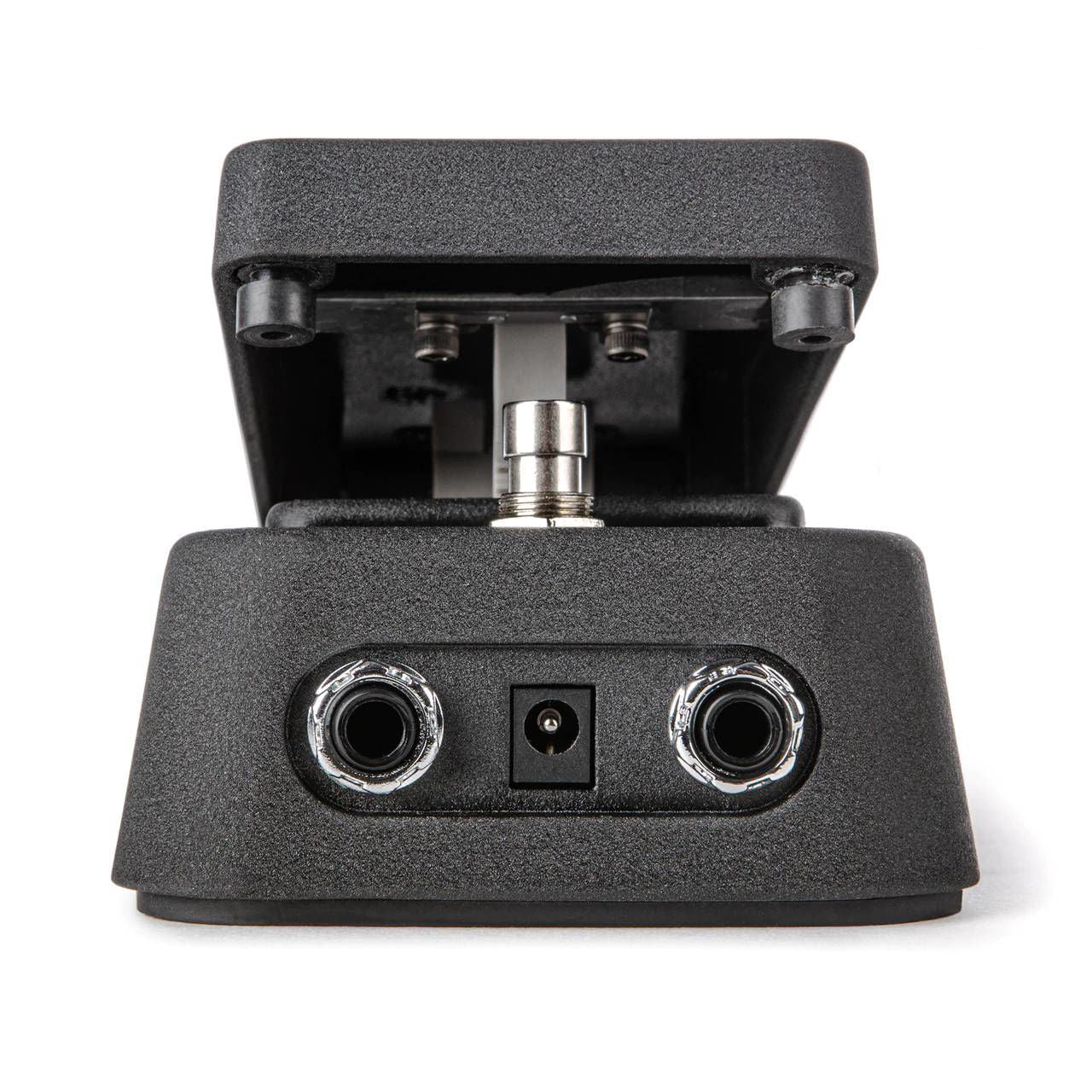

Front mounted input, output and power jacks allow for a tighter configuration of pedals, freeing up space on the sides that would normally be taken up by cable ends.

On the side of the pedal is a convenient and accessible three-position switch that allows you to choose one of three of the most popular Crybaby voices.

The H setting gives you the aggressive modern sound of the CB95, M provides the midrange growl of vintage wah pedals and L provides a sound that's dark and rich. True hardwire bypass. Powered by 9 volt battery or AC adaptor (ECB003 - not included).

---

Specifications

IMPEDANCE

• Input: -8.0 dBV
• Output: +10 dBV

WAH RANGE SELECTOR

• Range Selector Switch Position: (H towards Heel, L towards Toe)
• H: 380 Hz to 2100 Hz
• M: 330 Hz to 1800 Hz
• L: 270 Hz to 1500 Hz

MAXIMUM LEVEL

• Input: -8.0 dBV
• Output: +10 dBV

MAXIMUM GAIN

• Heel Down: +19.5 dB
• Toe Down: +19.0 dB

NOISE FLOOR*

• Heel Down: -98 dBV
• Toe Down: -89 dBV

Bypass: True Hardwire
Current Draw: 3 mA
Power Supply: 9 volts DC

---
