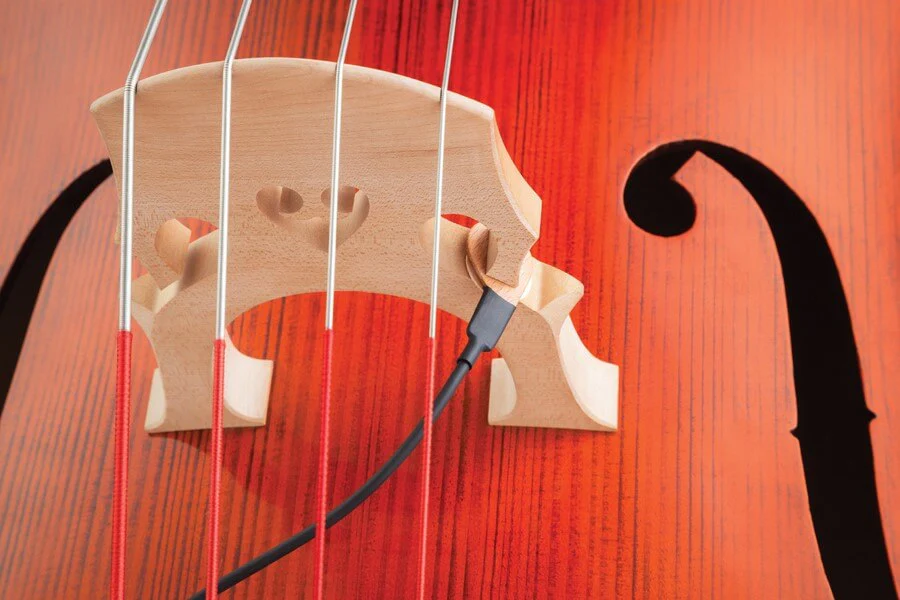

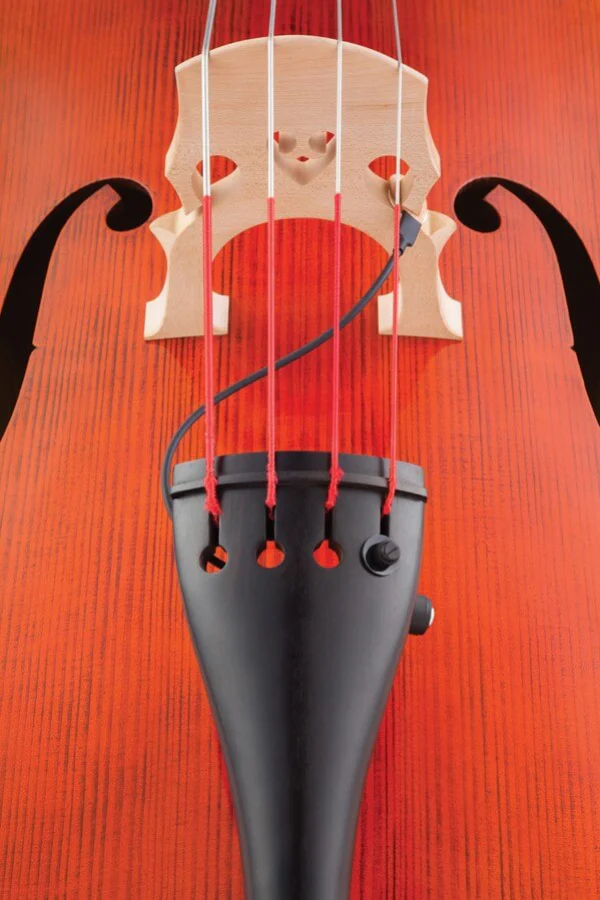

The KNA DB-1 is a portable, bridge-mounted double bass piezo pickup with a tailpiece-mounted output jack, which reproduces the entire spectrum of tone and dynamic range accurately, without the need to modify your instrument. The piezo pickup is installed in the eye slot of the bridge, and is held securely in place via friction, while the ¼" jack housing secures to the tailpiece non-destructively.

Features:

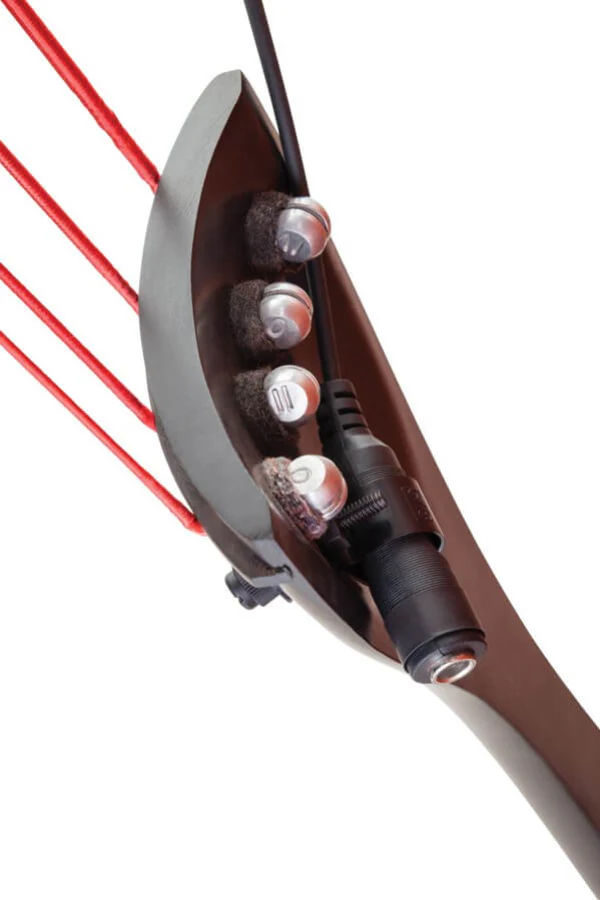

Safe install - The piezo pickup features a lightweight wooden housing, and installs in the eye slot of the bridge, held in place via friction. Neatly finished shim discs ensure the perfect fit. The ¼" jack housing secures to the tailpiece with a screw assembly at the string eye non-destructively.

Wooden sensor - The piezo sensor's lightweight wooden housing achieves superior tonal sensitivity and signal transmission.

Natural sound - DB-1 is a passive design that reproduces the organic tone of the instrument without requiring a battery.

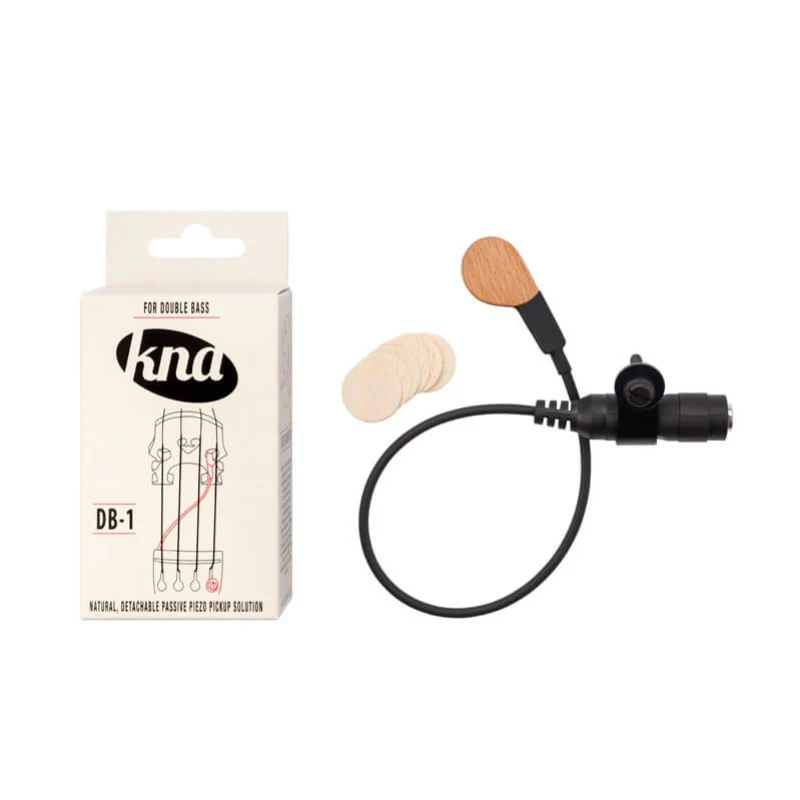

Complete installation set - The pickup includes additional neatly-finished shim discs for fitting the sensor in narrow bridges.

Specifications

• Diameter of Piezo Element: 22.5mm
• Thickness of Piezo Element: 2.4mm +/-0.08mm
• Lead Cable From Jack to Element: 290mm
• Maximum Impedance: 200Ω
• Shipping Dimensions
  • 103mm (H) x 65mm (L) x 35mm (W)
  • 35g
