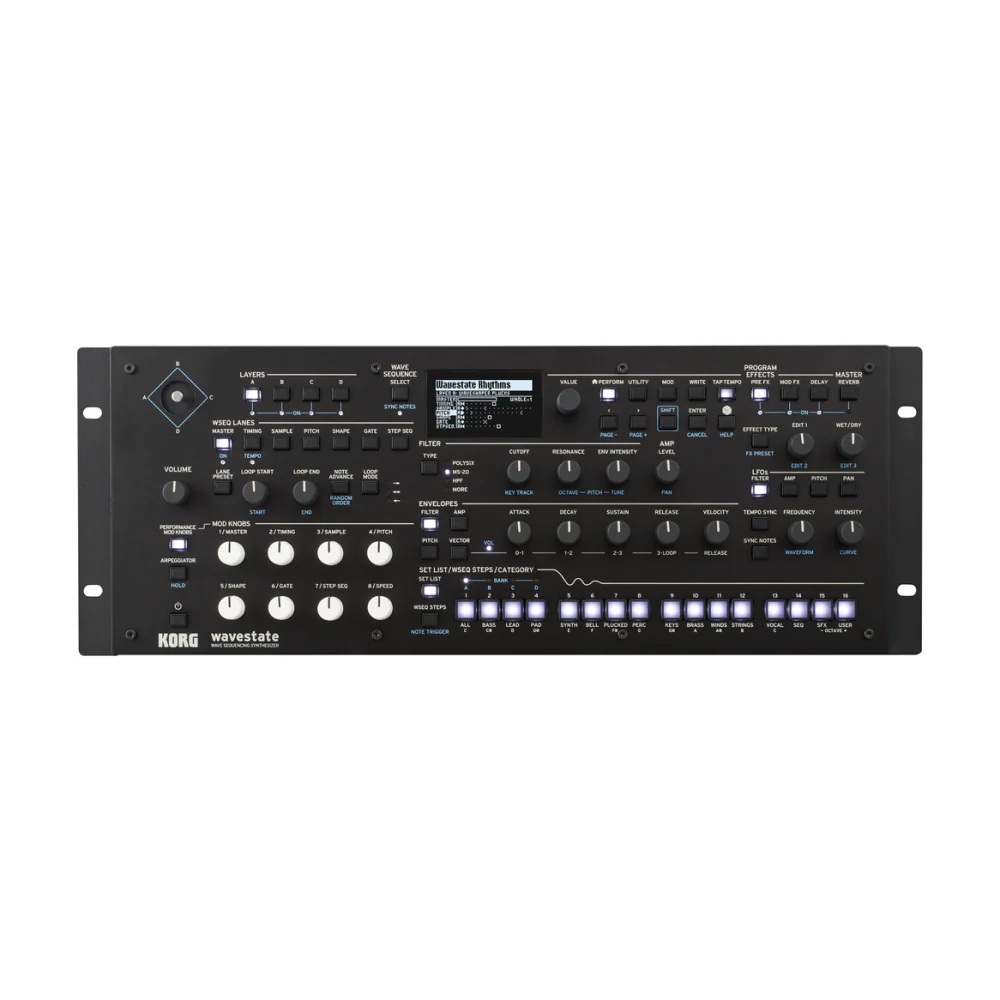

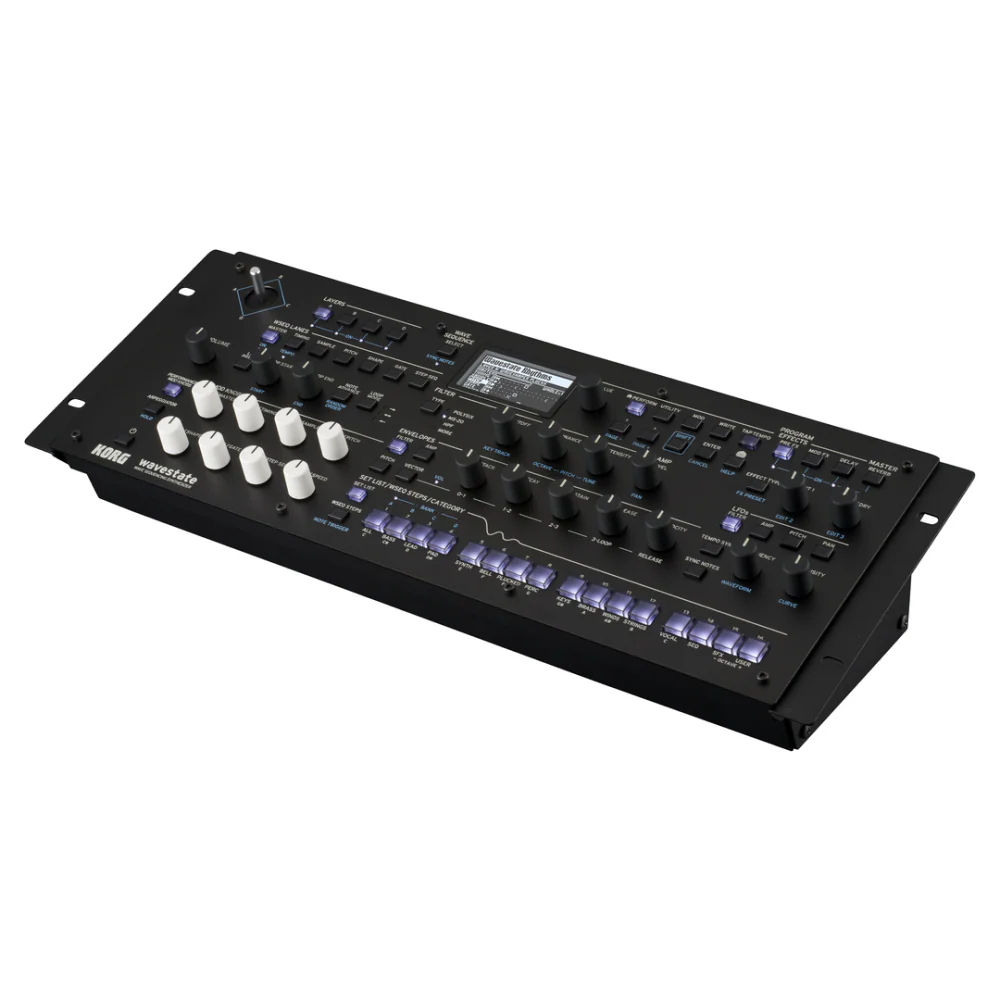

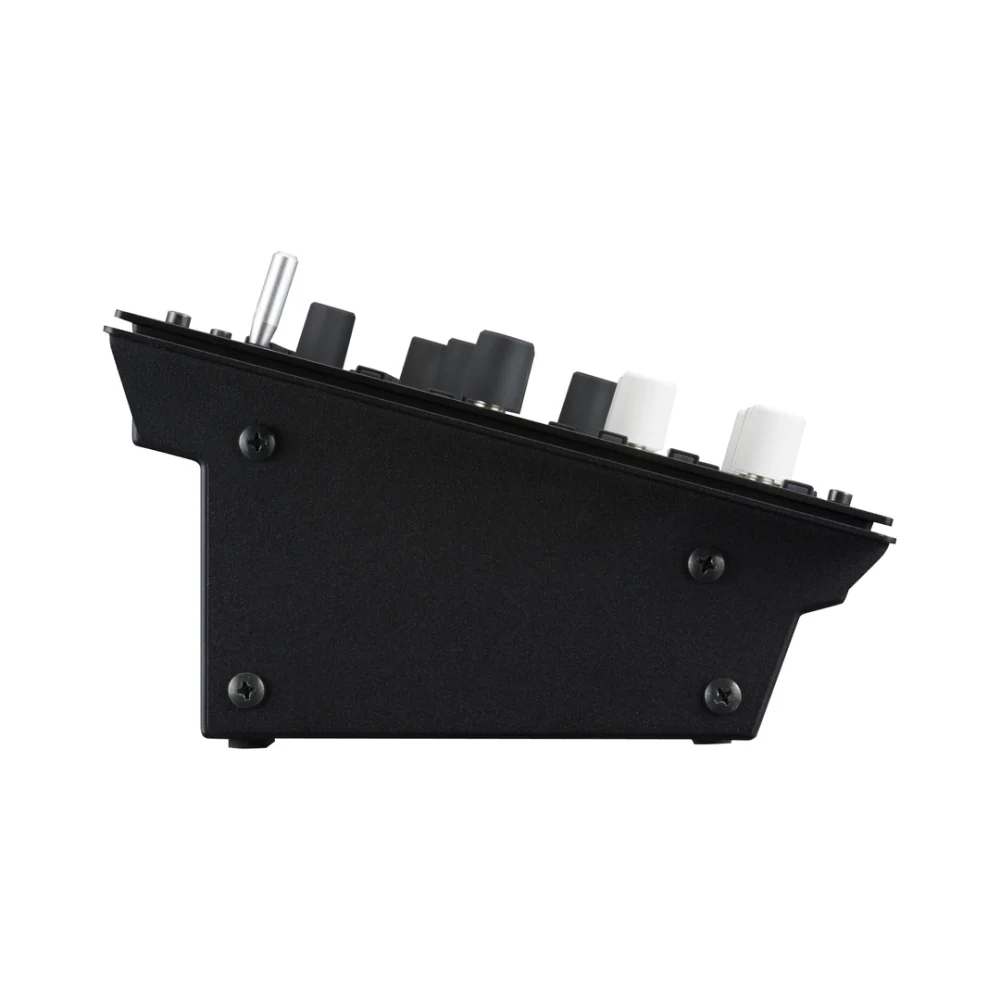

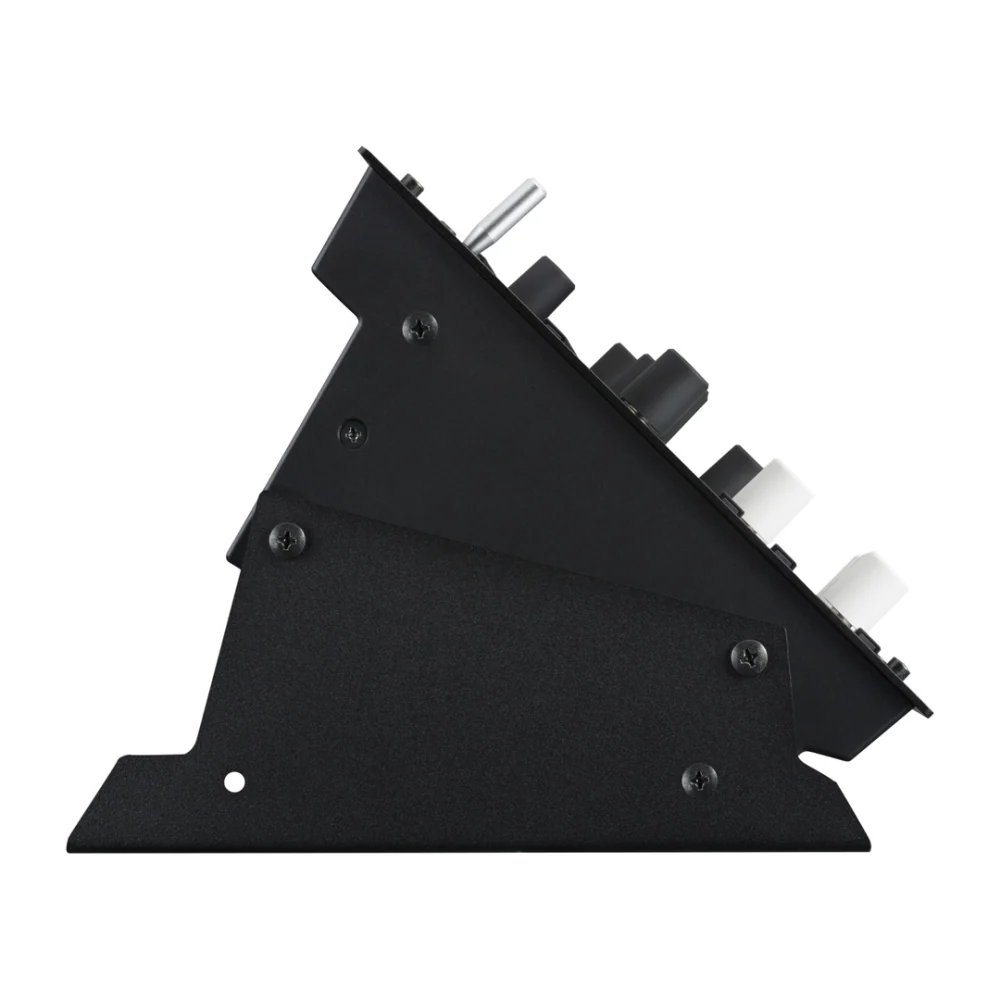

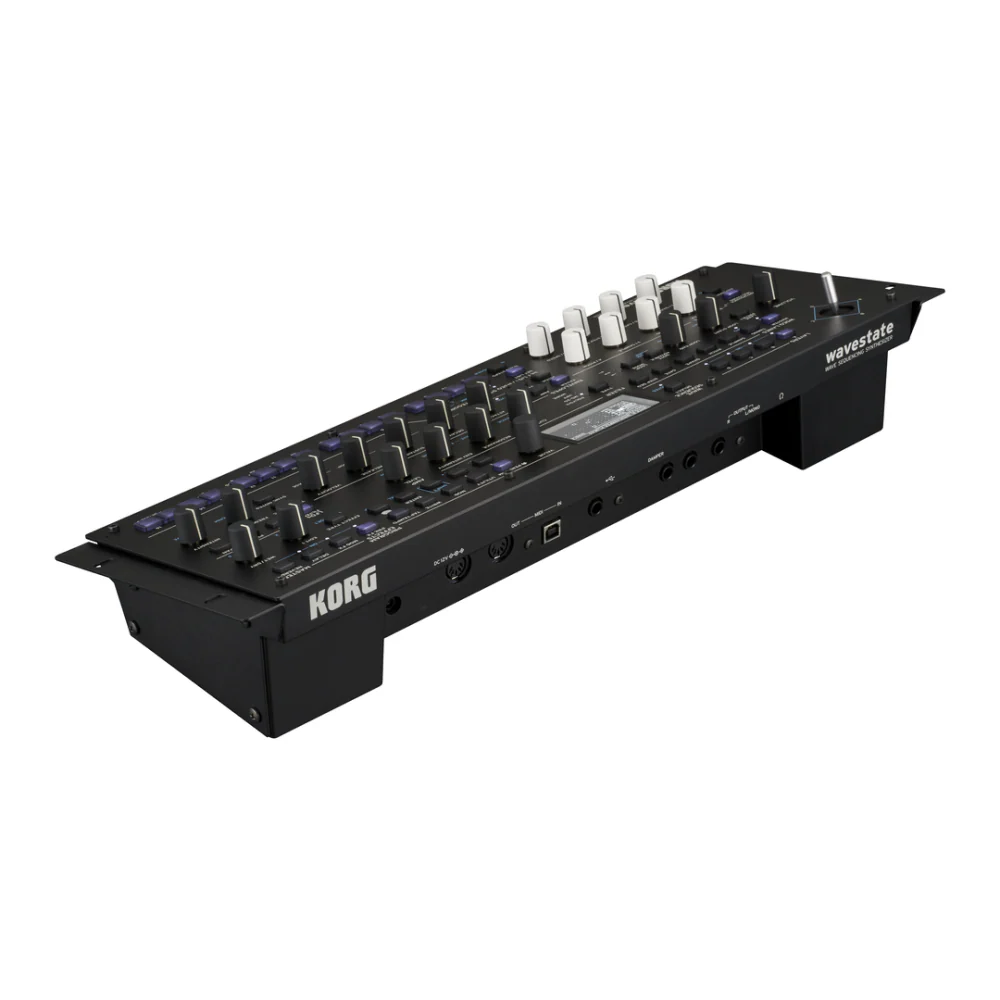

In 2020, the acclaimed Wavestate takes Korg's wave sequence to the next level. Powered by the fundamentally redesigned Wave Sequencing 2.0, Wavestate delivers ever-changing, amazing sounds with comprehensive hands-on control. Rather than being a nostalgic new edition, Wavestate was developed from the ground up for a new generation of musicians, producers, and composers, drawing on sources as diverse as modular synthesizers, groove boxes, and algorithmic composition. 120 voices of polyphony, updated LFOs, and more Taking full advantage of new enclosure design and processing hardware, the Wavestate module delivers an impressive 120 stereo voices with polyphony. The new 4U rackmount enclosure features the same controls as the keyboard model, but is more portable and easily fits into your studio or desktop production system. In response to user requests, we've updated all his LFOs with freewheeling, delayed start, retrigger options, added new modulation sources, and more. Software updates for the original Wavestate will also be available. The Wavestate module is fully compatible with original Wavestate, Wavestate mk II, Wavestate SE, and Wavestate native software sounds and samples, as well as many great third-party libraries. Support for MIDI 2.0 property exchange and polyphonic aftertouch. With the latest software update, all Wavestate models, hardware, and software now support MIDI 2.0 property exchange. Hundreds of original factory sounds have been updated to include polyphonic aftertouch modulation (channel aftertouch is also supported). All of this makes the Wavestate module a great addition to KORG's Keystage controllers. Rack-Mount and Desktop Wavestate modules are cleverly designed for both desktop and rack installation. The panel has been redesigned to fit a standard 19-inch width, and the rear jack panel is recessed for easy access to cables even when equipment is mounted directly above. For desktop setups, the mount allows you to choose the angle of the panel. Lay it flat if you're performing standing up, or upright if you're working seated in the studio.

Specifications

• Maximum Polyphony: 120 stereo voices
• Sound generating system - Wave Sequencing 2.0
• Maximum Polyphony - 96 stereo voices
• Sounds - Ships with 261 Performances, 799 Programs, and 1,042 Wave Sequences Storage for tens of thousands of user Performances
• Structure - Performance - 4 Layers, Reverb, EQ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences etc. is supported but not required) Layer - Program, Arpeggiator, Key and Velocity Zones Program - Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay
• Filters - 2-pole LPF, 2-pole HPF, 2-pole BPF, 2-pole Band Reject, 4-pole LPF, 4-pole HPF, 4-pole BPF, 4-pole Band Reject, Multi Filter, MS-20 LPF, MS-20 HPF, Polysix
• Modulation - Controllers - Mod Wheel, Pitch Wheel, Vector Joystick X/Y, 8x Program/Performance Mod Knobs Other Sources - 3x Envelopes, Vector Envelope, 3x LFOs, 2x Mod Processors, 2x Key Track, Step Sequencer Lane, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate/Gate+Damper, Note-On Trigger/Note-On Trigger+Damper, Note Number, Aftertouch/Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs + Destinations - Most parameters can be modulated, including parameters of individual Wave Sequence Steps. Depending on Wave Sequence length, there can be more than 1,000 potential modulation targets per Program.
• Effects - Pre FX - Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper Mod FX - Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah Delay - L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo Reverb - Early Reflections, Overb Perfoemance EQ - 4-band parametric EQ
• Inputs/outputs - - Headphone (6.3 mm stereo phone jack) - OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks) - DAMPER (6.3 mm phone jack) - MIDI IN and OUT connectors - USB B port
• Power supply - AC adapter (DC12V, 2500mA)
• Power consumption - 5 W



• Dimensions (W x D x H)483 x 172 x 113 mm / 19.02 x 6.77 x 4.45 inch
• Weight1.7 kg / 3.75 lbs.
• Accessories - AC adapter
