A complete array of auto accompaniment Styles can be accessed with your left hand, giving you the backing of a full band that you control completely.

Play chords, and XE20 will follow your changes in any Style you select. Change variations with a single touch. Add fills wherever you want. Add a melody with your right hand. It’s a completely live and in-the-moment way of performing!

---

Features

• Automatic accompaniments take your performances further
• Perform your favorite songs with the XE20
• Slim design that fits in anywhere
• Powered-up speakers for powerful playback
• A keyboard with the touch of an acoustic piano

---

Specifications

Keyboard: NH (Natural Weighted Hammer Action) Keyboard, 88 key (A0–C8)

Touch Control: Four types, Soft (light), medium (standard), hard (heavier), fixed

Pitch: Transpose, Fine tuning

Sound Generation: Stereo PCM

Maximum Polyphony:

• 184 voices.
• German piano and Italian piano: total maximum 120 voices.
• Other sounds: total maximum 64 vioices.

Sound: Over 705 sounds, 41 drum kits (including GM compatible sound set)

Effects:

• Accompaniment part: 2 stereo digital multi-effects
• Keyboard part: 2 stereo digital multi-effects

Style

• 280 presets
• 2 intro, 4 viriations, 2 Fills, 1 count in/break, 2 endings, syncro start/stop, tap tempo

Music Styles

• Over 64 styles

Demo Songs

• 21 songs

Audio Player

• MP3, WAV（44.1kHz, 16bit）

Sequencer

• Record: Real-time recording (Style mode), maximum of 999 songs (approx. 100,000 notes), 12 tracks (4 keyboard parts + 8 auto accompaniment parts), original format (can convert to SMF0)
• Playback: Supports song play (playing on the keyboard during song playback), SMF (Standard MIDI File)

Set lists

• 10 banks x 4

Metronome

• Tempo, beat, volume

Tempo

• 30–240

Key Transpose

• C (-12) to C (0) to C (+12)

Tuning

• 427.5–452.9 Hz

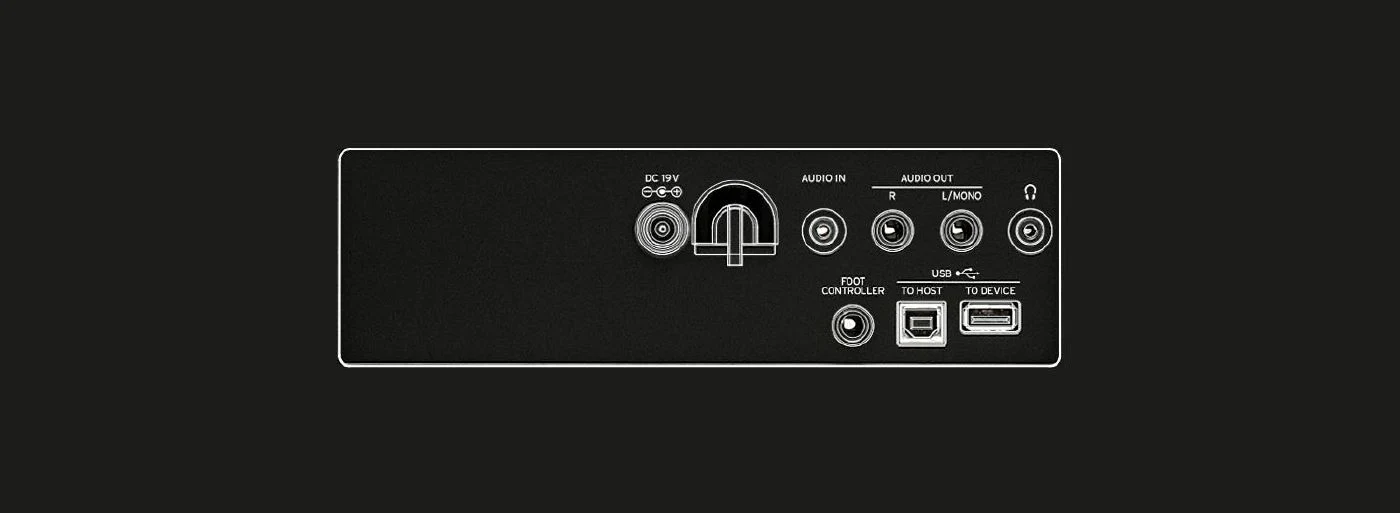

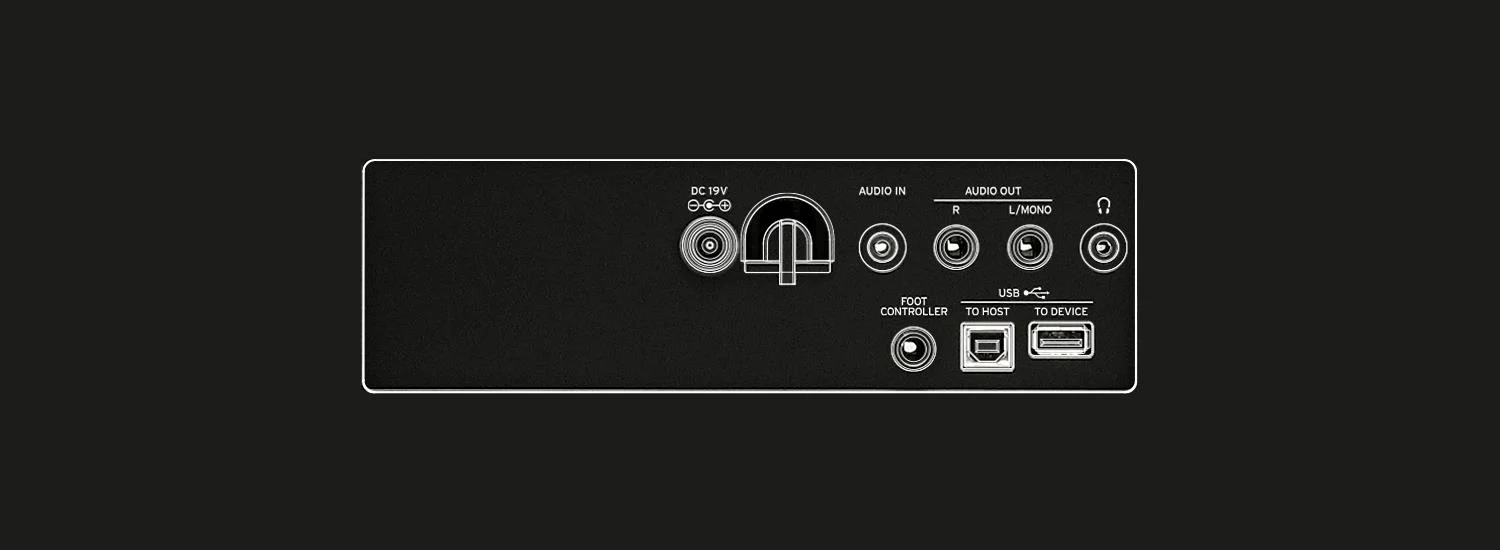

Input/Output

• Foot controller jack : 6.3 mm (1/4″) phone jack
• AUDIO IN jack: 3.5 (1/8″) mm stereo mini-phone jack
• OUTPUT L/MONO, R jack: 6.3 mm (1/4″) phone jack (unbalanced)
• Headphones jack: 3.5 mm (1/8″) stereo mini-phone jack
• USB A port: TO DEVICE port for connecting, USB flash memory and controllers
• USB B port: TO HOST port for connecting personal computers
• PEDAL jack: Damper pedal (included), PU-2 pedal unit (sold separately)

Amplification:

• 18 W × 2

Speakers:

• 57 mm (2.24”) × 126 mm (4.96”)Elliptical speakers × 2 (bass reflex box type)

Speaker:

• EQ8 types

MIDI:

• USB MIDI

Display:

• Custom LCD with backlighting

Power supply:

• AC adapter (included)

Power Consumption:

• 13 W

Dimensions

• (W x D x H)1,312 x 336 x 118 mm/51.65" x 13.23" x 4.65" (not including sheet music stand)
• 1,312 x 336 x 751 mm/51.65" x 13.23" x 29.57" (Height with sheet music stand attached)

Weight:

• 11.4 kg/25.13 lbs.

Included items:

• AC adapter, sheet music stand, damper pedal

Accessories:

• (sold separately)STB1 dedicated stand, PU-2 three pedals unit (*1), DS-1H damper pedal (*2), EXP-2 foot controller, PS-1 pedal switch, PS-3 pedal switch, SC-B1 soft case

*1: The half pedaling and sostenuto only support German piano and Italian piano sounds.
*2: The half pedaling only support German piano and Italian piano sounds.
