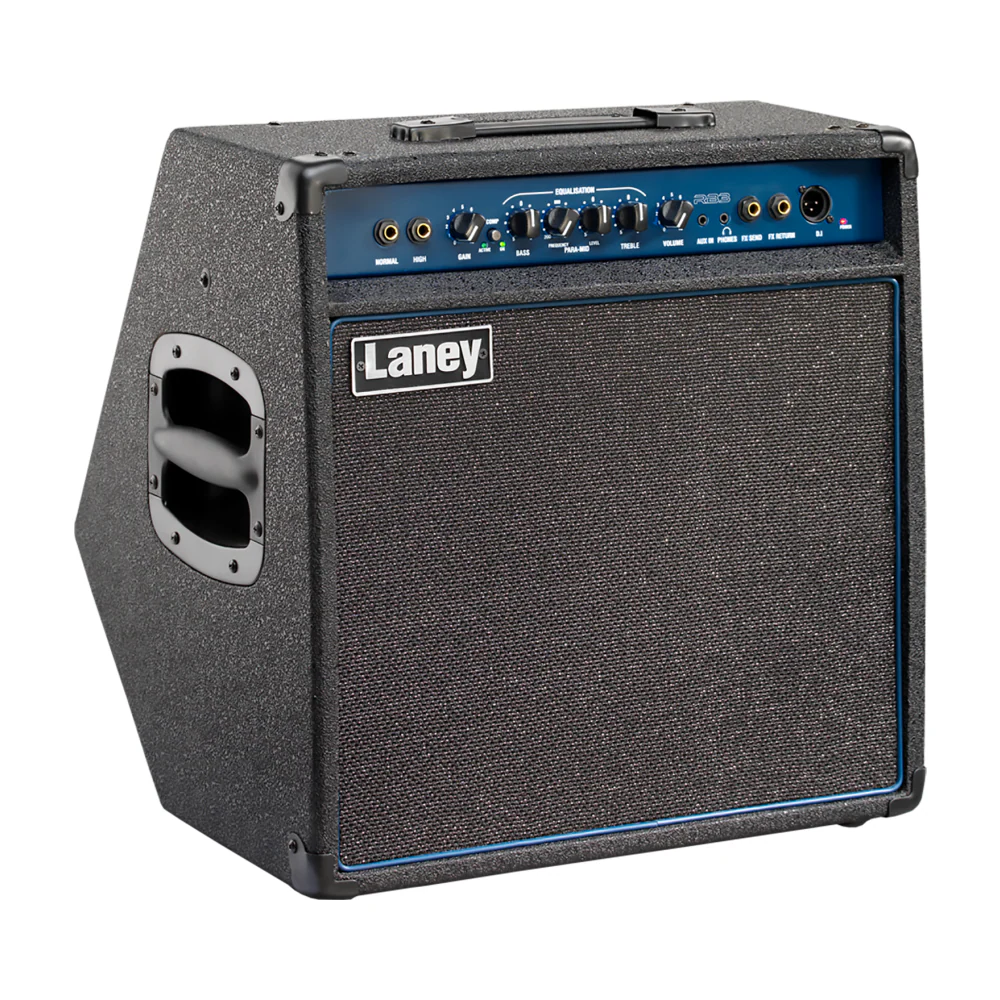

The amplifier can be used in two orientations depending on the requirements. Rather than being used in the conventional upright mode, If the amplifier is to be used up close to the player, then the amplifier can be used in a “kicked back” orientation, meaning that the amps output is directed more towards a player’s ears.

Features

• Mp3/Aux in
• XLR D.I. out - balanced
• 65 Watts RMS
• 1 x 12” custom driver + HF Horn
• Single Channel
• On-board Compressor
• FX Loop
• 3 Band EQ with Parametric mid

Specifications

• Supply Voltage on all models: Factory Preset: ~100V, ~120V, ~220V, ~230V, ~240V 50/60Hz
• Mains Fuse: 100V - (Factory Fit Option) 115V - T3.15A L 220V / 230V - T1.6A L
• Power Consumption: 120W
• Output Power Rating: 60W
• Loudspeaker: 12” Custom Designed Driver
• Features: Normal & High Inputs Switchable compressor Clip Distortion Limiter
• EQ: Bass (±12dB at 65Hz, Shelving) Paramid (±12dB at 200Hz > 2KHz Peaking) Treble (±12dB at 3.5KHz, Shelving)
• D.I.: Balanced XLR
• Aux in: 3.5mm stereo
• Headphones: 3.5mm stereo
• FX Loop: Yes - (0dBu Nominal) (Series-Insert)
• Input Impedance: 1M Ohm/100pF
• Side Handles Yes - Comfortable Contoured Grip
• Item Dimensions: 470mm x 455mm x 380mm (HWD)
• Unit Weight: 16.1Kg
