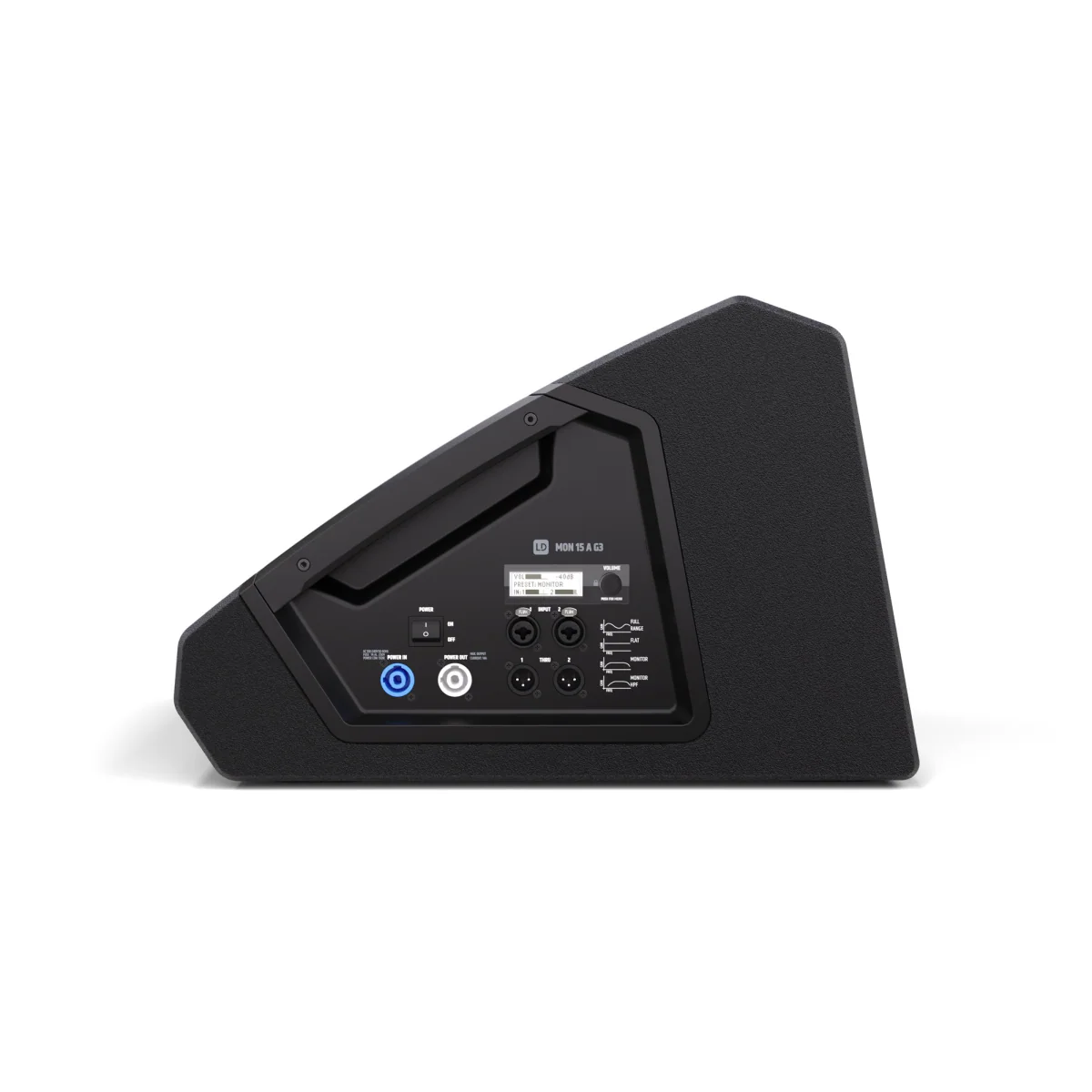

With a maximum sound pressure level of 129 dB and outstanding bass reproduction, the MON 15 A G3 is ideal for loud band stages, as a drum fill or when used standalone as a compact front PA without additional subwoofers. Extremely compact and elegant for a 15" stage monitor, it fits harmoniously into any stage design despite its impressive performance data. Both the signal (XLR/jack combination) and the power connection (PowerCON compatible) can be looped through. This allows for elegant and tidy cable routing in case of multi-monitor setups or distributed sound reinforcement.

Features

• Compact high-performance stage monitor with top-of-the-range technologies
• Class-D power amplifier with 300 W RMS/1200 W peak and 129 dB max. SPL
• Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
• 15" woofer with 3" voice coil
• Optimised, practical radiation pattern due to 50° x 90° CD horn
• DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
• 3-band EQ, Notch filter, 4 application presets and delay function
• PowerCON compatible loop-through professional power connection
• 35 mm speaker stand flange for FOH applications
• Durable Polyurea coating and heavy-duty front grille

Specifications

General Product type: Stage monitors Type: Powered Colour: Black System output (RMS): 300 W System output (Peak): 1200 W Max. SPL Average (Sine burst): 122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD) Max. SPL Peak (Sine burst): 129 dB (fullspace @1m, 10% THD) Frequency response (-3 dB): 58 - 18000 Hz Frequency response (-10 dB): 48 - 20000 Hz Crossover frequency: 1300 Hz Monitor angle: 33° Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter Dispersion (H x V): 50° x 90° Product Dimensions and Weight: Width: 505 mm Depth: 517 mm Height: 340 mm Weight: 23,15 kg Low/mid woofer Low/mid Woofer dimensions: 15 " Woofer dimensions (mm): 381 mm Woofer magnet: Ferrite Woofer brand: Custom-made Woofer type: Coaxial loudspeaker Woofer voice coil (inch): 3 " Woofer voice coil (mm): 75 mm Cabinet construction: Bass Reflex Cabinet material: 15 mm Birch Plywood, 15 mm MDF HF Horn: CD Horn Tweeter dimensions: 1 " Tweeter dimensions (mm): 25.4 mm Tweeter magnet: Ferrite Tweeter brand: Custom-made Tweeter voice coil: 1.75 " Tweeter voice coil (mm): 44.45 mm Amplifier module (integrated) Amplifier: Class D Protection circuits: Multiband limiter, over voltage, over-current, thermal overload Operating Temperature: 0 - 40 °C Humidity Range: < 80 % ( non-condensing ) Fuse: T4AL 250 V Controls: On / off switch, Rotary/push encoder Indicators: LC display Power supply: SMPS Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz Power consumption: 150 W Power in / out: PowerCON compatible Line inputs: 2 Line input connectors: 6.3 mm jack, XLR - combo Line thru: 2 Line through connector: XLR
