Installed vertically, this speaker makes for a impressive satellite, or as a floor monitor when used horizontally. The ICOA 12 makes is also a fantastic solution for fixed installations thanks to it's freedom of versatility. With a max. SPL of 123dB, and 1000W peak performance, this speaker has all the power you need.

Features

• A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
• Passive loudspeaker with 123dB max. SPL and 1000W peak power
• Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
• Horn-loaded woofer
• 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
• 6 x M10 flying points
• Shock-resistant front grille for optimal speaker protection
• Four aluminum grips with ergonomic, rubber surface

The outstanding bass reproduction of the horn-loaded woofer makes the ICOA 12 a perfect solution for dance schools, musicians, bands, and entertainers, and allows DJs to perform without requiring an external subwoofer.

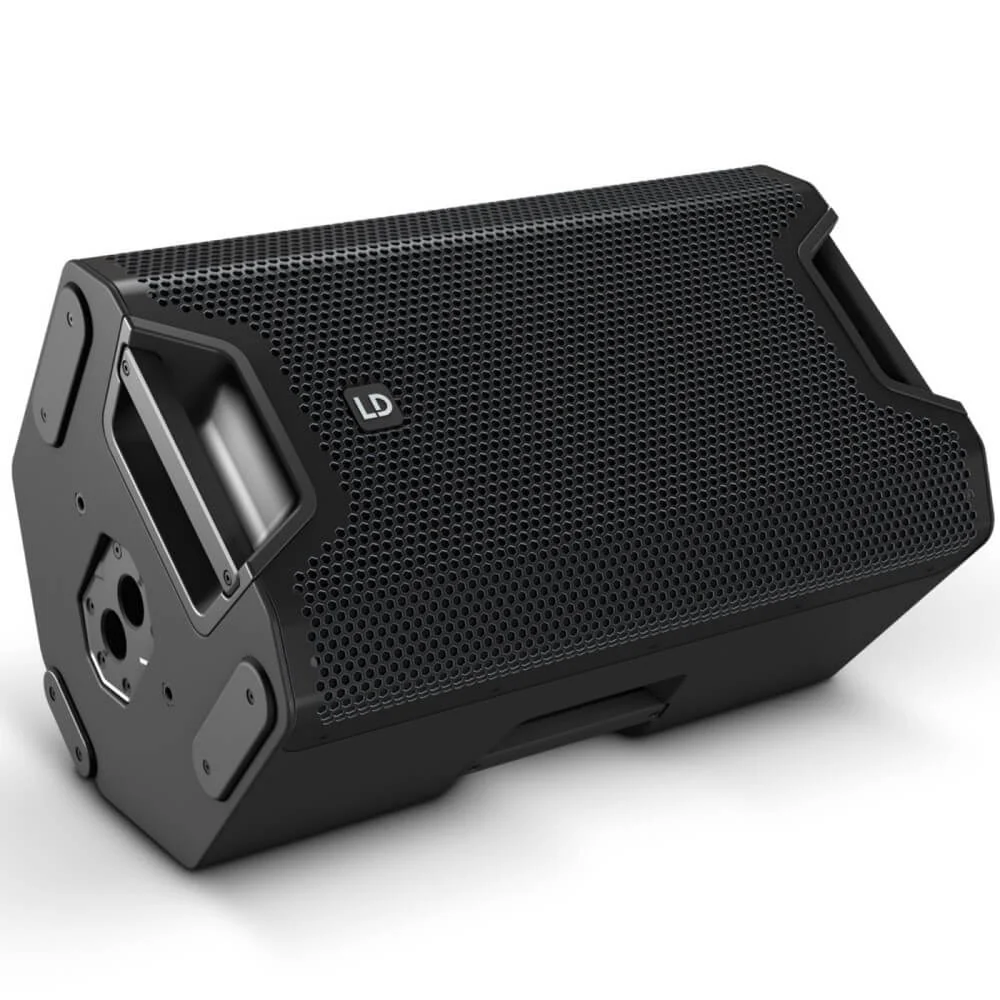

With a shock-resistant front grille and perfectly designed 55° tilt angle, this loudspeaker is the ultimate floor monitor. Positioned vertically, the 36mm dual tilt stand attachment gives you the option of a 0° or 5° tilt angle for perfect integration of the system into the local acoustic environment. Finally, you can transport your ICOA 12 safely and securely with the inclusion of four aluminum handles with an ergonomic rubber surface, giving you secure grip when setting up or packing down.

Specifications

• Type: Passive
• Woofer
  • Woofer: Custom-Made 12"
  • Woofer Magnet: Ferrite
• HF Driver
  • Horn: Custom-Made BEM Optimized CD Horn 1"
  • HF Driver Magnet: Ferrite
  • HF Driver Voice Coil: 1.4"
• Dispersion: 90° x 50°
• Load Rating (RMS): 250W
• Peak Power: 1000W
• Frequency Response: 55Hz - 20kHz
• Crossover Frequency: 2000Hz
• SPL (1W/1m): 93dB
• Max. SPL: 123dB
• Impedance: 8Ω
• Loudspeaker Inputs: 1

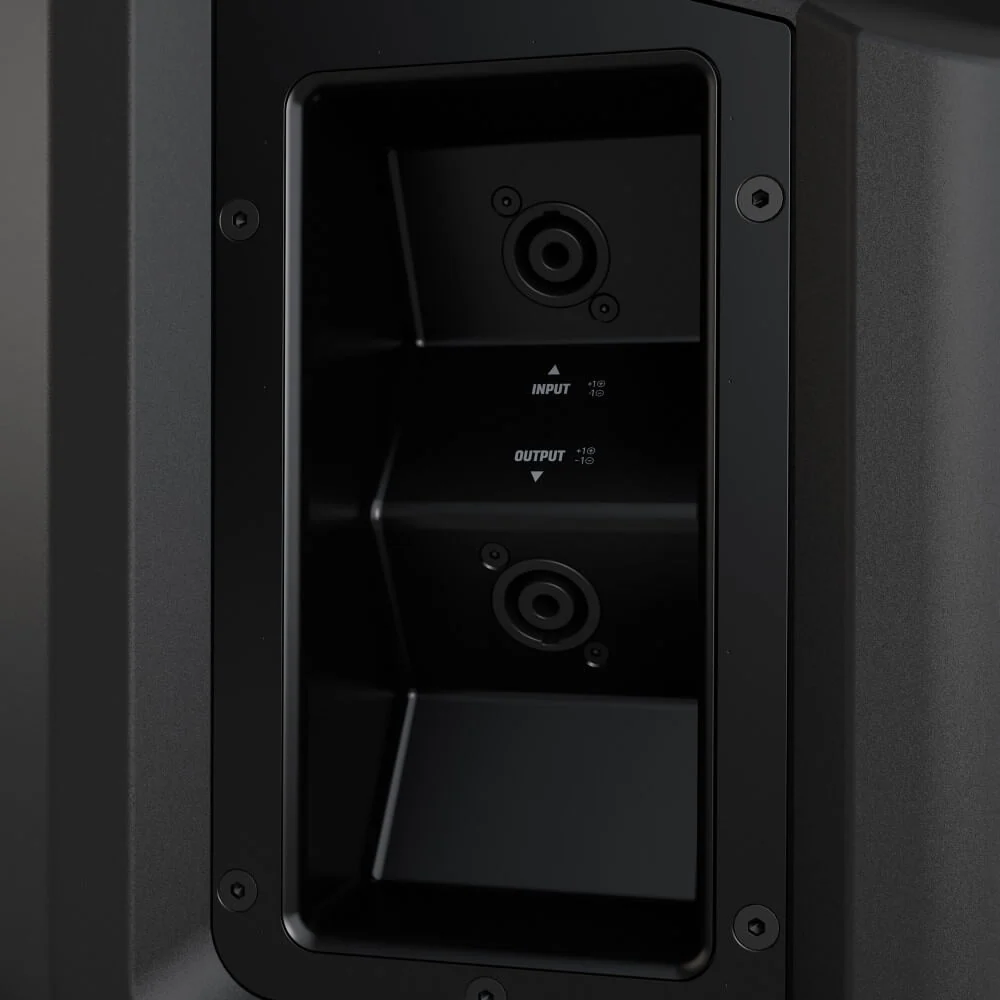

• Speaker In/Out Connections: Speakon Compatible
• Cabinet Material: Polypropylne
• Cabinet Construction: Bass Reflex
• Mounting: 36mm Flange (0°, 5°), 6x M10 Flying Points
• Monitor Angle: 55°
• Dimensions
  • 375mm (W) x 635mm (H) x 396mm (D)
  • 19.8kg
