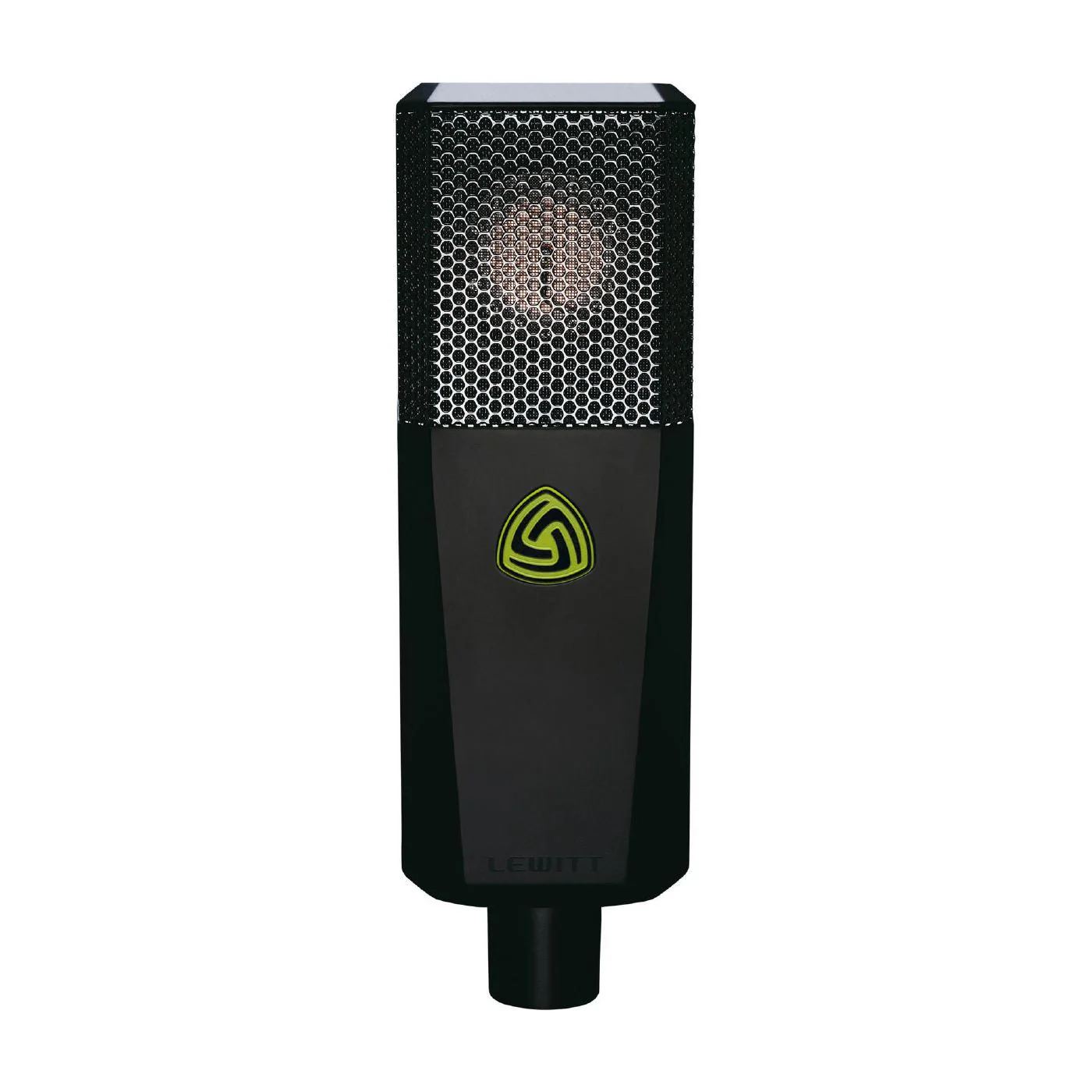

The dual triode 12AX7 tube delivers comforting sound with smooth high frequencies, while still preserving the ability to cut through the mix.

Low self-noise and high dynamic range exemplify how the LCT 840 is classic design brought into the present.

The externally polarized dual-diaphragm 1″ capsule captures every nuance of your performance thanks to its 3-micron-thin, gold-layered, low-mass diaphragms. It handles everything from vocals to full orchestras.

Warmth and precision in all situations. The LCT 840 is fully devoted to warm tube sound. We use a dual triode 12AX7 tube to create that warm and comforting sound with smooth high frequencies while still preserving the ability to cut through the mix.

---

Features

• 1" multi-pattern tube microphone
• Full-bodied tube sound with smooth high-end
• Classic tube sound with modern technology
• 12AX7 tube
• Remote control and power supply in one
• Multi-pattern design

---

Specifications

• Type: Condenser, externally polarized
• Acoustical operating principle: Pressure gradient transducer
• Transducer Ø: 25.4 mm, 1 in
• Polar pattern: Omni, wide cardioid, cardioid, supercardioid, figure-8
• Frequency range: 20 ... 20,000 Hz
• Sensitivity:

  • 23 mV/Pa, -33 dBV/Pa (cardioid)
  • 20 mV/Pa, -34 dBV/Pa (omni)
  • 23 mV/Pa, -33 dBV/Pa (figure-8)
• Equivalent noise level: 9 dB (A)
• Max. SPL for 0.5 % THD: 139 dBSPL, 0 dB pre-attenuation
• Signal / noise ratio: 85 dB (A)
• Dynamic range: 130 dB (A)
• Pre-attenuation pad:

  • 0 dB
  • -10 dB
  • -20 dB
• Low-cut filter:

  • linear
  • 40 Hz (12 dB/oct)
  • 300 Hz (6 dB/oct)
• Internal impedance: 200 Ω
• Rated load impedance: 1,000 Ω
• PSU - supply voltage

  • 230 V, 50 Hz
  • 110 V, 60 Hz
• Current consumption: 170 mA
• Connector: Gold plated 11-pin XLR
• Microphone dimensions: 192 x 60 x 46 mm, 7.5 x 2.4 x 1.8 in
• Microphone net weight: 662 g, 23.3 oz
