Features

STAND OUT ON STAGE
There are two master volume functions so you can bring your solo to the forefront.

CHOOSE YOUR TONE
Using the individual reverb for the two footswitchable gain channels, FX loop and tone shift controls you can experiment with your style.

MIDI COMPATIBILITY
For those more demanding players, the amps features can be controlled using any MIDI equipment, so you can play this amp and different MIDI equipment at any one time.

---

Specifications

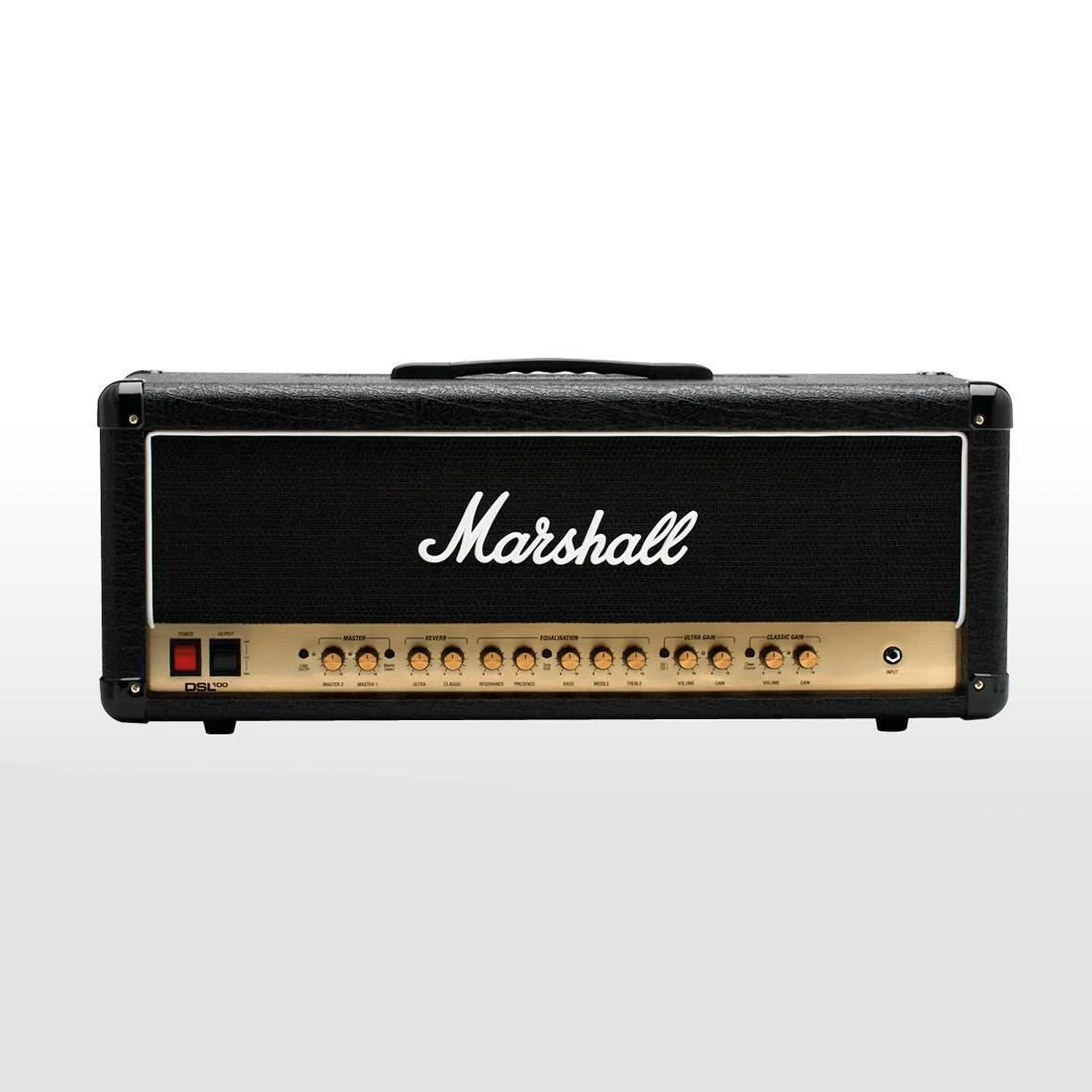

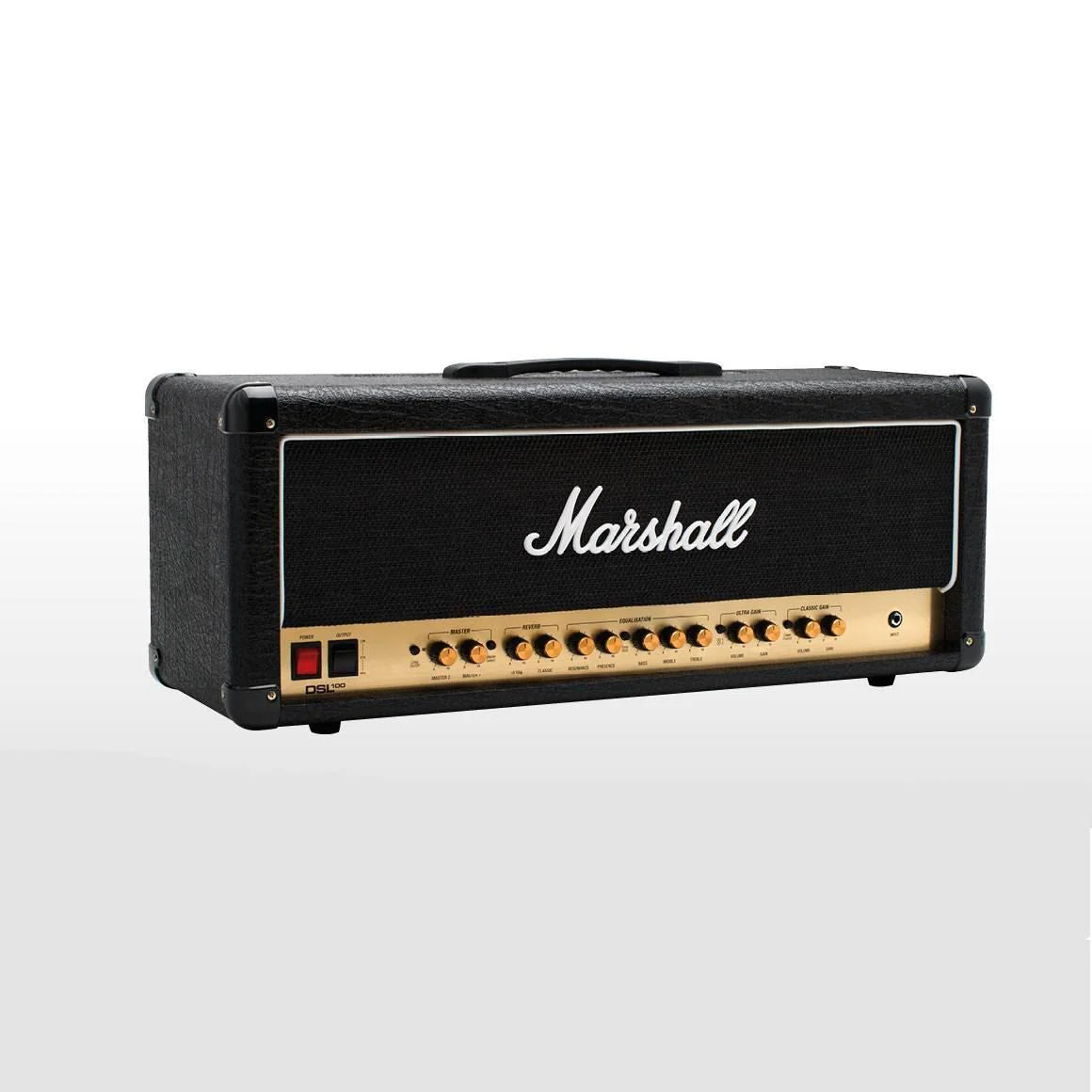

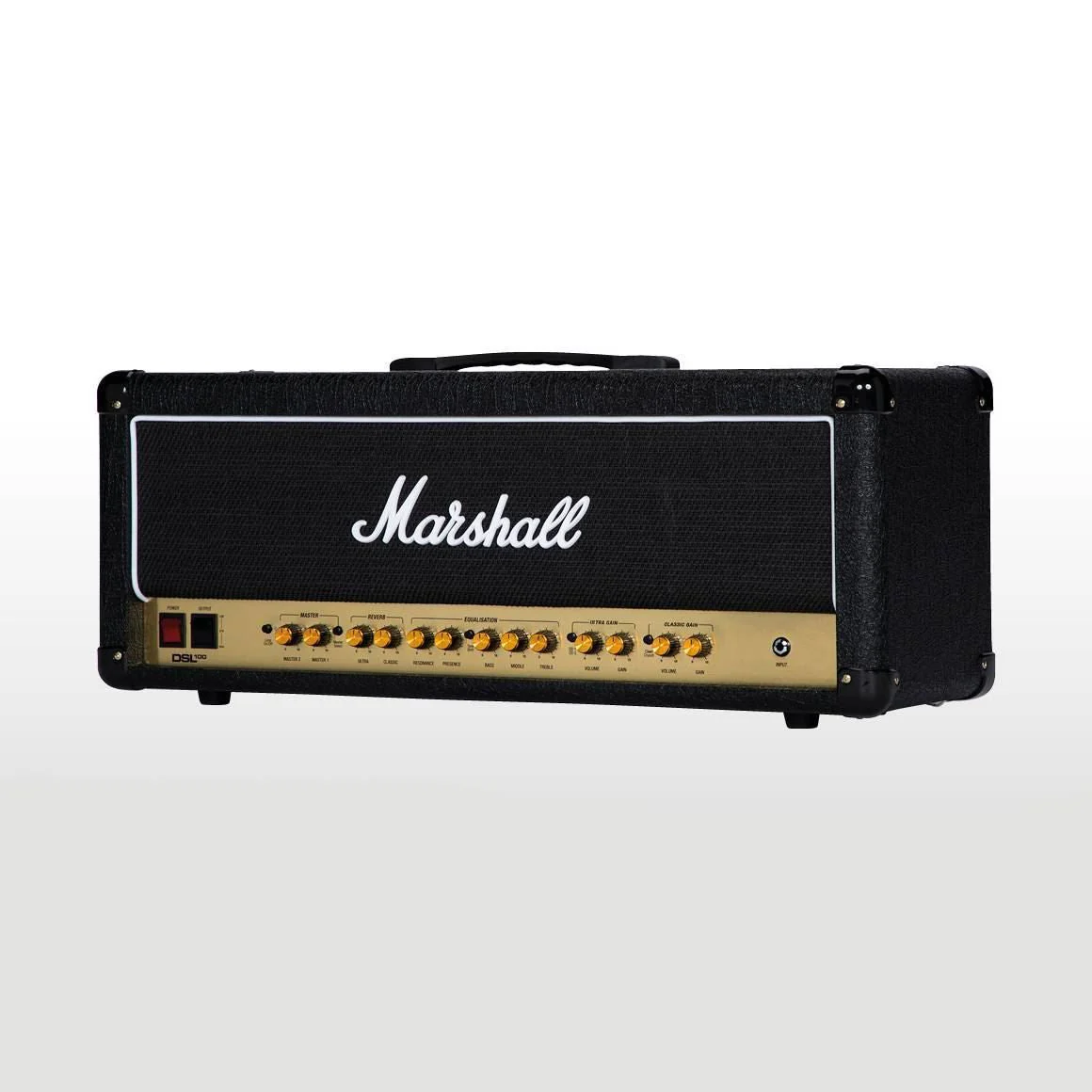

• Model: DSL100H
• Range: DSL
• Technology: Valve
• Channels: 2 (Split) "Ultra gain" and "classic gain"
• Output wattage: 100W (with power reduction option to 50W)
• Outputs: Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4" jack emulated line out
• Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, MIDI in, footswitch
• Controls: Loop on/off switch, master volume II, master volume I, master select switch, reverb (ultra gain channel), reverb (classic gain channel), resonance, presence, tone shift switch, bass, middle, treble, ultra gain channel (OD1/2 switch, volume, gain), classic gain channel (clean/crunch switch, volume, gain), low power option (on rear)
• Effects: Digital reverb
• Effects loop: Yes, series, send/return
• Preamp valves: 4 x ECC83
• Power amp valves: 4 x EL34
• Footswitch: PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 - Clean (classic green) 2 - Crunch (classic red) 3 - OD1 (ultra green) 4 - OD2 (ultra red) 5 - Master 1/Master 2 (toggle) 6 - FX Loop on/off
• Cable: Detachable power cable included
• Dust cover: M-COVR-00115 (sold separately)
• Weight: 24.2 kg / 53 lbs
• Width: 740 mm / 29.1"
• Height: 274 mm / 10.8"
• Depth: 242 mm / 9.5"

---
