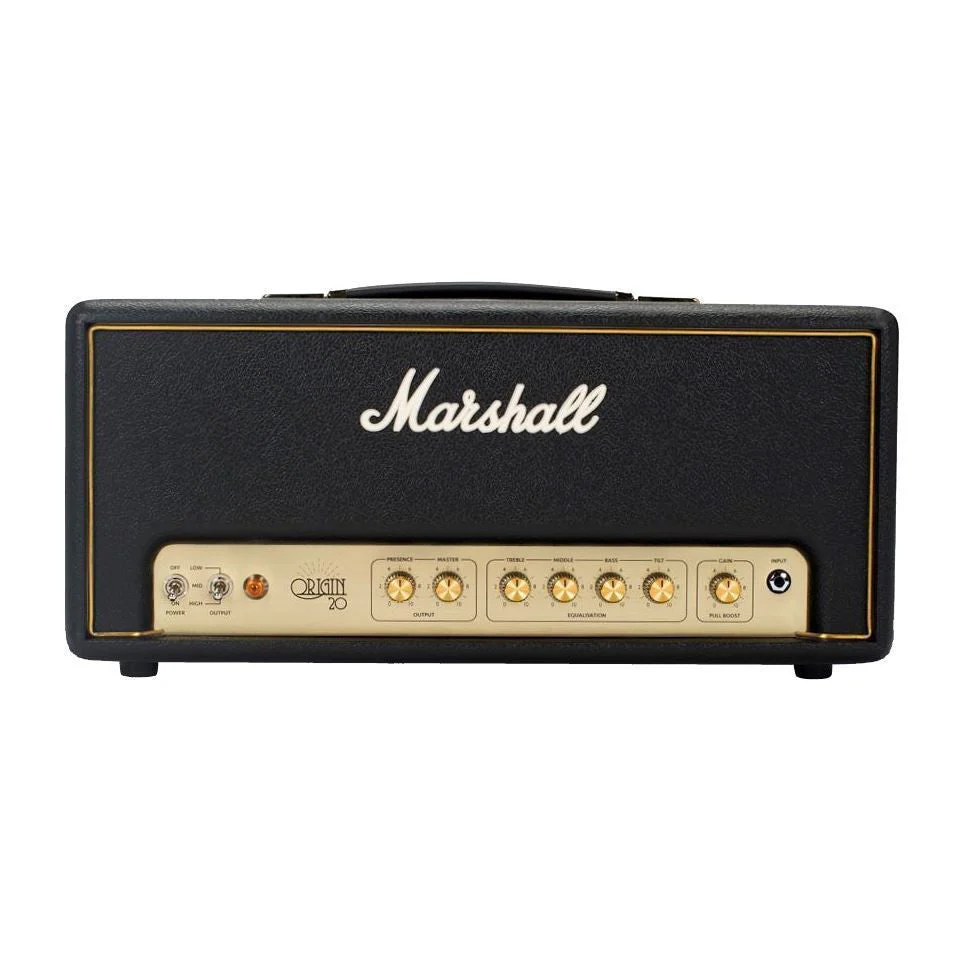

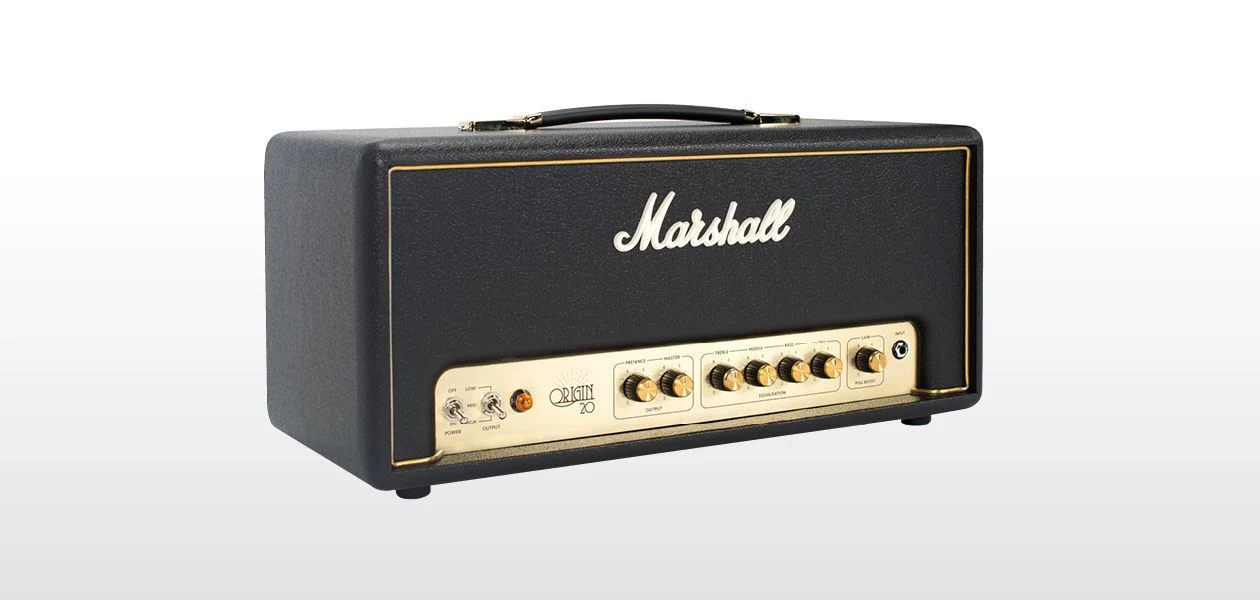

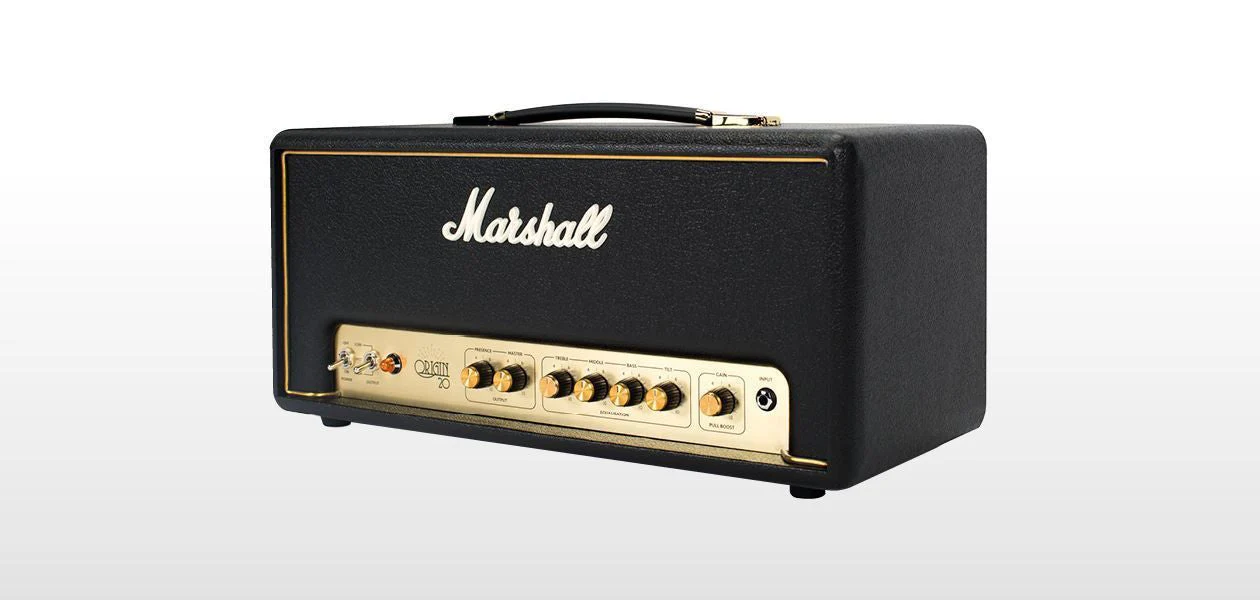

Marshall Origin20H Guitar Amp Head - 20 Watts
There is also a 2-way footswitch available so you can control the gain boost feature and turn the FX loop on and off.
WATCH: Origin Series | Official Demo | Marshall
FEATURES
ADD A LITTLE BOOST: The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.
YOU HAVE THE POWER: To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, PowerstemTM, allows you to have high, medium or low power modes.
TILT YOUR SOUND: With one channel, this amp still offers a variety of tones. By using the tilt control you can vary your sound from normal to high treble to access the one you prefer.
CONTROL YOUR TONE: Increasing the master volume can give you that classic overdrive sound and using the presence control you can increase the high frequency.
TECHNICAL SPECIFICATIONS
GENERAL
Model: Origin20H
Range: Origin
Technology: Valve
Channels: 1
ELECTRONICS
Output wattage: High power 20W, mid power approx 3W and low power approx 0.5W
Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out (1/4" jack)
Inputs: 1 x 1/4" jack instrument input, footswitch
Controls: Gain, boost, tilt, bass, middle, treble, master, presence, powerstem
Effects: None
Effects loop: Yes, Series, Send/Return
VALVES
Preamp valves: 3 x ECC83
Power amp valves: 2 x EL34
ACCESSORIES
Footswitch: PEDL-90016 included
