Features

HANDCRAFTED IN THE UK
Capturing the classic Marshall spirit with an iconic British built valve amp.

TAME THE UNTAMEABLE
Everything you expect from the 1959SLP now available with power reduction technology, letting you shift through the gears from 20W to 5W.

CLASSIC SOUND CAPTURED
Accurately recreating the iconic sound heard on thousands of influential tracks from across the years.

ICONIC STYLINGS
A sonic essential lovingly recreated for today’s player, the SV20H the truly mirrors the 1959SLP.

---

Specifications

GENERAL

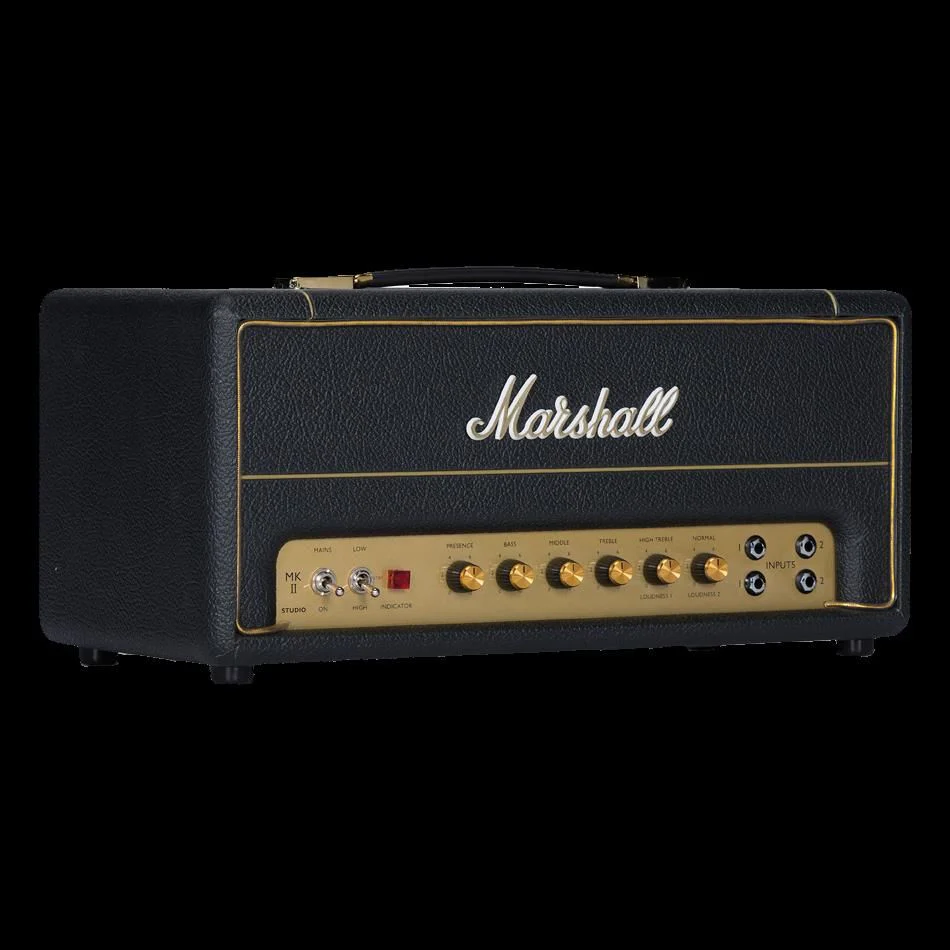

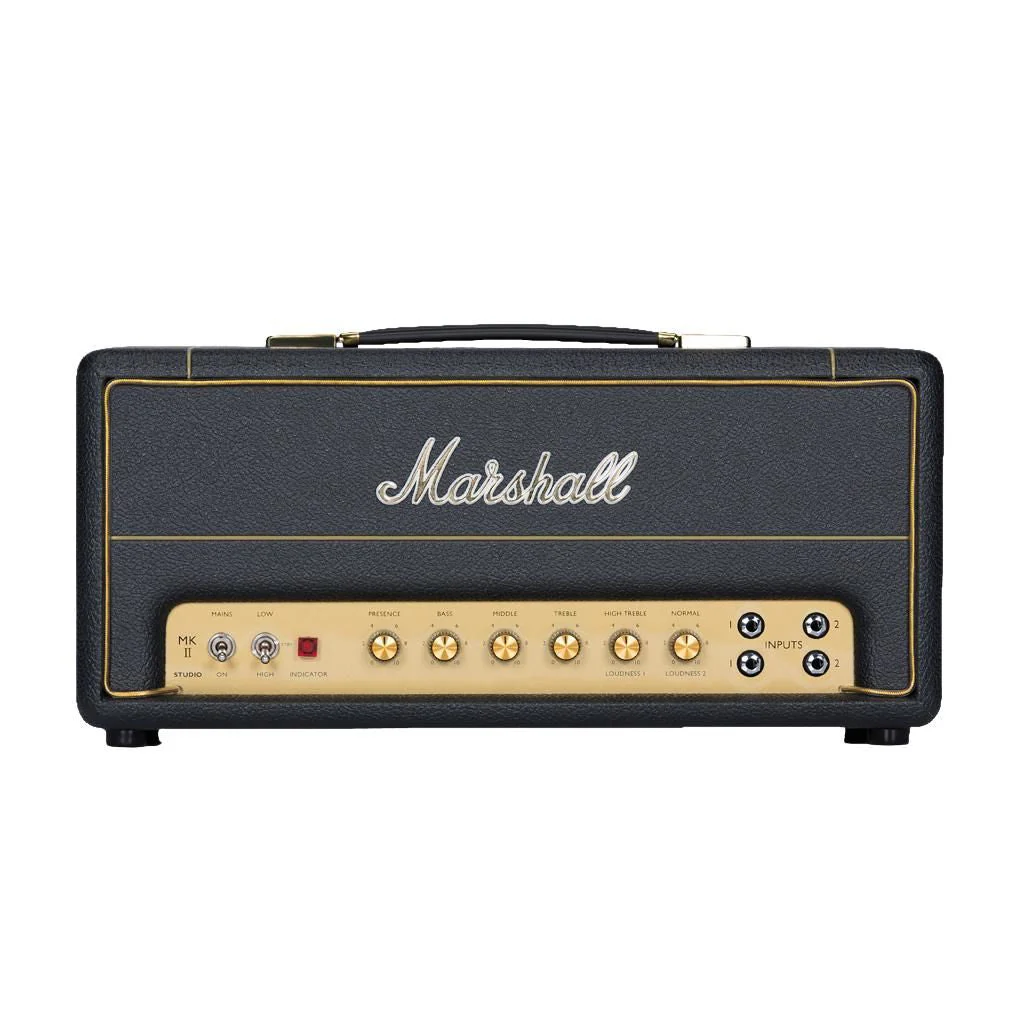

• Model: SV20H
• Range: Studio

ELECTRONICS

• Output wattage: 20W (with power reduction option to 5W)

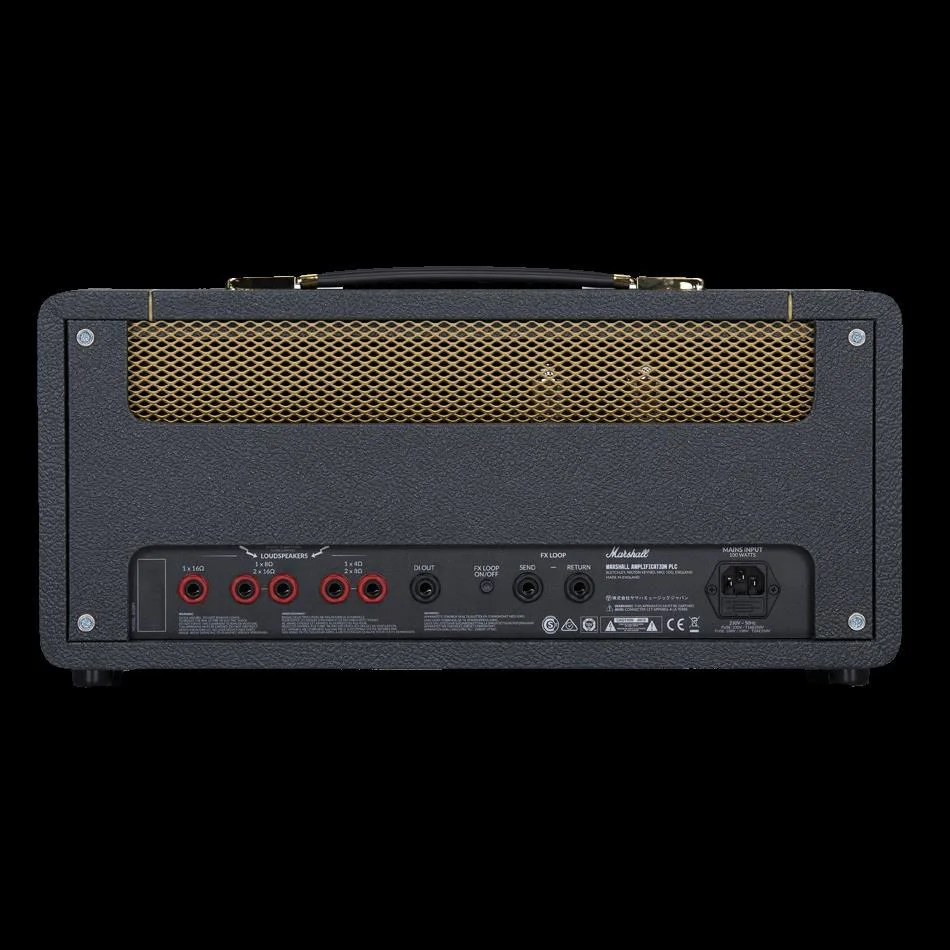

• Outputs: 5 x 1/4” jack sockets, selectable 16Ω / 8Ω / 4Ω load
• Inputs: 4 (2 x high, 2 x low) "Lead and Bass"
• Controls: Low/High power mode selection switch, presence, bass, middle, treble, high treble/loudness I, normal/loudness II
• Effects: None
• Effects loop: Yes, series, send/return

VALVES

• Preamp valves: 2 x ECC83, 1 x ECC83 (phase splitter)
• Power amp valves: 2 x EL34

ACCESSORIES

• Cable: Detachable power cable included, speaker cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

• Weight: 9.25kg / 20.4 lbs
• Width: 500mm / 19.7"
• Height: 240mm / 9.4"
• Depth: 230mm / 9.1"

---

WATCH: Studio Vintage | Official Demo | Marshall
